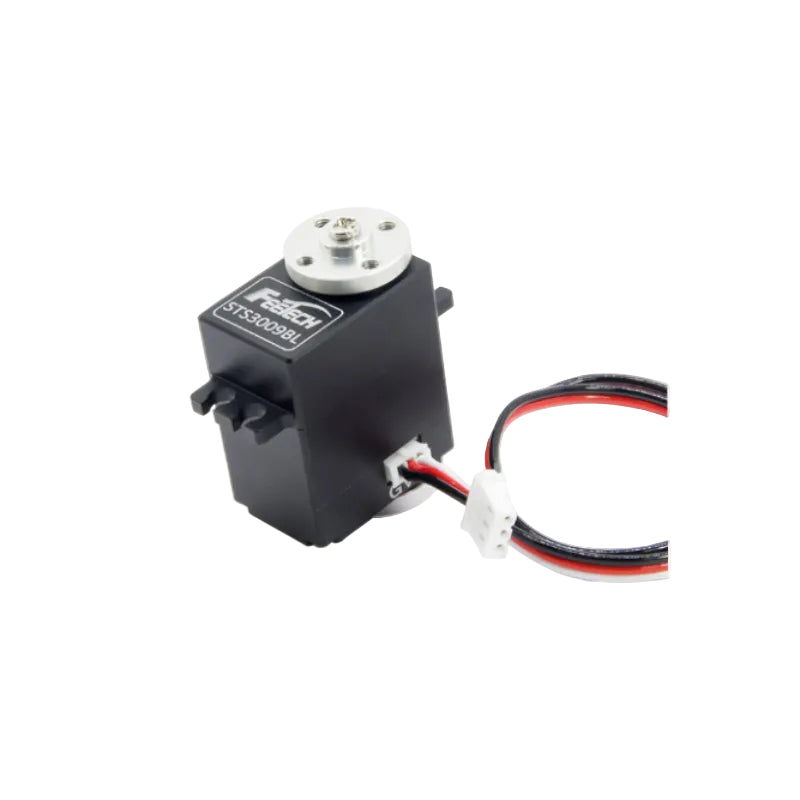

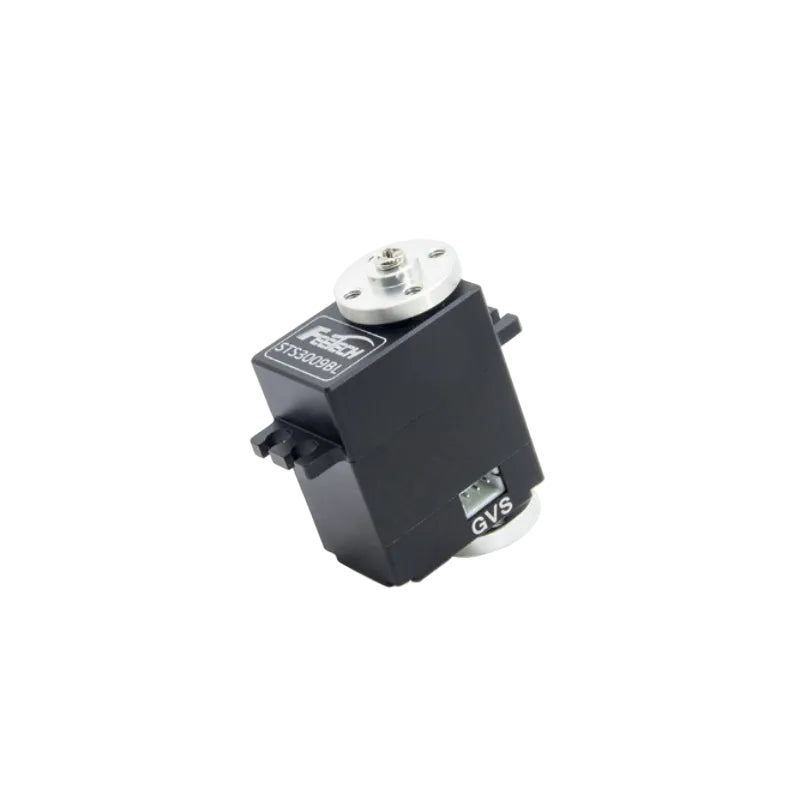

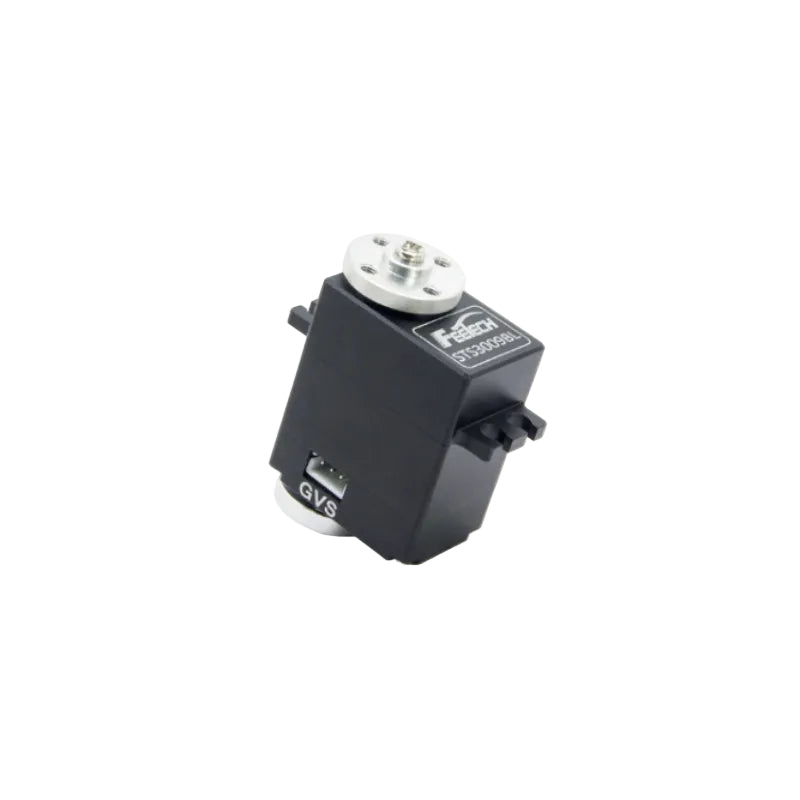

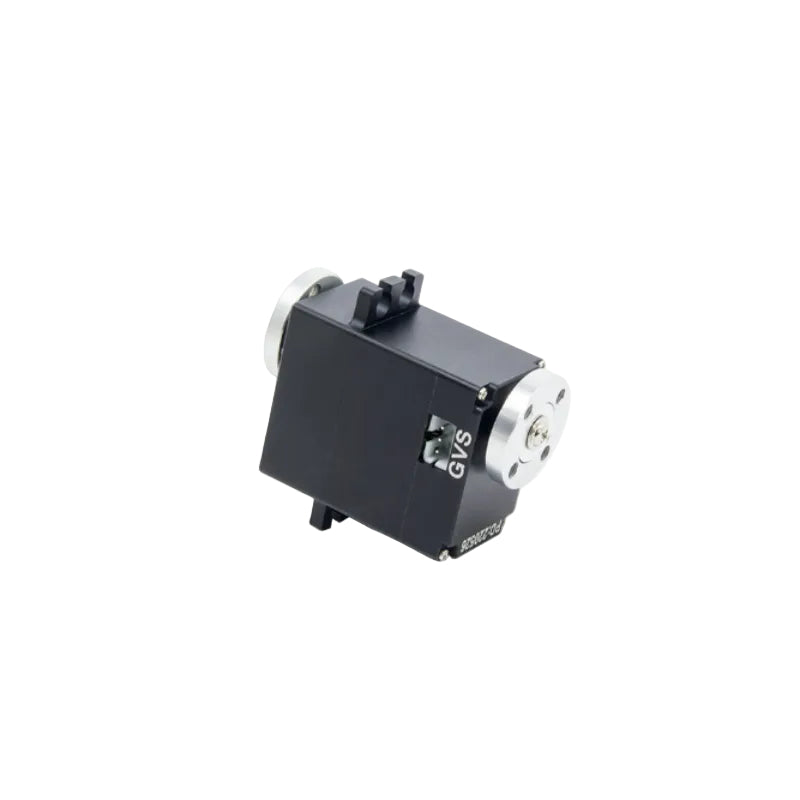

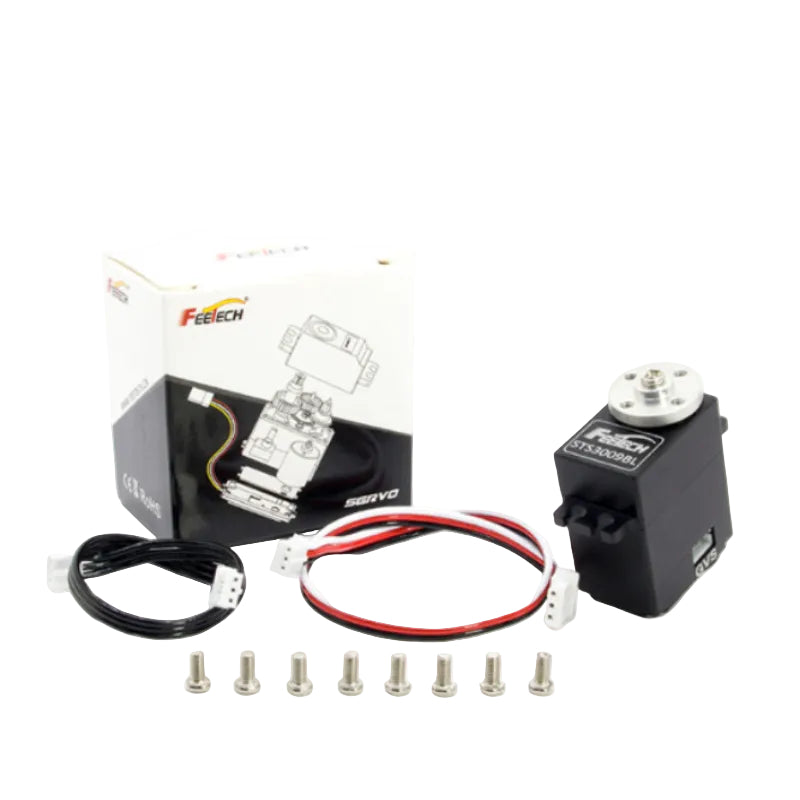

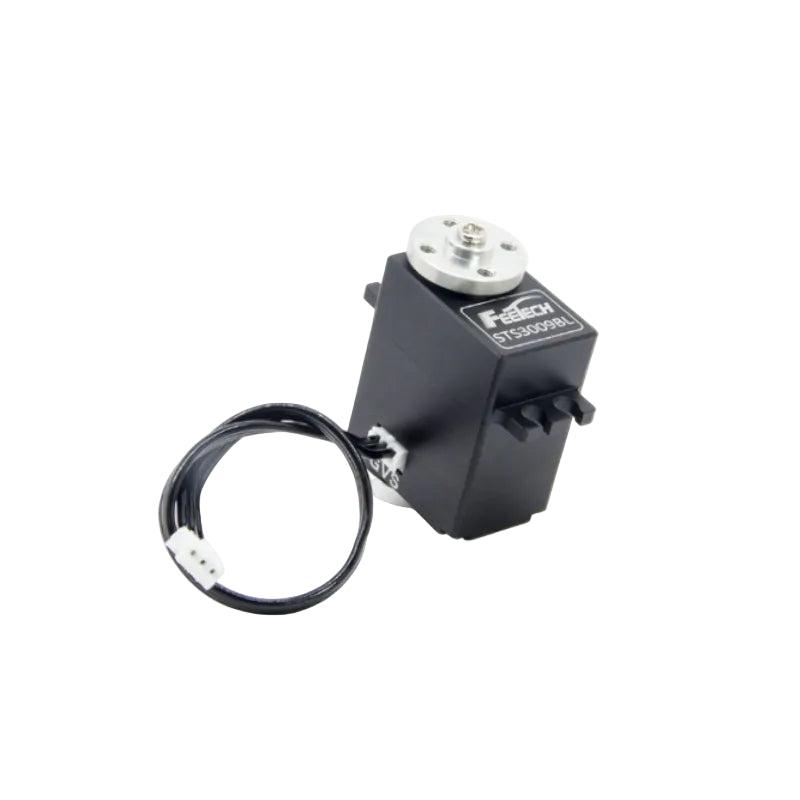

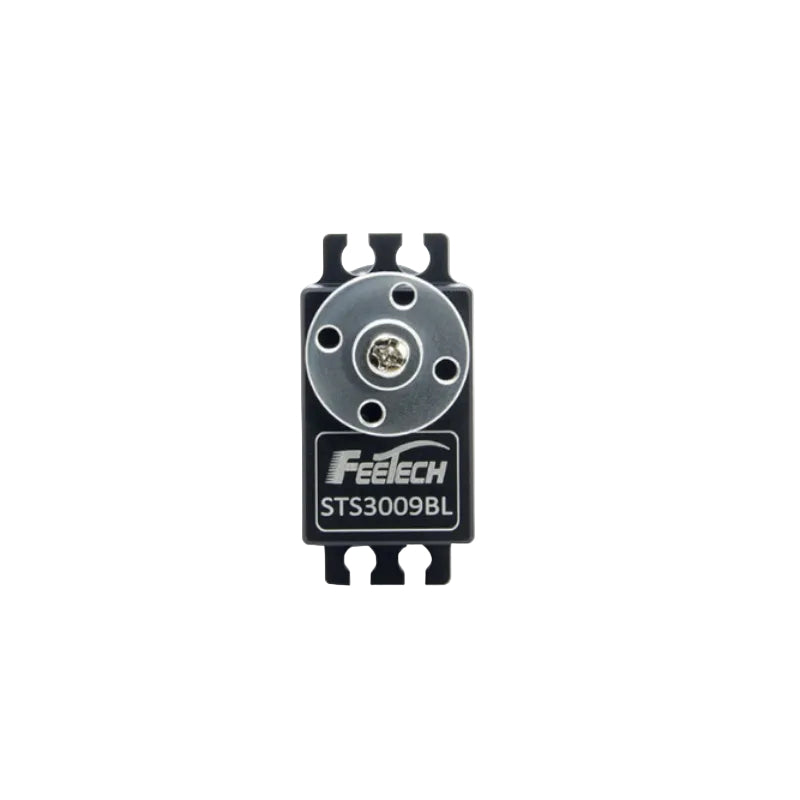

FEETECH STS3009 Servo Motor
FEETECH STS3009 Servo Motor
The ST-3009-C001 is a 7.4V 11.5KG magnetic encoder double shaft TTL servo designed with an aluminium case, metal gears, ball bearings, and a brushless motor. It features a 25T/OD5.9mm horn gear spline and a 0° rocker phantom with no mechanical limit. With physical dimensions of 20mm x 30mm x 36.5mm and a weight of 45±1g, it operates within a 4.8-8.4V voltage range. At 7.4V, it delivers a peak stall torque of 11.5kg.cm, a rated torque of 3.8kg.cm, a no-load speed of 0.1sec/60° (100RPM), and a stall current of 2.8A. Utilizing digital packets for command signals, the servo communicates via half duplex asynchronous serial communication across an ID range of 0-253, featuring a factory default speed of 1Mbps (adjustable from 38400bps to 1Mbps). It supports a continuous 360° running degree (0~4096 steps) and provides real-time telemetry feedback for load, position, speed, input voltage, current, and temperature.
| PRODUCT PARAMETERS | |
| Model | ST-3009-C001 |
| Product Name | 7.4V 11.5KG Magnetic Encoder Double Shaft TTL Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ |
| Size | A：20mm B：30mm C：36.5mm |
| Weight | 45± 1g |
| Gear type | Metal Gear |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/OD5.9mm |
| The rocker phantom | 0° |
| Case | Aluminium |
| Connector wire | 15CM |
| Motor | Brushless Motor |
| Operating Voltage Range | 4.8-8.4V |
| No load speed | 0.1sec/60°（100RPM）@7.4V |
| Runnig current(at no load) | 390mA@7.4V |
| Peak stall torque | 11.5kg.cm@7.4V |
| Rated torque | 3.8kg.cm@7.4V |
| Stall current | 2.8A@7.4V |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | (38400bps ~ 1 Mbps) |
| Running degree | 360° (when 0~4096) |
| Feedback | Load , Position ,Speed , Input Voltage ,Temperature |
