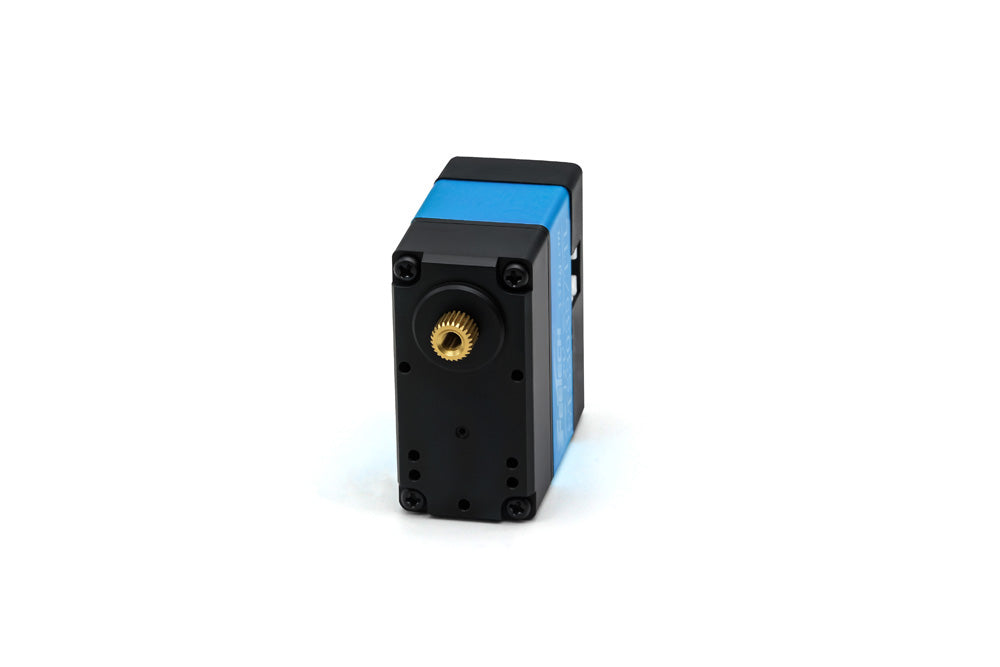

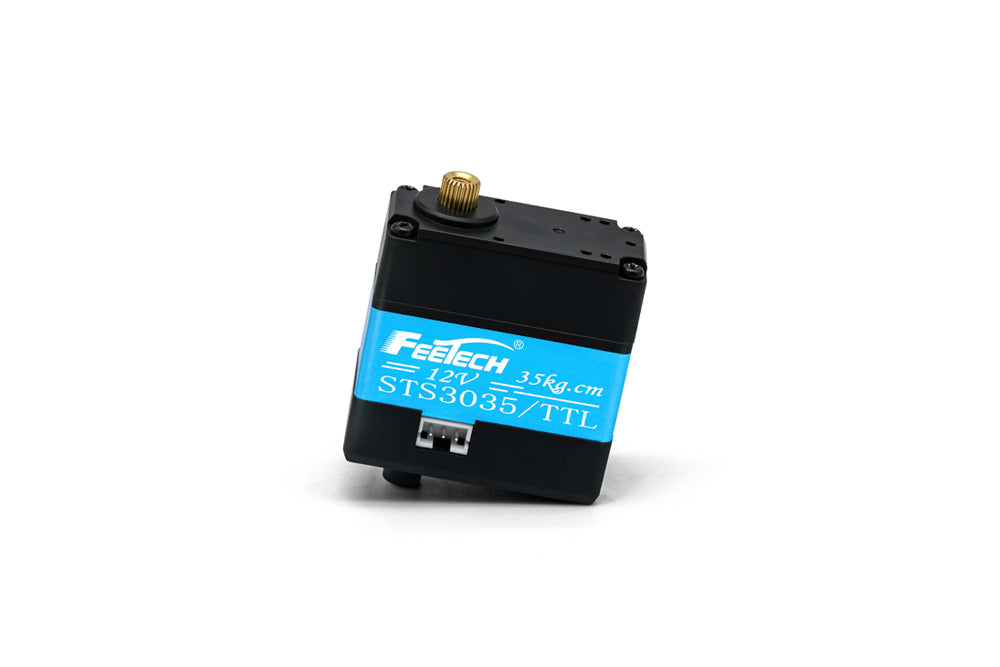

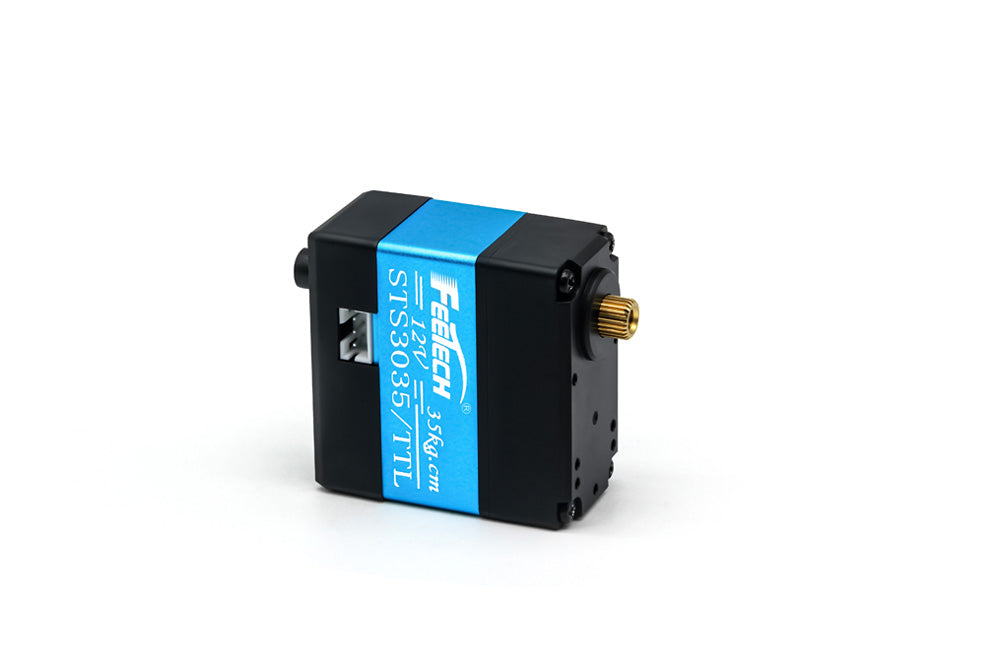

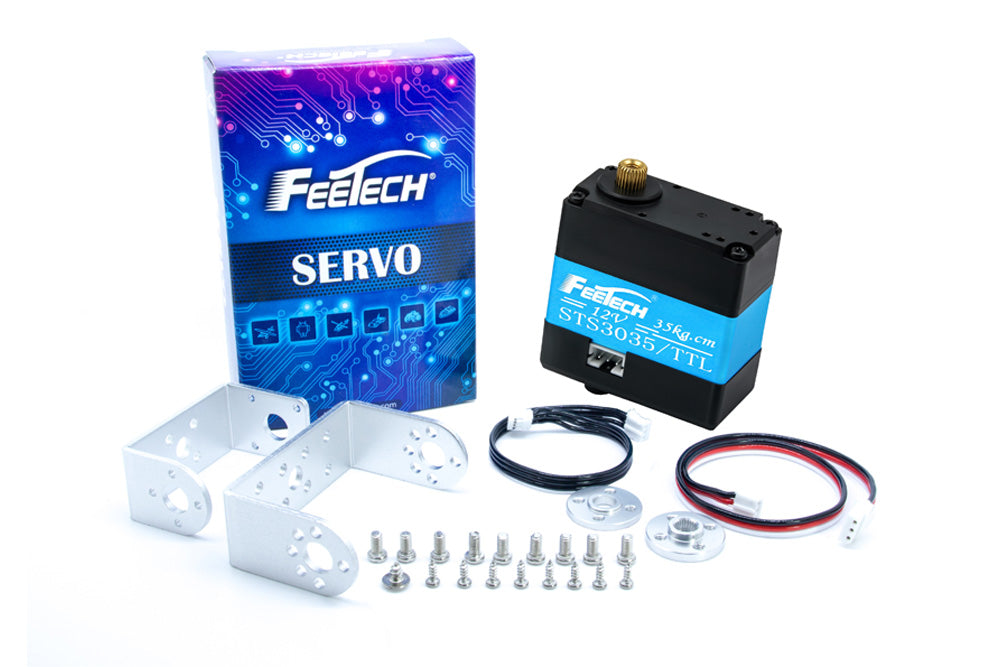

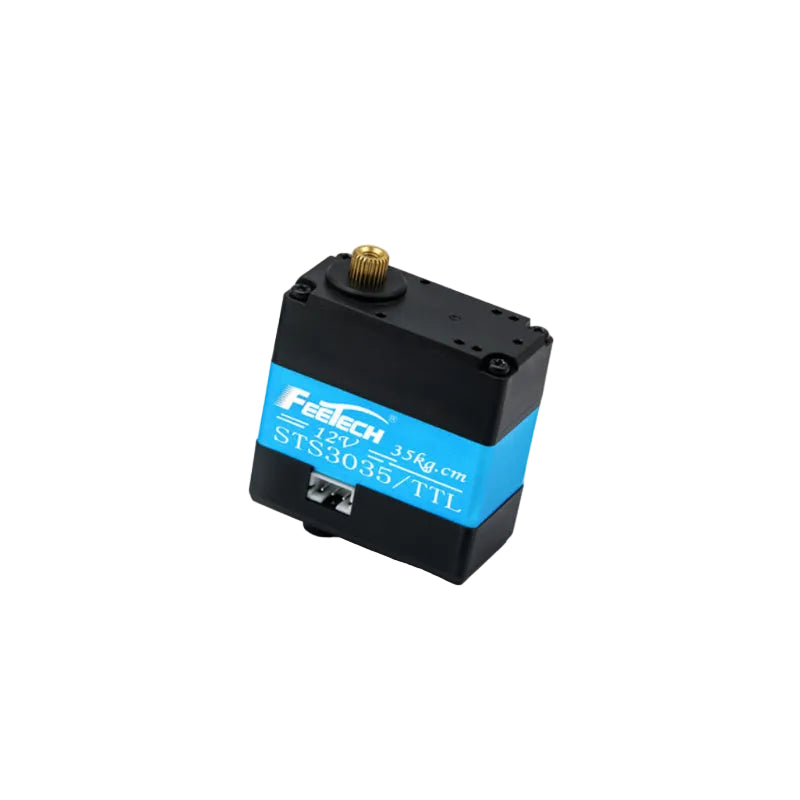

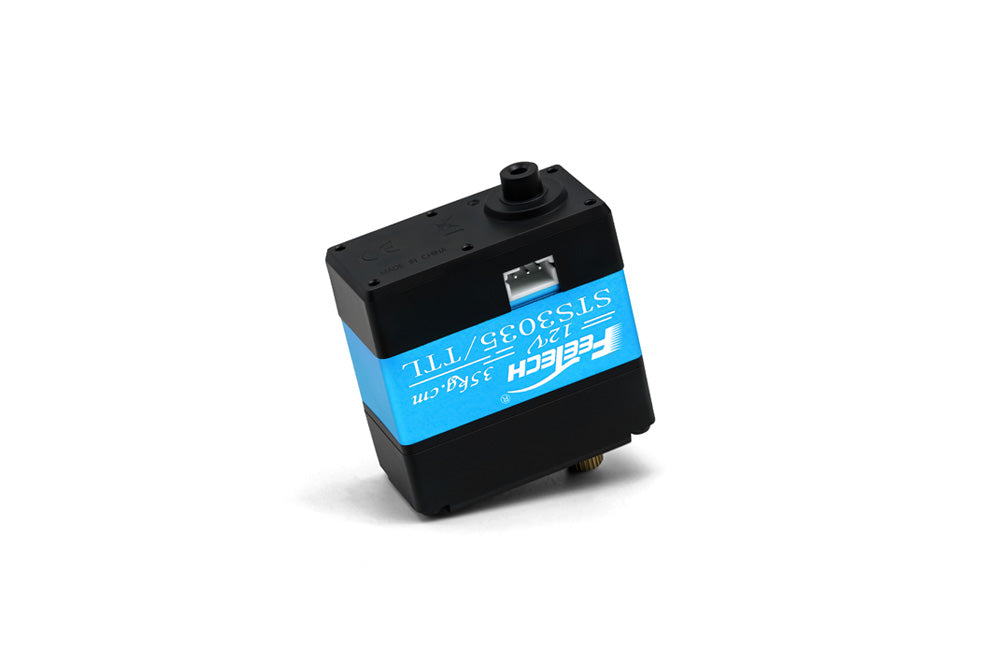

FEETECH ST3035 Servo Motor
The Feetech ST-3035-C001 is a high-torque 12V 35kg serial bus smart servo engineered for industrial equipment, advanced robotics, and heavy-duty transmission applications. Featuring a specialized middle aluminum alloy case, a reliable core motor, and a rugged metal gearbox, it integrates Feetech’s proprietary TTL control board with a 12-bit high-precision magnetic coding sensor. Delivering a powerful 35kg.cm stall torque, this intelligent servo provides exceptional positioning precision and robust mechanical performance. With comprehensive real-time telemetry feedback—including position, speed, voltage, current, temperature, and load parameters—the ST-3035-C001 enables advanced smart overload and over-current protection, ensuring maximum operational safety in demanding automation environments.
| PRODUCT PARAMETERS | |
| Model | ST-3035-C001 |
| Product Name | 12V 35Kg.cm code Serial Control Servo |
| Storage Temperature Range | -30°C ~ 80°C |
| Operating Temperature Range | -10°C ~ 60°C |
| Size | A: 40.2mm B: 20.2mm C: 40mm |
| Weight | 62.5 ± 2g |
| Gear type | Copper |
| Limit angle | NO limit |
| Bearing type | Ball bearings |
| Horn gear spline | 25T / OD5.9mm |
| Case | PA + Aluminum |
| Type | PH2.0-3P |
| Connector wire | 15cm |
| Motor | Core Motor |
| Operating Voltage Range | 9V - 12V |
| Idle current (at stopped) | 32mA @ 12V |
| No load speed | 0.22sec/60° (45RPM) @ 12V |
| Running current (at no load) | 220mA (Max) @ 12V |
| Peak stall torque | 35kg.cm @ 12V |
| Rated torque | 11.6kg.cm @ 12V |
| Stall current | 900mA @ 12V |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0 - 253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0 ~ 4095) |
| Feedback | Load, Position, Speed, Input Voltage, Current, Temperature |
| Position Sensor Resolution | 12Bits Magnetic Coding (360° / 4095) |
