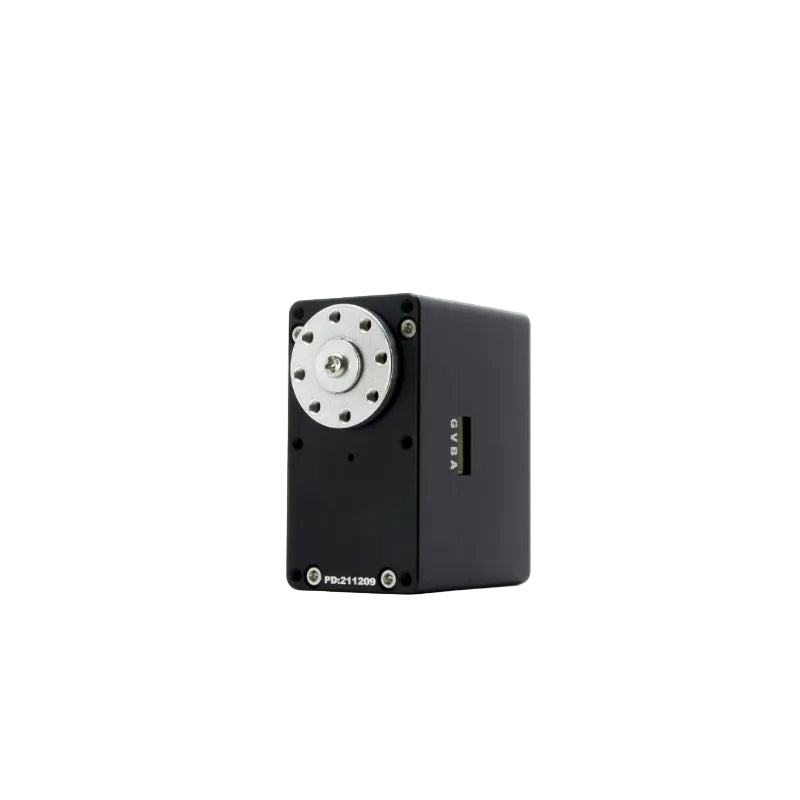

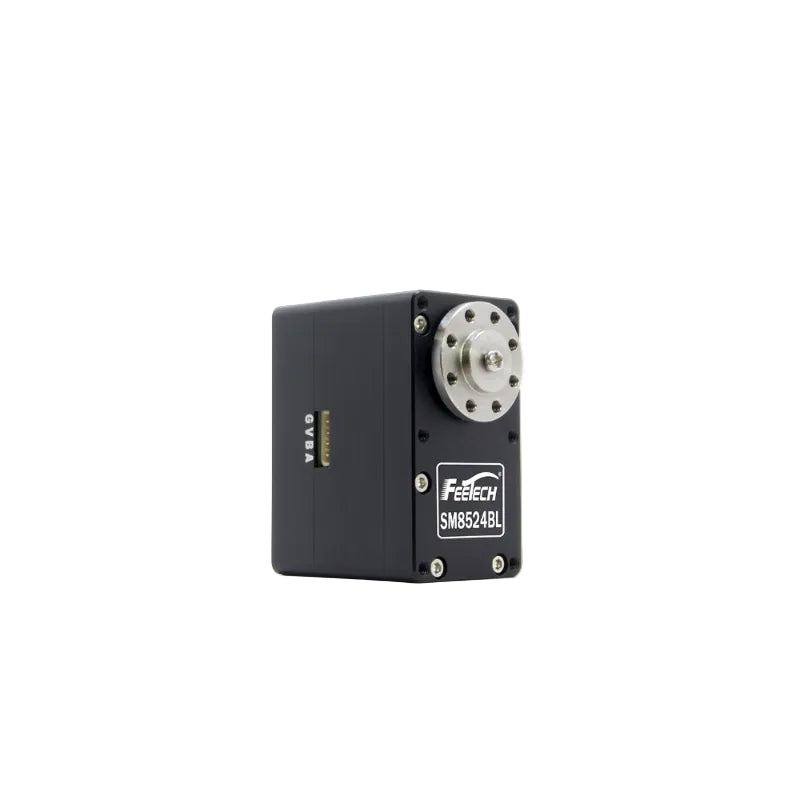

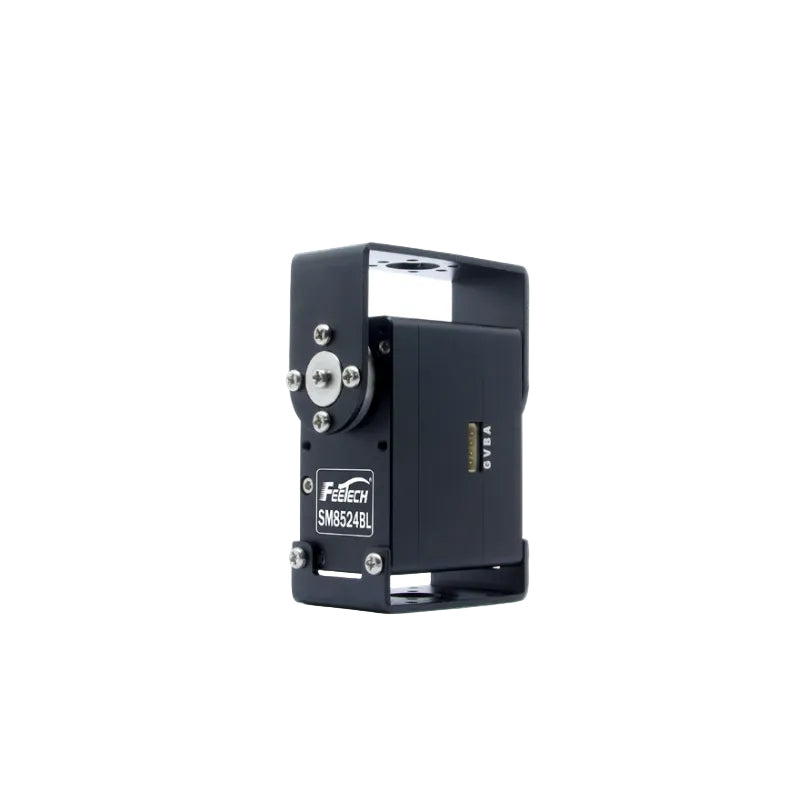

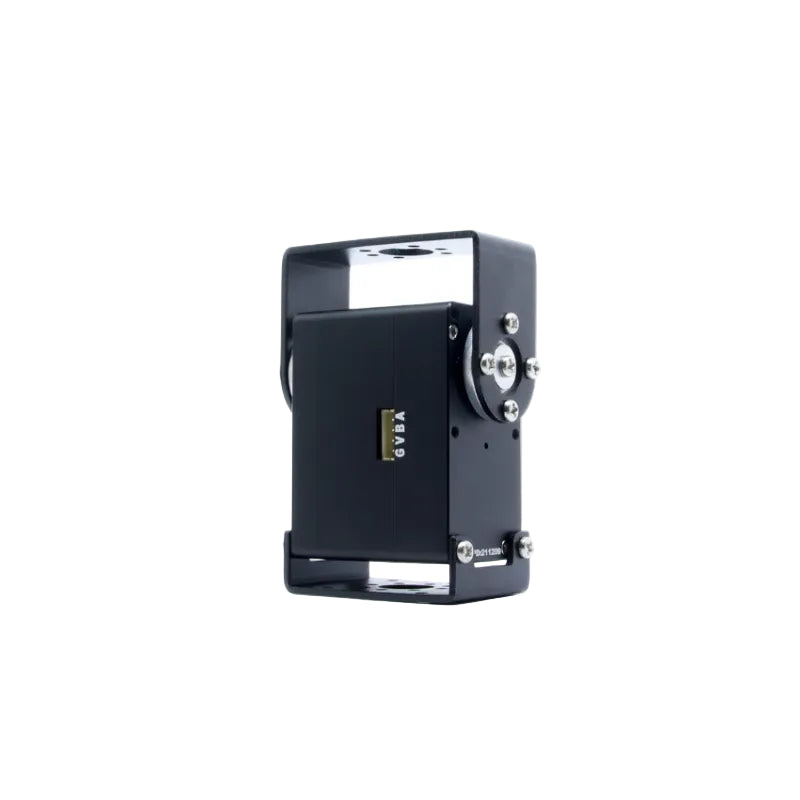

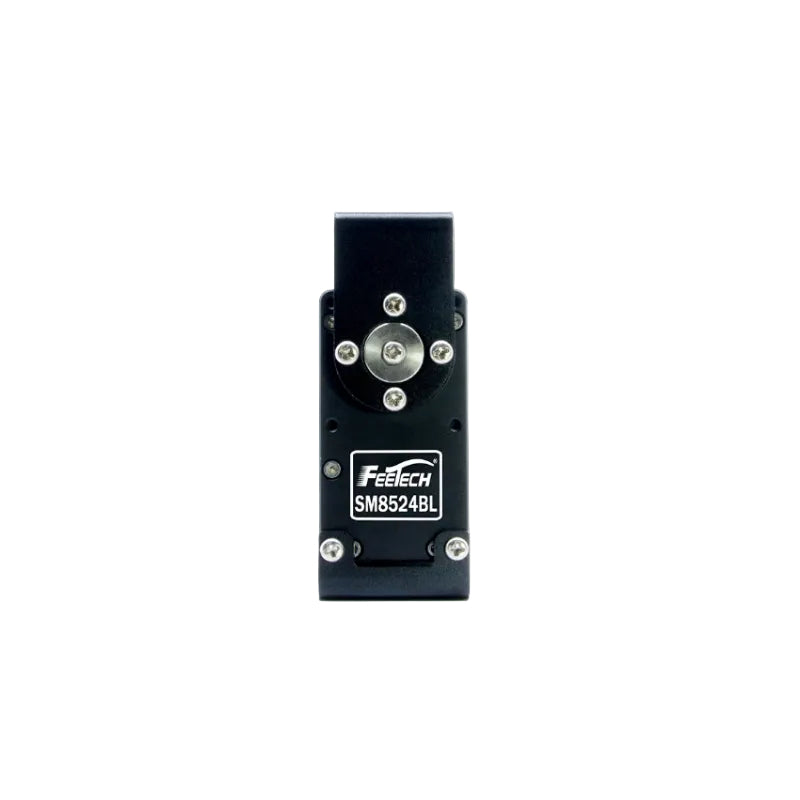

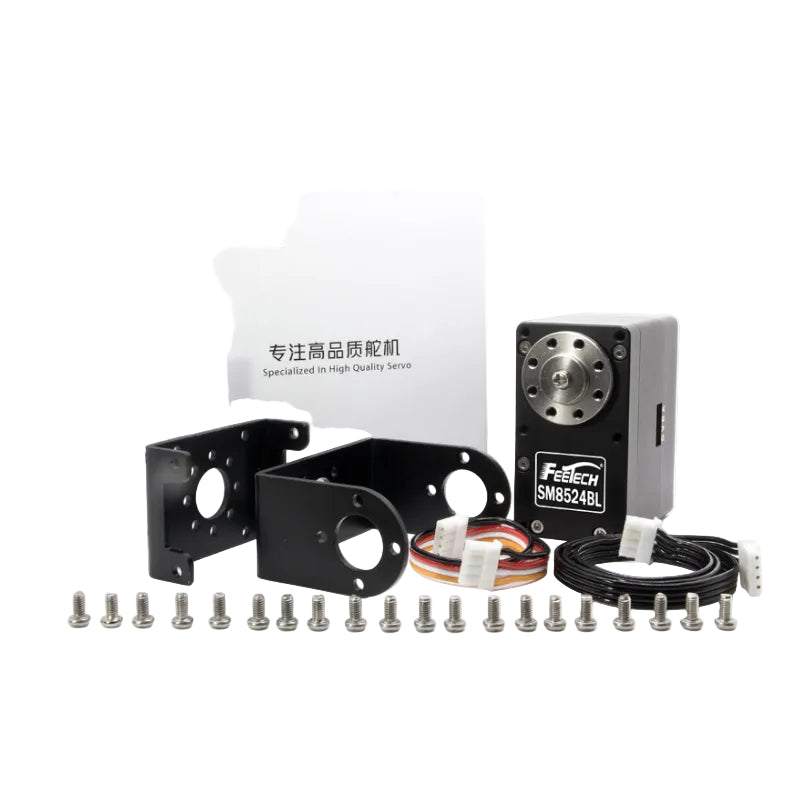

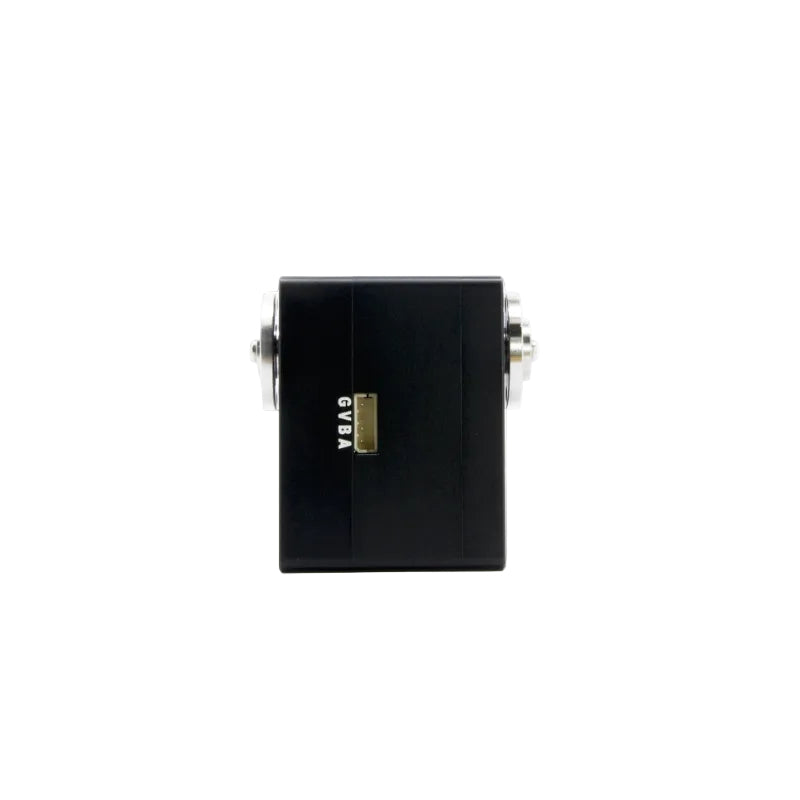

FEETECH SM8524BL-C001 Servo Motor
FEETECH SM8524BL-C001 Servo Motor
The SM-8524-C001 is a high-performance 24V 85kg.cm Serial bus servo engineered with a durable aluminium case, steel gears, an aluminium horn type, and ball bearings. Powered by a brushless motor, this no-limit servo operates within a 9V-24V voltage range, delivering a peak stall torque of 85kg.cm@24V (rated torque of 28kg.cm@24V) and a no-load speed of 0.154sec/60degree with a 5.6A stall current. It utilizes half-duplex asynchronous serial communication via digital packets, supporting an ID range of 0-253 and communication speeds from 38400bps to 1Mbps. Designed for a 360° running degree (when 0~4095), it provides comprehensive real-time feedback covering load, position, speed, input voltage, current, and temperature. This compact industrial-grade servo measures 62mm x 34mm x 47mm, weighs 215± 1g, and comes equipped with a 15T/OD7.6mm horn gear spline and a 40CM connector wire.
| PRODUCT PARAMETERS | |
| Model | SM-8524-C001 |
| Product Name | 24V 85kg.cm Serial bus servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~70℃ |
| Size | A：62mm B：34mm C：47mm |
| Weight | 215± 1g |
| Gear type | Steel |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | 15T/OD7.6mm |
| Horn type | Aluminium |
| Case | Aluminium |
| Connector wire | 40CM |
| Motor | Brushless Motor |
| Operating Voltage Range | 9V-24V |
| No load speed | 0.154sec/60degree |
| Runnig current(at no load) : | 250mA@24V |
| Peak stall torque | 85kg.cm@24V |
| Rated torque | 28kg.cm@24V |
| Stall current | 5.6A@24V |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1Mbps |
| Running degree | 360° (when 0~ 4095) |
| Feedback | Load , Position , Speed , Input Voltage , Current , Temperature |
