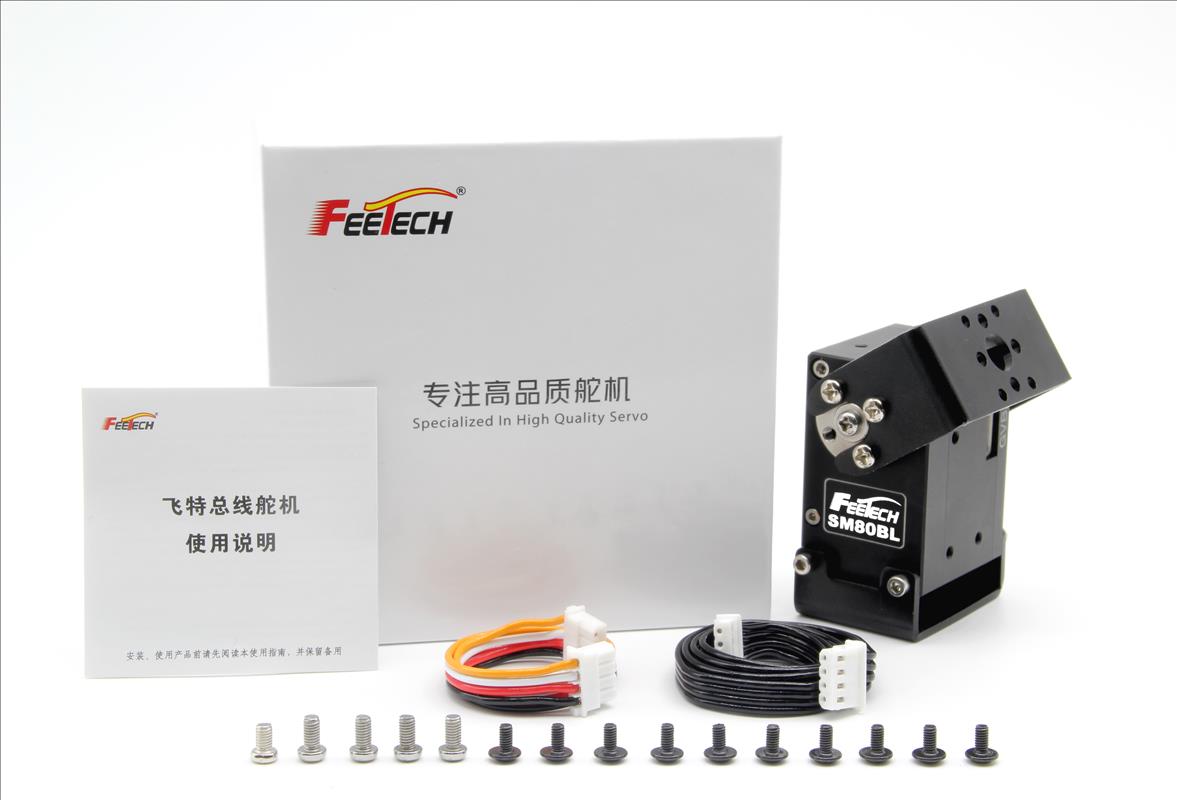

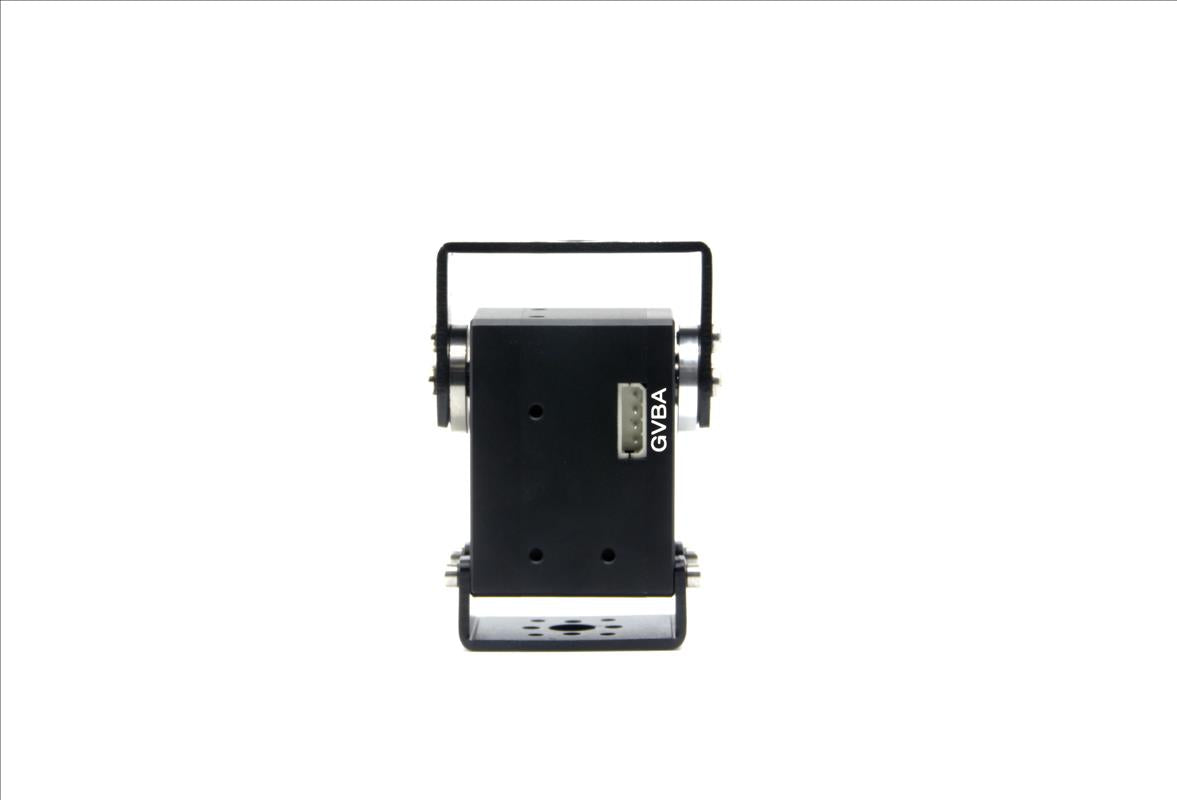

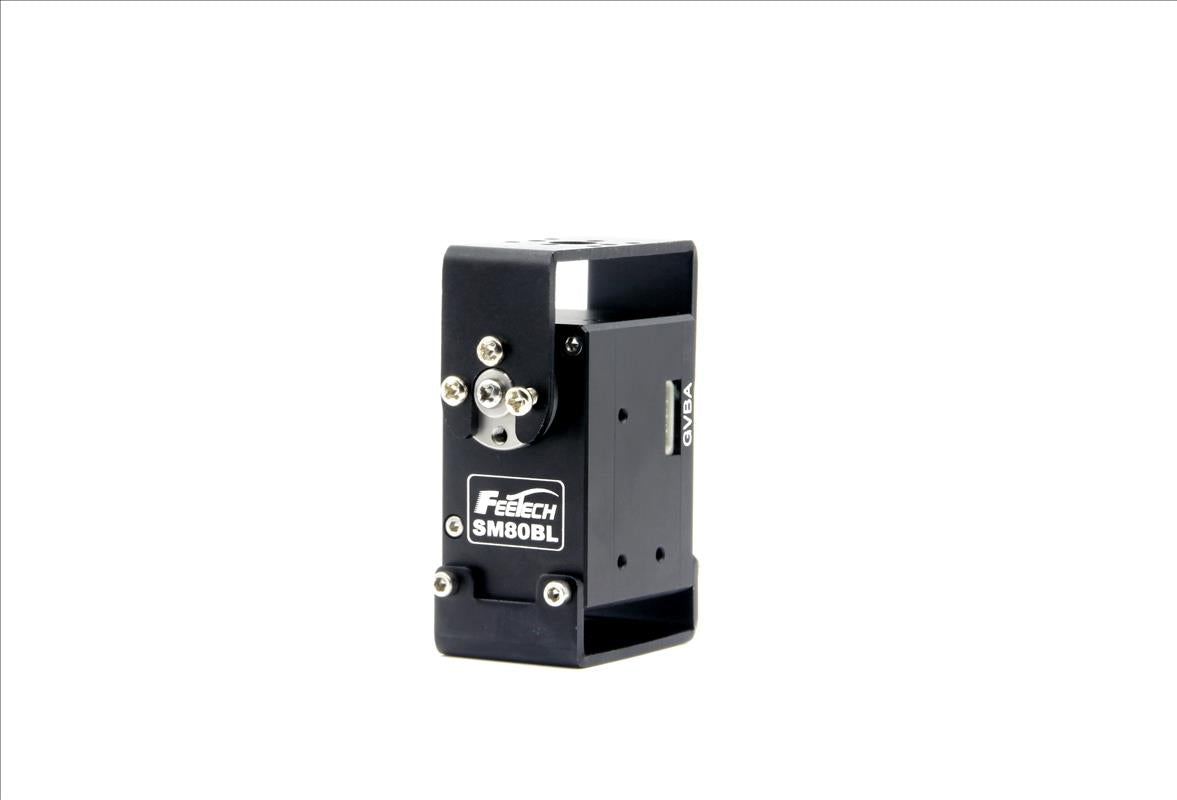

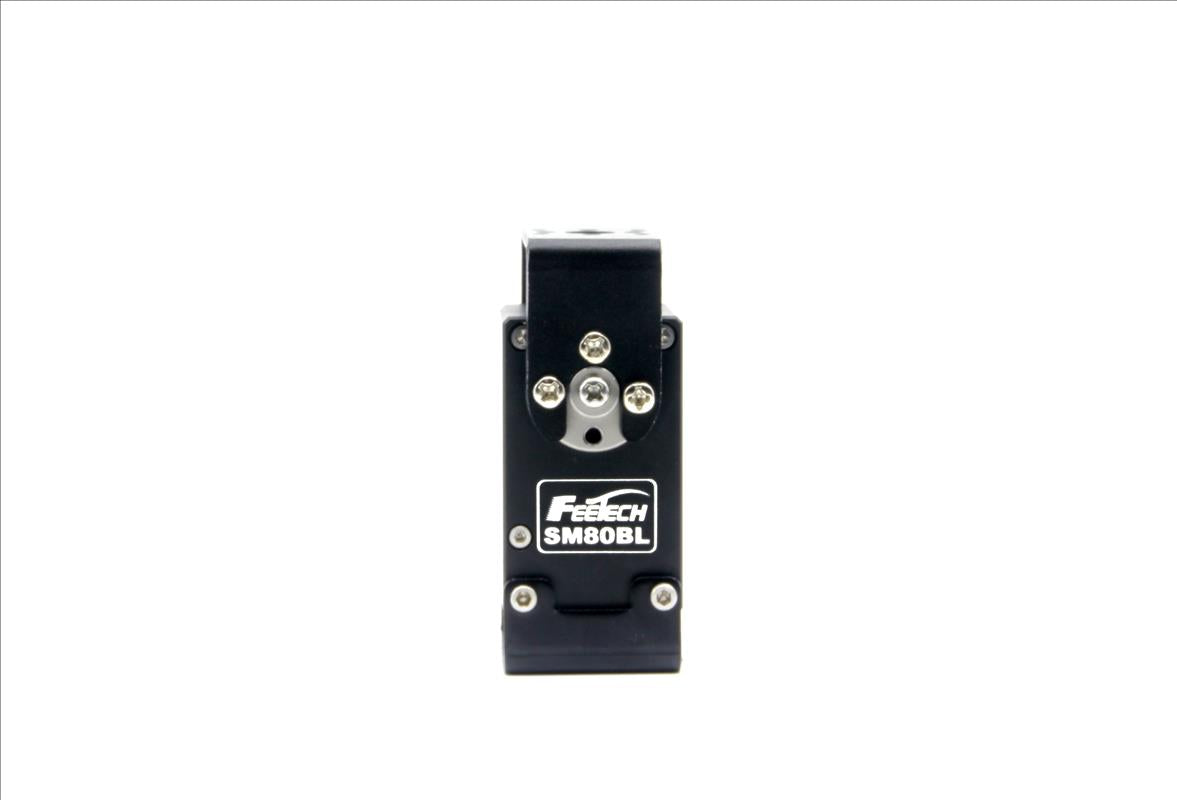

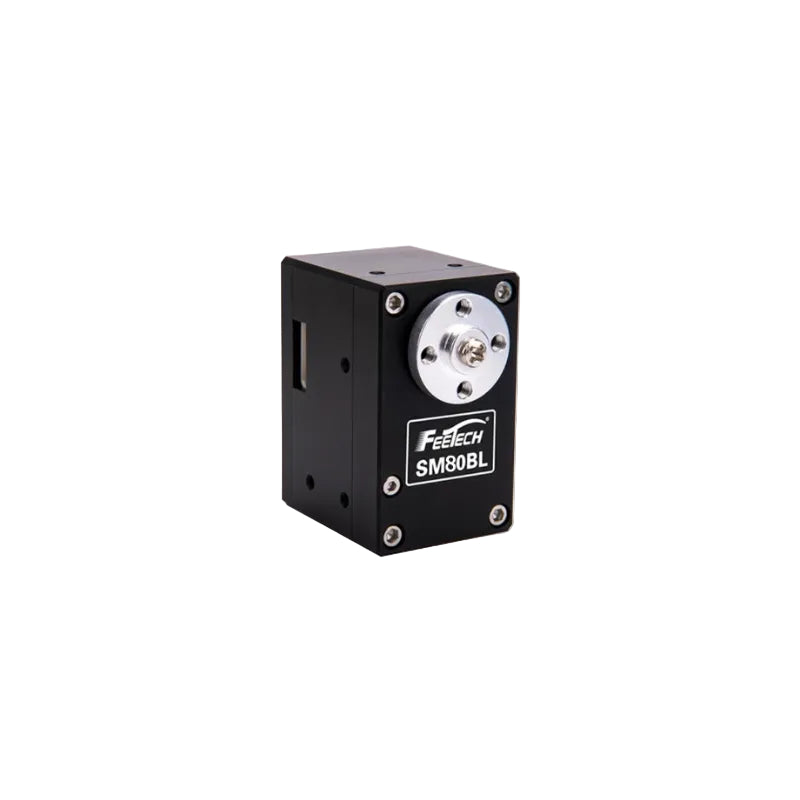

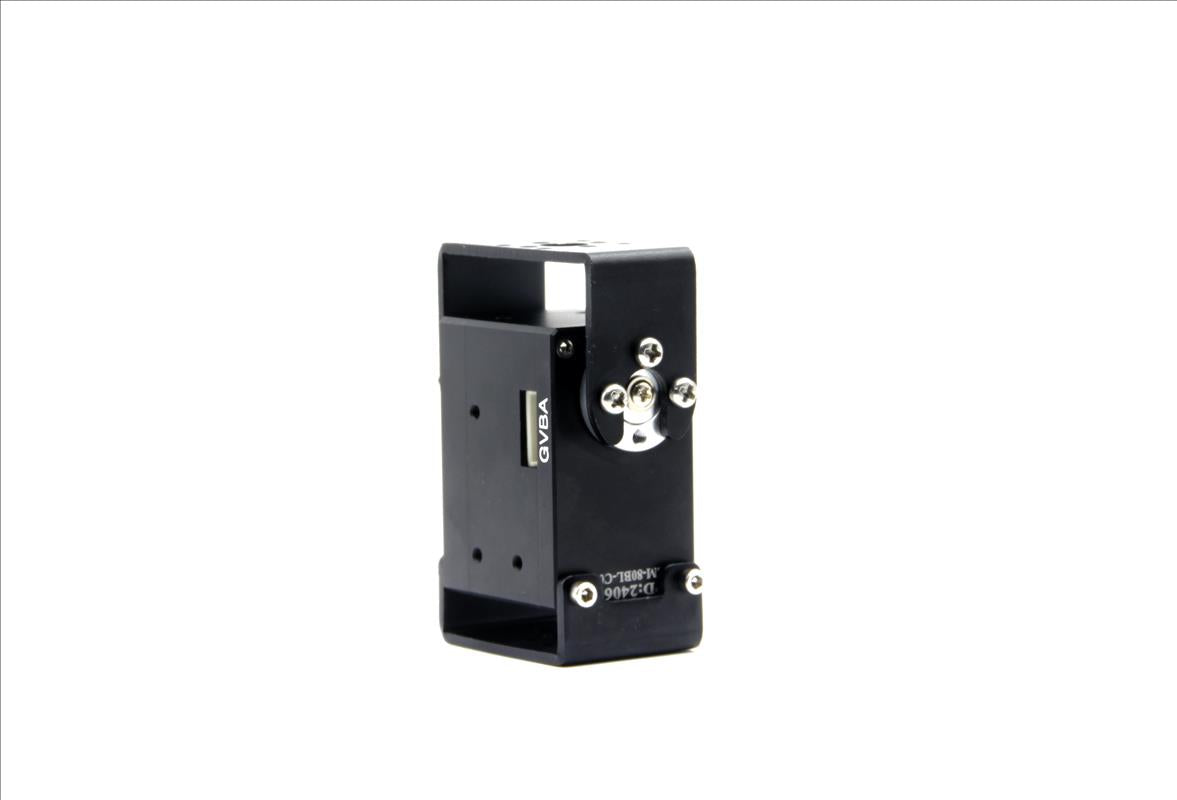

FEETECH SM80BL-C001 Servo Motor
The Feetech SM-80BL-C001 is a heavy-duty 12V serial port smart bus servo engineered for robust industrial equipment, advanced robotics, and high-load automation sectors. Housed in a premium, full aluminum alloy shell, it utilizes a high-torque brushless motor, a resilient steel gearbox, and a dedicated external stainless steel main servo horn, all orchestrated by Feetech’s self-developed RS485 control board and a 12-bit high-precision magnetic coding sensor. Delivering a massive 80kg.cm stall torque, this intelligent servo provides 0-360° omnidirectional precision control, multi-turn continuous operation, and customizable acceleration for seamless slow-start/slow-stop motion. Featuring comprehensive real-time diagnostic telemetry—including position, speed, voltage, current, temperature, and load parameters—the SM-80BL-C001 ensures reliable overload and over-current protection for mission-critical automated workflows.
| PRODUCT PARAMETERS | |
| Model | SM-80BL-C001 |
| Product Name | 12V 80kg RS485/12Vcm Serial Control RS485 Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~80℃ |
| Size | A: 46.5mm B: 28.5mm C: 34mm |
| Weight | 97.5±1g |
| Gear type | Steel |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/OD5.9mm |
| The rocker phantom | 0° |
| Case | Aluminium |
| Connector wire | 40CM |
| Motor | 4 Pole Brushless motor |
| Operating Voltage Range | 12V |
| Idle current (at stopped) | 45mA@12V |
| No load speed | 0. 161sec/ 60° (62RPM) @12V |
| Runnig current(at no load) | 280mA@12V |
| Peak stall torque | 80kg.cm@12V |
| Rated current | 1475mA@12V |
| Rated torque | 20kg.cm≤@12V |
| Stall current | 5.9A@12V |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360°(when 0~4095) |
| Feedback | Load , Position ,Speed , InputVoltage , Current ,Temperature |
| Position Sensor Resolution | 0.088°(360°/4096) |
