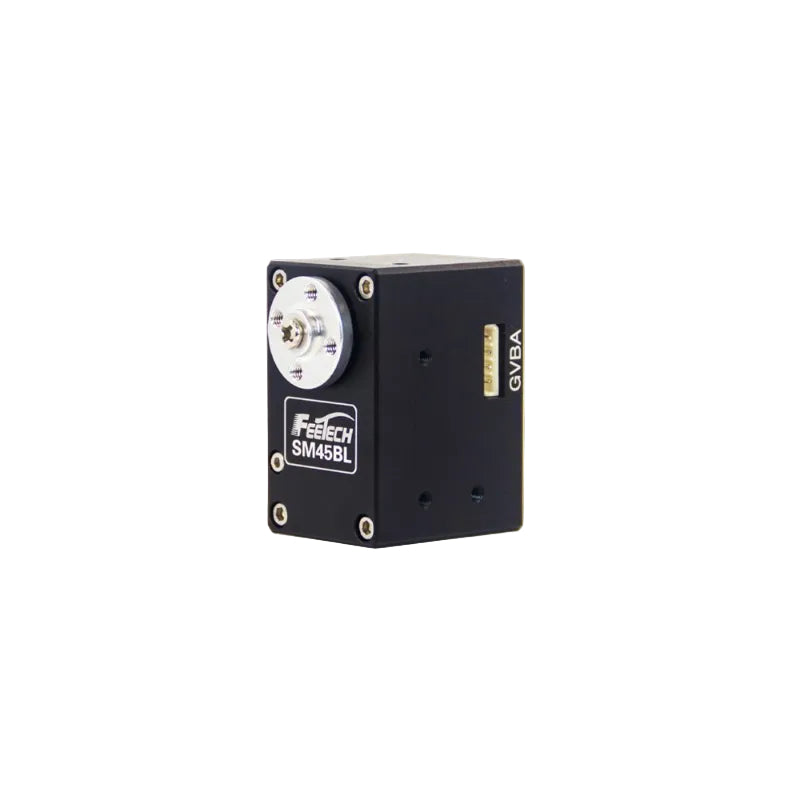

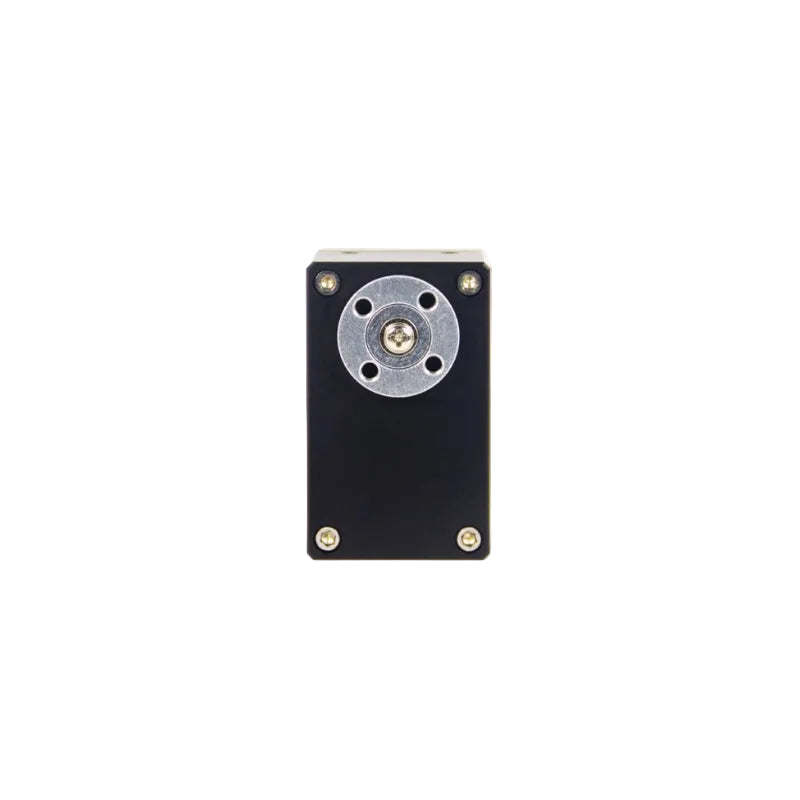

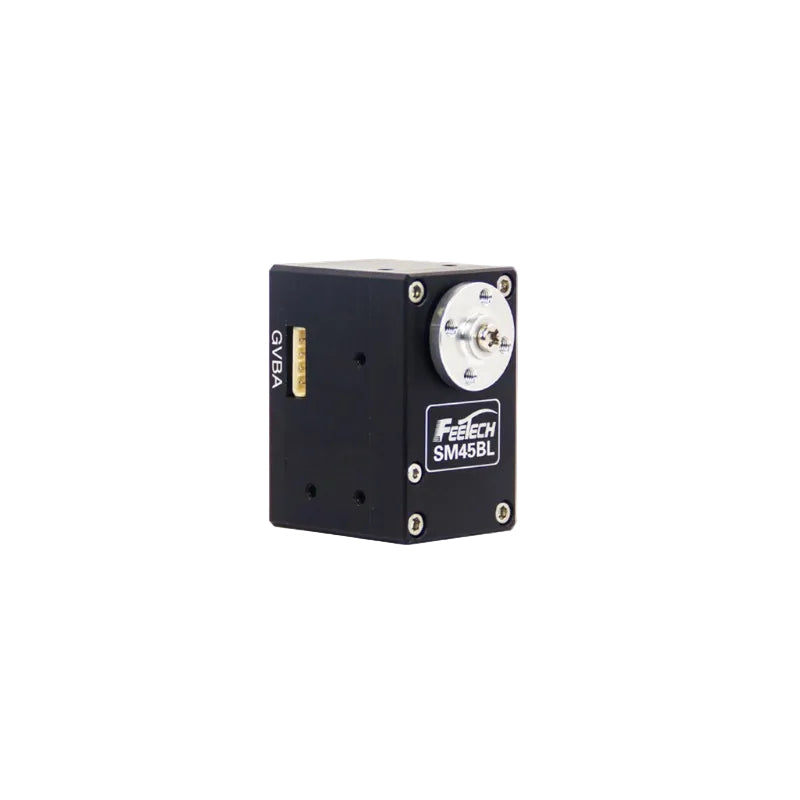

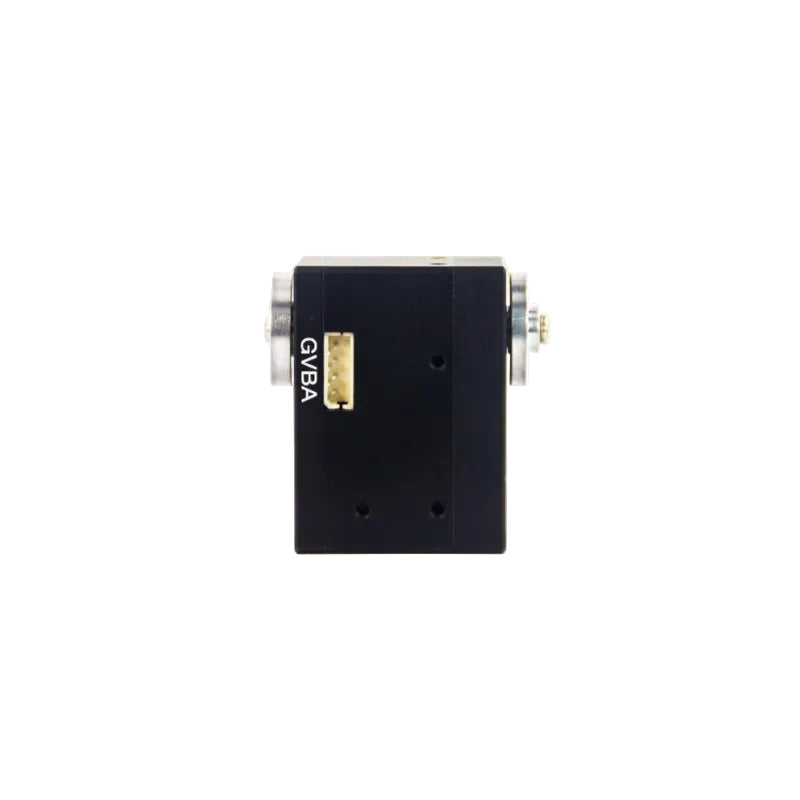

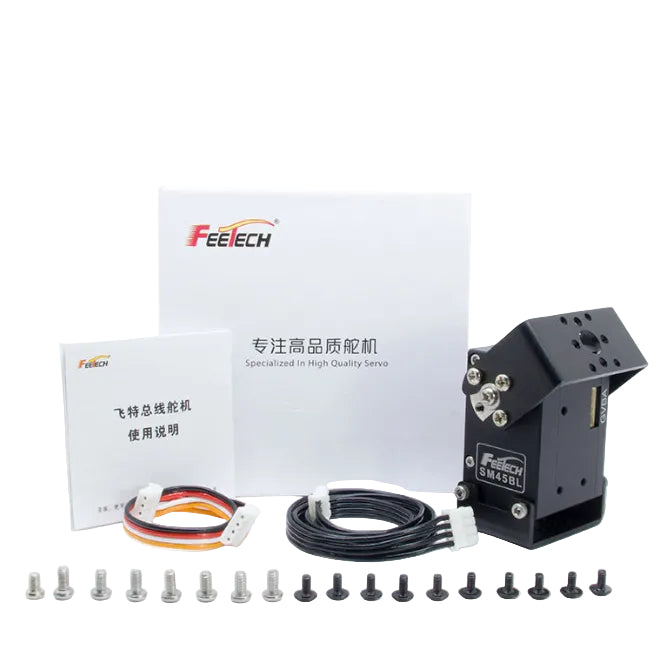

FEETECH SM45BL-C002 Servo Motor
FEETECH SM45BL-C002 Servo Motor
The SM-45BL-C002 is a premium 24V 45kg.cm Modbus-RTU serial control bus servo driven by a high-efficiency brushless motor and a 353:1 steel gear ratio. Designed with a rugged aluminum outer case, dual ball bearings, and a 25T (OD5.96mm) horn gear spline, this intelligent servo provides a peak stall torque of 45kg.cm, a rated torque of 15kg.cm, and a no-load speed of 70RPM (0.142sec/60°) at a 24V operating voltage. It has a terminal resistance of 7Ω, a KM constant of 19kg.cm/A, an idle running current of 160mA, and a stall current of 2300mA. Communicating via the standard Modbus-RTU protocol over an RS485 bus packet system, it supports an ID range from 0 to 253 and data rates from 38400bps to 1Mbps. The servo integrates an advanced 12-bit magnetic encoder for precise 360-degree clockwise positioning (360°/4096 resolution) and delivers real-time telemetry feedback covering position, speed, voltage, load, and temperature across an operating range of -20°C to 80°C.
| PRODUCT PARAMETERS | |
| Model | SM-45BL-C002 |
| Product Name | 24V 45kg. cm Modbus-RTU Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~80℃ |
| Size | A：46.5mm B：28.5mm C：34mm |
| Weight | 100g |
| Gear type | Steel Gear (Gear Ratio 353:1 ) |
| Limit angle | NO Limiter |
| Bearing | 2 Ball bearings |
| Horn gear spline | 25T (OD5.96mm) |
| Horn type | Aluminium |
| Case | Aluminium |
| Connector wire | 150mm ±5 mm |
| Motor | Brushless motor |
| Operating Voltage Range | 24V |
| No load speed | 0.142sec/ 60degree 70RPM |
| Runnig current(at no load) | 160 mA@24V |
| Peak stall torque | 45kg.cm@24V |
| Rated torque | 15kg.cm@24V |
| Stall current | 2300mA@24V |
| Rated Load | 15kg. cm≤ |
| Rated current | 900mm≤ |
| KM Constant | 19kg. cm/A |
| Terminal resistance | 7Ω |
| Command signal | Bus Packet Communication RS485 |
| Protocol Type | Modbus-RTU |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4095)-CW |
| Feedback | Position,Speed,Voltage,Load,Temperature |
| Position Sensor Resolution | 12Bits Magnetic Coding(360° /4096) |
