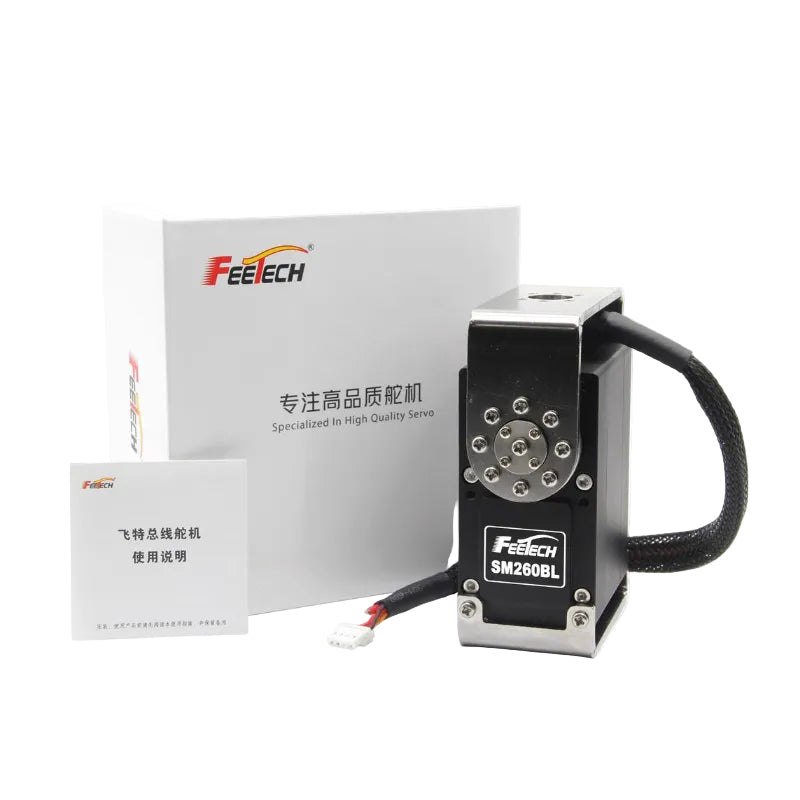

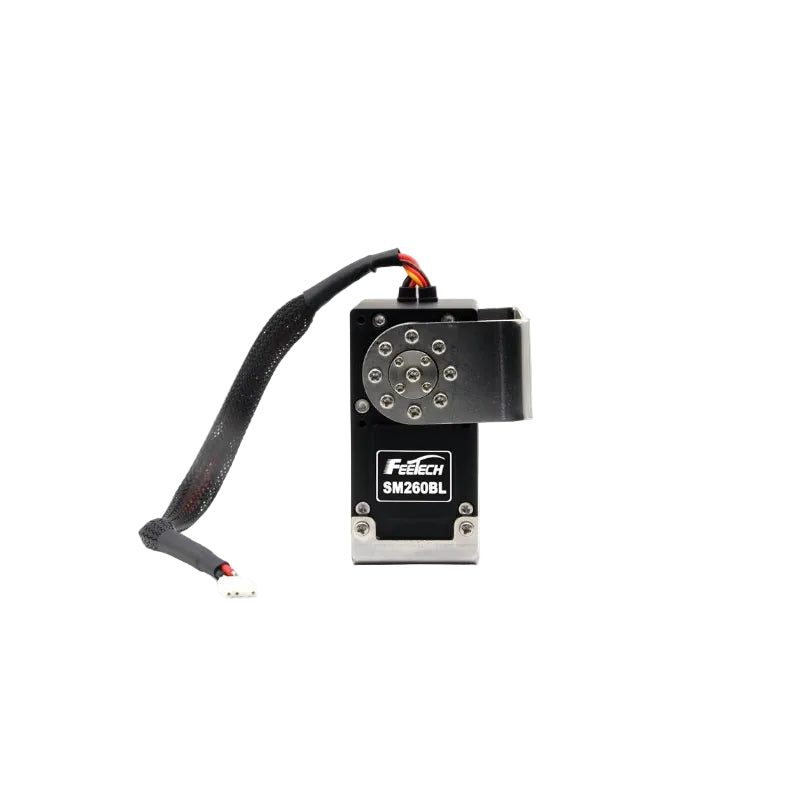

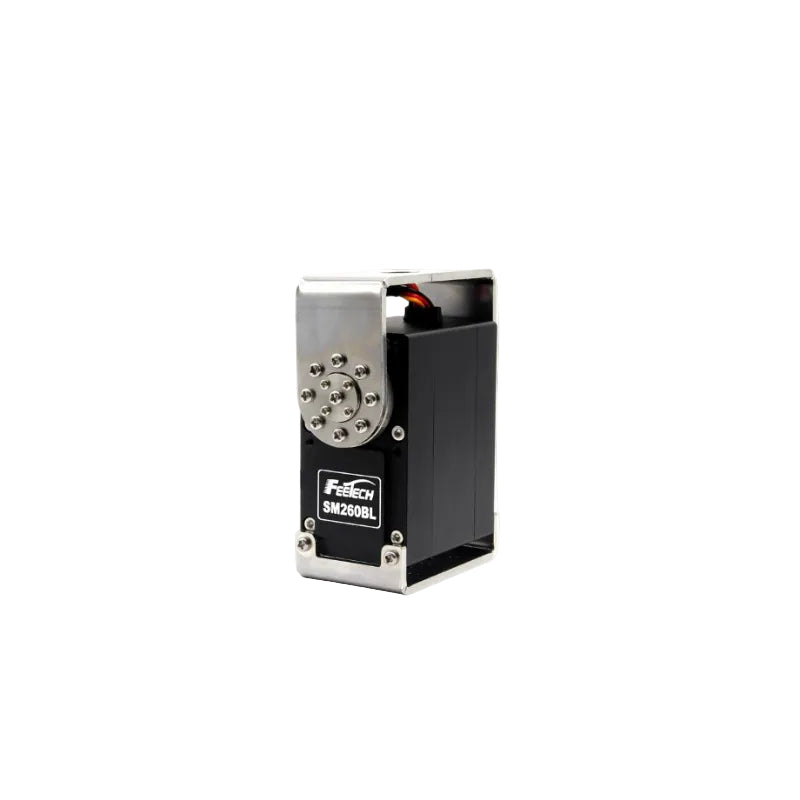

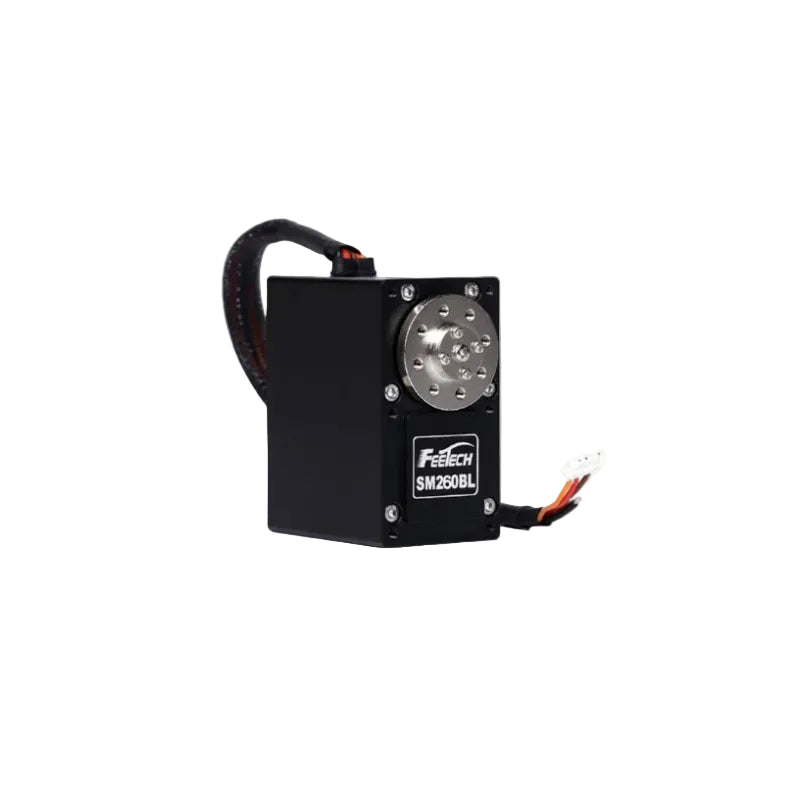

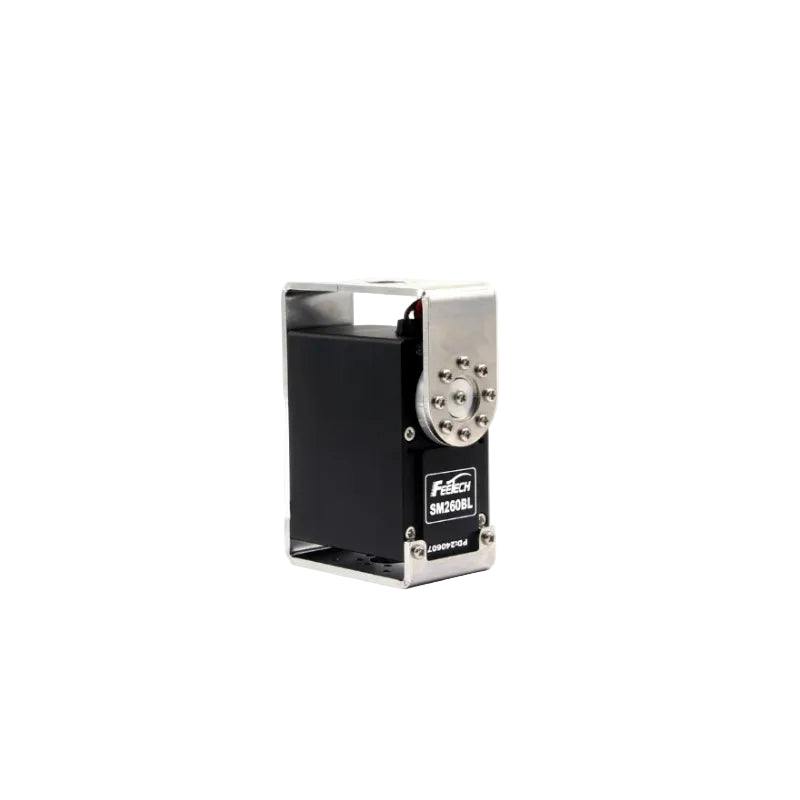

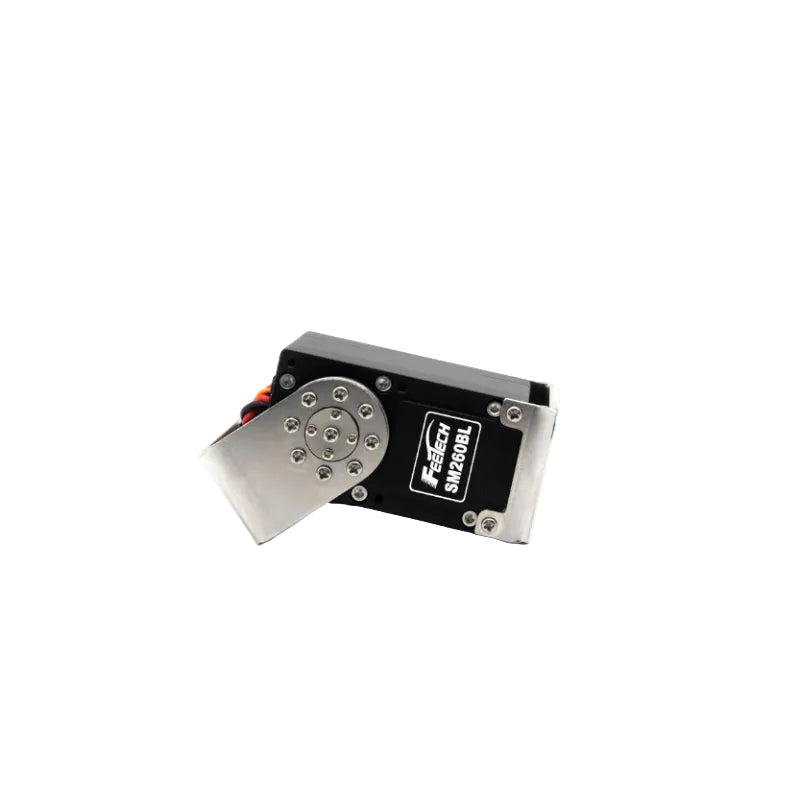

FEETECH SM260B-C001 Servo Motor

The SM-260B-C001 is a high-torque 24V 260kg.cm serial control RS485 servo engineered with a durable aluminum case, steel gears, and robust ball bearings. Powered by a 4-pole brushless motor, this no-limit servo delivers a peak stall torque of 260kg.cm, a rated load of 65kg.cm, and a no-load speed of 0.192sec/60° (52RPM) at 24V, with a stall current of 9.1A and a rated current of 2200mA. Operating at 24V with a terminal resistance of 2.0Ω and a KM constant of 28.5kg.cm/A, it utilizes half-duplex asynchronous serial communication via digital packets, supporting an ID range of 0–253 and communication speeds from 38400bps to 1Mbps. Designed for a 360° running degree (0–4096 steps), its 12-bit magnetic coding position sensor provides real-time feedback on load, position, speed, input voltage, current, and temperature. This industrial servo measures 78mm × 43mm × 65.5mm, weighs 455g, and features a spline OD10mm horn gear and a 30CM connector wire.

Common use cases: Ultra-heavy-duty industrial robot arm and hip joints requiring 260kg.cm torque with RS485 bus communication, large-scale humanoid robot load-bearing joints, heavy industrial automation end-effectors, exoskeleton actuators, and applications demanding maximum torque with 12-bit magnetic encoder accuracy and 4-pole brushless motor durability at 24V.
