FEETECH SM24BL-C001 Servo Motor

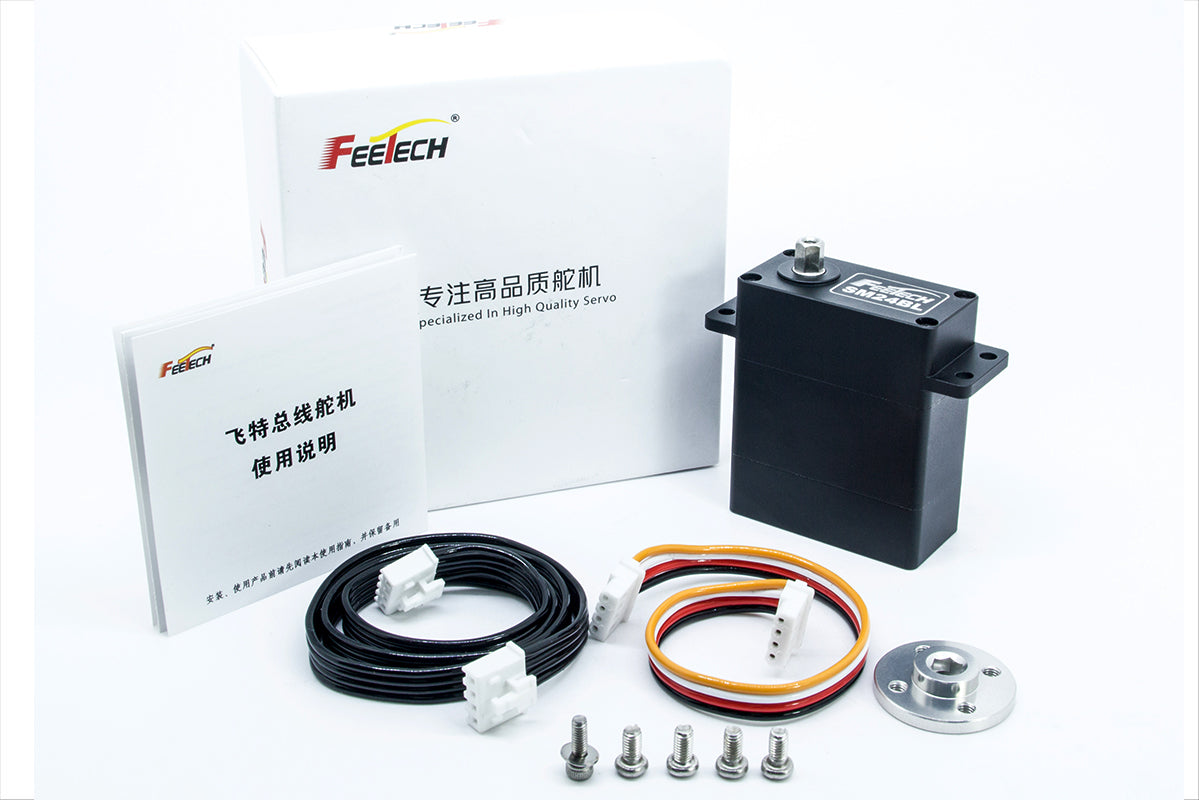

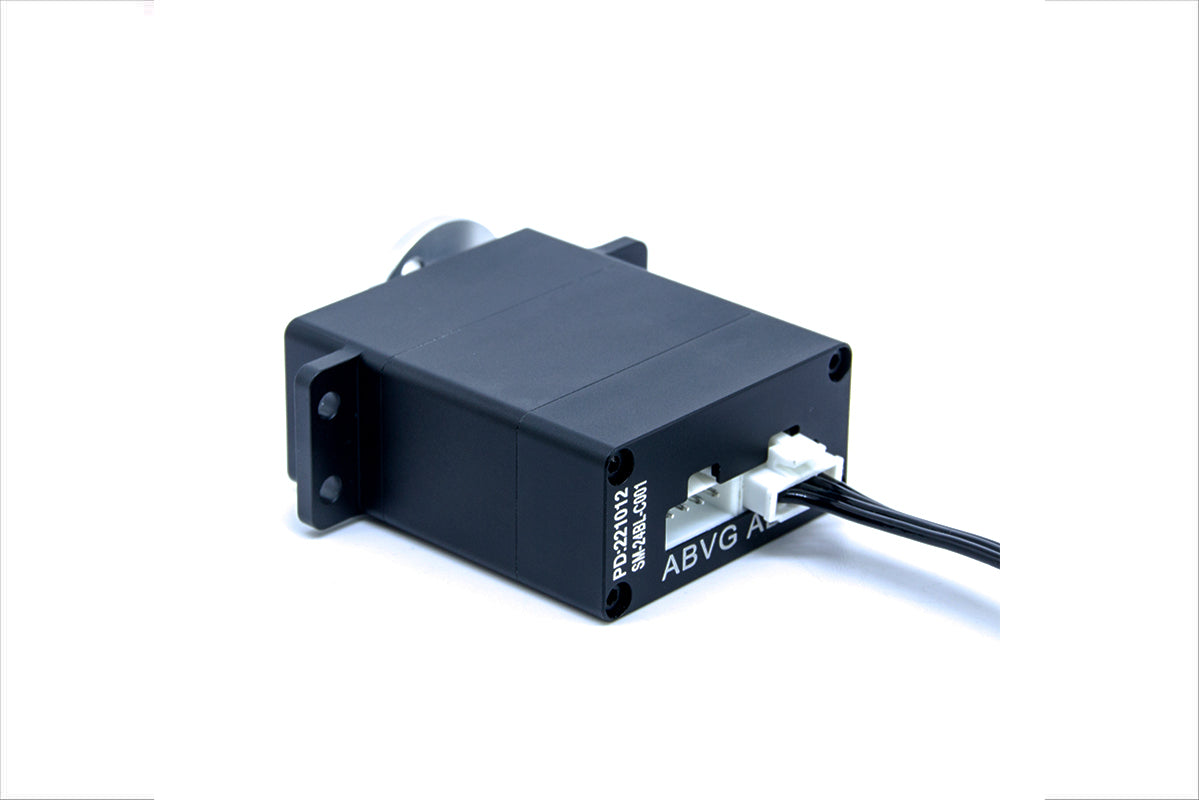

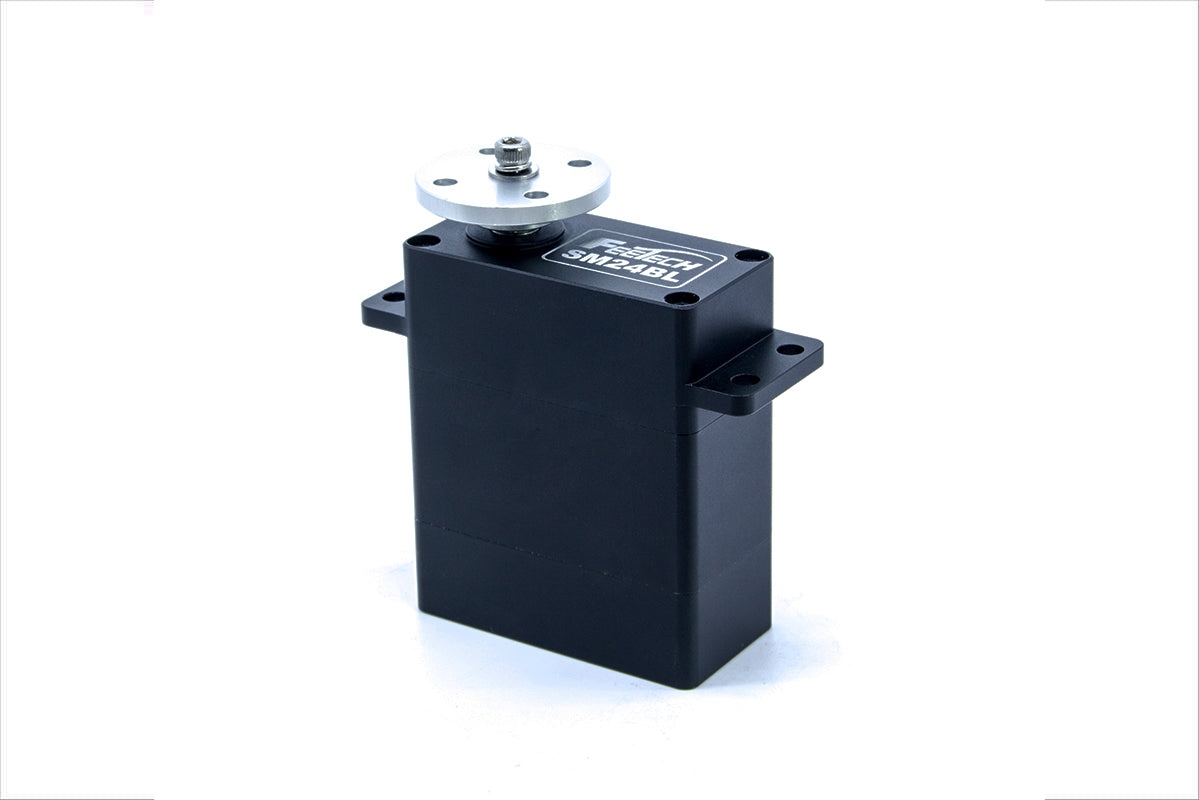

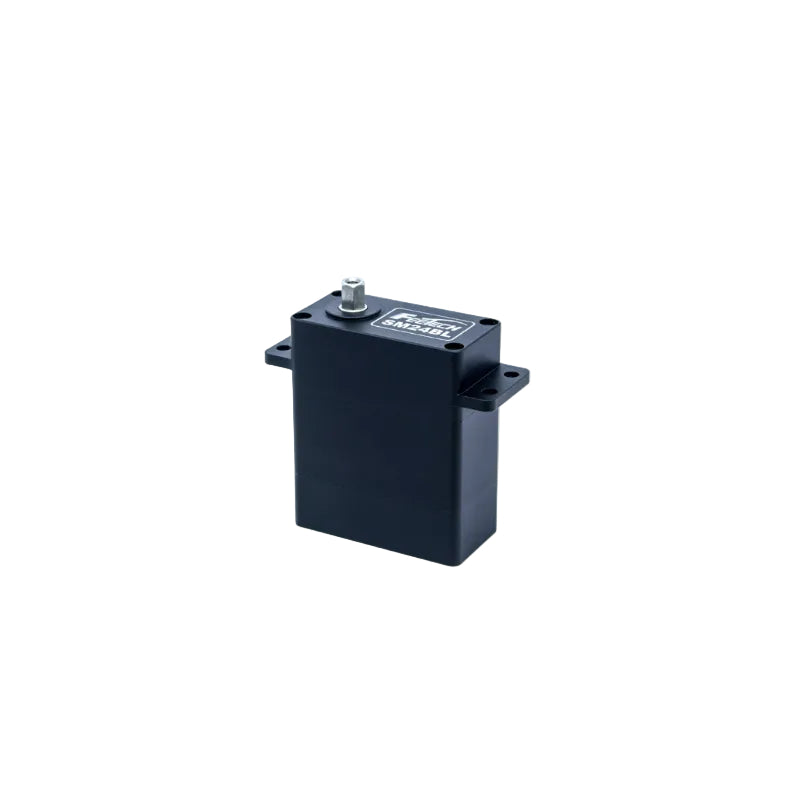

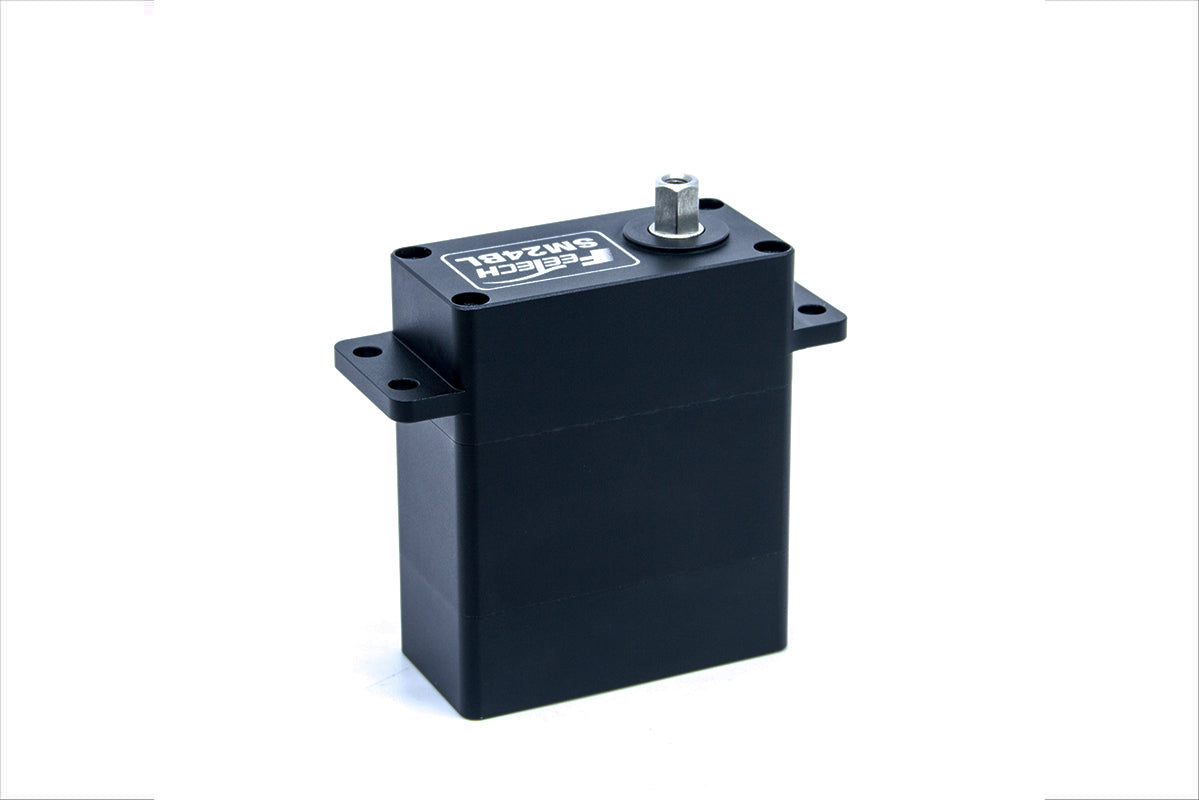

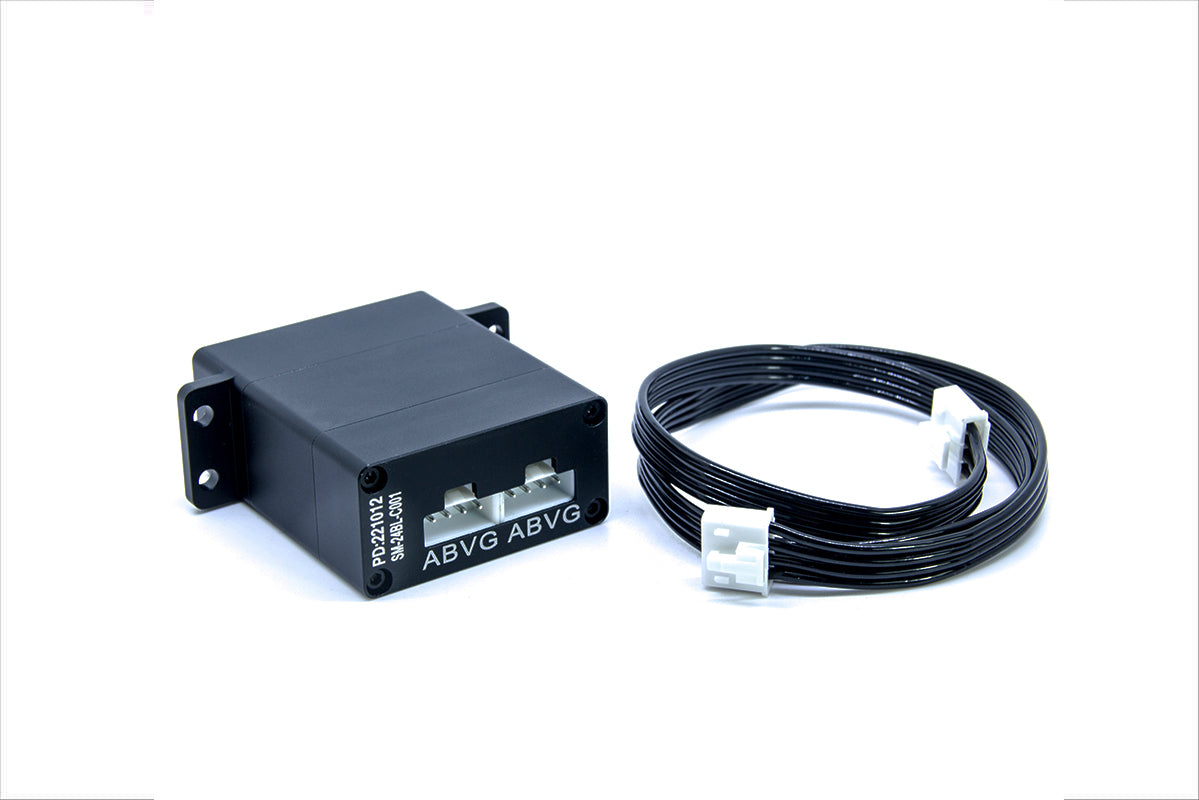

The Feetech SM-24BL-C001 is a highly adaptable, industrial-grade 12V/24V compatible serial port smart bus servo engineered for logistics automation, robotics, and demanding industrial equipment. Housed in a premium all-aluminum alloy shell, it features a high-efficiency brushless motor, an ultra-durable steel gearbox, and a specialized 6T output shaft, all driven by Feetech’s proprietary RS485 control board and a 12-bit high-precision magnetic coding sensor. Delivering a reliable 24kg.cm stall torque, it supports 0-360° omnidirectional precision control, multi-turn continuous operation, and programmable acceleration for smooth slow-start/slow-stop motion. Offering real-time telemetry feedback—including position, speed, voltage, current, temperature, and load—the SM-24BL-C001 ensures smart overload and over-current protection for heavy-duty automated systems.
| PRODUCT PARAMETERS | |
| Model | SM-24BL-C001 |
| Product Name | 24V 24kg RS485 serial bus servo |
| Storage Temperature Range | -40℃~70℃ |
| Operating Temperature Range | -40℃~70℃ |
| Size | A: 40mm B: 28mm C: 47.8mm |
| Weight | 89.6± 1g |
| Gear type | Steel |
| Limit angle | No Limit |
| Stall Torque (at locked) | 24Kg.cm |
| Input Voltage | 8V~26V |
| No Load Speed | 0.08sec/60°(120RPM)@24V |
| Running Current | 90mA@24V |
| Stall Current (at locked) | 1.3A@24V |
| Rated Torgue | 6kg.cm@24V |
| Rated Current | 350mA@24V |
| Terminal resistance | 10.2Ω |
| Command Signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous SerialCommunication |
| Communication Baud | 38400bps ~ 1 Mbps |
| Running degree | 360°(when 0~4095) |
| Rotating Direction | Clockwise(0→4095) |
| Feedback | Load , Position ,Speed , InputVoltage , Current ,Temperature |
