FEETECH SM1500/1000 Servo Motor
Product description

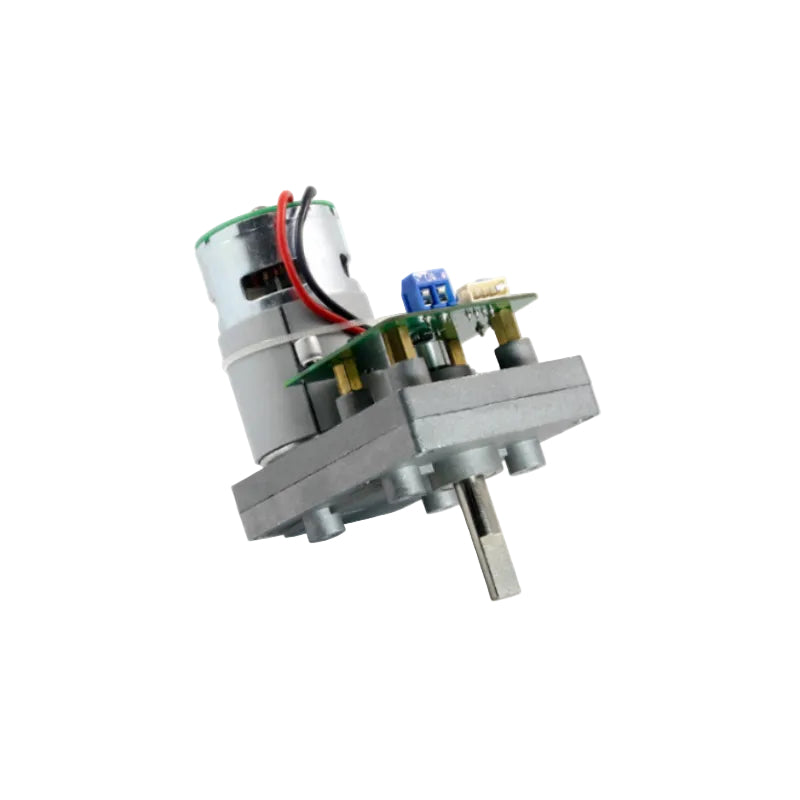

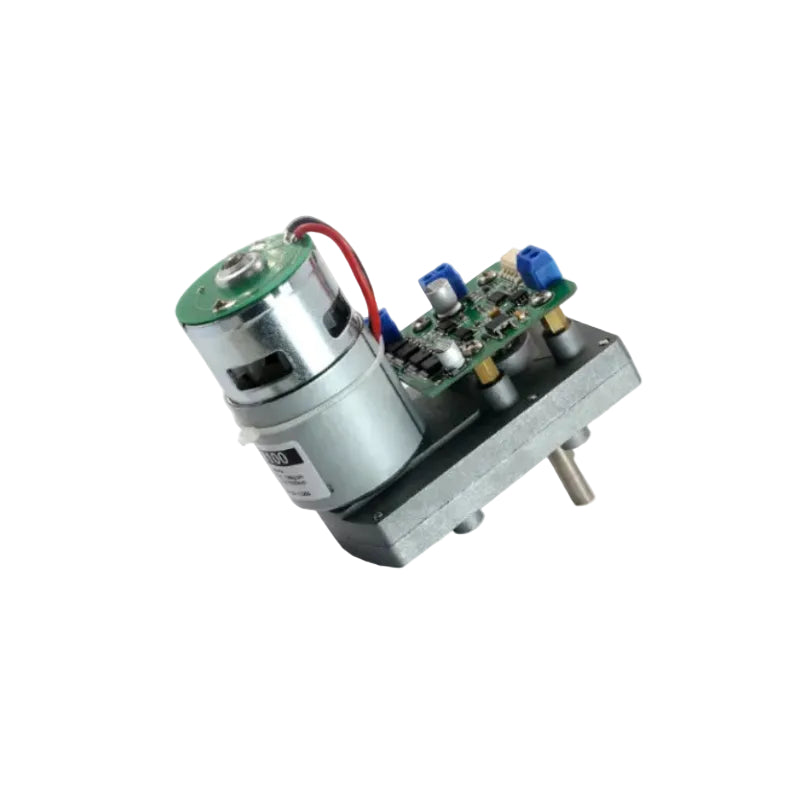

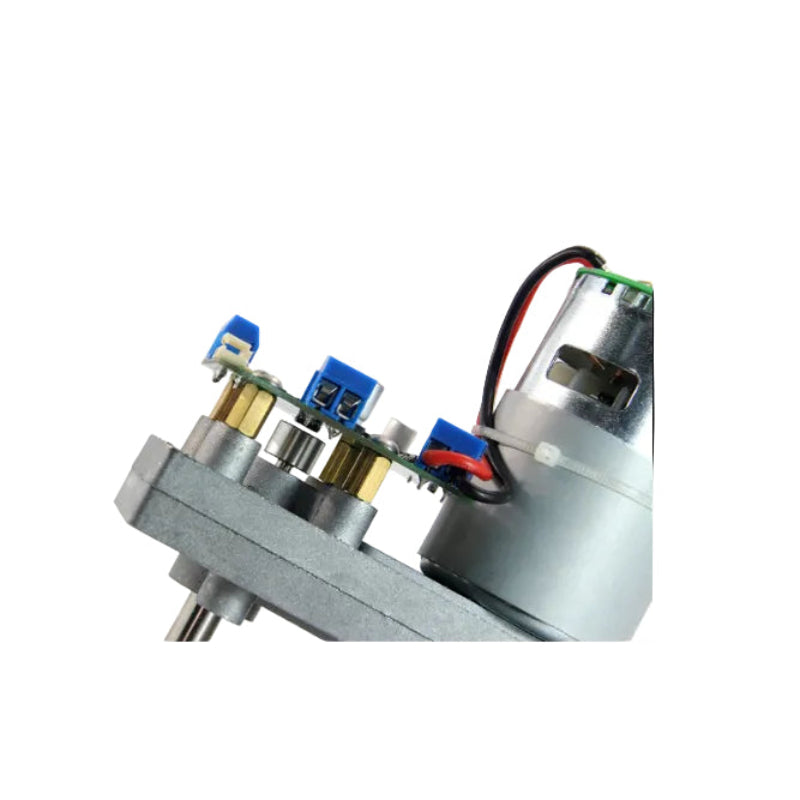

The SM-1500-C001 is a high-torque 12V serial port smart bus servo engineered for heavy-duty, low-frequency applications. Encased in a durable powder metallurgy shell, it features a core motor, metal gearbox, and a D-shaped output shaft. Powered by Feetech’s self-developed RS485 control board and a 12-bit high-precision magnetic coding sensor, this smart servo delivers an impressive stall torque of 180 kg.cm. Advanced functional highlights include one-key midpoint calibration, acceleration slow-start/slow-stop, and comprehensive real-time feedback (position, speed, voltage, current, temperature, and load) to ensure robust overload and over-current protection.
FEETECH SM-1500-C001 Specifications
| PRODUCT PARAMETERS | |
| Model | SM-1500-C001 |
| Product Name | 12V 180kg.cm 485/Magnetic Coded Serial Control BUS Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~70℃ |
| Size | A：95.5mm B：65mm C：85mm |
| Weight | 860g ±0.2 |
| Gear type | Metal Gear |
| Limit angle | 360degree (4096) |
| Bearing | 2 Ball bearings |

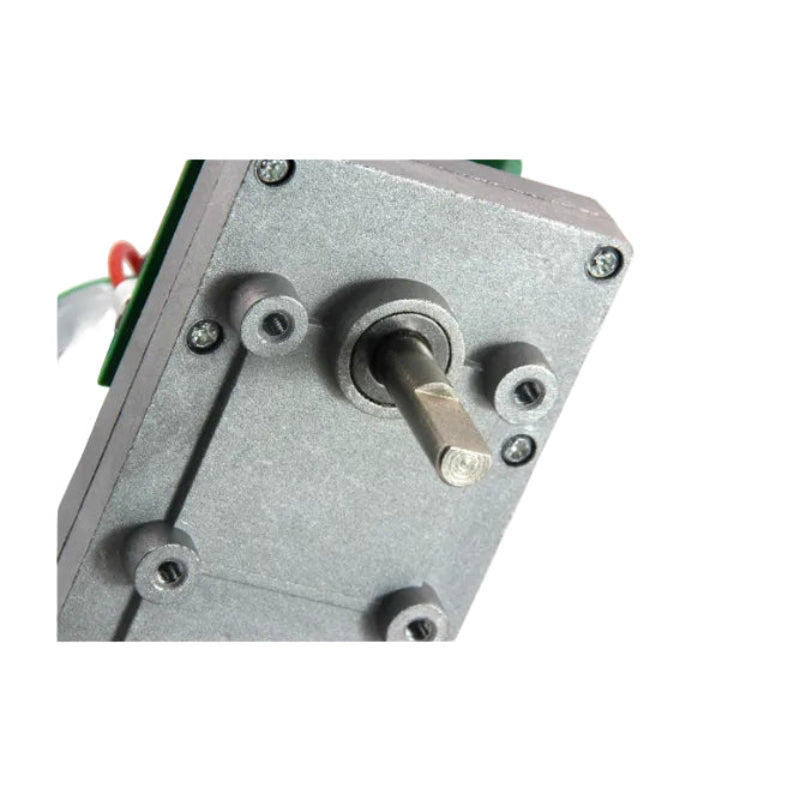

| Horn gear spline | D shape dia=8.0mm |
| Case | metal |
| Connector wire | 150mm ±5 mm |
| Motor | carbon motor |
| Operating Voltage Range | 12V |
| Idle current (at stopped) | 15mA |
| No load speed | 0.67sec/ 60degree 15RPM |
| Runnig current(at no load) | 200mA |
| Peak stall torque | 180kg.cm@12V |
| Rated torque | 60@12V |
| Stall current | 4500mA@12V |
| Command signal | Bus Packet Communication RS485 |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360°(when 0~4096) |
| Feedback | Load,Speed,Input Voltage,Current |
| Position Sensor Resolution | 360° (when 0~4095)-CW |
