FEETECH SM120BL Servo Motor
FEETECH SM120BL Servo Motor

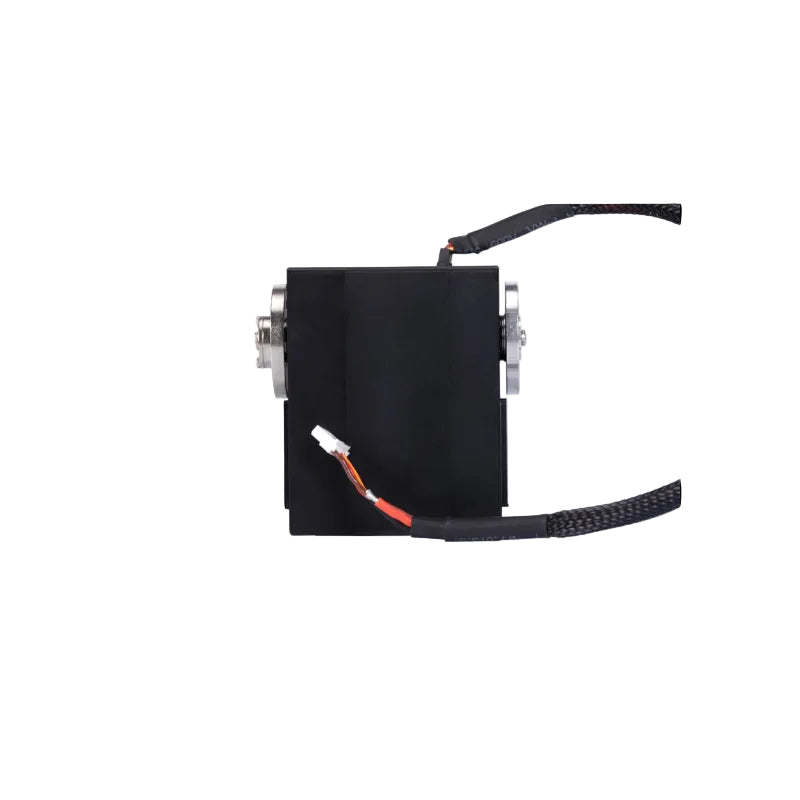

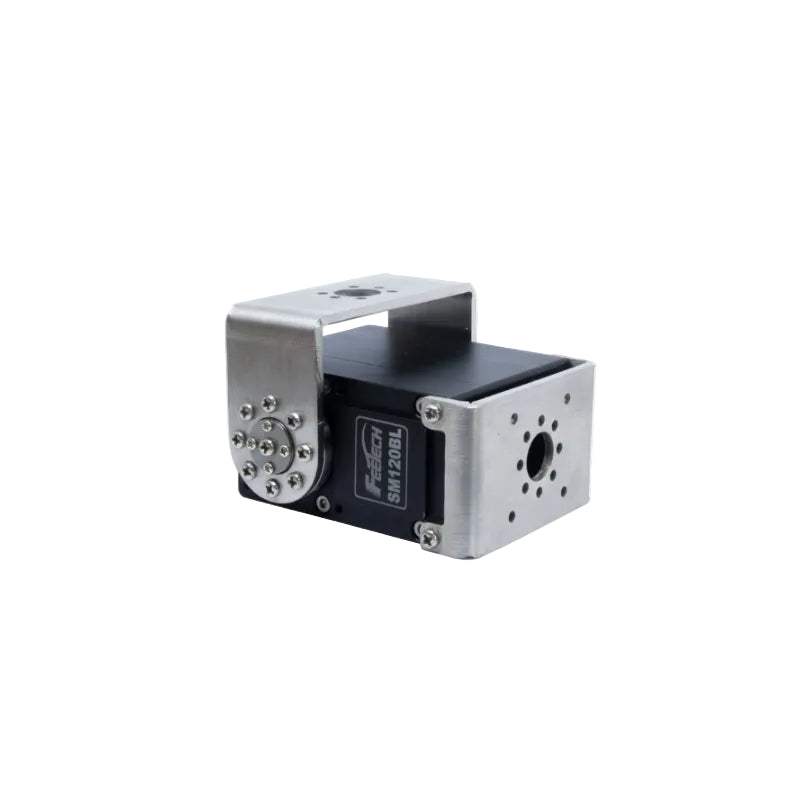

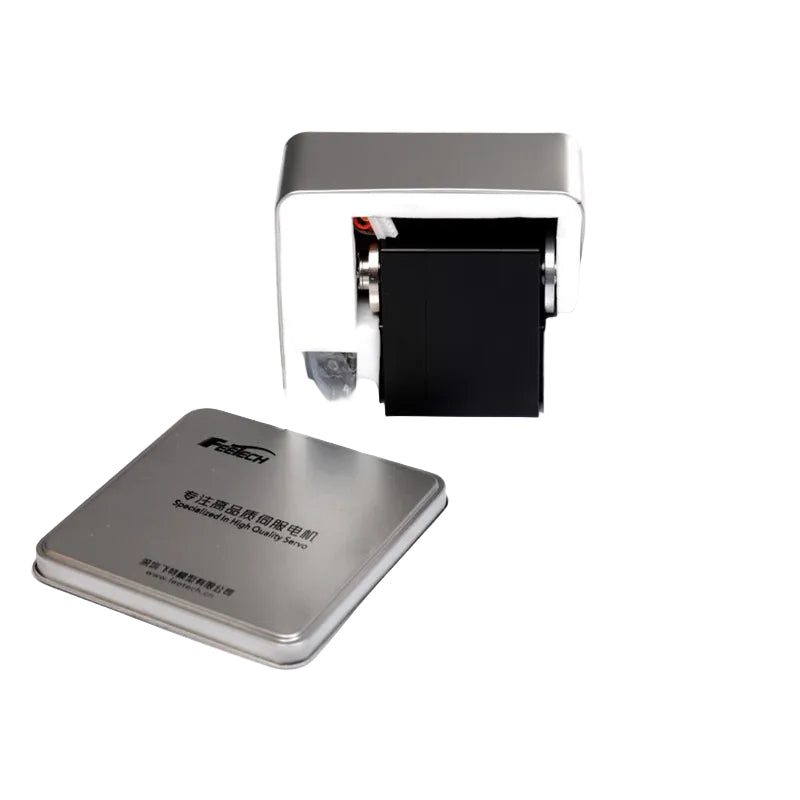

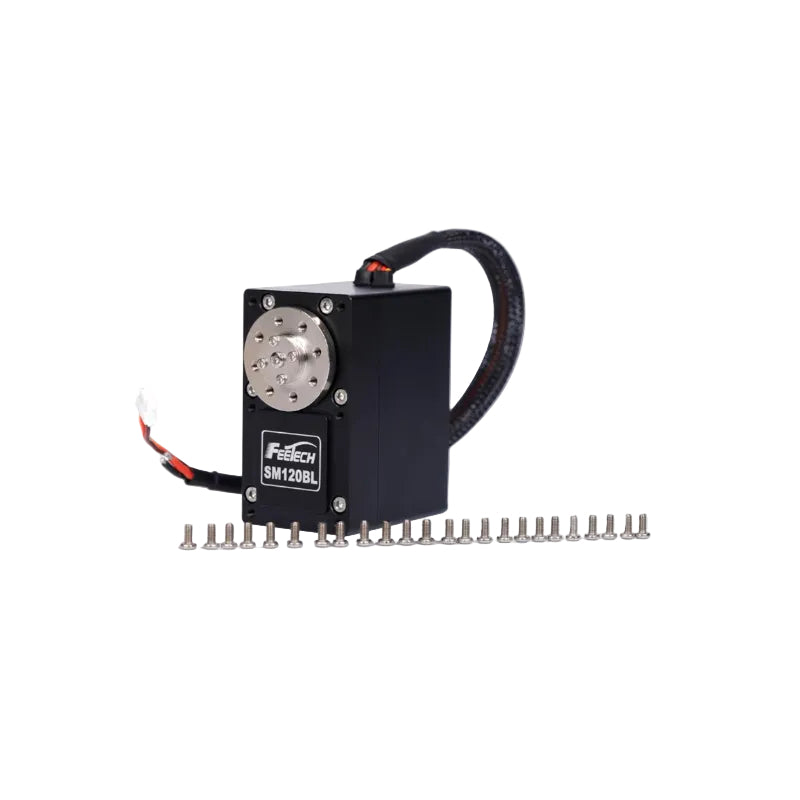

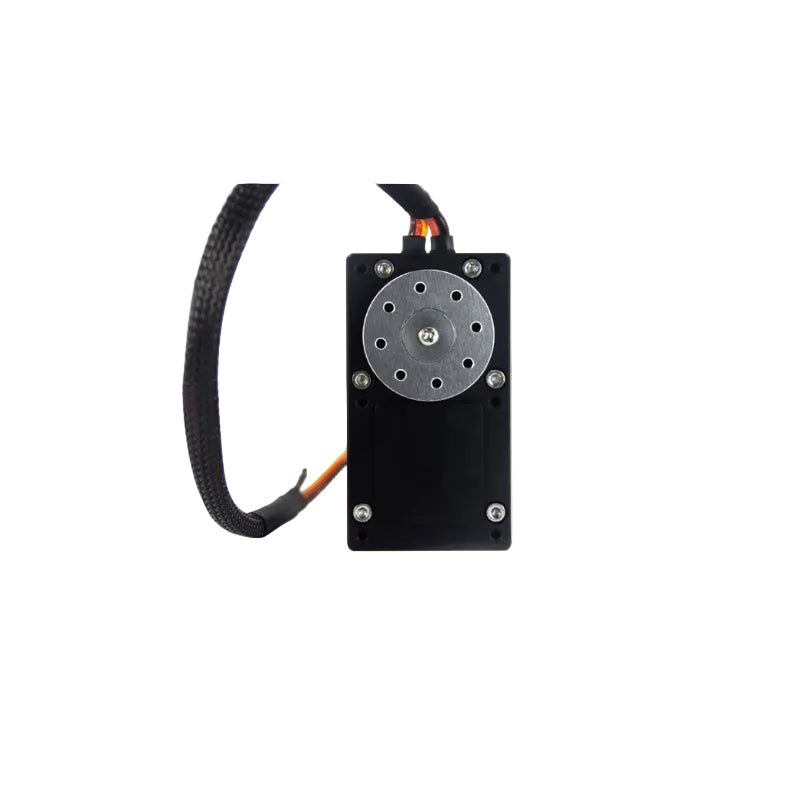

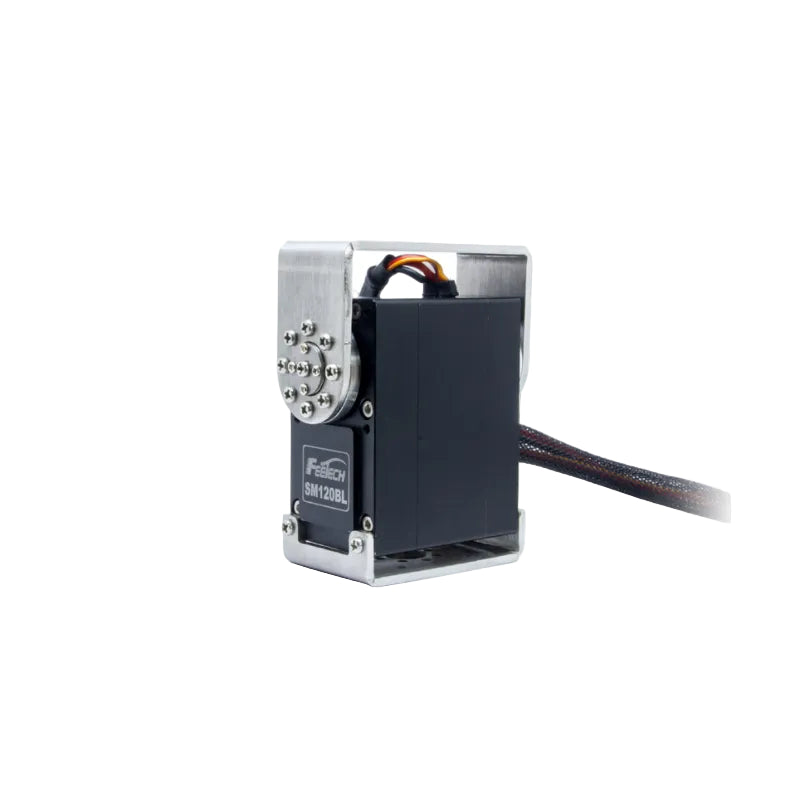

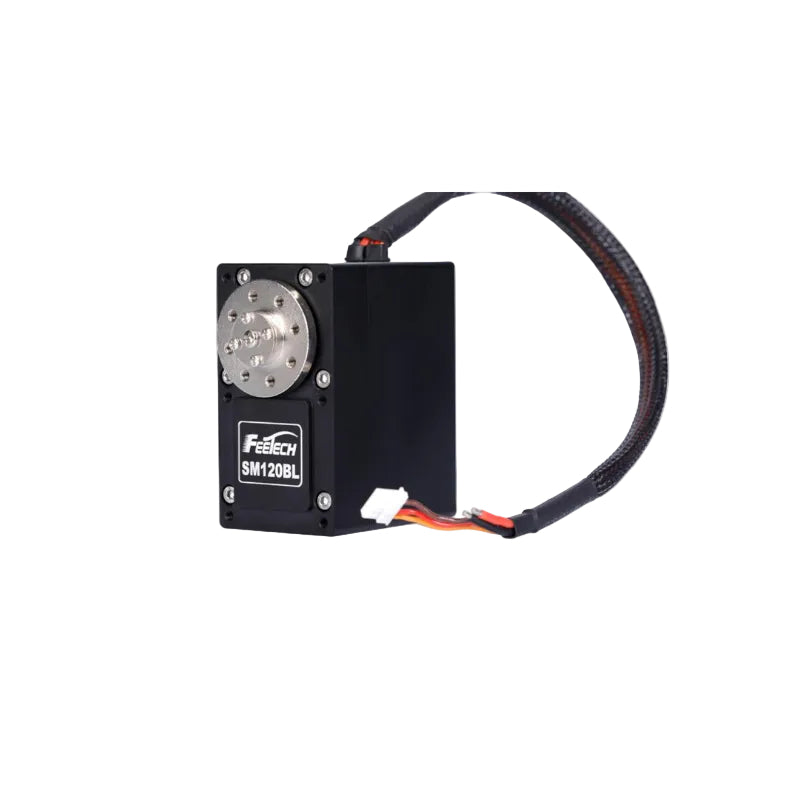

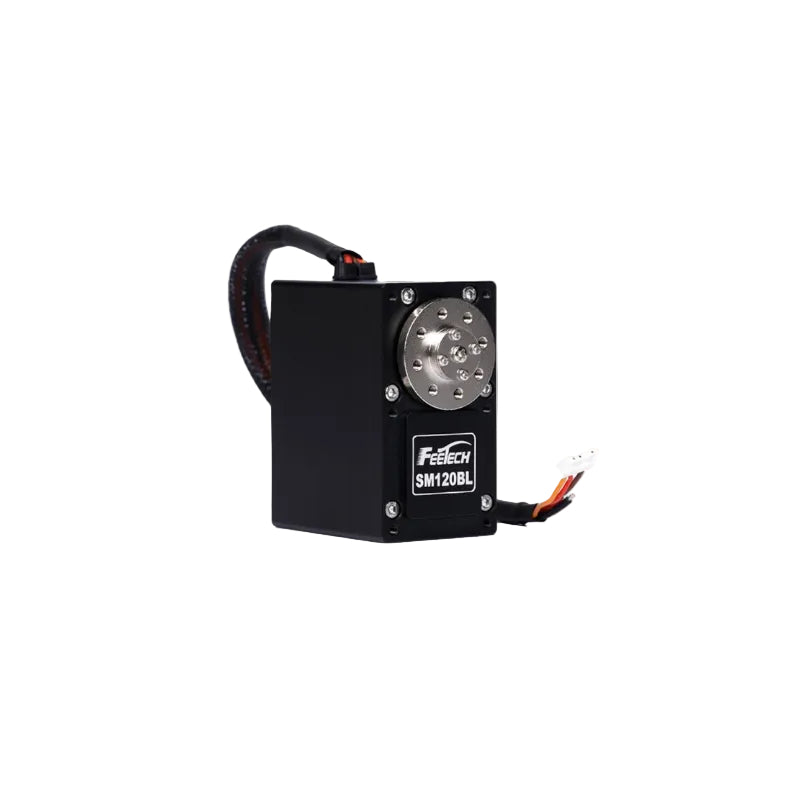

The SM120BL is a high-torque 24V 120kg.cm Serial Control RS485 Servo built with an Aluminium(7075) case, steel gears (Gear Ratio 232:1), a steel horn type, and 2 Ball bearings. Powered by a brushless motor, this servo features a NO limiter design and operates at a 24V voltage range, delivering a peak stall torque of 120kg.cm@24V, a rated load of 32kg. cm≤, and a no-load speed of 0.2sec/ 60degree 50RPM@24V, with a stall current of 4A@24V and a rated current of 1A≤. Characterized by a 2.8Ω terminal resistance and a KM constant of 30kg. cm/A, it communicates via digital packets using half duplex asynchronous serial communication, supporting an ID range of 0-253 and communication speeds from 38400bps to 1 Mbps. It offers a 360° running degree (when 0~4095), backed by a 12Bits Magnetic Coding(360° /4096 ) position sensor resolution for real-time feedback on load, position, speed, input voltage, current, and temperature. This compact servo measures A: 78mm B: 43mm C: 65.5mm, weighs 485g, and is equipped with a One character (OD10mm) horn gear spline alongside a 300mm ±5 mm connector wire.
| PRODUCT PARAMETERS | |
| Model | SM120BL |
| Product Name | 24V 120kg.cm Serial Control RS485 Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~80℃ |
| Size | A：78mm B：43mm C：65.5mm |
| Weight | 485g |
| Gear type | Steel Gear ( Gear Ratio 232:1 ) |
| Limit angle | NO limiter |
| Bearing | 2 Ball bearings |
| Horn gear spline | One character (OD10mm) |
| Horn type | steel |
| Case | Aluminium(7075) |
| Connector wire | 300mm ±5 mm |
| Motor | Brushless motor |
| Operating Voltage Range | 24V |
| No load speed | 0.2sec/ 60degree 50RPM@24V |
| Runnig current(at no load) : | 200 mA@24V |
| Peak stall torque | 120kg.cm@24V |
| Stall current | 4A@24V |
| Rated Load | 32kg. cm≤ |
| Rated current | 1A≤ |
| Motor Constant (KM) | 30kg. cm/A |
| Terminal resistance | 2.8Ω |
| Command signal | Digital Packet |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 360° (when 0~4095) |
| Feedback | Load,Position,Speed,Input Voltage,Current,Temperature |
| Position Sensor Resolution | 12Bits Magnetic Coding(360° /4096 ) |
