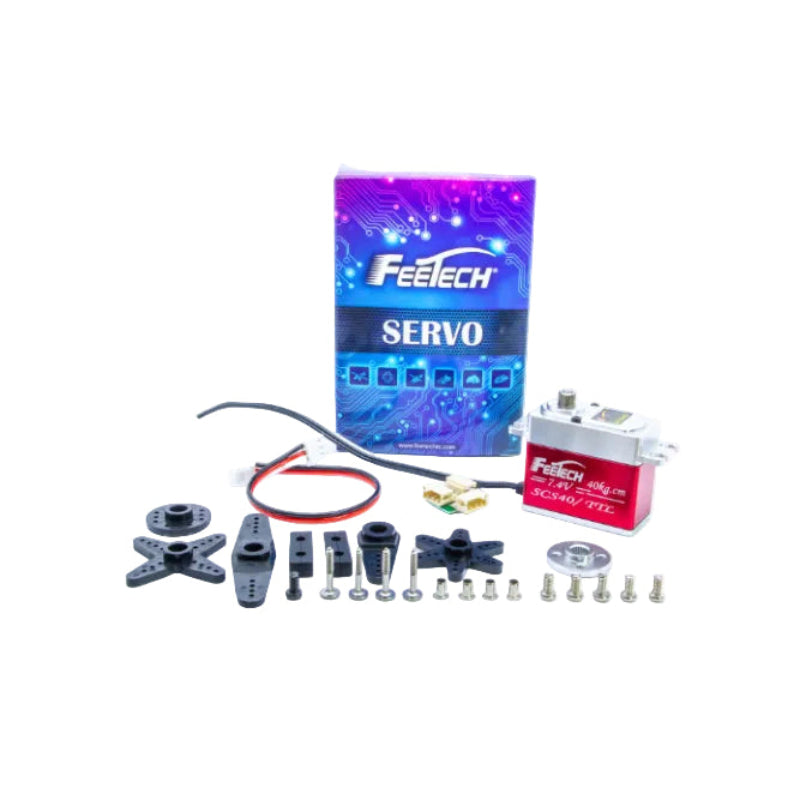

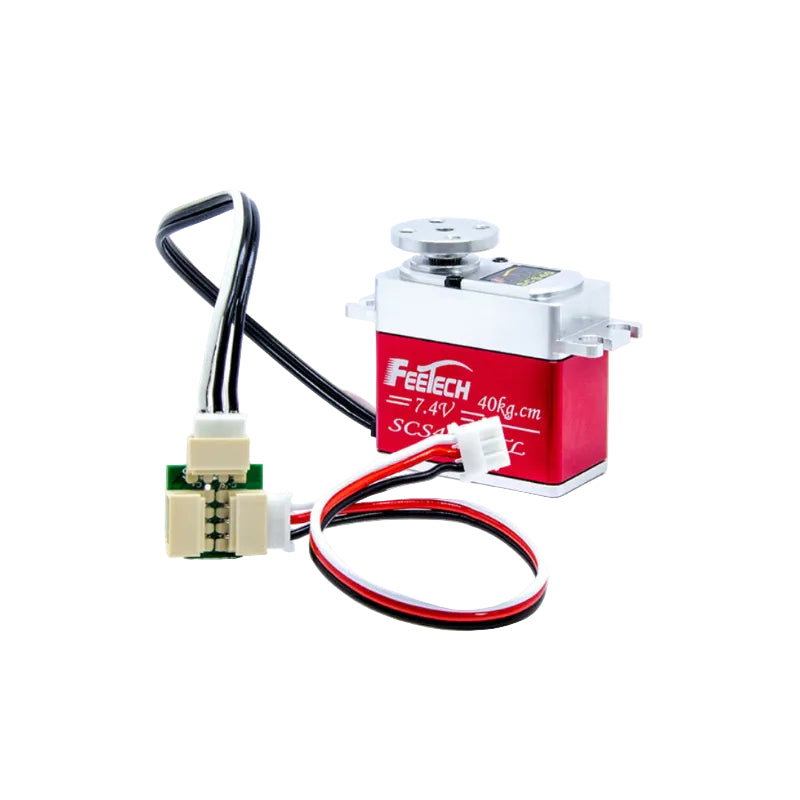

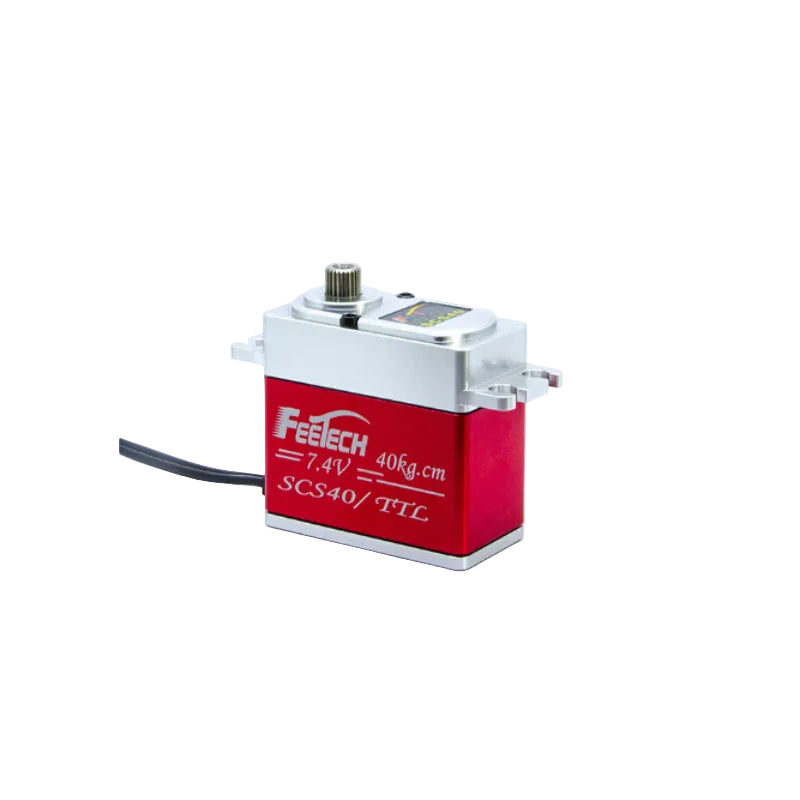

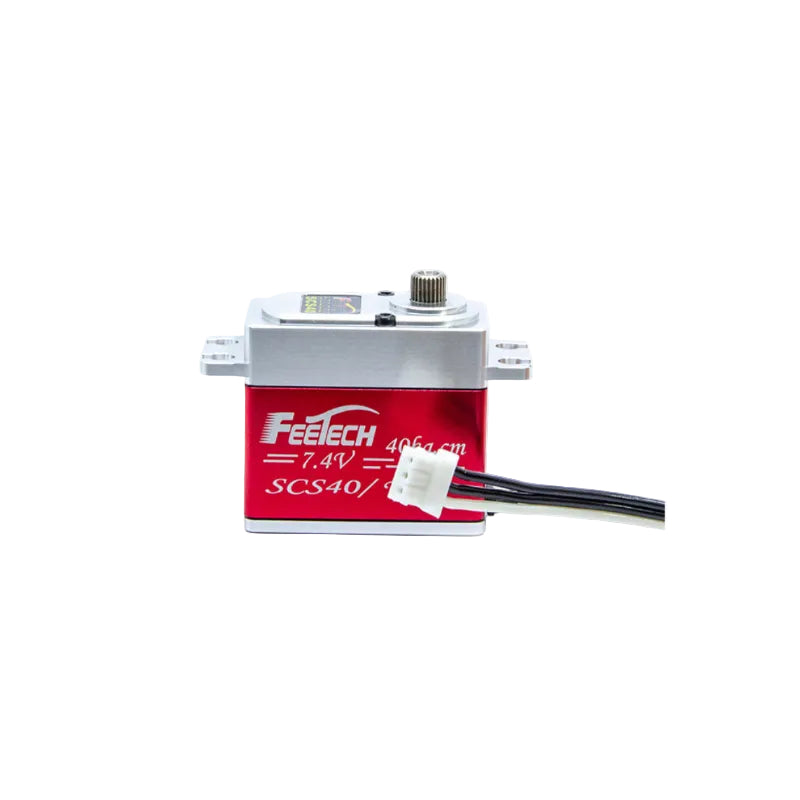

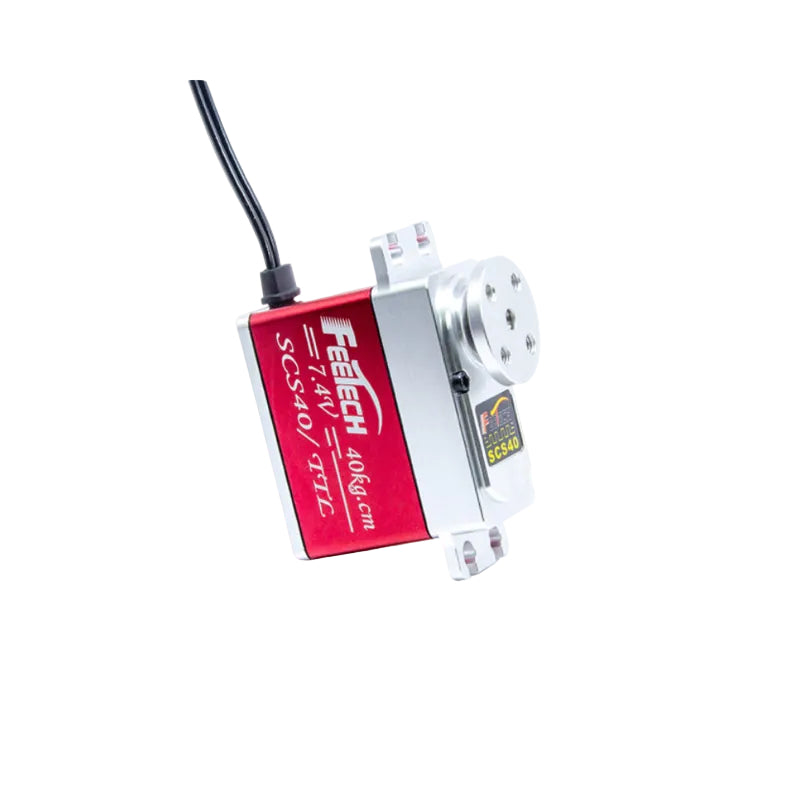

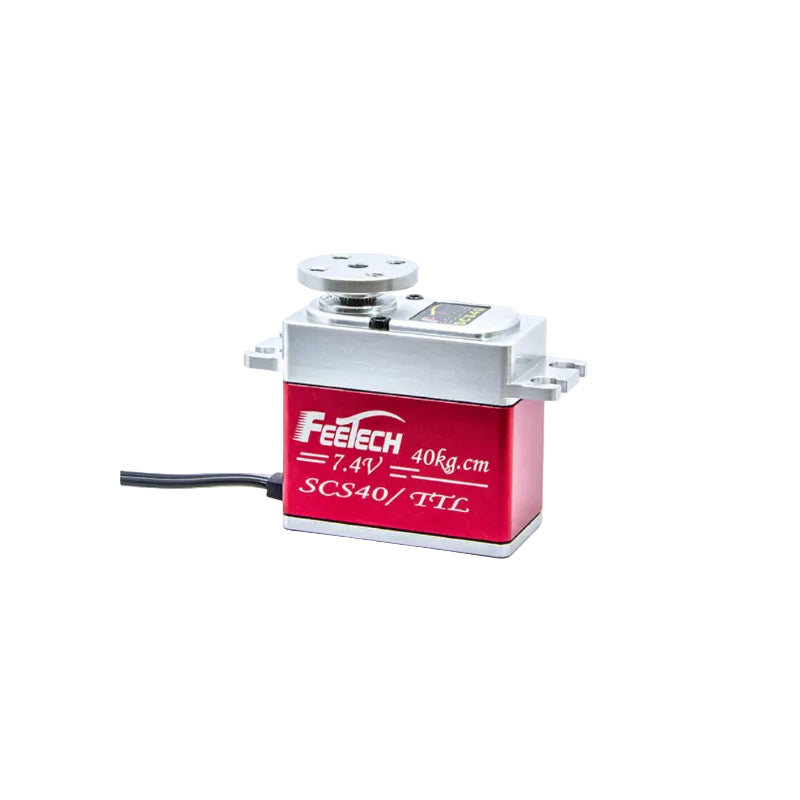

FEETECH SCS40 Servo Motor
Product description
The SC-4000-C001 is a high-performance 8.4V 40kg serial bus smart servo engineered for robotic joints, educational platforms, and maker projects. Housed in a premium aluminum alloy case for optimized heat dissipation, it integrates a coreless motor, a durable metal gearbox, a 25T output shaft, and a high-quality potentiometer. Driven by Feetech’s self-developed TTL control board, this smart servo delivers a powerful 40kg.cm stall torque with a 300° effective control angle, while supporting dual working modes: standard servo mode and continuous rotation motor mode. It provides comprehensive real-time feedback on position, speed, voltage, current, temperature, and load parameters, enabling robust overload and over-current protection.
FEETECH SC-4000-C001 Specifications
| PRODUCT PARAMETERS | |
| Model | SC-4000-C001 |
| Product Name | 8.4V 40kg.cm Serial Control BUS Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -15℃~70℃ |
| Size | A：40.5mm B：20.5mm C：36mm |
| Weight | 70g ±0.2 |
| Gear type | Metal Gear |
| Limit angle | No Limiter |
| Bearing | 2 Ball bearings |
| Horn gear spline | 25T(4.95mm) |
| Horn type | Plastic,POM |
| Case | ABS |
| Connector wire | 200mm ±5 mm |
| Motor | Coreless motor |
| Operating Voltage Range | 6-8.4V |
| No load speed | 0.12sec/60°@8.4V 83RPM |
| Runnig current(at no load) : | 120 mA@8.4V |
| Peak stall torque | 42.5kg.cm@8.4V |
| Rated torque | 12.8kg.cm@8.4V |
| Stall current | 1800mA@8.4V |
| Command signal | Bus Packet Communication TTL level |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 300°(when 0~1023)±5 |
| Feedback | Load, Speed, Input Voltage |
| Position Sensor Resolution | Potentiometer(300°/1024)±5 |
| Operating mode | Servo mode / motor mode |
