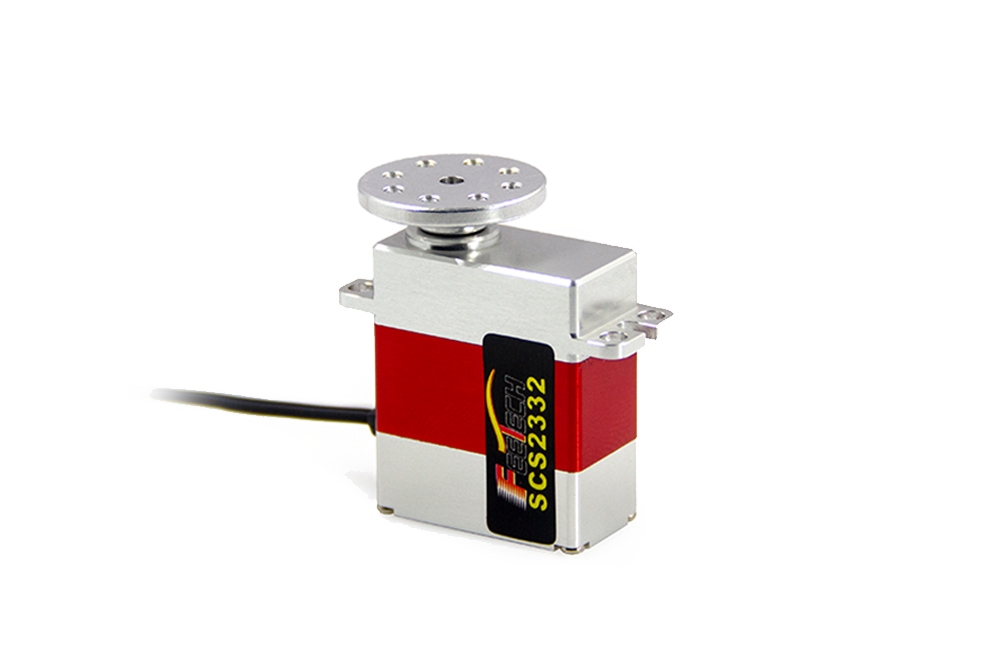

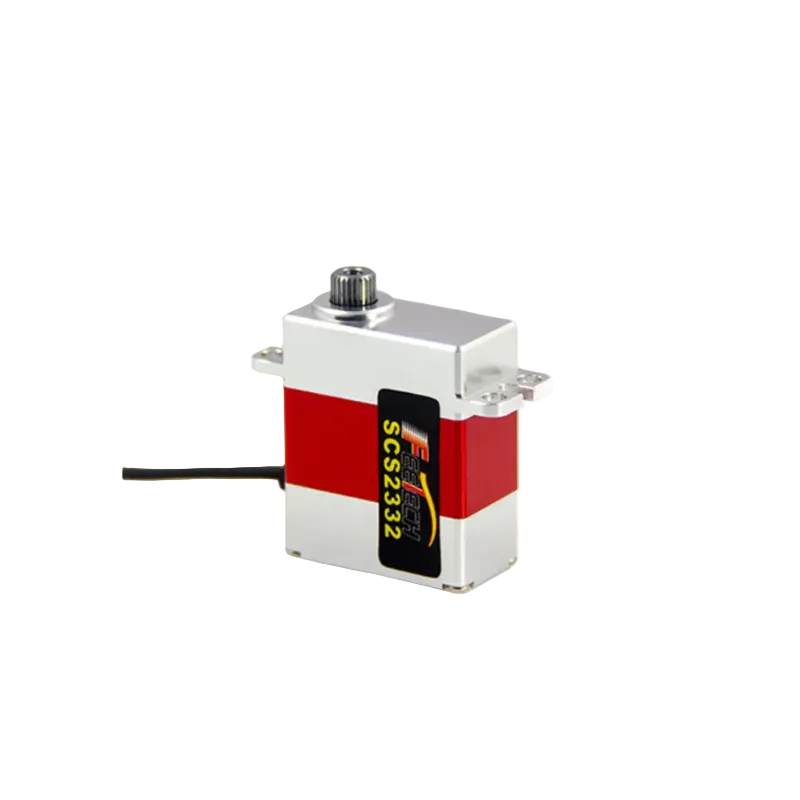

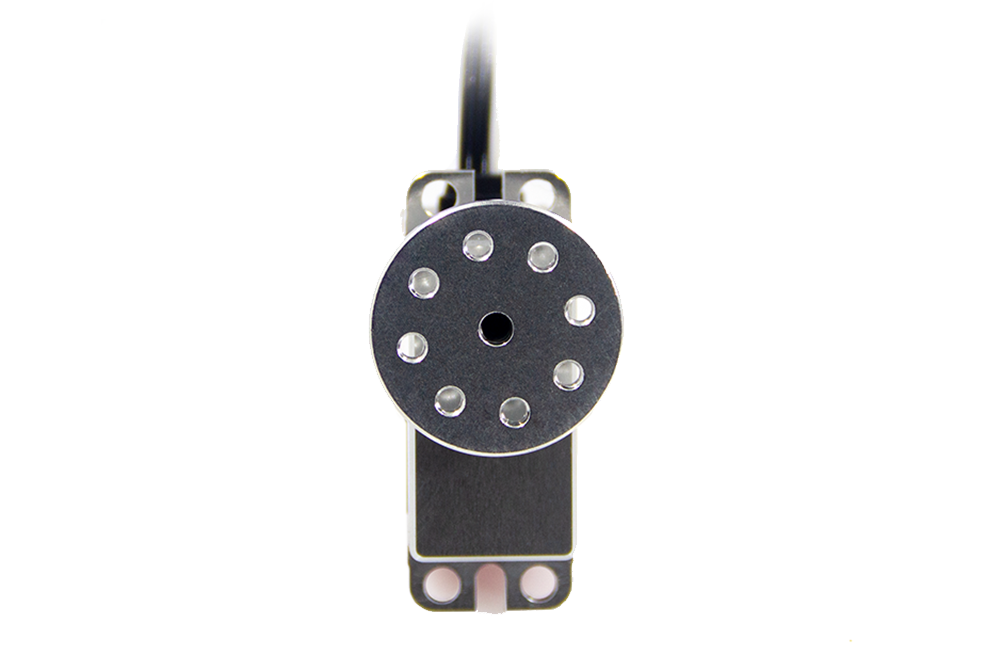

FEETECH SCS2332 Servo Motor
The Feetech SCS2332 is a premium 6V 4.5kg serial bus servo tailored for STEM education, maker projects, robotic joints, and small-torque transmission applications. Built with a full aluminum alloy case, a coreless motor, a heavy-duty metal gearbox, and a standard 25T output shaft, it integrates Feetech’s proprietary TTL control board and a high-quality potentiometer. Delivering a stall torque of 4.5kg.cm, this smart servo features an effective control angle of 300° and supports dual operating modes: standard servo mode and continuous motor rotation. With real-time diagnostic feedback encompassing position, speed, voltage, temperature, and load parameters, the SCS2332 ensures reliable overload protection, making it an ideal, durable component for smart robotics.
| PRODUCT PARAMETERS | |
| Model | SC-2332-C001 |
| Product Name | 6V 4.5kg.cm Serial Control BUS Servo |
| Storage Temperature Range | -30°C ~ 80°C |
| Operating Temperature Range | -15°C ~ 70°C |
| Size | A: 32mm B: 12mm C: 27.5mm |
| Weight | 26g |
| Gear type | Copper + Steer |
| Limit angle | NO limit |
| Bearing | 2 Ball bearings |
| Horn gear spline | 25T (4.95mm) |
| Horn type | Plastic, POM |
| Case | Aluminium Alloy |
| Connector wire | 150mm ±5 mm |
| Motor | Coreless motor |
| Operating Voltage Range | 4.8 - 6V |
| No load speed | 0.09sec/60° @ 6V |
| Running current (at no load) | 150 mA @ 6V |
| Peak stall torque | 4.5kg.cm @ 6V |
| Rated torque | 1.5kg.cm @ 6V |
| Stall current | 1.2A @ 6V |
| Command signal | Bus Packet Communication TTL level |
| Protocol Type | Half duplex Asynchronous Serial Communication |
| ID range | 0 - 253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Running degree | 270° (when 0 ~ 1023) |
| Feedback | Load, Speed, Position |
| Position Sensor Resolution | Potentiometer (300°/1024) |
| Operating mode | Servo mode / motor mode |
