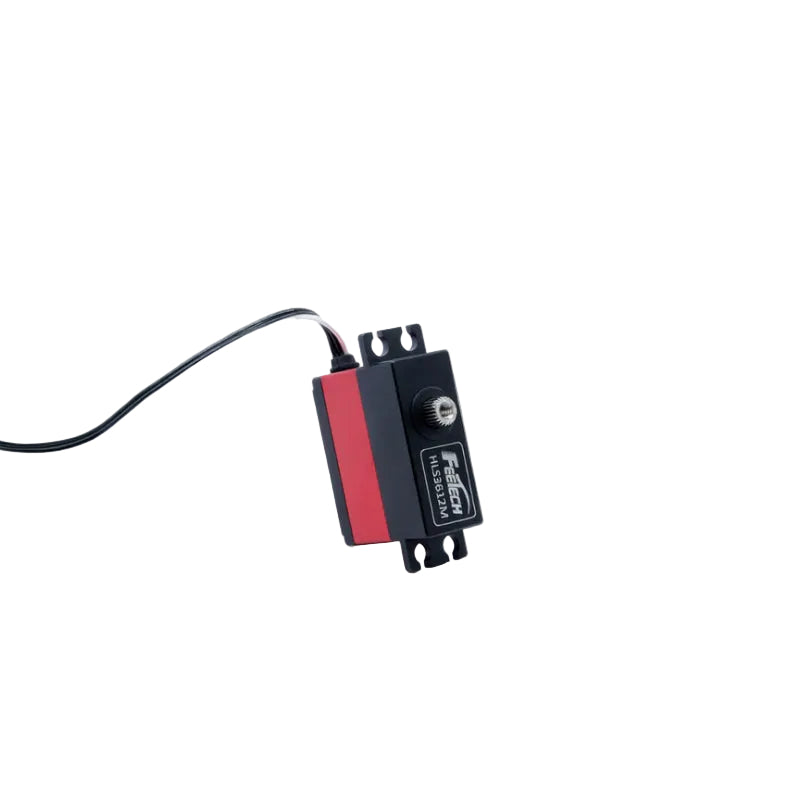

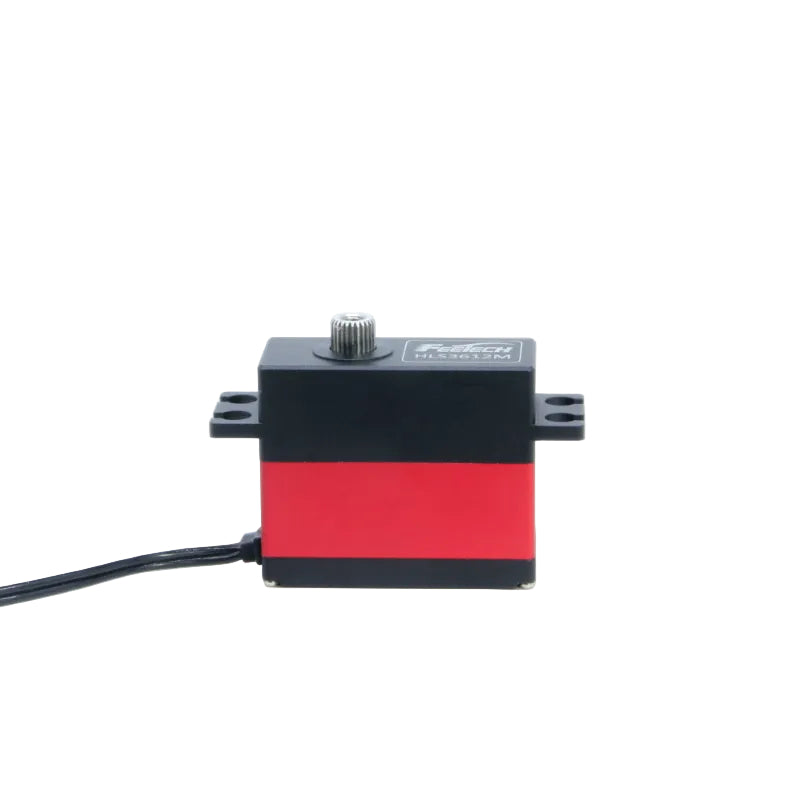

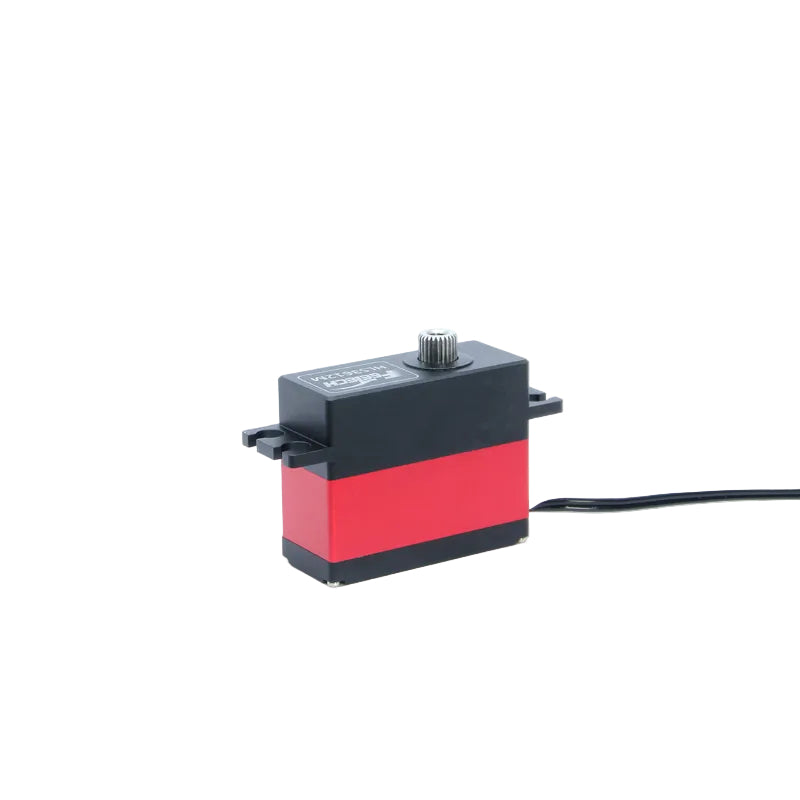

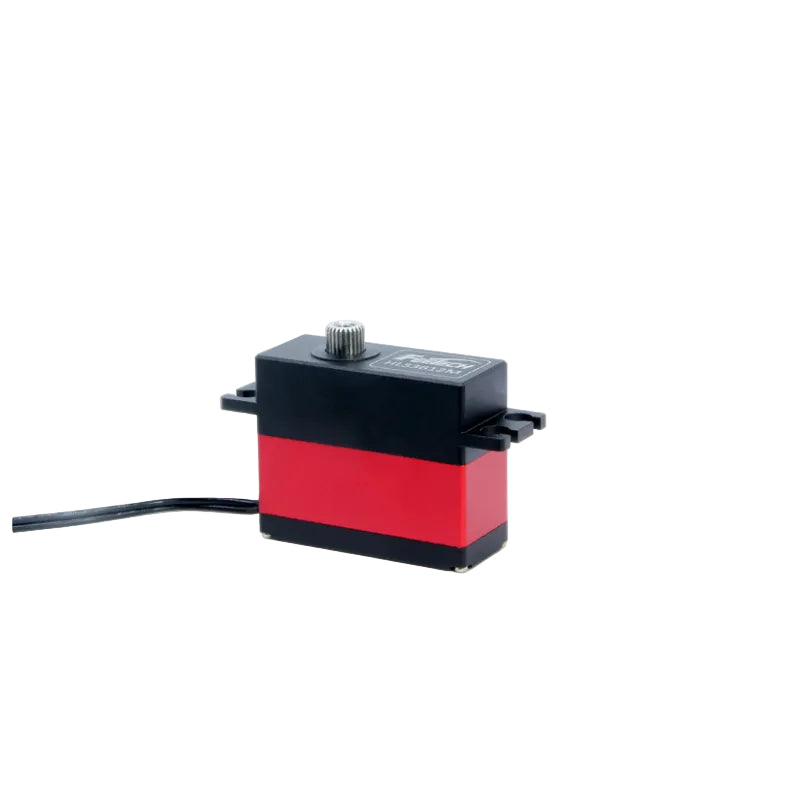

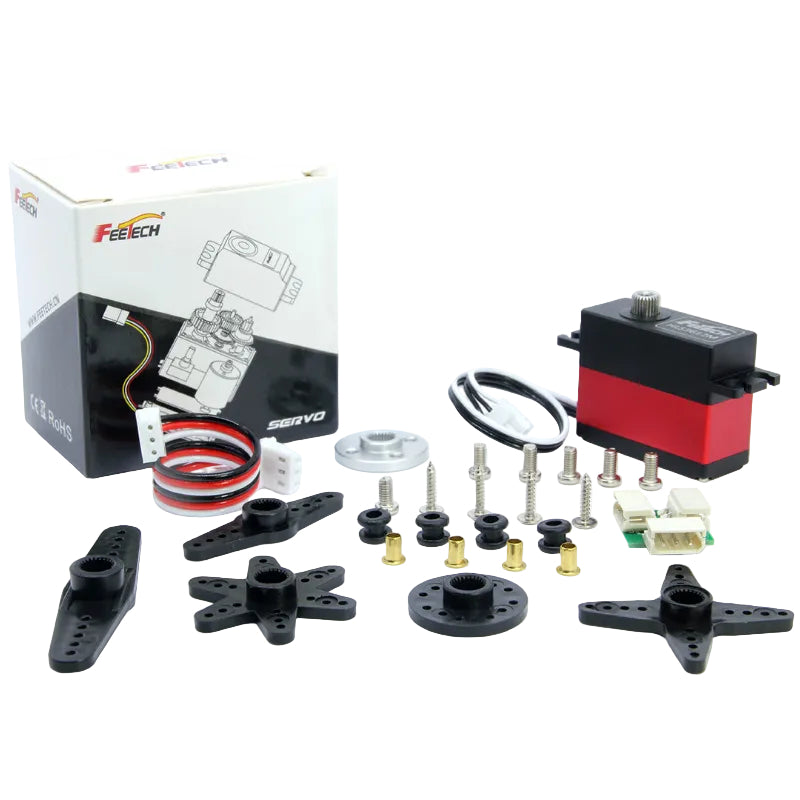

FEETECH HL3612 Servo Motor
FEETECH HL3612 Servo Motor
The HL-3612-C001 is an advanced 6V 12kg constant force single shaft TTL serial bus servo designed for high-precision motion control. Driven by a coreless motor and a PID control algorithm, it features an aluminum case, durable metal gears (1/405 gear ratio), ball bearings, and a 25T/OD5.95mm horn gear spline. Operating at 5V–8.4V, it delivers a peak stall torque of 15kg.cm and an ultra-fast no-load speed of 0.147sec/60° (68RPM) at 7.4V. This smart servo supports half-duplex asynchronous serial communication (38400bps–1Mbps) and unique multi-mode options: angle servo mode (0–360° controllability with 0.088° resolution), constant speed mode, and constant current mode. It supports precise multi-loop control (up to ±7 turns), targeted torque holding, and comprehensive multi-parameter feedback (load, position, speed, voltage, current, temperature).
| PRODUCT PARAMETERS | |
| Model | HL-3612-C001 |
| Product Name | 6V 12kg Constant Force Single Shaft TTL Serial Bus Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ |
| Temperature Range | 25℃ ±5℃ |
| Humidity Range | 65%±10% |
| Size | A：36mm B：15mm C：29.2mm |
| Weight | 38.2± 1g |
| Gear type | Metal Gear |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/OD5.95mm |
| Gear Ratio | 1/405 |
| The rocker phantom | 0° |
| Case | Aluminium |
| Connector wire | 15CM |
| Motor | Coreless Motor |
| Rated Input Voltage | 5V-8.4V |
| No load speed | 0.147sec/60°(68RPM)@7.4V |
| Runnig current(at no load) : | 180mA@7.4V |
| Peak stall torque | 15kg.cm@7.4V |
| Stall current | 1.6A@7.4V |
| Rated Load | 3.75kg. cm@7.4V |
| Rated current | 400mA@7.4V |
| KT Constant | 9.2kg. cm/A |
| Terminal resistance | 2.8 Ω |
| Operating Modes | Mode 0: Angle servo mode (default mode, absolute position controllable from 0-360 degrees) Mode 1: Motor constant speed mode (motor constant speed mode, maintains speed without deceleration as the load increases) Mode 2: Motor constant current mode (motor constant current mode,maintains current without decreasing with increasing load) can achieve absolute position |
| Multi-Loop Mode | control of positive and negative 7 turns at the highest accuracy, but the umber of power failure turns is not saved (the resolution can be expanded, and the number of turns can be doubled) |
| Constant force output | Set the output torque value, the servo can maintain this torque (input the target torque value corresponding to address 44, the servo can maintain this torque) |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Control Algorithm | PID |
| Neutral Position | 180° (2048) |
| Running degree | 360° (when 0~4096) |
| Resolution [deg/pulse] | 0.088°(360°/4096) |
| Rotating Direction | Clockwise(0→4096) |
| Feedback | Load , Position ,Speed , Input Voltage , Current ,Temperature |
