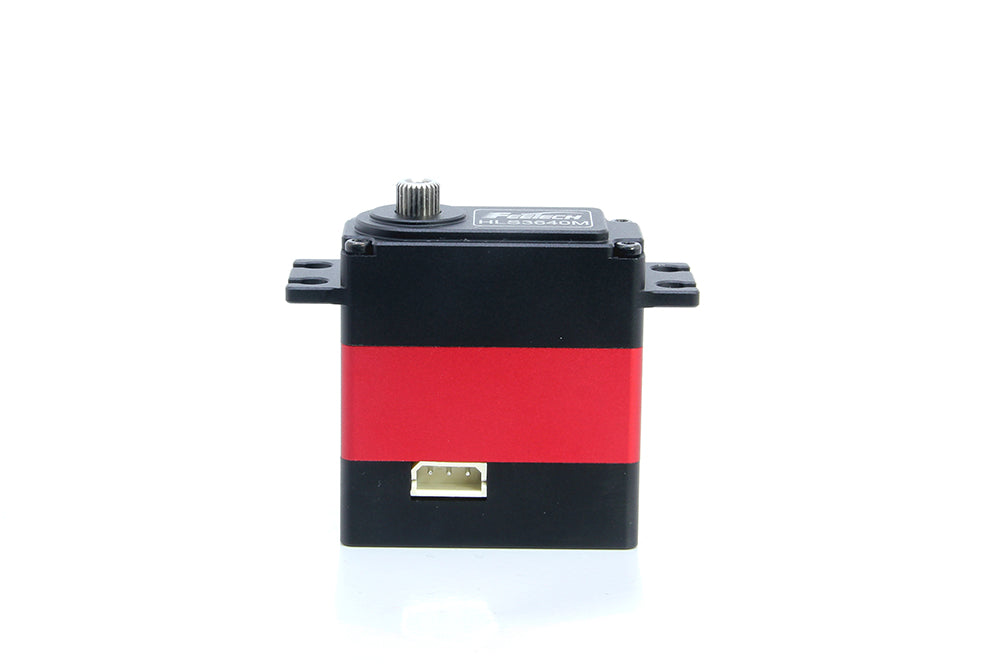

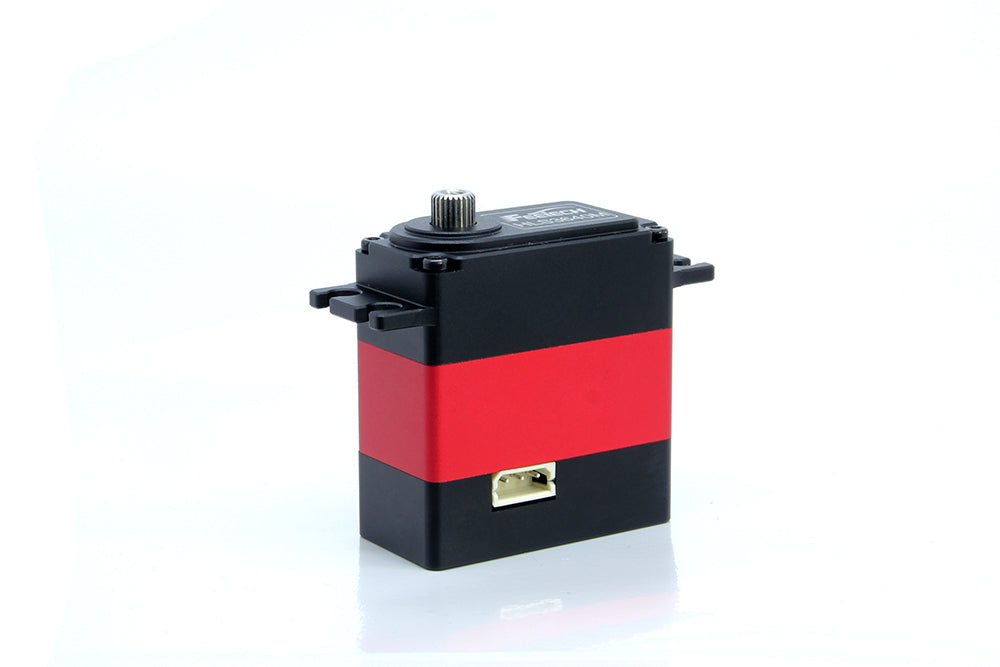

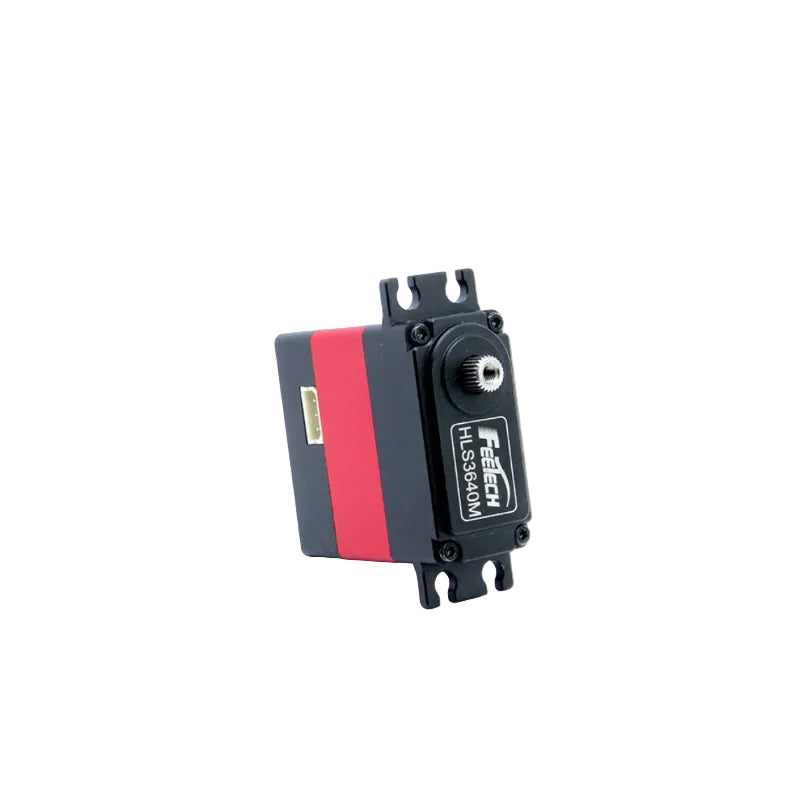

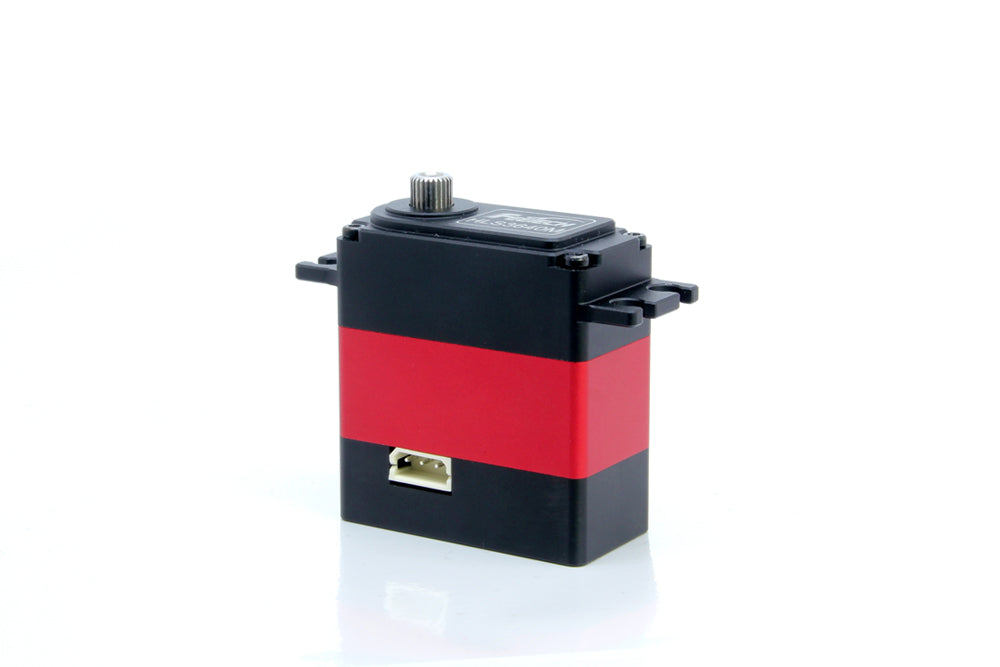

FEETECH HL-3640 Servo Motor
The HL-3640-C001 is an industrial-grade single shaft constant force serial bus servo designed for precise closed-loop motion control and advanced robotic actuation. Operating via a half-duplex asynchronous serial communication protocol, this sub-system features an integrated PID control algorithm alongside comprehensive real-time telemetry tracking load, position, speed, input voltage, current, and temperature. Its intelligent firmware natively supports multi-mode operations, including angle servo mode for absolute positioning, motor constant speed mode under varying loads, and motor constant current mode for programmable torque regulation. Constructed with an aluminium case, steel gears, and integrated ball bearings, this highly integrated execution unit ensures excellent mechanical stiffness, a zero-degree rocker phantom, and continuous constant force output.
| PRODUCT PARAMETERS | |
| Model | HL-3640-C001 |
| Product Name | 7.4V 40kg.cm Single shaft Constant Force Serial Bus Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -10℃~60℃ |
| Temperature Range | 25℃ ±5℃ |
| Humidity Range | 65%±10% |
| Size | A：40mm B：20mm C：43.05mm |
| Weight | 89± 1g |
| Gear type | Steel |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/OD5.9mm |
| Gear Ratio | 1/378 |
| The rocker phantom | 0° |
| Case | Aluminium |
| Connector wire | 15CM |
| Motor | Coreless Motor |
| Rated Input Voltage | 5V-8.4V |
| No load speed | 0.22sec/60°(45RPM)@7.4V |
| Runnig current(at no load) | 150mA@7.4V |
| Peak stall torque | 40kg.cm@7.4V |
| Stall current | 3.3A@7.4V |
| Rated Load | 10kg. cm@7.4V |
| Rated current | 850mA@7.4V |
| KT | 12.0kg. cm/A |
| Terminal resistance | 1.02 Ω |
| Operating Modes | Mode 0: Angle servo mode (default mode, absolute position controllable from 0-360 degrees) Mode 1: Motor constant speed mode (motor constant speed mode, maintains speed without deceleration as the load increases) Mode 2: Motor constant current mode (motor constant current mode,maintains current without decreasing with increasing load) can achieve absolute position |
| Multi-Loop Mode | control of positive and negative 7 turns at the highest accuracy, but the umber of power failure turns is not saved (the resolution can be expanded, and the number of turns can be doubled) |
| Constant force output | Set the output torque value, the servo can maintain this torque (input the target torque value corresponding to address 44, the servo can maintain this torque) |
| Command signal | Digital Packet |
| Protocol Type | Half Duplex Asynchronous Serial Communication |
| ID range | 0-253 |
| Communication Speed | 38400bps ~ 1 Mbps |
| Control Algorithm | PID |
| Neutral Position | 180° (2048) |
| Running degree | 360° (when 0~4096) |
| Resolution [deg/pulse] | 0.088°(360°/4096) |
| Rotating Direction | Clockwise(0→4096) |
| Feedback | Load, Position, Speed, Input Voltage, Current, Temperature |
