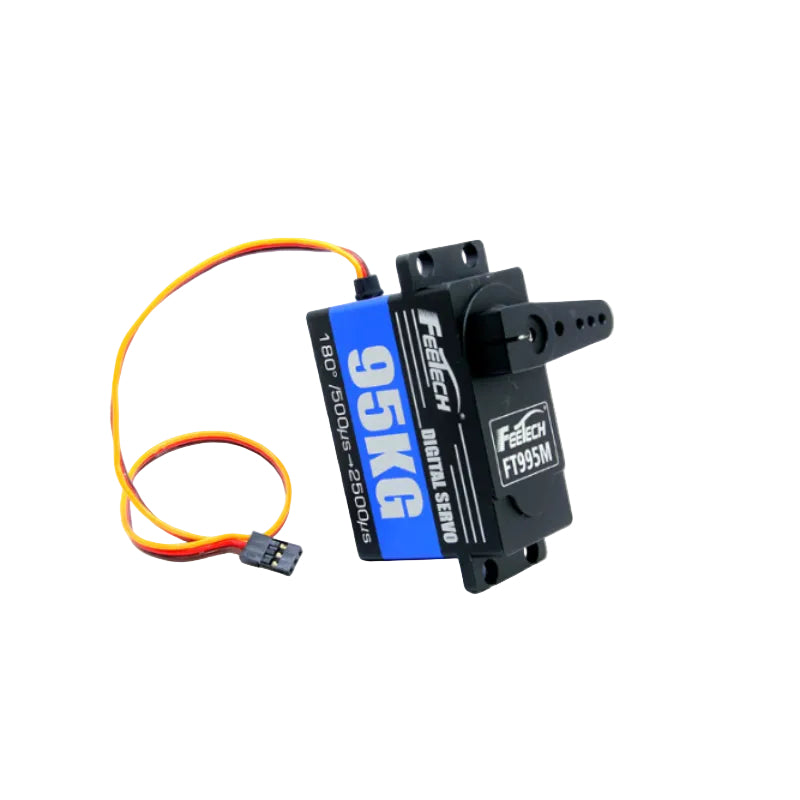

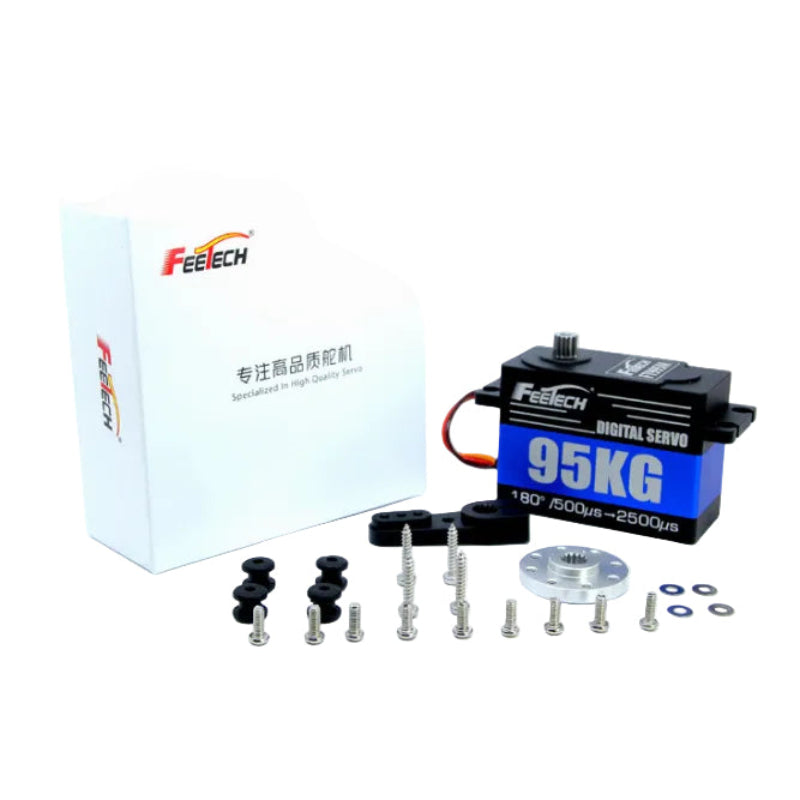

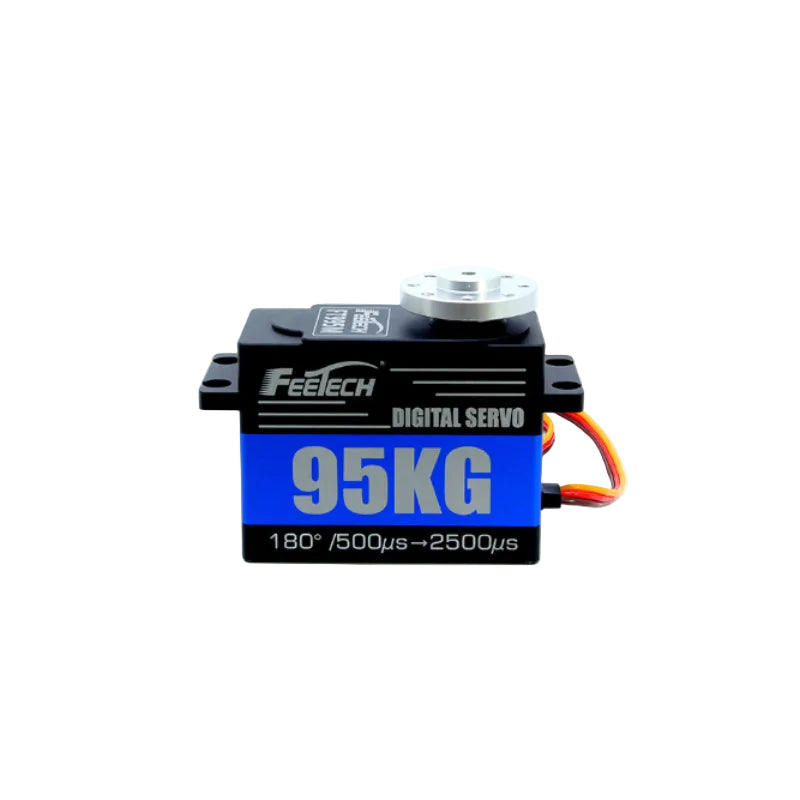

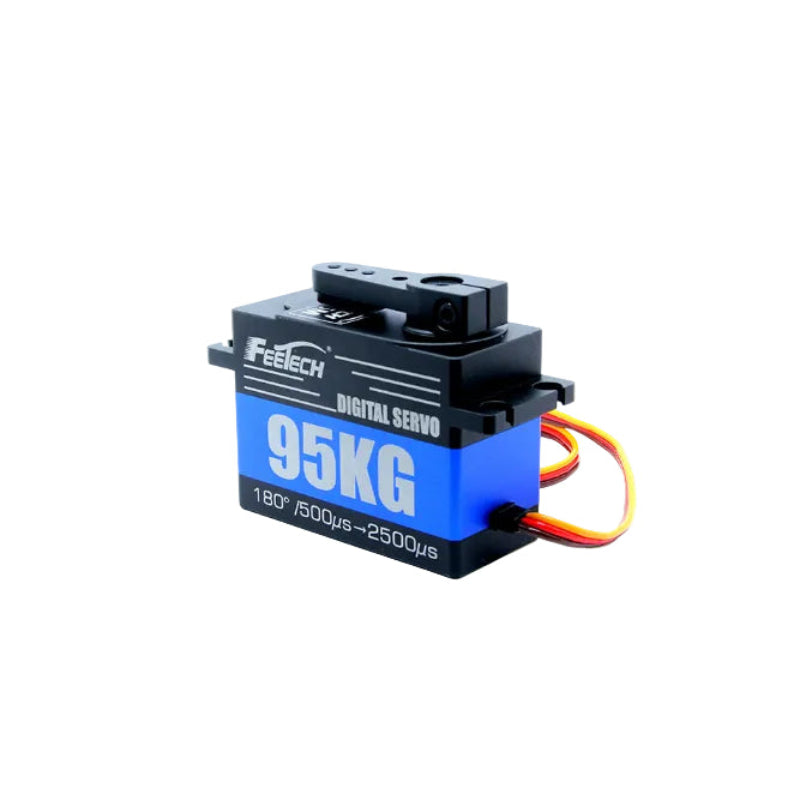

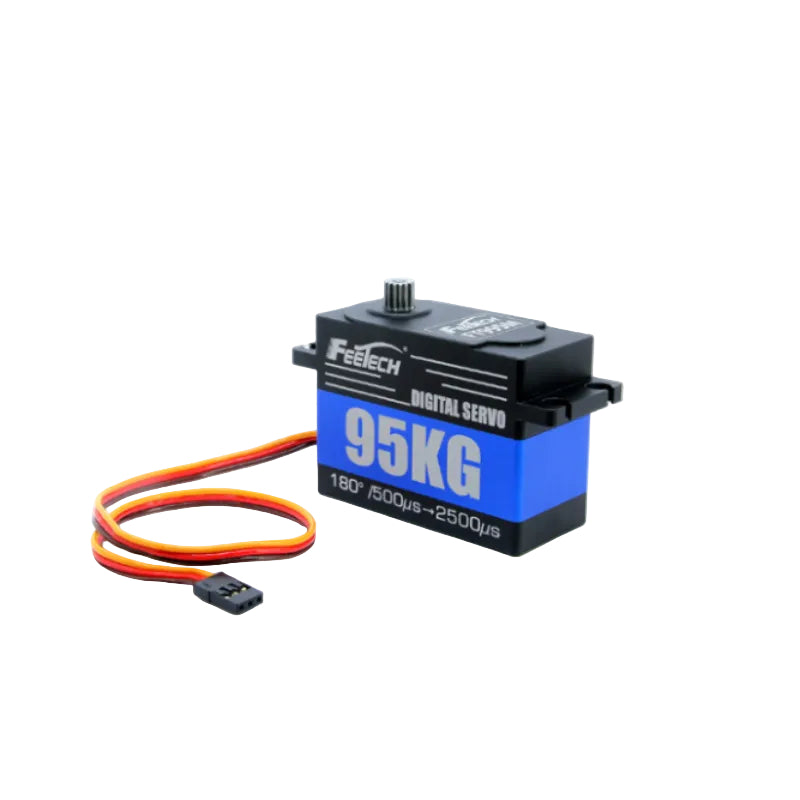

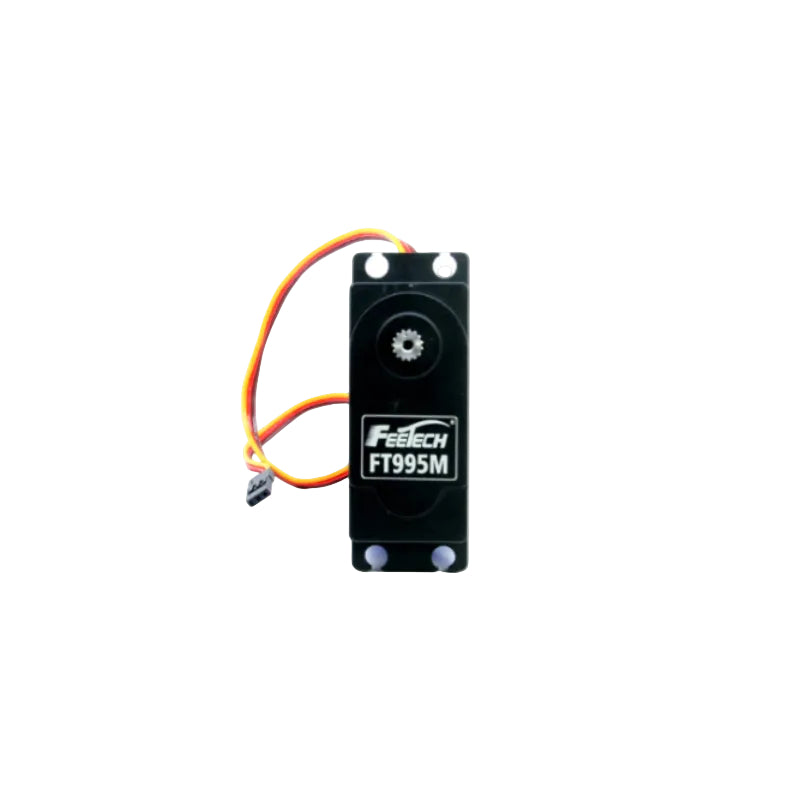

FEETECH FT995M Servo Motor
FEETECH FT995M Servo Motor
The FT-995-C001 is an ultra-high-torque 95KG-class industrial digital servo engineered with a high-performance core motor and a resilient aluminum case for optimized heat dissipation. Featuring ultra-tough steel gears with a 1/399 gear ratio and dual ball bearings, it operates over a versatile 6–9V voltage range. This servo achieves an extraordinary peak stall torque of 95kg.cm at 7.4V and up to 105kg.cm at 8.4V, paired with a rated torque of 22.5kg.cm and a no-load speed of 0.268sec/60° (40RPM). Driven by a digital comparator system using pulse width modulation (500–2500 µsec), it ensures a precise 180°±5° running degree with counterclockwise rotation and a dead band width of ≤4 µsec. Weighing 187.5±1g and including a 15T/7.6mm horn gear spline without mechanical limits, it provides massive strength and precision for heavy-duty robotics and automation.
| PRODUCT PARAMETERS | |
| Model | FT-995-C001 |
| Product Name | 7.4V 95kg.cm180°/7.4V 95KG 180 Degree Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ |
| Size | A：65mm B：30mm C：48mm |
| Weight | 187.5g± 1g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 15T/7.6mm |
| Gear Ratio | 1/399 |
| Case | Alumi num |
| Connector wire | 30±0.5CM |
| Motor | Core Motor |
| Operating Voltage Range | 6-9V |
| Idle current (atstopped) | 30MA@8.4V |
| No load speed | 0.268sec/60°(40RPM)@7.4V |
| Runnig current(at no load) : | 600mA@7.4V |
| Peak stall torque | 95kg.cm@7.4V 105kg.cm@8.4V |
| Rated torque | 22.5kg.cm@7.4V |
| Stall current | 9.5A@7.4V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwi se (at 1500→2500 μ sec) |
