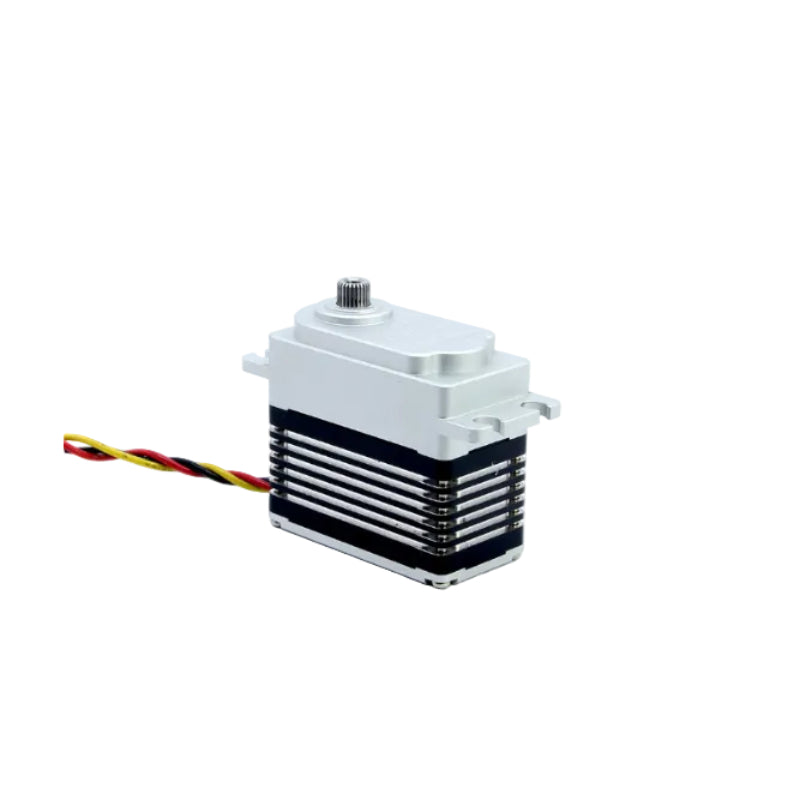

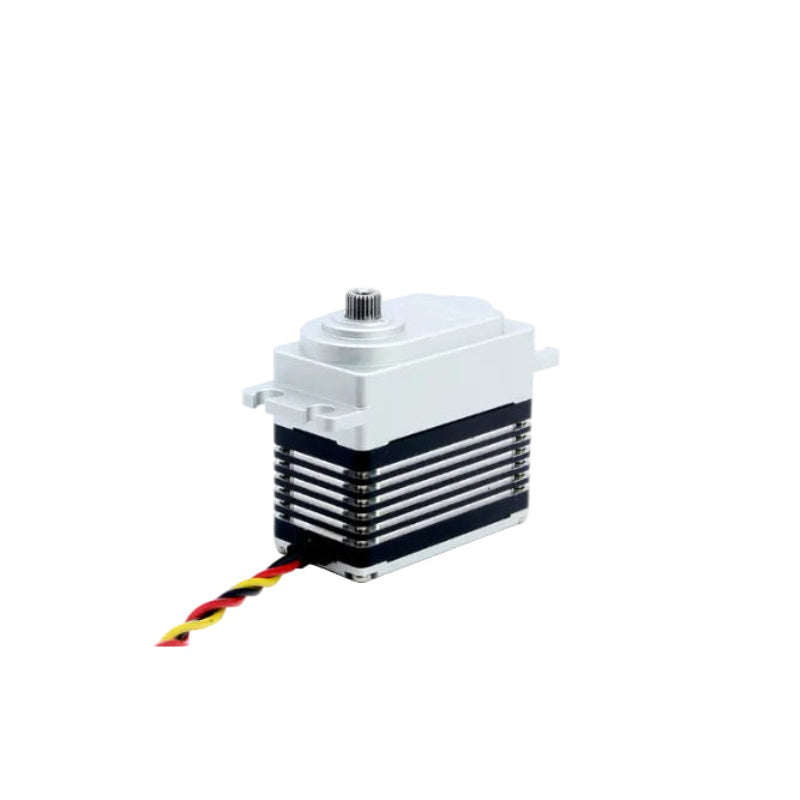

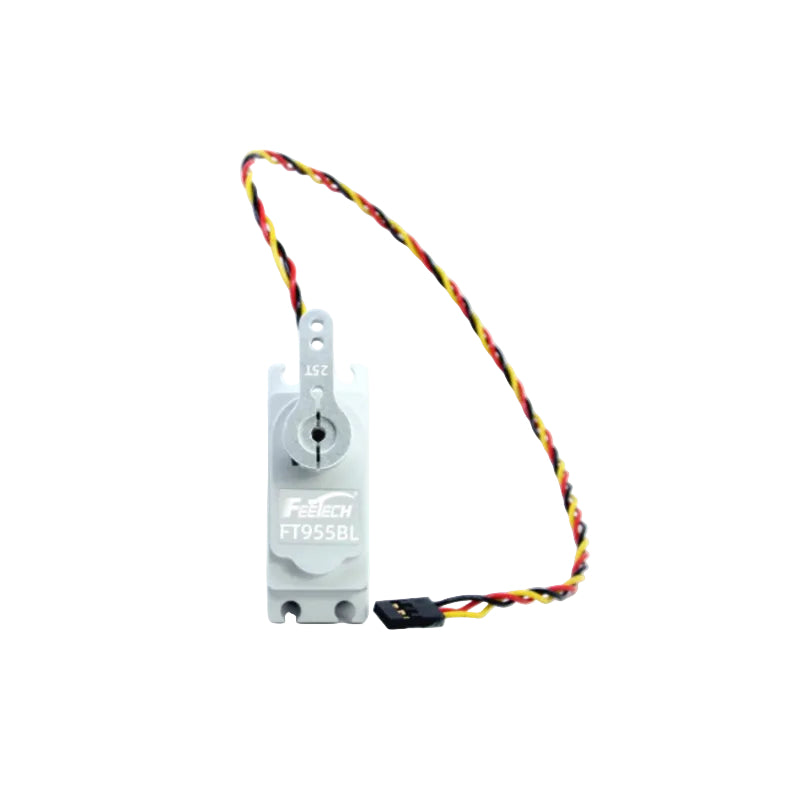

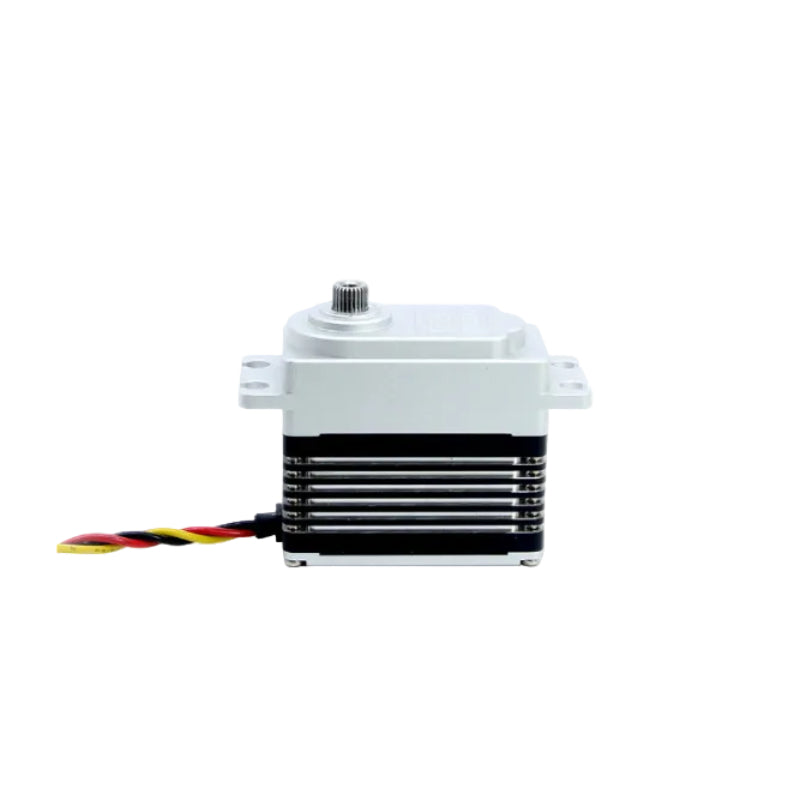

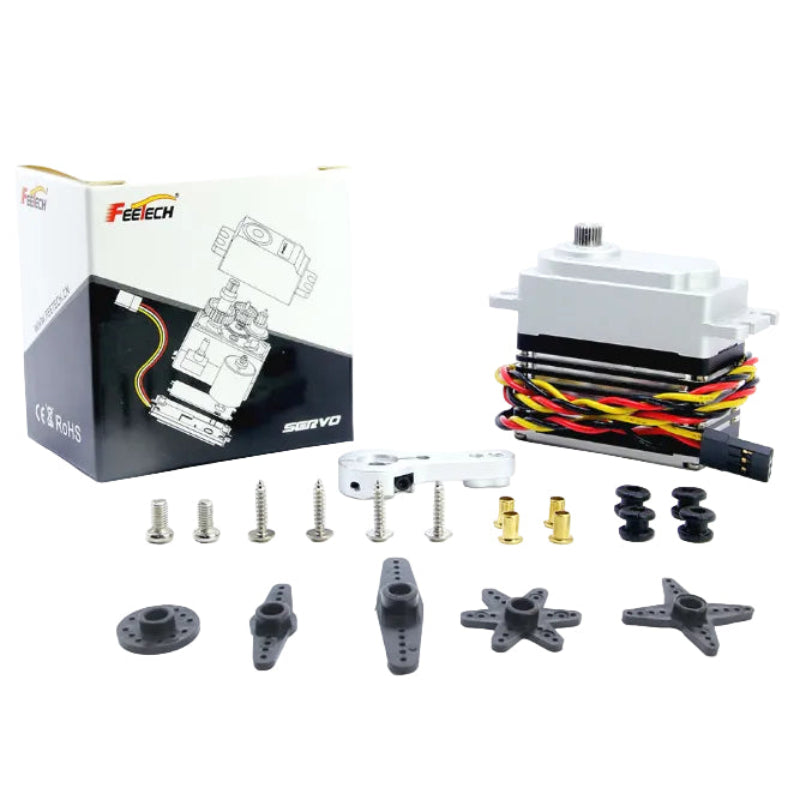

FEETECH FT955BL Servo Motor
FEETECH FT955BL Servo Motor
The FT-955B-C001 is a high-performance 8.4V 50KG-class digital servo driven by an advanced brushless motor and housed in a durable aluminum case for optimal thermal management. Engineered with heavy-duty steel gears featuring a 1/451 gear ratio and smooth dual ball bearings, it operates reliably across a 4–8.4V voltage range. At 8.4V, it delivers a massive peak stall torque of 50kg.cm, a rated torque of 16kg.cm, and an impressive no-load speed of 0.119sec/60° (84RPM). Utilizing a digital comparator control system with pulse width modification (500–2500 µsec), this servo ensures a precise 180°±5° running degree with clockwise rotation and an ultra-narrow dead band width of ≤4 µsec. Weighing 95.1±1g and featuring a 25T/5.9mm horn gear spline with no mechanical limit angles, it offers exceptional speed, strength, and structural durability for professional robotics and automation systems.
| PRODUCT PARAMETERS | |
| Model | FT-955B-C001 |
| Product Name | 8.4V 50kg.cm180°/8.4V 50KG 180 Degree Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ |
| Size | A：43.7mm B：22.3mm C：39.8mm |
| Weight | 95.1± 1g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Gear Ratio | 1/451 |
| Case | Alumi num |
| Connector wire | 35CM |
| Motor | Brushless Motor |
| Operating Voltage Range | 4-8.4V |
| Idle current (atstopped) | 35mA@8.4V |
| No load speed | 0.119sec/60°(84RPM)@8.4V |
| Runnig current(at no load) : | 360mA@8.4V |
| Peak stall torque | 50kg.cm@8.4V |
| Rated torque | 16kg.cm@8.4V |
| Command signal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Clockwise(at 1500→2000 μsec) |
