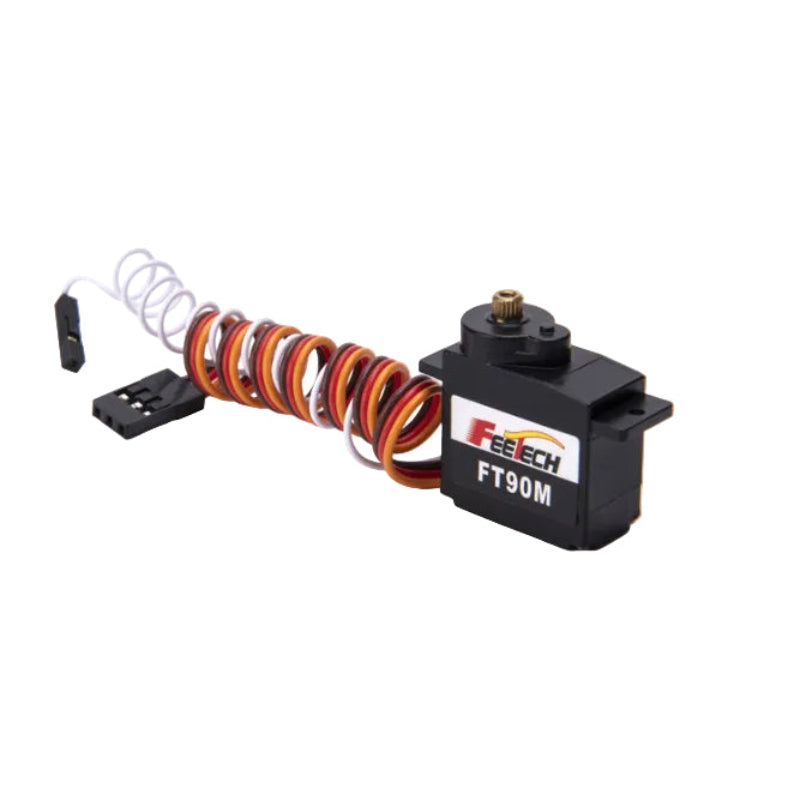

FEETECH FT90M-FB Servo Motor
FEETECH FT90M-FB Servo Motor
The FT90M-FB is a high-performance micro 6V 2kg-class digital servo engineered with a reliable core motor and a lightweight ABS case. Designed for highly integrated feedback control, it features robust metal gears, a 20T horn gear spline, and durable plastic/POM horns with no mechanical limit angles. Operating within a 3–8.4V voltage range, this digital servo delivers a peak stall torque of 2.15kg.cm and a rated torque of 0.71kg.cm at 6V, while maintaining a swift no-load speed of 0.1sec/60°. Driven by a digital comparator amplifier using pulse width modification (500–2500usec), it ensures an exceptionally wide 280° running degree with versatile CW/CCW rotating directions and a dead band width of ≤4 µsec. Crucially, it provides real-time position monitoring via feedback voltage (0.04V at 900usec, 1.65V at 1500usec, and 3.2V at 2100usec). Weighing only 12.5g with a 250mm connector wire, it delivers an optimal blend of smart voltage feedback and metal gear durability for smart robotics, closed-loop telemetry, and micro RC applications.
| PRODUCT PARAMETERS | |
| Model | FT90M-FB |
| Product Name | 6V 2kg. cm Digital Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -15℃~70℃ |
| Size | A：23.2mm B：12mm C:25.5mm |
| Weight | 12.5g |
| Gear type | Metal Gear |
| Limit angle | NO limit |
| Bearing | NO |
| Horn gear spline | 20T |
| Horn type | Plastic,POM |
| Case | ABS |
| Connector wire | 250mm |
| Motor | core motor |
| Operating Voltage Range | 3-8.4V |
| Idle current (at stopped) . | 6mA@6V |
| No load speed | 0.1sec/ 60degree @6V |
| Runnig current(at no load) : | 150mA@6V |
| Peak stall torque | 2.15kg.cm@6V |
| Rated torque | 0.71kg.cm@6V |
| Stall current | 1000mA@6V |
| Command si gnal | Pulse width modification |
| Amplifier type | Digital comparator |
| Pulse width range | 500~2500usec |
| Stop position | 1500 μsec |
| Running degree | 280° (at 500→2500usec) |
| Dead band width | ≤4 μsec |
| Feedback voltage | 900μsec =0.04V 1500μsec= 1.65V 2100μsec=3.2V |
| Rotating direction | CW(when 1500~500 usec) CCW(when 1500~2500 usec) |
