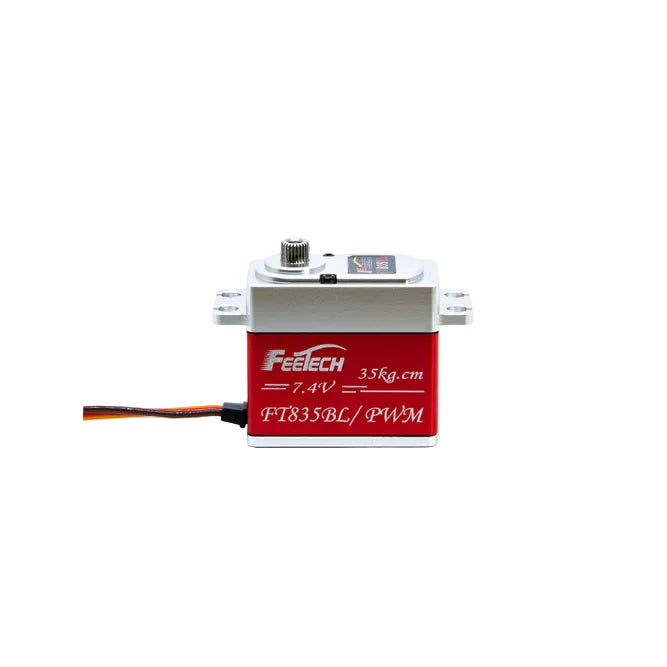

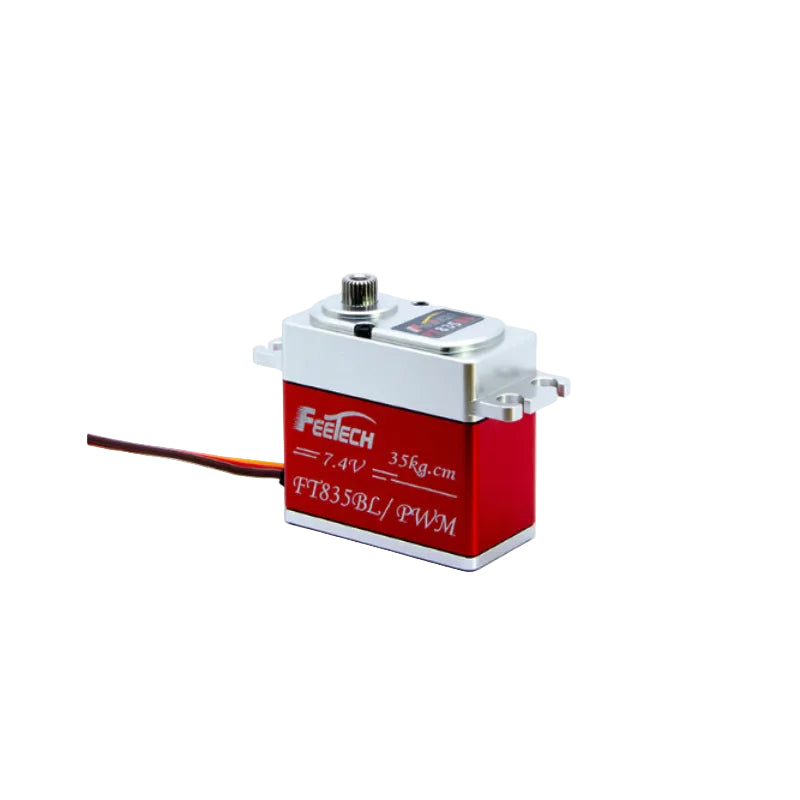

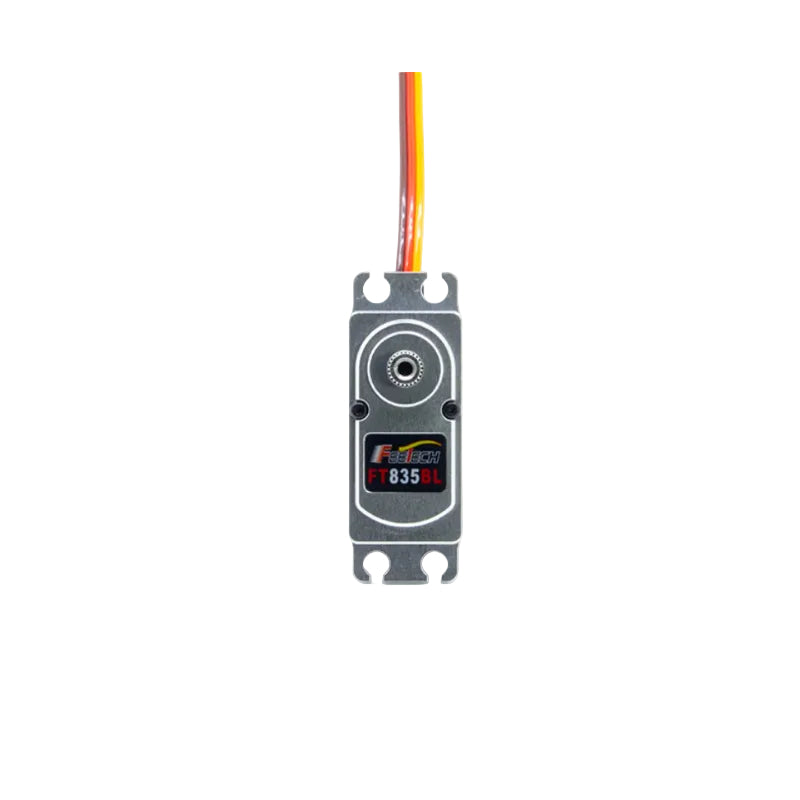

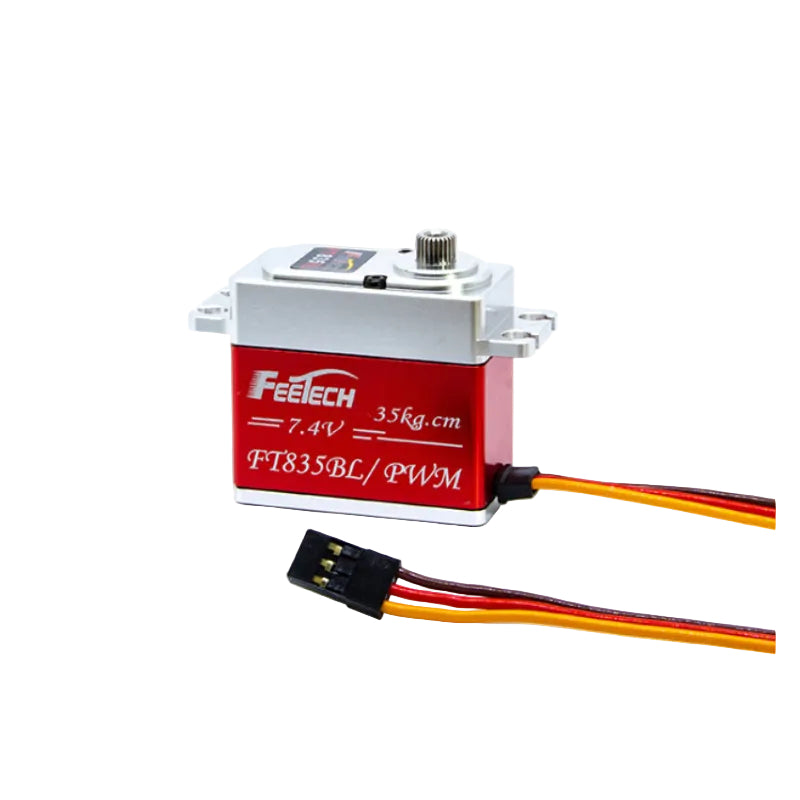

FEETECH FT835BL Servo Motor
Product description
The FT-835B-C001 is a high-performance 7.4V 35KG.CM brushless servo housed in a rugged aluminum case, precision-engineered for heavy-duty industrial and robotics applications. Featuring durable steel gears, ball bearings, and a 25T/5.9mm horn gear spline, it operates reliably across a wide 4V-8.4V voltage range. At 8.4V, this digital comparator servo delivers a massive peak stall torque of 40kg.cm and an impressive no-load speed of 0.125sec/60°. Driven by pulse width modification (500–2500 µsec), it provides a 180°±5° running degree, a 200-degree mechanical limit angle, and an ultra-precise dead band width of ≤4 µsec for high-torque accuracy.
FEETECH FT-835B-C001 Specifications
| PRODUCT PARAMETERS | |
| Model | FT-835B-C001 |
| Product Name | 7.4V 35KG.CM/6V 30kg.cm Brushless Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -15℃~70℃ |
| Size | A：40mm B：20mm C: 36.4mm |
| Weight | 77.2± 1g |
| Gear type | Steel |
| Limit angle | 200degree |
| Bearing | Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Case | Aluminum |
| Connector wire | 30cm |
| Motor | Brushless Motor |
| Operating Voltage Range | 4V-8.4V |
| Idle current (atstopped) | 6mA@8.4V |
| No load speed | 0.125sec/60°@8.4V |
| Runnig current(at no load) : | 230mA@8.4V |
| Peak stall torque | 40kg.cm@8.4V |
| Rated torque | 13.3kg.cm@8.4V |
| Stall current | 4.5A@8.4V |
| Command si gnal | Pulse width modification |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180°± 5°(at 500→2500μsec) |
| Dead band width | ≤4 μsec |
| Rotating direction | Counterclockwise(at 1500→2000 μsec) |
