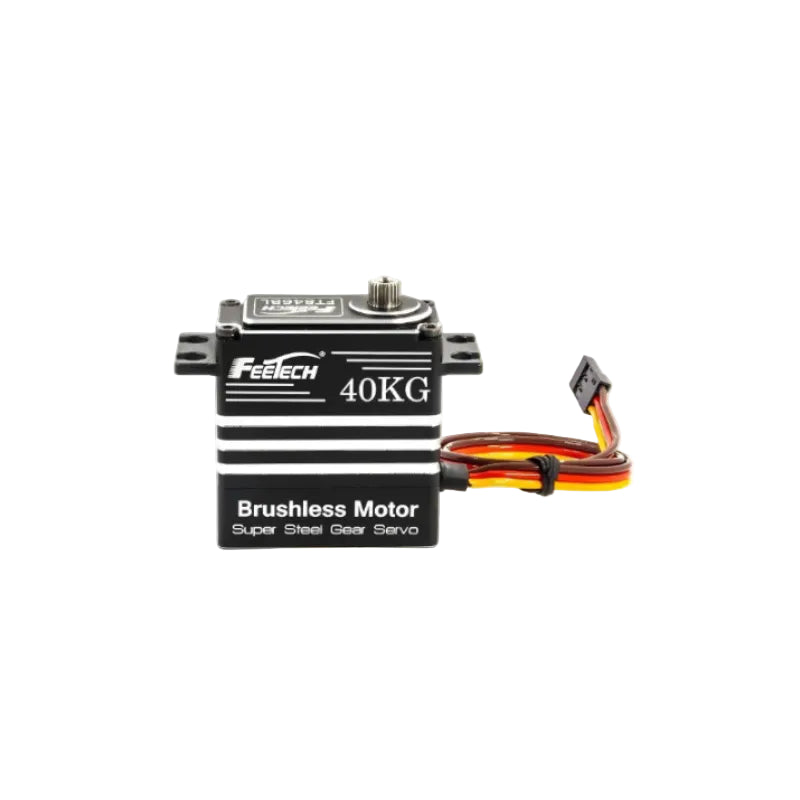

FEETECH FT83 Series Servo Motor
FEETECH FT83 Series Servo Motor

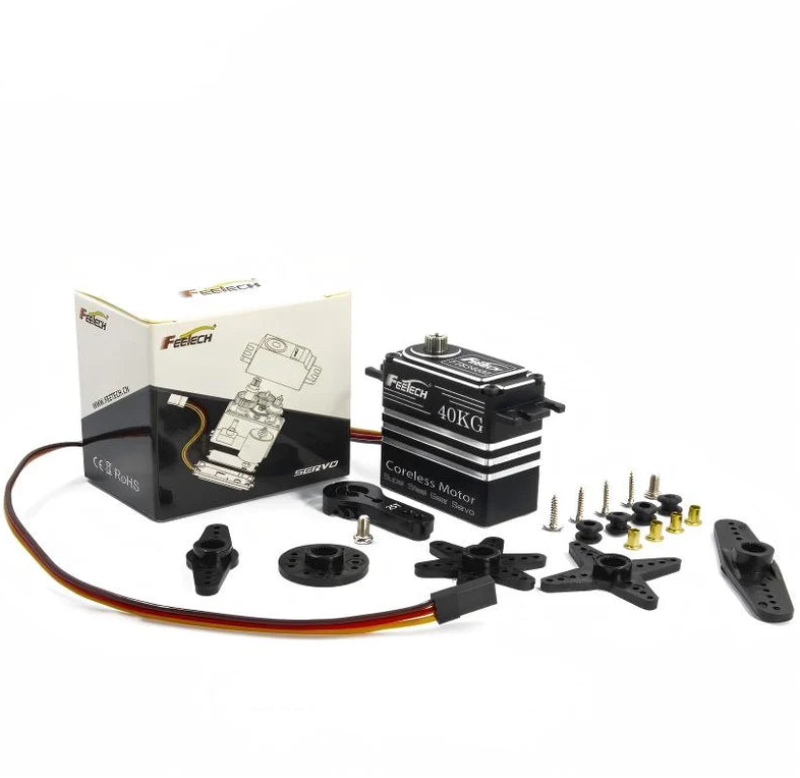

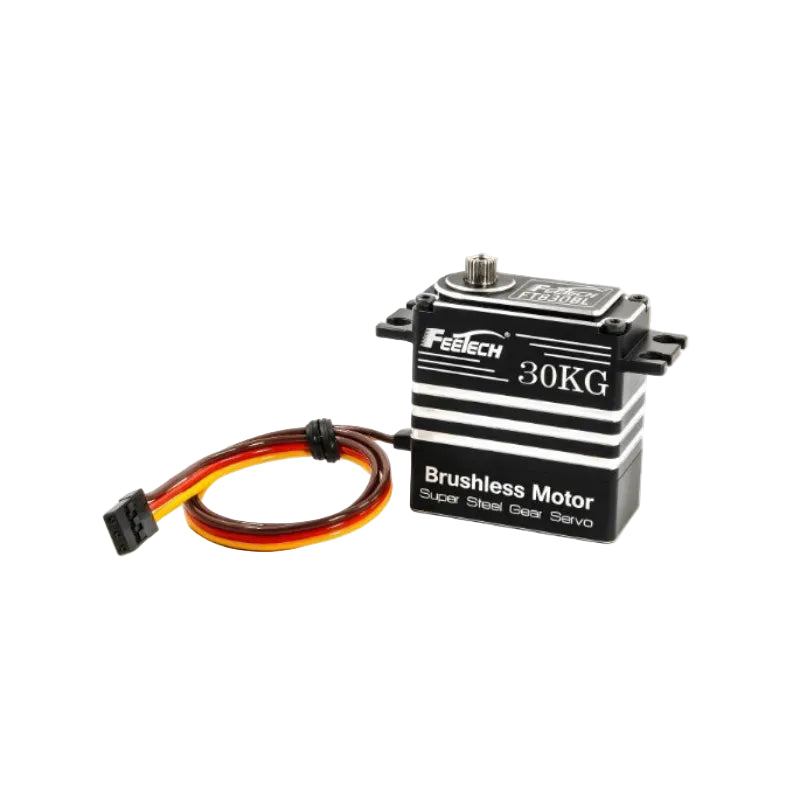

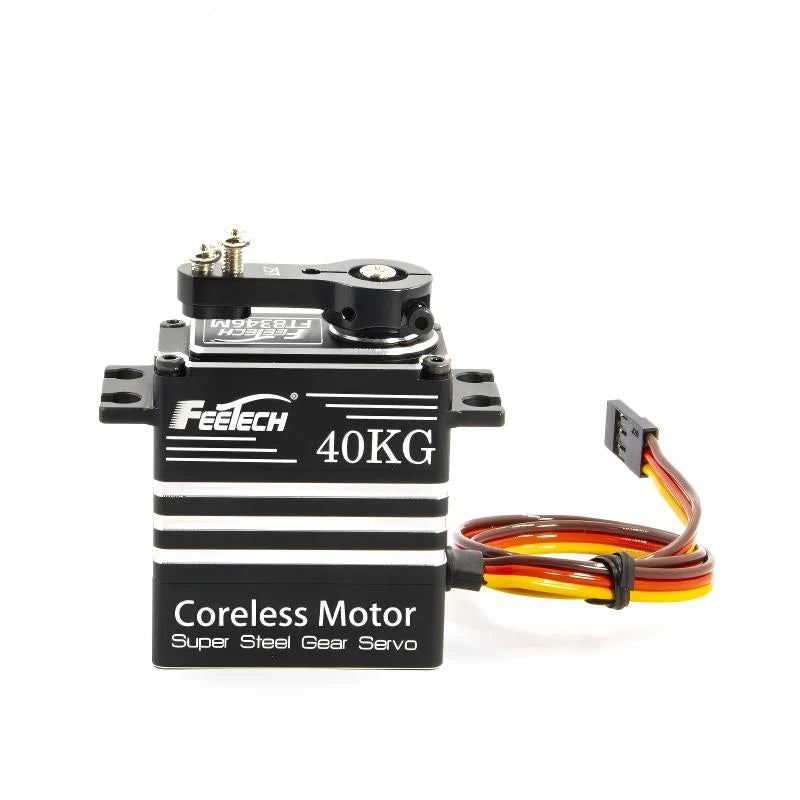

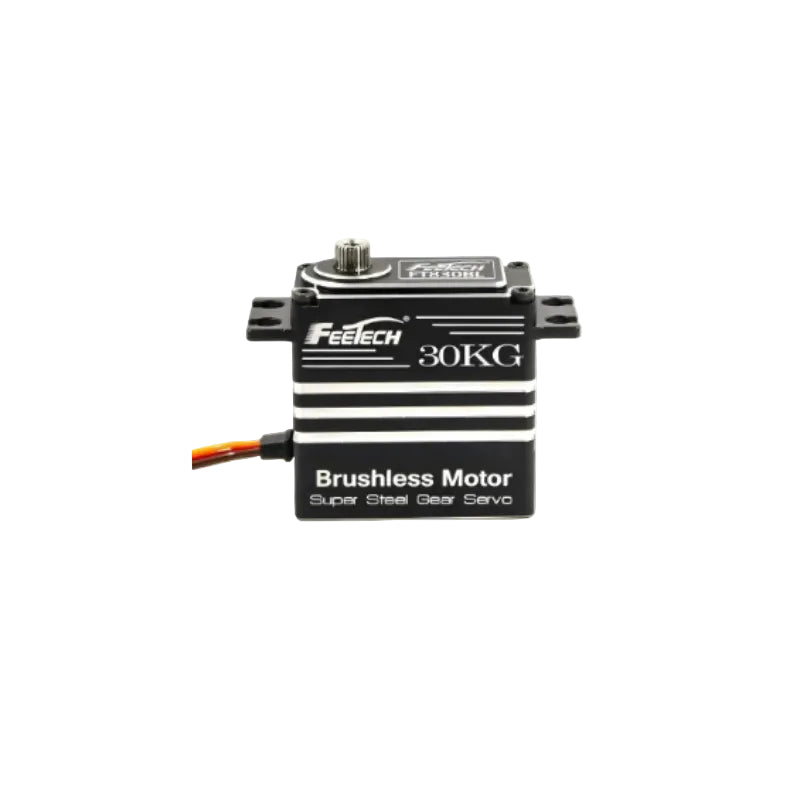

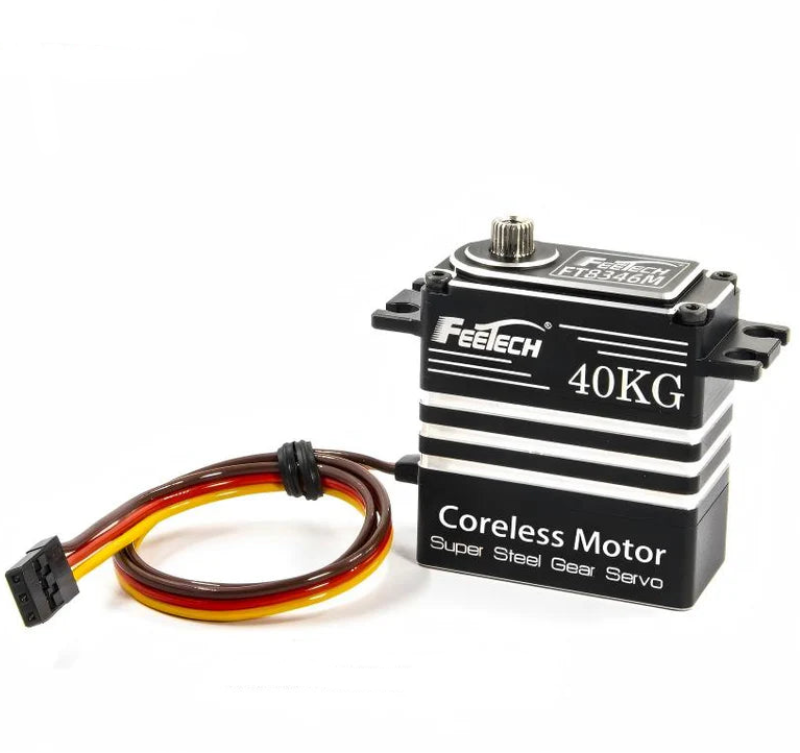

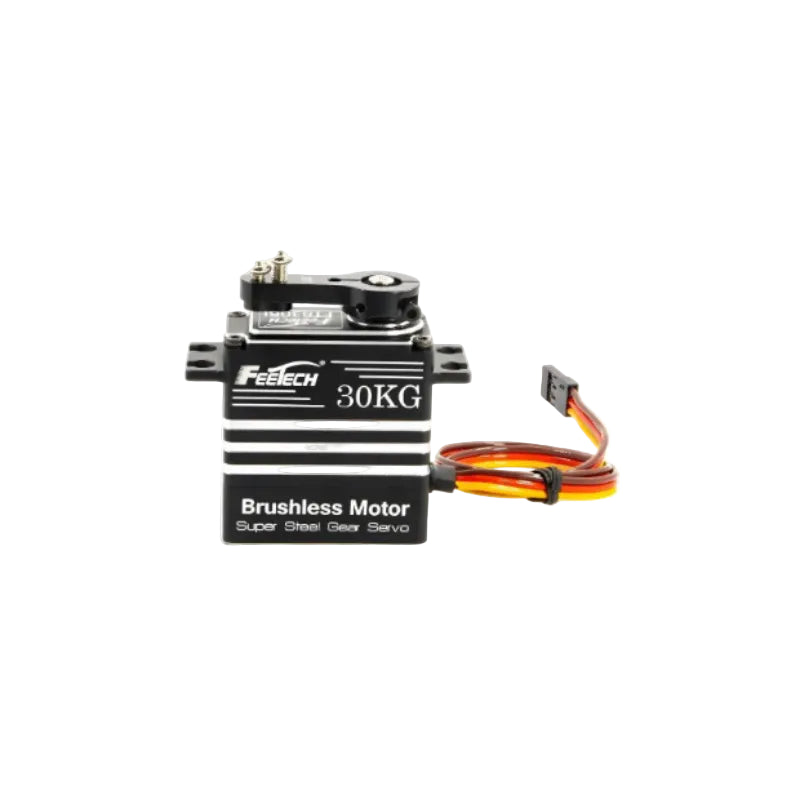

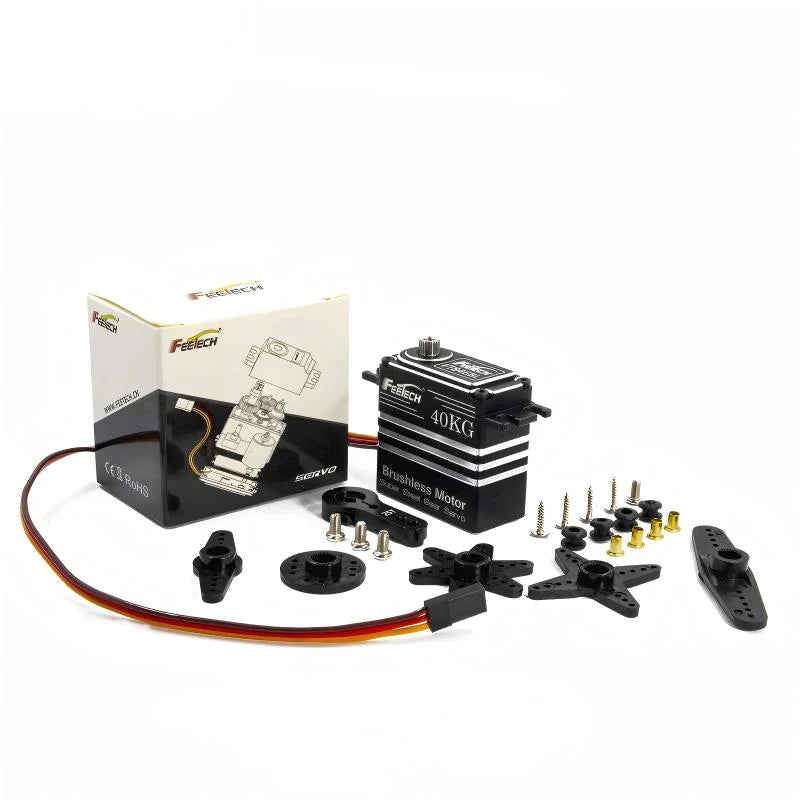

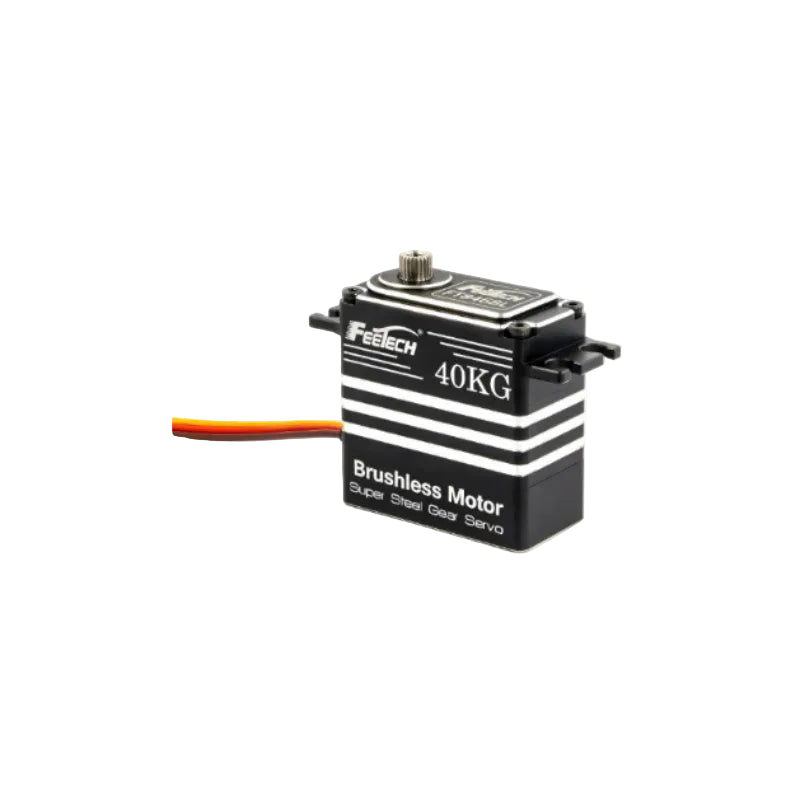

The FT83 Series high-performance digital servos—comprising the FT830BL, FT8346M, and FT846BL—are engineered with premium full-aluminum metal cases for optimal thermal management, ultra-durable steel gears with a 1/378 gear ratio, dual ball bearings, and a standard 25T/5.9mm horn gear spline. Optimized for advanced robotics, heavy-duty industrial automation, and professional RC platforms, this series offers elite motor configurations: the FT830BL and FT846BL feature highly efficient brushless motors (operating at 6V-7.4V and 4V-8.4V respectively), while the FT8346M utilizes a responsive coreless motor (4V-8.4V range). Delivering immense power, the series achieves a peak stall torque of 30kg.cm for the FT830BL, and a massive 40kg.cm for both the FT8346M and FT846BL at 7.4V, paired with rapid no-load speeds ranging from 0.135sec/60° up to 0.22sec/60°. Driven by standard pulse width modification (500–2500 µsec) via a digital comparator amplifier, the FT830BL and FT846BL provide a precise 180-degree running degree, whereas the FT8346M delivers an endless 360-degree continuous rotation. With no mechanical limit angles, a stable neutral position at 1500 µsec, counterclockwise rotation, a narrow dead bandwidth of ≤4 µsec, and a 30CM connector wire, this series provides a robust, versatile, and high-torque motion control solution for closed-loop intelligent systems.
| PRODUCT PARAMETERS | |||
| Model | FT830BL | FT8346M | FT846BL |
| Product Name | PWM digital 180-degree Metal Case Steel Gear Brushless Servo | 7.4V 40kg.cm 360-degree Metal Case Steel Gear Coreless Servo | 7.4V 40kg.cm 180-degree Metal Case Steel Gear Brushless Servo |
| Storage Temperature Range | -30℃~80℃ | -30℃~80℃ | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
| Size | A：40mm B：20mm C：38.95mm | A：40mm B：20mm C：43.05mm | A：40mm B：20mm C：38mm |
| Weight | 84.5± 1g | 91.5± 1g | 91.5± 1g |
| Gear type | Steel | Steel | Steel |
| Limit angle | NO limit | NO limit | NO limit |
| Bearing | Ball bearings | Ball bearings | Ball bearings |
| Horn gear spline | 25T/5.9mm | 25T/5.9mm | 25T/5.9mm |
| Gear Ratio | 1/378 | 1/378 | 1/378 |
| Case | Aluminium | Aluminium | Aluminium |
| Connector wire | 30CM | 30CM | 30CM |
| Motor | Brushless Motor | Coreless Motor | Brushless Motor |
| Operating Voltage Range | 6V-7.4V | 4V-8.4V | 4V-8.4V |
| Idle current (stopped) | 6MA@7.4V | 6mA@7.4V | 6MA@7.4V |
| No load speed | 0.135sec/60°@7.4V | 0.22sec/60°@7.4V | 0.151sec/60°@7.4V |
| Runnig current(at no load) | 180mA@7.4V | 300mA@7.4V | 300mA@7.4V |
| Peak stall torque | 30kg.cm@7.4V | 40kg.cm@7.4V | 40kg.cm@7.4V |
| Rated torque | 10kg.cm@7.4V | 13.5kg.cm@7.4V | 13.5kg.cm@7.4V |
| Stall current | 4.2A@7.4V | 3.1A@7.4V | 4.4A@7.4V |
| Command signal | Pulse width modification | Pulse width modification | Pulse width modification |
| Amplifier type | Digital comparator | Digital comparator | Digital comparator |
| Pulse width range | 500~2500 μ sec | 500~2500 μ sec | 500~2500 μ sec |
| Stop position | 1500 μ sec | 1500 μ sec | 1500 μ sec |
| Running degree | 180°(at 500→2500μsec) | 360°(at 500→2500μsec) | 180° (at 500→2500 μ sec) |
| Dead bandwidth | ≤4 μ sec | ≤4 μ sec | ≤4 μ sec |
| Rotating direction | Counterclockwise see (1500→2000 μ sec) | Counterclockwi se (1500→2000 μ sec) | Counterclockwi se (1500→2000 μ sec) |
