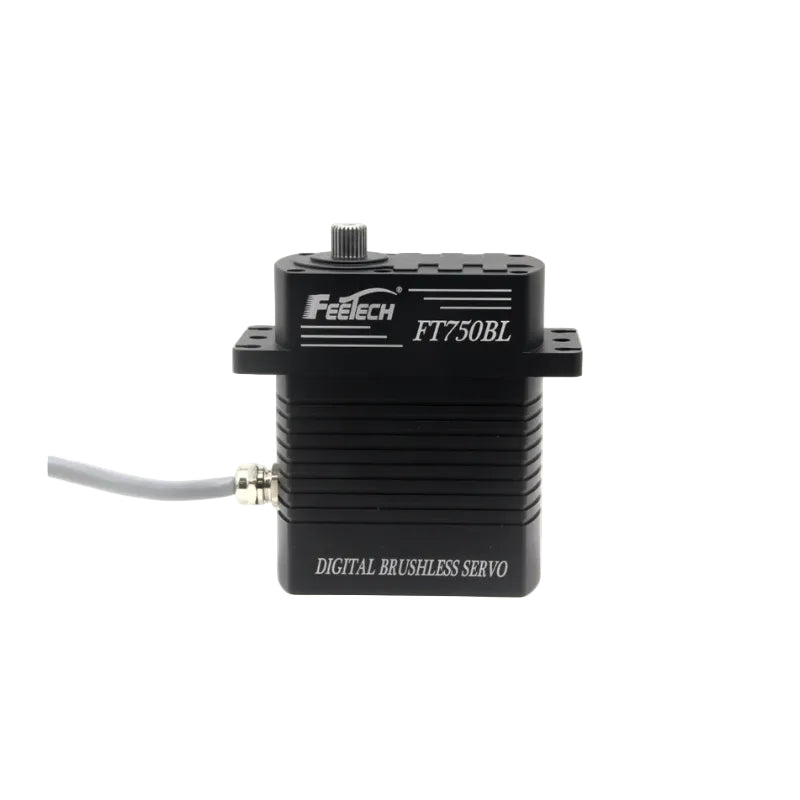

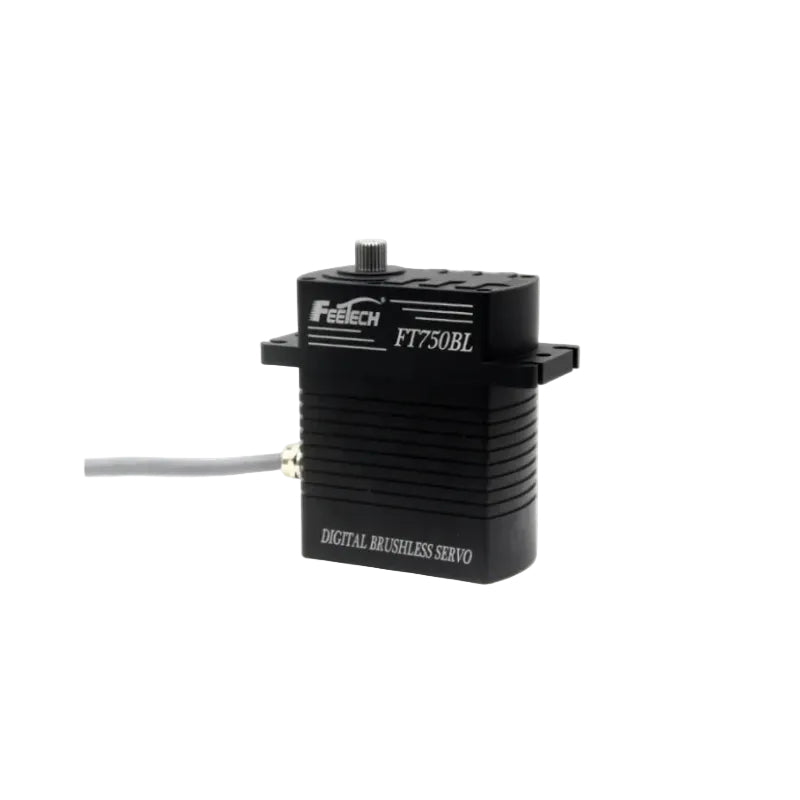

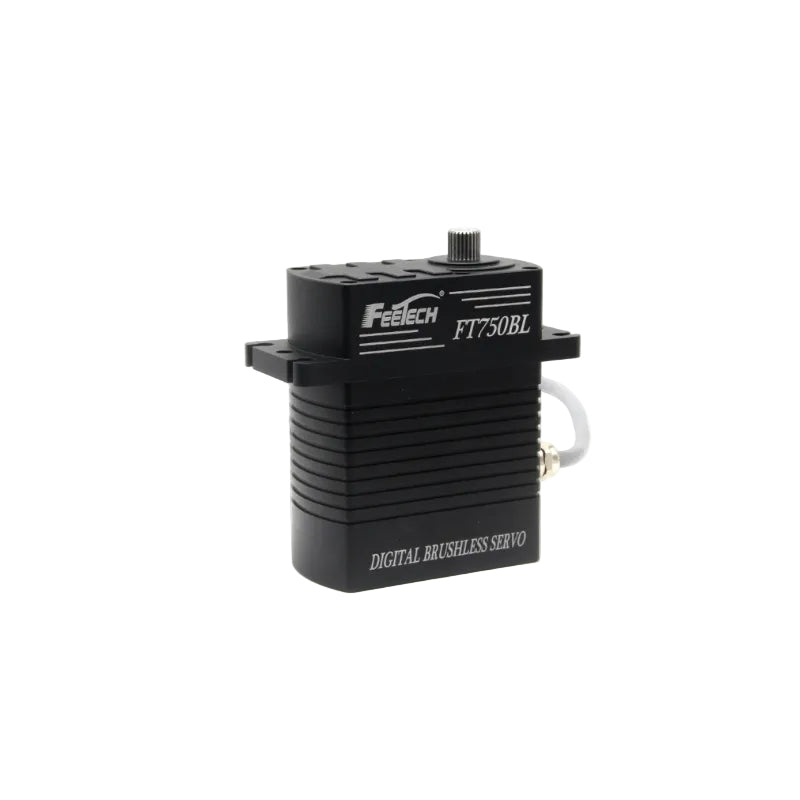

FEETECH FT750B Servo Motor
FEETECH FT750B Servo Motor
The FT-750B-C001 is an ultra-heavy-duty 24V 750KG-class industrial digital servo engineered with a high-efficiency brushless motor and a rugged aluminum case for superior structural integrity and thermal control. Designed for high-load applications, it features ultra-strong steel gears with a 1/252 gear ratio, premium ball bearings, and a robust 25T/11.8mm horn gear spline. Operating within a 16–28V range, it delivers a massive peak stall torque of 750kg.cm and a rated torque of 250kg.cm at 24V, with a no-load speed of 0.385sec/60° (26RPM). Controlled via pulse width modulation (500–2500 µsec) on a digital comparator system, this servo offers a precise 180°±5° running degree with clockwise rotation, a dead band width of ≤4 µsec, and no mechanical limit angles. Weighing 1050±5g and equipped with a 43±1CM connector wire, it provides unmatched torque and reliability for industrial automation, large-scale robotics, and heavy equipment.
| PRODUCT PARAMETERS | |
| Model | FT-750B-C001 |
| Product Name | 24V 750kg.cm180°/24V 750KG 180 Degree Servo |
| Storage Temperature Range | -40℃~80℃ |
| Operating Temperature Range | -40℃~60℃ |
| Size | A：90mm B：48mm C：109.4mm |
| Weight | 1050±5g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T(11.8mm) |
| Gear Ratio | 1/252 |
| Case | Aluminum |
| Connector wire | 43±1CM |
| Motor | Brushless Motor |
| Operating Voltage Range | 16-28V |
| Idle current (atstopped) | 30mA@24V |
| No load speed | 0.385sec/60°(26RPM)@24V |
| Runnig current(at no load) : | 360mA@24V |
| Peak stall torque | 750kg.cm@ 24V |
| Rated torque | 250kg.cm@24V |
| Stall current | 15.5A@24V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Clockwise(at 1500→2000μsec) |
