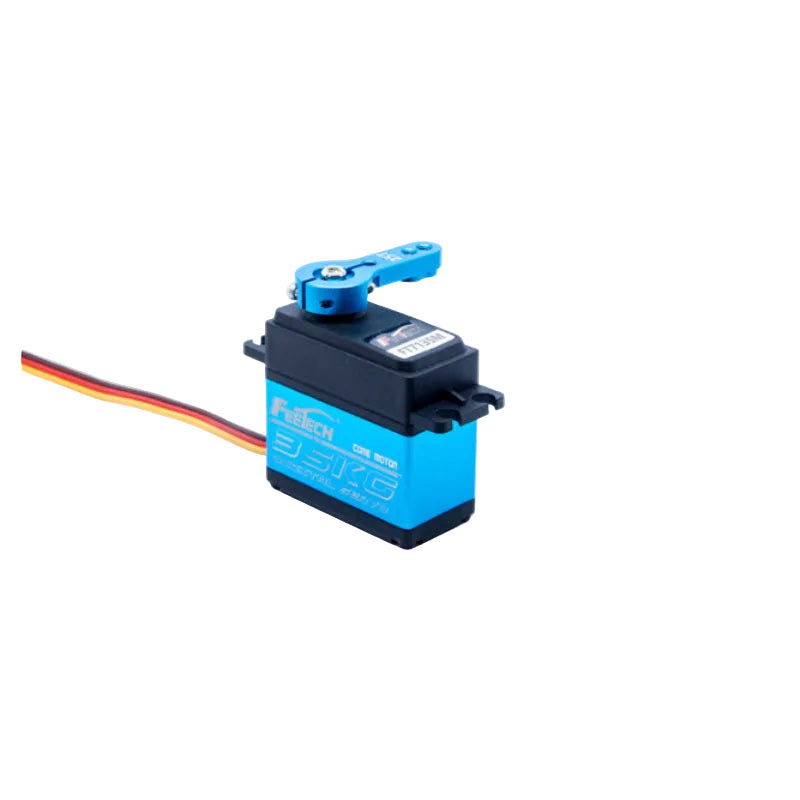

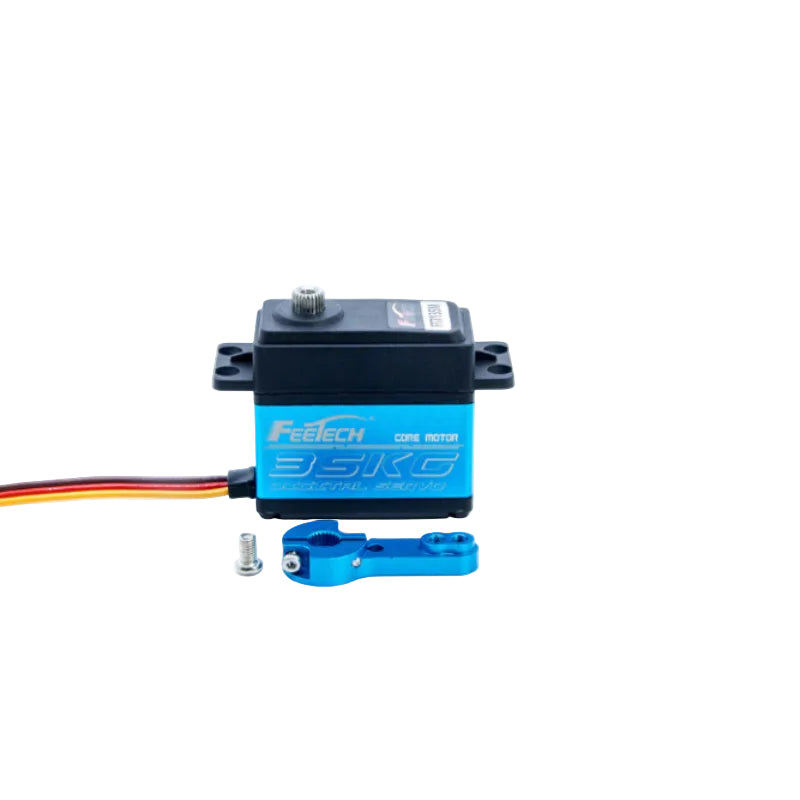

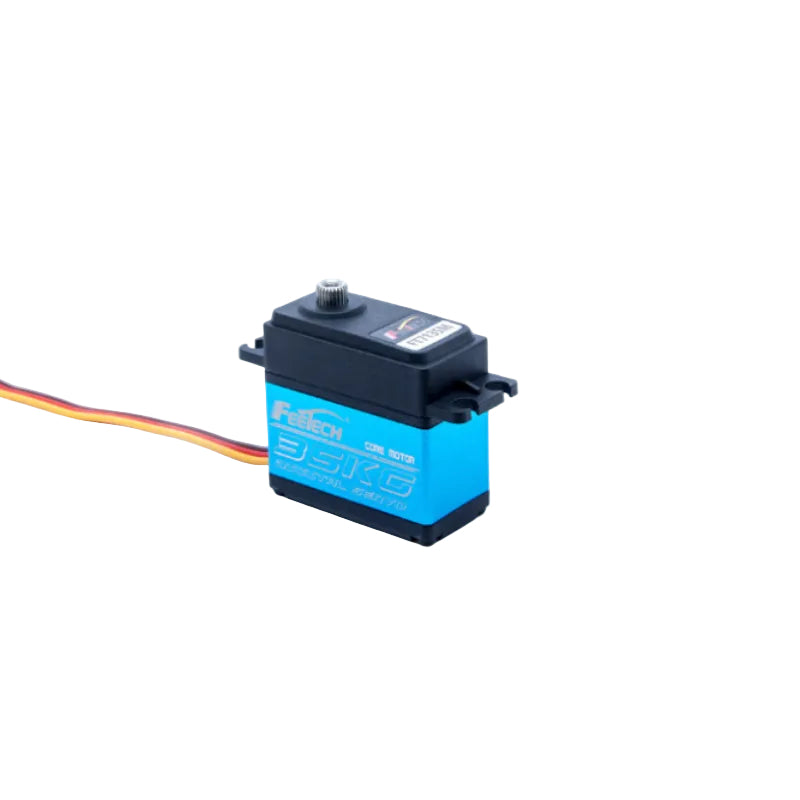

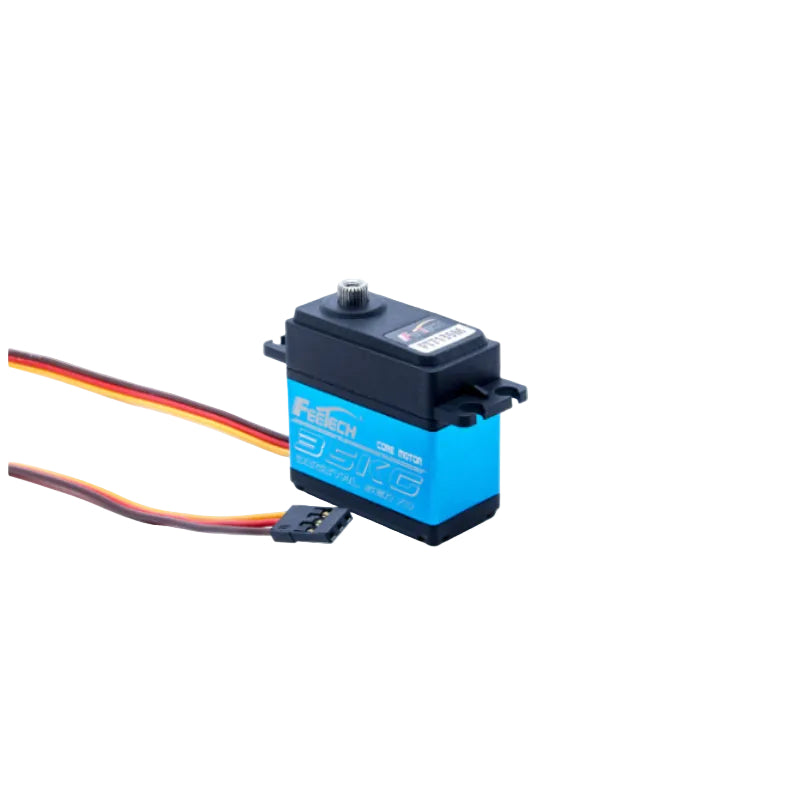

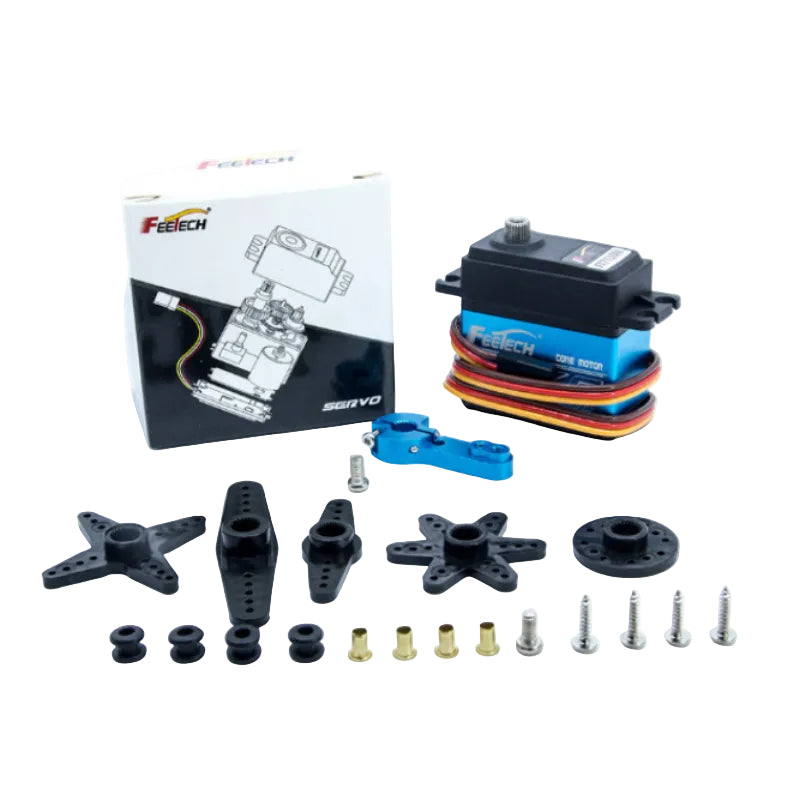

FEETECH FT7135 Servo Motor

The FT-7135-C001 is a high-performance 7.4V 35kg-class 180-degree digital servo equipped with a reliable core motor and a rugged aluminum case for superior structural rigidity and thermal dissipation. Engineered for demanding robotics and heavy-duty RC applications, it features ultra-durable steel gears with a 1/356 gear ratio, dual ball bearings, a standard 25T/5.9mm horn gear spline, and no mechanical limit angles. Operating over a wide 4–8.4V voltage range, this digital servo delivers a peak stall torque of 34.5kg.cm and a rated torque of 11.5kg.cm at 8.4V, with a no-load speed of 0.172sec/60° (58RPM). Controlled via pulse width modulation (500–2500 µsec) on a digital comparator, it ensures a precise 180°±5° running degree with counterclockwise rotation, a dead band width of ≤4 µsec, and a stable neutral position at 1500 µsec. Weighing 64.5±1g with a 30CM connector wire, it delivers reliable torque and precise positioning for robotics, automation, and RC applications.

Common use cases: Humanoid robot arm and shoulder joints, high-end RC car and crawler steering, UAV payload gimbal pan/tilt axis, competition robot actuators, and applications requiring 34.5kg.cm torque with wide 4–8.4V voltage compatibility.
