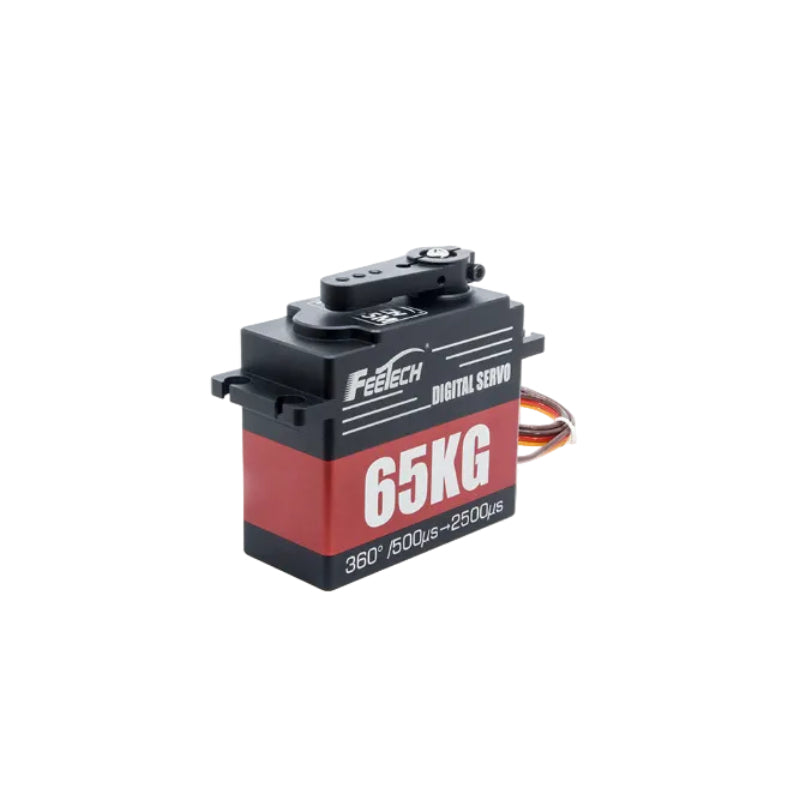

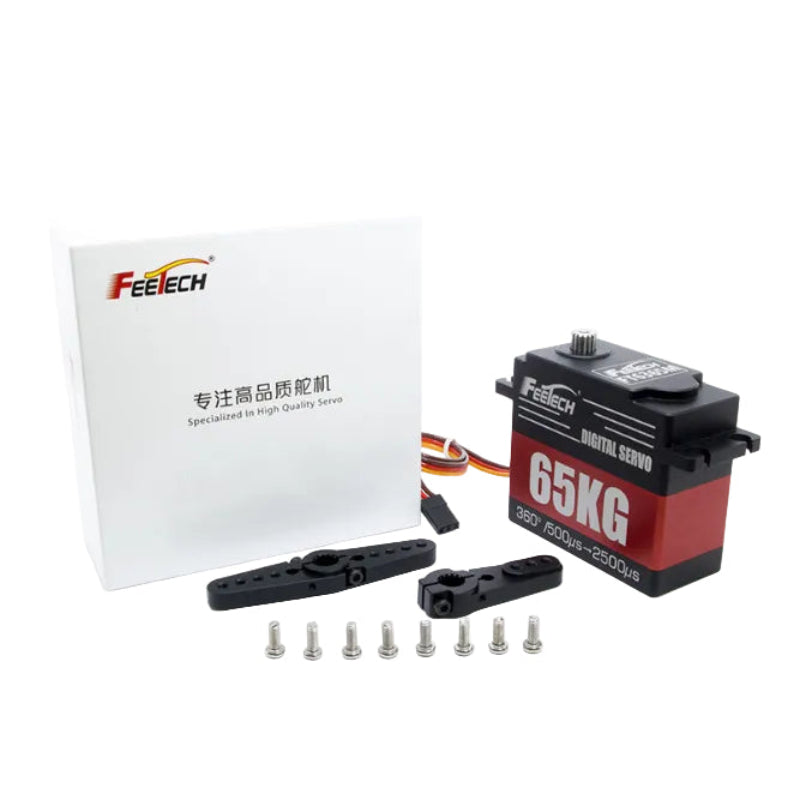

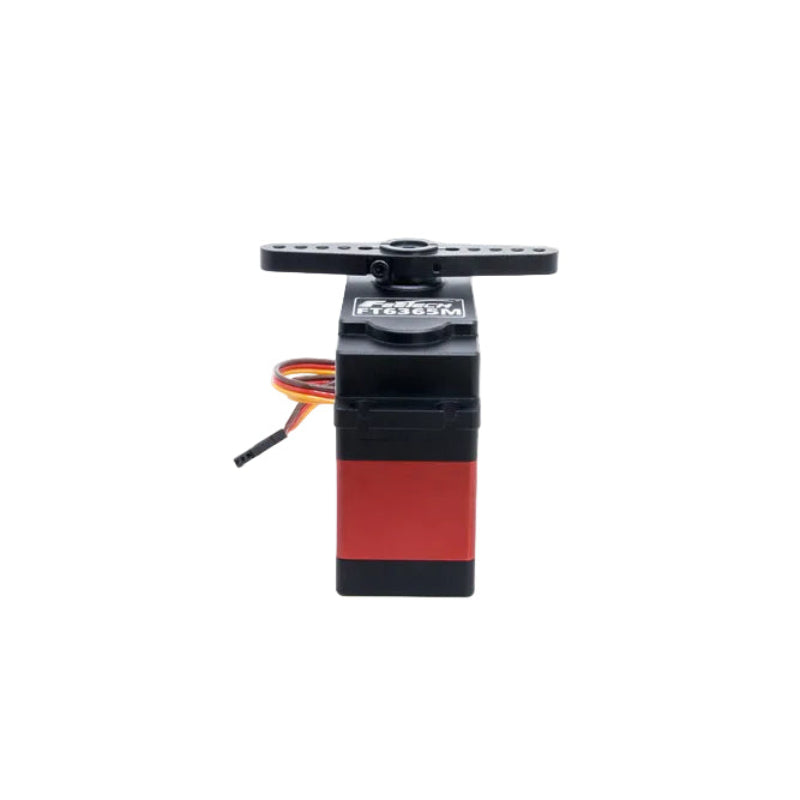

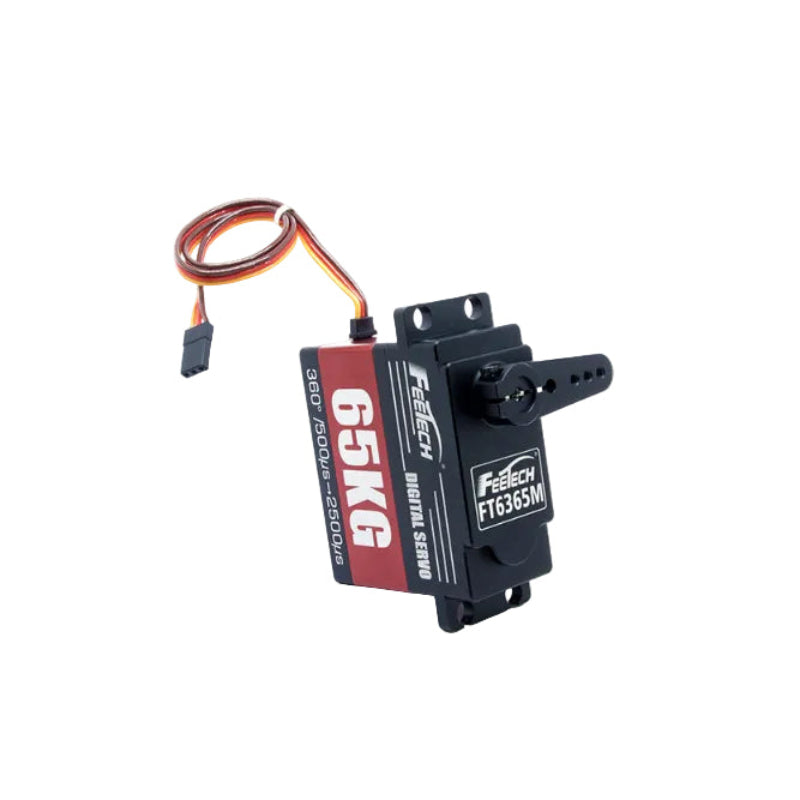

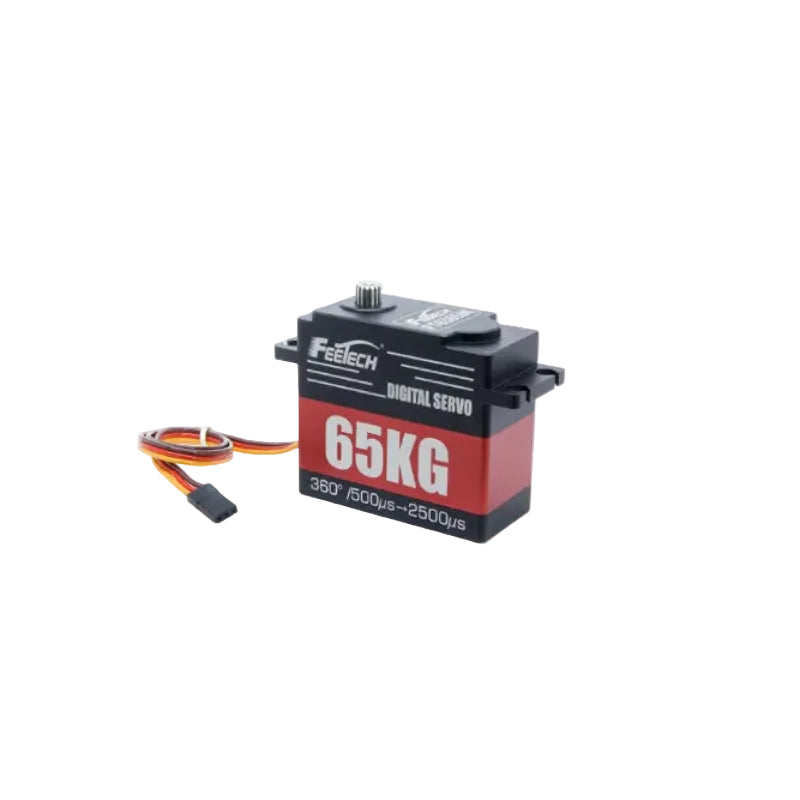

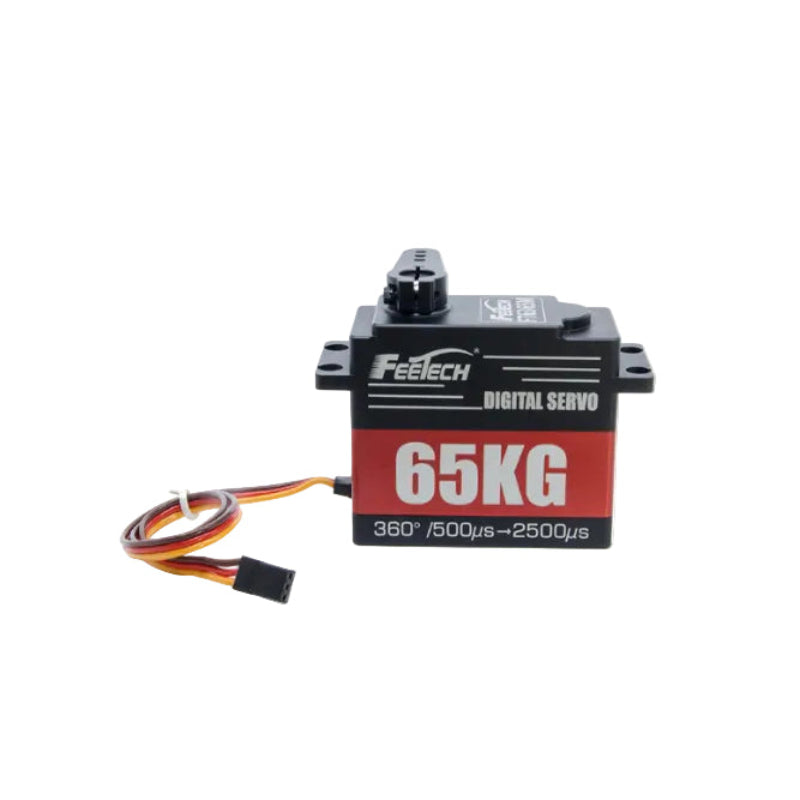

FEETECH FT6365 Servo Motor
FEETECH FT6365 Servo Motor
The FT-6365-C001 is a high-torque 7.4V 65KG-class digital servo equipped with integrated magnetic encoders and heavy-duty steel gears, housed inside a robust aluminum case. Powered by a dependable core motor with ball bearings and a 1/305 gear ratio, it supports a wide operating voltage range of 4.8-8.4V. At 7.4V, it delivers a massive peak stall torque of 65kg.cm, a rated torque of 21.5kg.cm, and a no-load speed of 0.227sec/60° (44RPM). Utilizing a digital comparator system driven by pulse width modulation (500–2500 µsec), this smart servo achieves a full 360° running degree with counterclockwise rotation and an ultra-precise dead band width of ≤4 µsec. Featuring a 15T/7.6mm horn gear spline, no mechanical limit angles, and a total weight of 235.2±1g, it offers unparalleled strength and reliability for industrial and robotics applications.
| PRODUCT PARAMETERS | |
| Model | FT-6365-C001 |
| Product Name | 7.4V 65KG 360 Degree Magnetic Encoders Steel Gear Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ |
| Size | A：65mm B：30mm C：58.4mm |
| Weight | 235.2g± 1g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 15T/7.6mm |
| Gear Ratio | 1/305 |
| Case | Alumi num |
| Connector wire | 23CM |
| Motor | Core Motor |
| Operating Voltage Range | 4.8-8.4V |
| Idle current (atstopped) | 30MA@7.4V |
| No load speed | 0.227sec/60° (44RPM)@7.4V |
| Runnig current(at no load) : | 300mA@7.4V |
| Peak stall torque | 65kg.cm@7.4V |
| Rated torque | 21.5kg.cm@7.4V |
| Stall current | 10.2A@7.4V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 360°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwi se (at 1500→2500 μ sec) |
