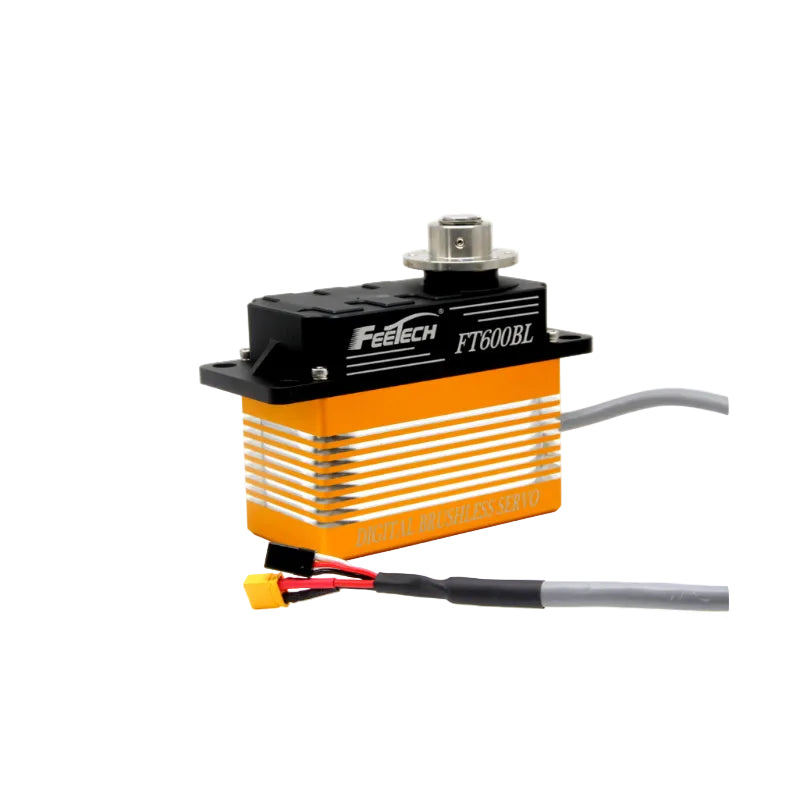

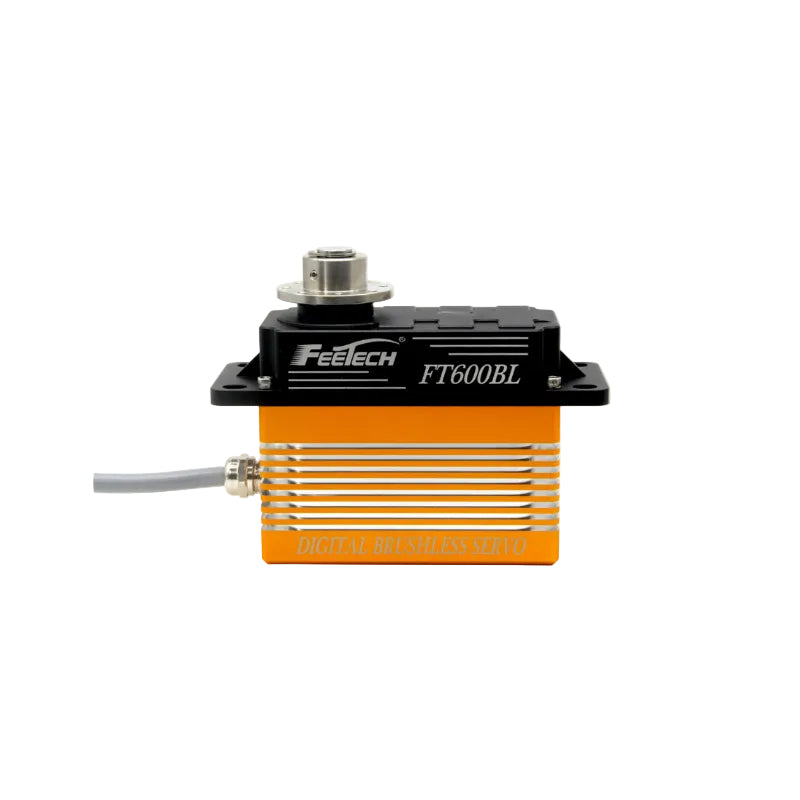

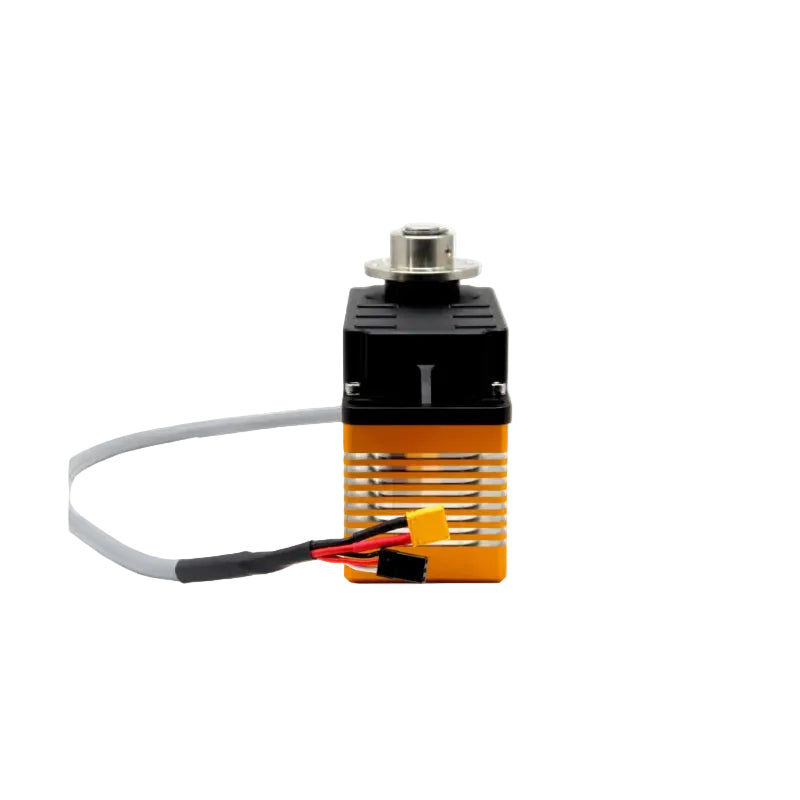

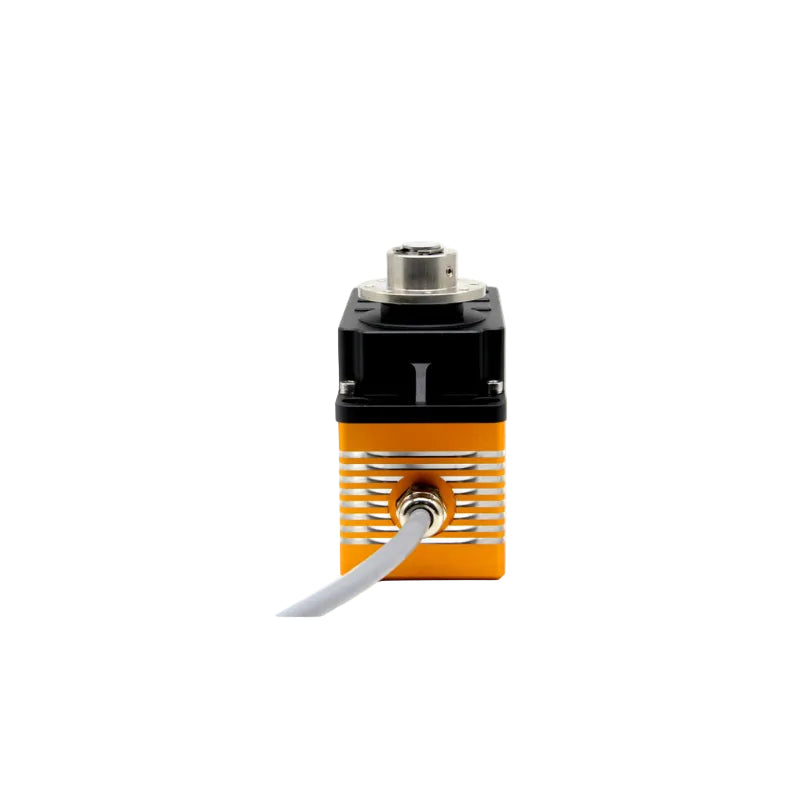

FEETECH FT600B Servo Motor

The FT-600B-C001 is a high-torque 24V 600KG-class industrial digital servo engineered with a high-performance brushless motor and a rugged aluminum case for exceptional thermal dissipation. Ideal for heavy-load industrial automation and advanced robotics, it features ultra-strong steel gears with a 1/390 gear ratio, smooth dual ball bearings, and a solid round 12mm horn gear spline. Supporting a wide operating voltage range of 16–28V, this servo delivers an impressive peak stall torque of 600kg.cm and a rated torque of 200kg.cm at 24V, moving at a steady no-load speed of 0.588sec/60° (17RPM). Controlled via pulse width modulation (500–2500 µsec) on a digital comparator, it ensures a highly precise 180°±5° running degree with clockwise rotation, a narrow dead band width of ≤4 µsec, and no mechanical limit angles. Weighing 800±5g and equipped with a 43±1CM connector wire, it provides the ultimate power, long-term durability, and precise positioning required for heavy-duty commercial or industrial applications. Available in PWM, RS485 Bus, and UAVCAN Bus variants.

Common use cases: Large humanoid robot hip and waist joints, industrial robotic arm base actuators, heavy exoskeleton drives, smart manufacturing positioning stages, and UAV/drone heavy-lift gimbal systems requiring 600kg.cm torque with multi-protocol support (PWM, RS485, UAVCAN).
