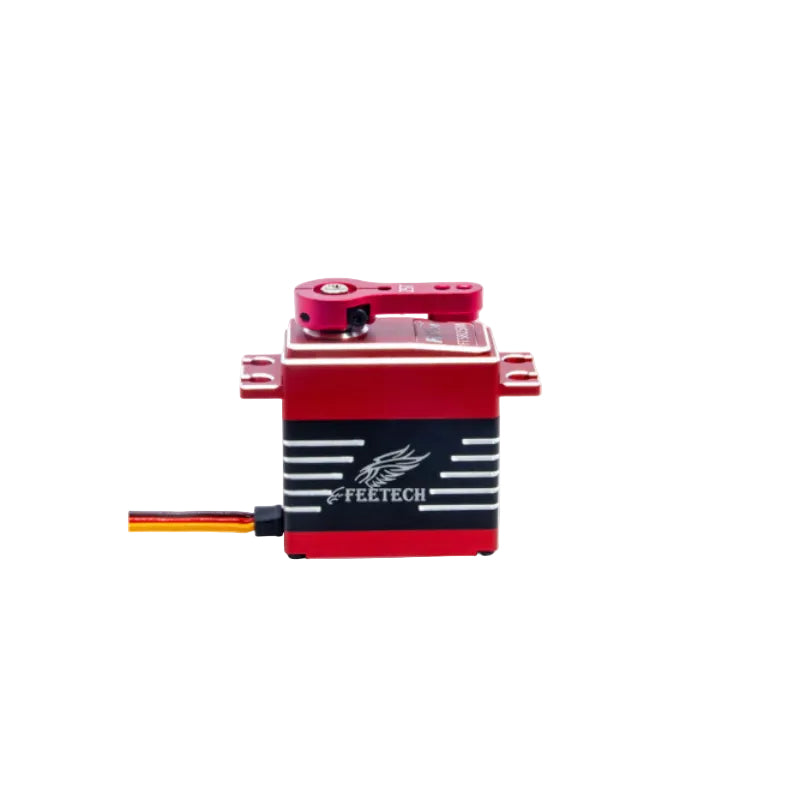

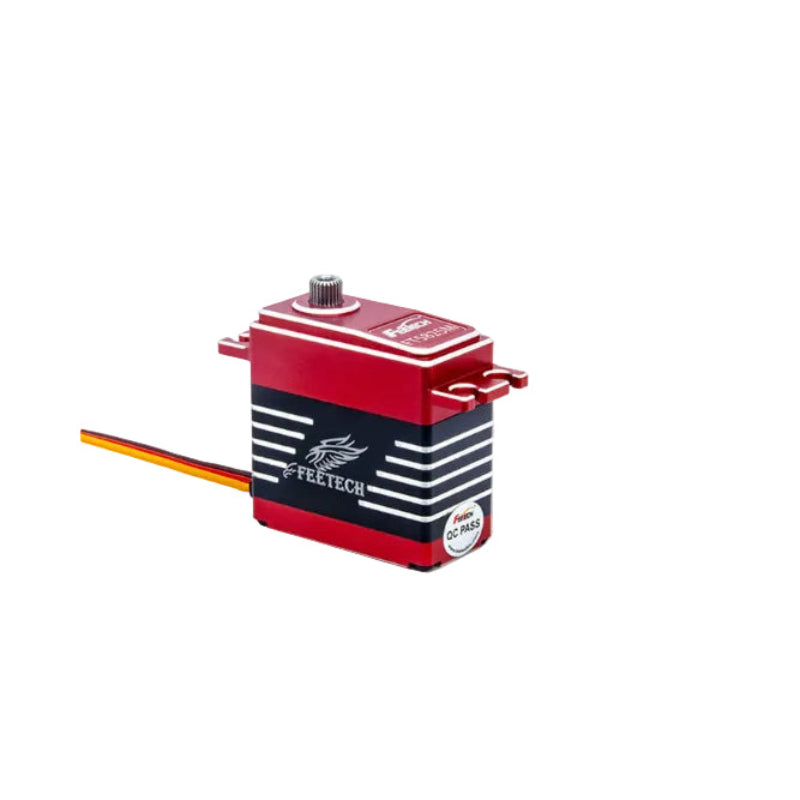

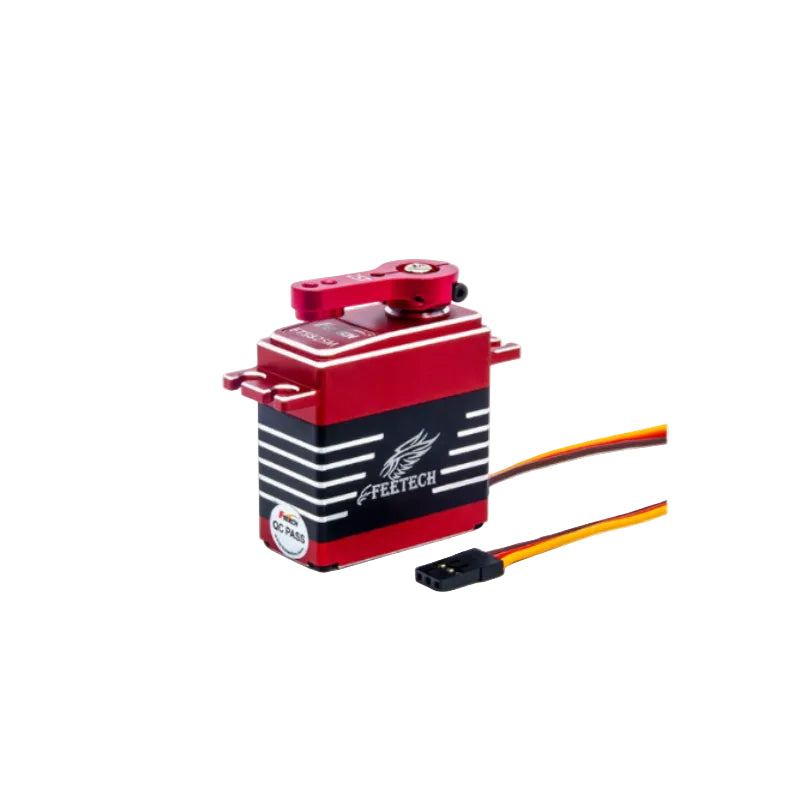

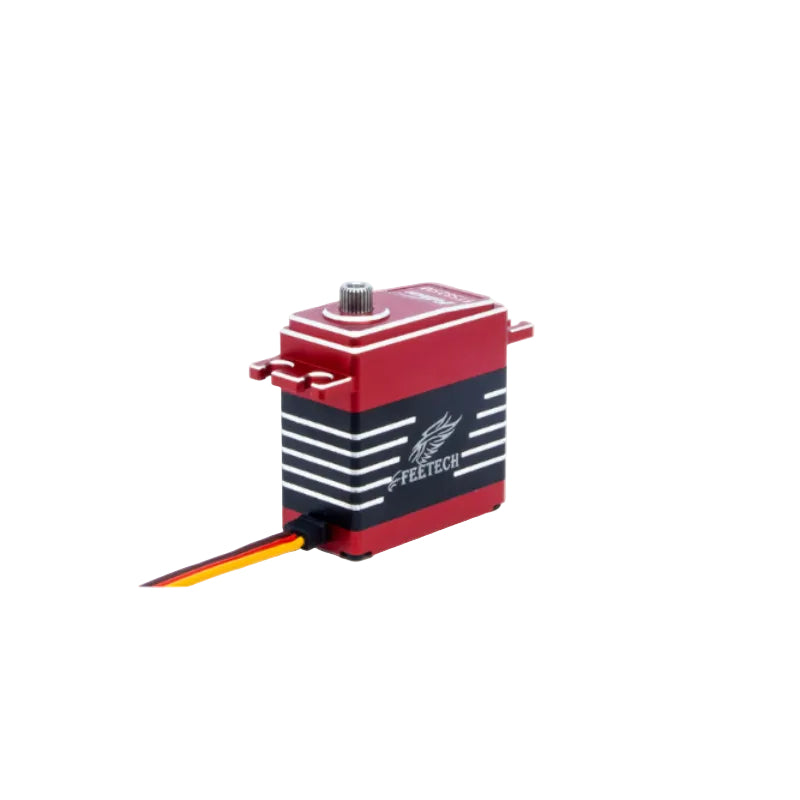

FEETECH FT5825 Servo Motor
FEETECH FT5825 Servo Motor
The FT-5825-C001 is a high-precision 7.4V 25kg-class digital servo equipped with a reliable core motor and housed in a durable aluminum case for effective heat dissipation. Engineered for versatile motion control, it features heavy-duty steel gears with a 1/275 gear ratio, smooth ball bearings, and a standard 25T/5.9mm horn gear spline. Supporting a flexible operating voltage range of 4V-8.4V, this servo delivers a solid peak stall torque of 25kg.cm and a rated torque of 8.3kg.cm at 7.4V, while achieving a swift no-load speed of 0.151sec/60°. Driven by a pulse width modulation (500–2500 µsec) command signal on a digital comparator amplifier, it ensures an accurate 180° running degree with counterclockwise rotation, a narrow dead band width of ≤4 µsec, and no mechanical limit angles. Weighing 74±1g with a 30CM connector wire, it offers the perfect combination of steady torque, reliable steel gear durability, and precise holding power for smart robotics, RC vehicles, and automation setups.
| PRODUCT PARAMETERS | |
| Model | FT-5825-C001 |
| Product Name | 7.4V 25kg.cm Digital 180 Degree Metal Case Steel Gear Core Motor Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ |
| Size | A: 40mm B: 20mm C: 43mm |
| Weight | 74± 1g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Gear Ratio | 1/275 |
| Case | Aluminum |
| Connector wire | 30CM |
| Motor | Core Motor |
| Operating Voltage Range | 4V-8.4V |
| Idle current (atstopped) | 6MA@7.4V |
| No load speed | 0.151sec/60°@7.4V |
| Running current (at no load) | 250mA@7.4V |
| Peak stall torque | 25kg.cm@7.4V |
| Rated torque | 8.3kg.cm@7.4V |
| Stall current | 3.5A@7.4V |
| Command signal | Pulse width modification |
| Amplifier type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180° (at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwise (at 1500→2000 μ sec) |
