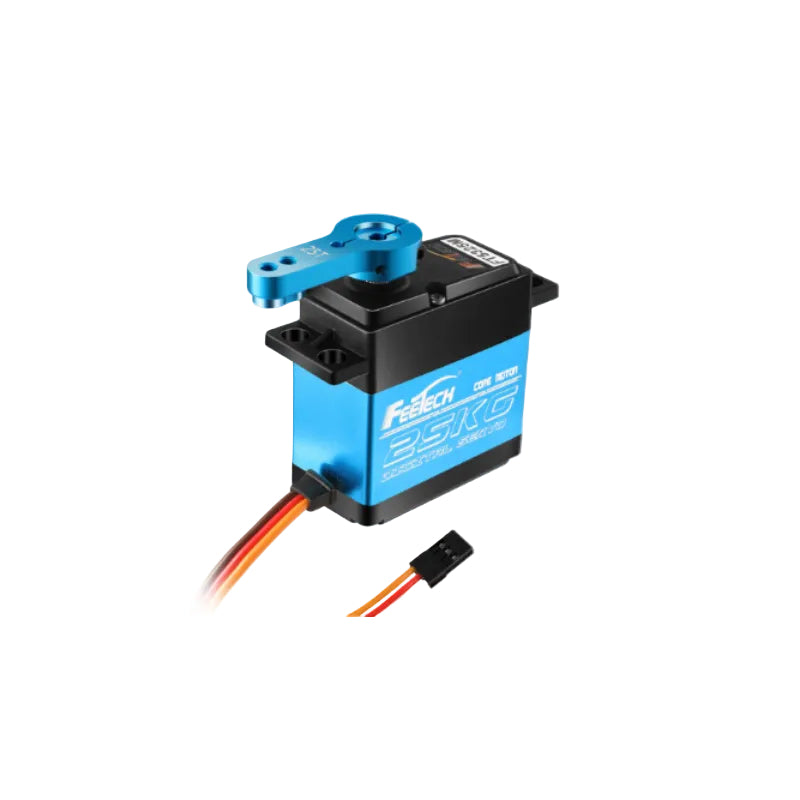

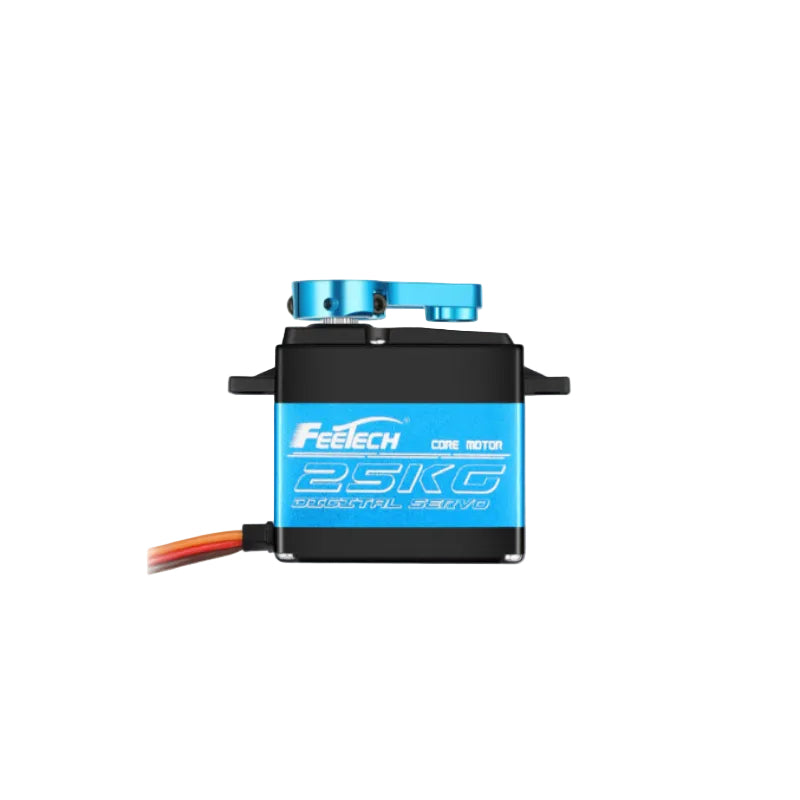

FEETECH FT5325M Servo Motor

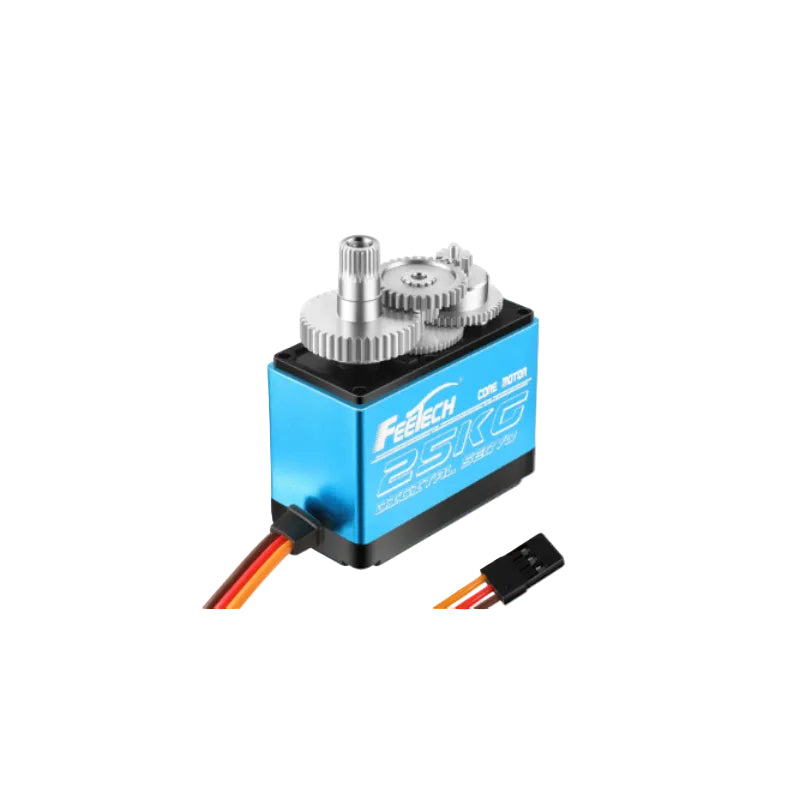

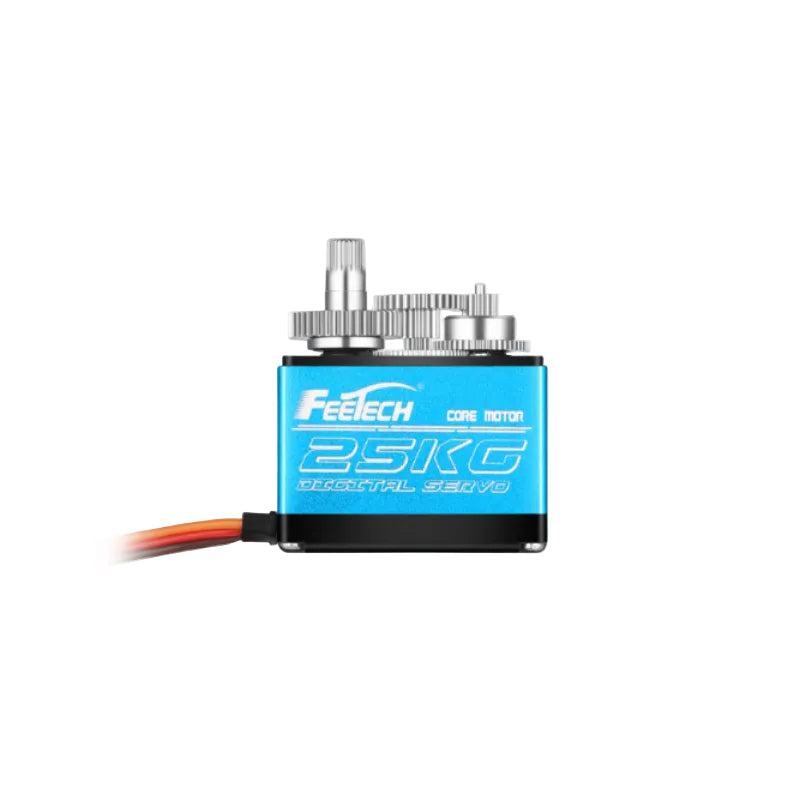

The FT-5325-C001 is a high-precision 7.4V 25kg.cm digital 180° aluminum mid-shell servo constructed with a PA+Aluminum case, heavy-duty steel gears, plastic POM horn type, and ball bearings. Driven by a core motor, this no-limit servo operates efficiently within a 6V–7.4V voltage range, delivering a peak stall torque of 25kg.cm, a rated torque of 8.3kg.cm, and a no-load speed of 0.151sec/60° at 7.4V. Its electrical profile features a 3.5A stall current, 120mA running current at no load, and a low 6mA idle current. Controlled via pulse width modulation through a digital comparator amplifier, it accommodates a pulse width range of 900–2100 µsec with a stop position at 1500 µsec and a dead bandwidth of ±25 µsec. Designed for 180° rotation, its rotating direction is counterclockwise (at 1500→2000 µsec). This professional-grade servo measures 55mm × 20mm × 43mm, weighs 67±1g, and features a 25T/5.9mm horn gear spline alongside a 30CM connector wire.

Common use cases: Humanoid robot arm and shoulder joints requiring 25kg.cm torque with standard PWM control, heavy-duty RC car and crawler steering, UAV payload gimbal tilt axis, industrial automation end-effectors, and applications needing a compact PA+aluminum mid-shell design with steel gears at 6–7.4V.
