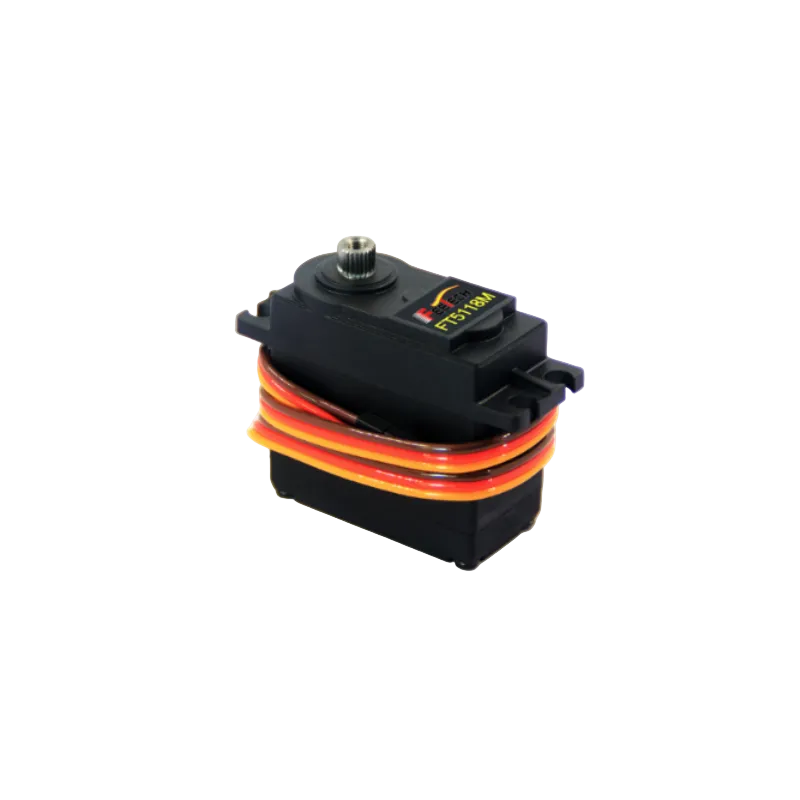

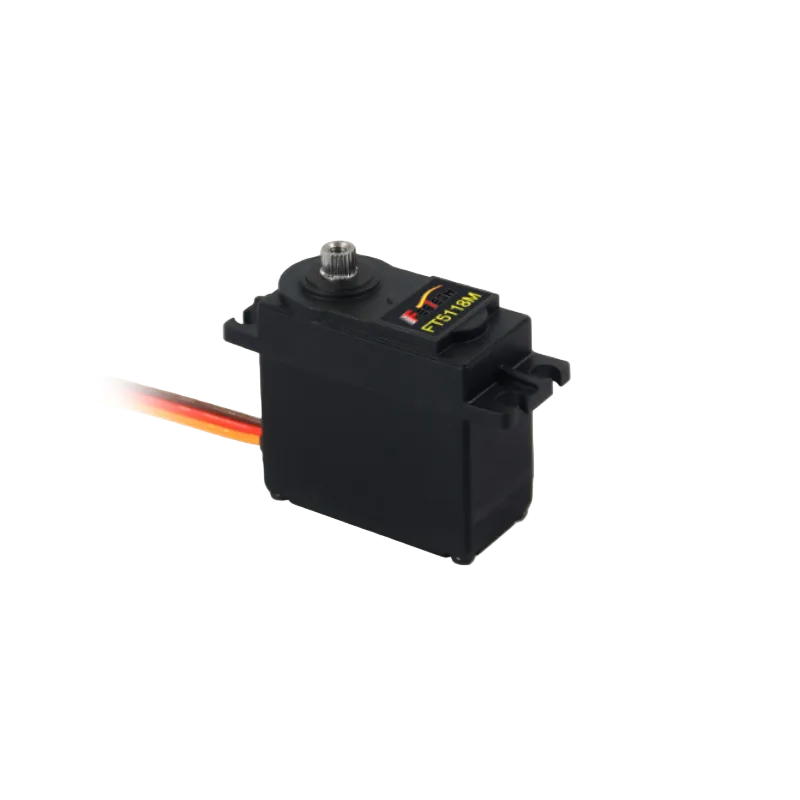

FEETECH FT5118M Servo Motor
FEETECH FT5118M Servo Motor

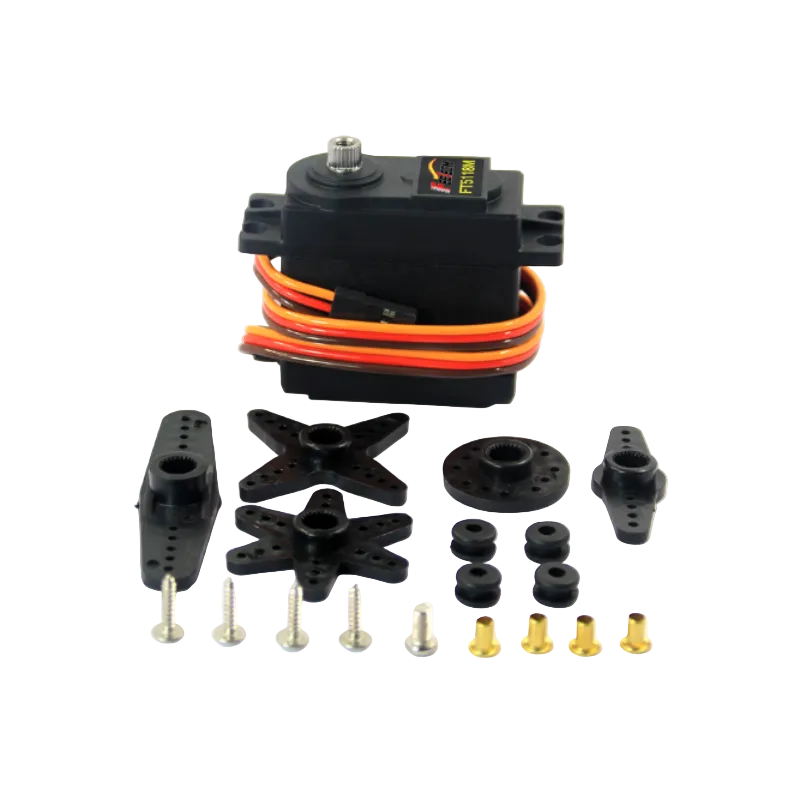

The FT5118M is a high-performance 7.4V 17kg-class digital servo powered by a reliable core motor and housed in a lightweight yet durable PA+Fiberglass case. Engineered for extended motion control and robotic joints, it features robust steel gears, dual ball bearings, a standard 25T/5.9mm horn gear spline, and reliable plastic/POM horns with no mechanical limit angles. Supporting a versatile operating voltage range of 4-8.4V, this digital servo delivers a peak stall torque of 17.5kg.cm and a rated torque of 6kg.cm at 6V, while moving at a swift no-load speed of 0.167sec/60° (at 6V). It stands out with a wide 280° running degree under standard 500→2500µsec pulse signals and executes precise counterclockwise rotation. Weighing 65±1g with a 30CM connector wire, it fully supports dual-mode switching debug boards, making it an excellent, feature-rich choice for precise angle adjustments in custom smart robotics, education kits, and RC projects.
| PRODUCT PARAMETERS | |
| Model | FT5118M |
| Product Name | 7.4V 17kg.cm Digital Servo |
| Supporting dual-mode switching debug board | FRS(Click to jump) |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -15℃~70℃ |
| Size | A：40.1mm B：20.1mm C：38.9mm |
| Weight | 65± 1g |
| Gear type | Steel |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/5.9mm |
| Horn type | Plastic,POM |
| Case | PA+Fiberglass |
| Connector wire | 30CM |
| Motor | Core Motor |
| Operating Voltage Range | 4-8.4V |
| Idle current(at stopped) | 6mA@6V |
| No load speed | 0.167sec/60°@6V |
| Runnig current(at no load) : | 150mA @6V |
| Peak stall torque | 17.5kg.cm@6V |
| Rated torque | 6kg.cm@6V |
| Stall current | 2.1A@6V |
| Running degree | 280° (at 500→2500μsec) |
| Rotating direction | Counterclockwise(at 1500 →2000 μsec) |
