FEETECH FT450B Servo Motor
FEETECH FT450B Servo Motor

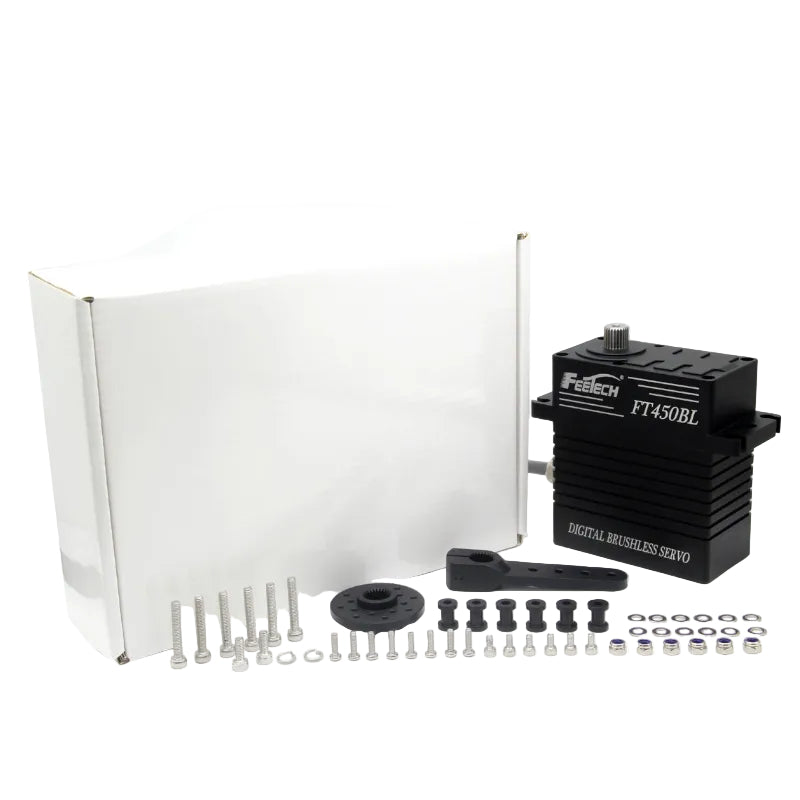

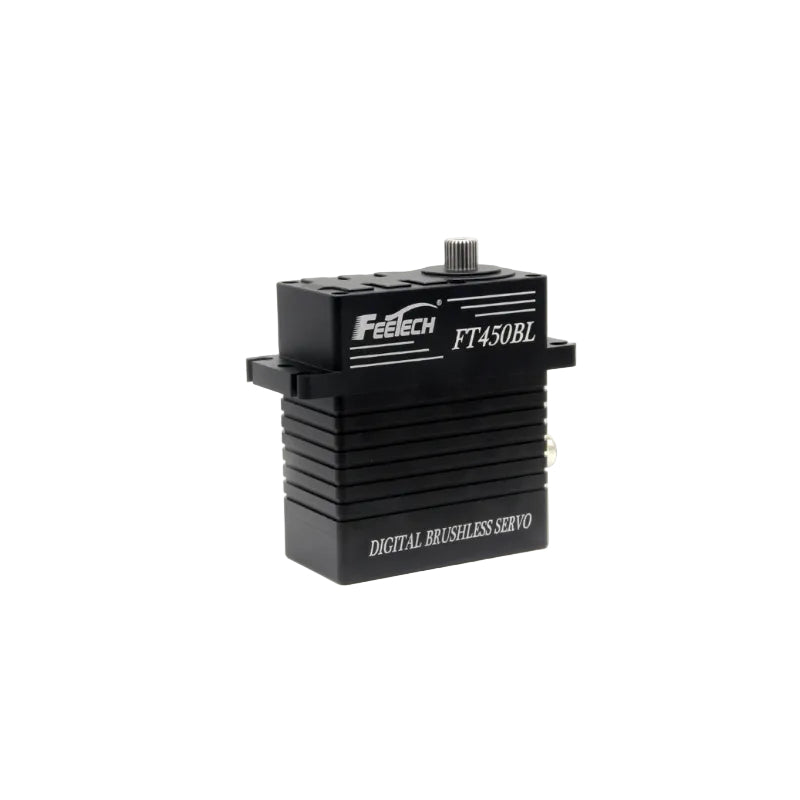

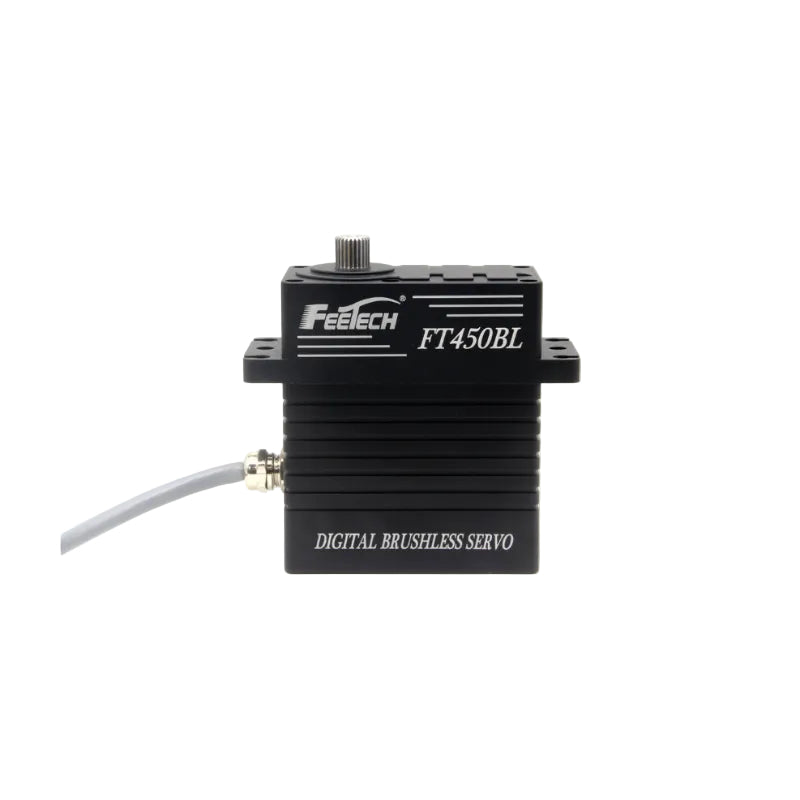

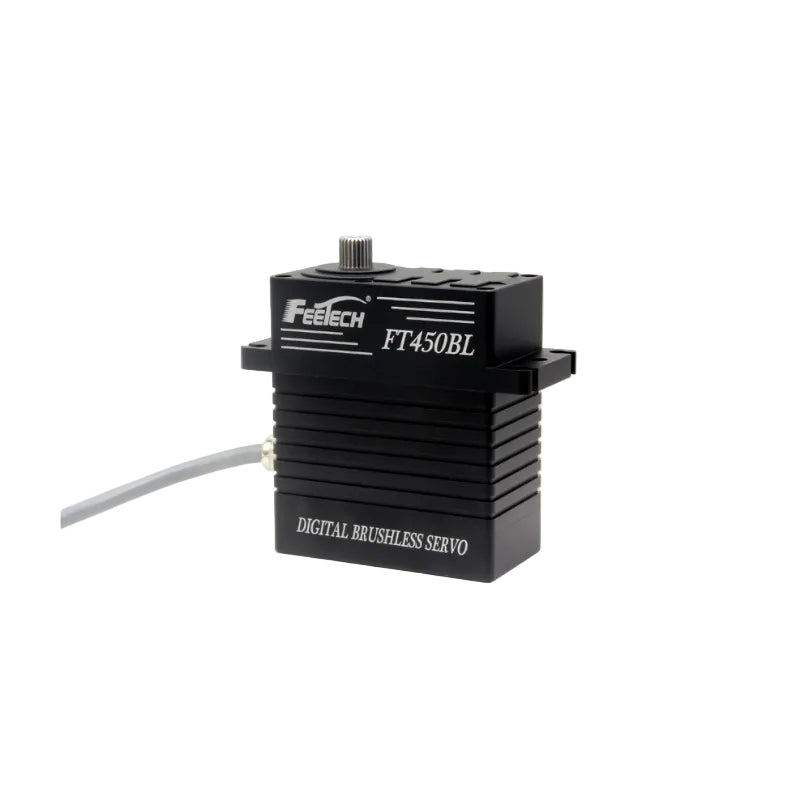

The FT-450B-C001 is a heavy-duty 24V 450KG-class industrial digital servo equipped with a high-efficiency brushless motor and a rugged aluminum case for superior heat dissipation. Designed for high-load precision, it features ultra-tough steel gears with a 1/252 gear ratio, smooth ball bearings, and a robust 25T/11.8mm horn gear spline. Operating within a 16–28V range, it delivers a massive peak stall torque of 450kg.cm, a rated torque of 150kg.cm, and a sharp no-load speed of 0.285sec/60° (35RPM) at 24V. Controlled via pulse width modulation (500–2500 µsec) on a digital comparator control system, it ensures a highly accurate 180°±5° running degree with clockwise rotation, a dead band width of ≤4 µsec, and no mechanical limit angles. Weighing 850±5g and featuring a 43±1CM connector wire, this industrial-grade servo offers remarkable strength, fast responsiveness, and long-term reliability for advanced robotics and automation systems.
| PRODUCT PARAMETERS | |
| Model | FT-450B-C001 |
| Product Name | 24V 450kg.cm180°/24V 450KG 180 Degree Servo |
| Storage Temperature Range | -40℃~80℃ |
| Operating Temperature Range | -40℃~60℃ |
| Size | A：86mm B：45mm C：100.3mm |
| Weight | 850g±5g |
| Gear type | Steel |
| Limit angle | NO limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T(11.8mm) |
| Gear Ratio | 1/252 |
| Case | Aluminum |
| Connector wire | 43±1CM |
| Motor | Brushless Motor |
| Operating Voltage Range | 16-28V |
| Idle current (atstopped) | 35mA@24V |
| No load speed | 0.285sec/60°(35RPM)@24V |
| Runnig current(at no load) : | 360mA@24V |
| Peak stall torque | 450kg.cm@ 24V |
| Rated torque | 150kg.cm@24V |
| Stall current | 10.8A@24V |
| Command si gnal | Pulse width modulation |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Clockwise(at 1500→2000μsec) |
