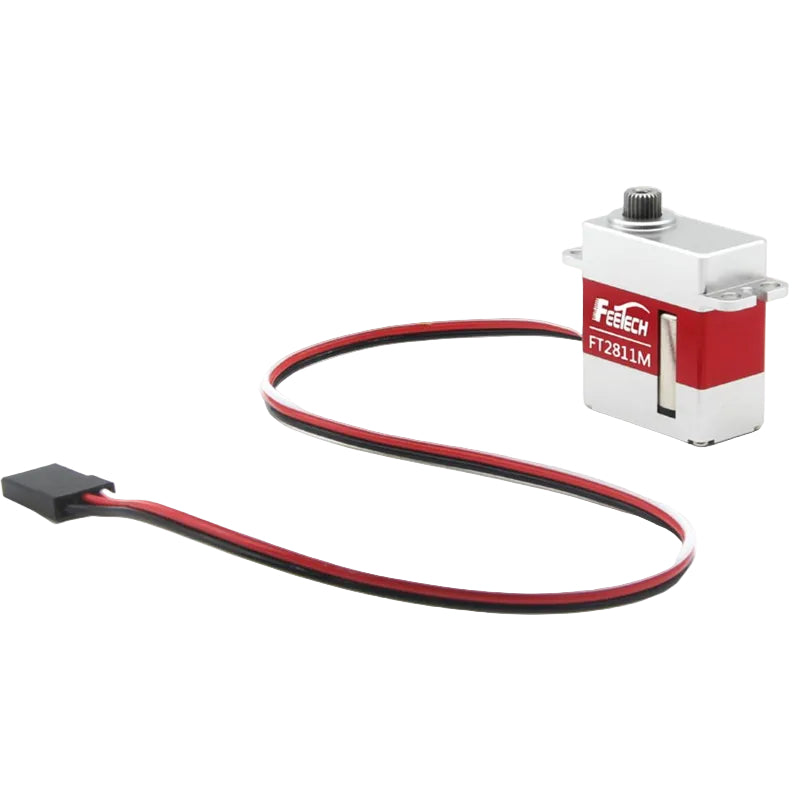

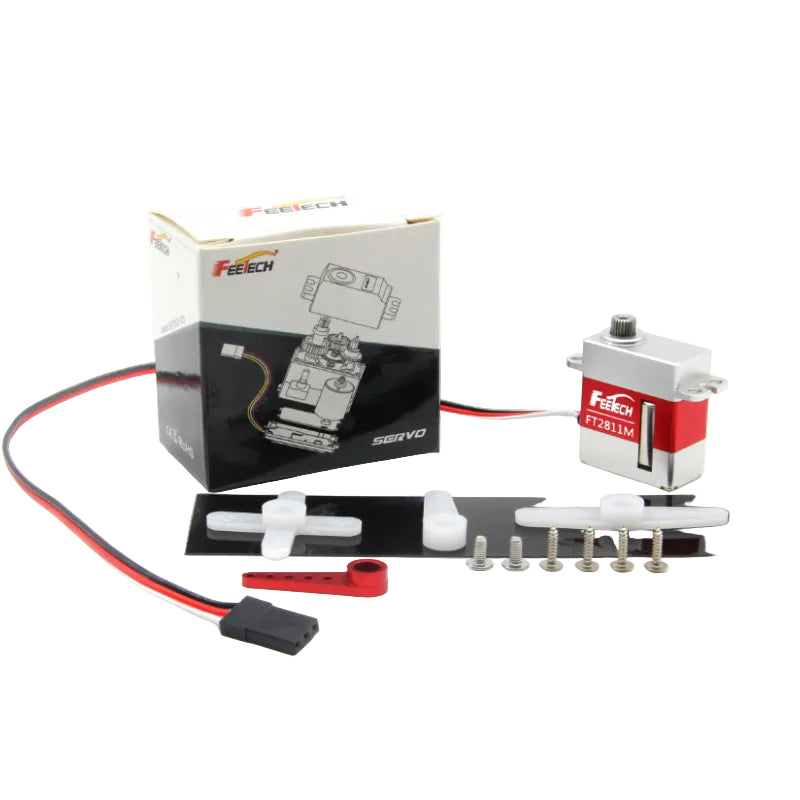

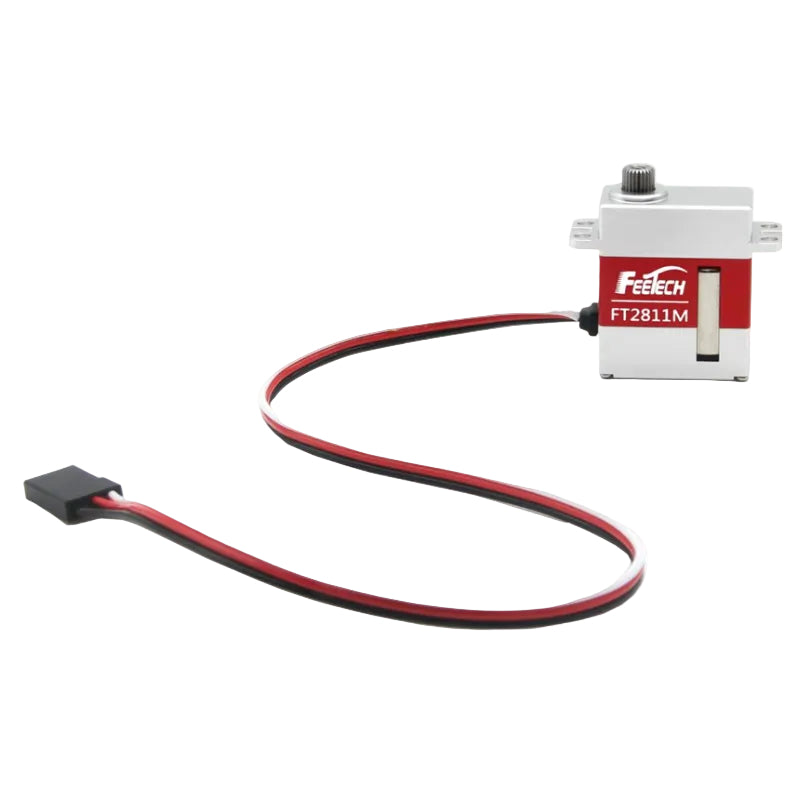

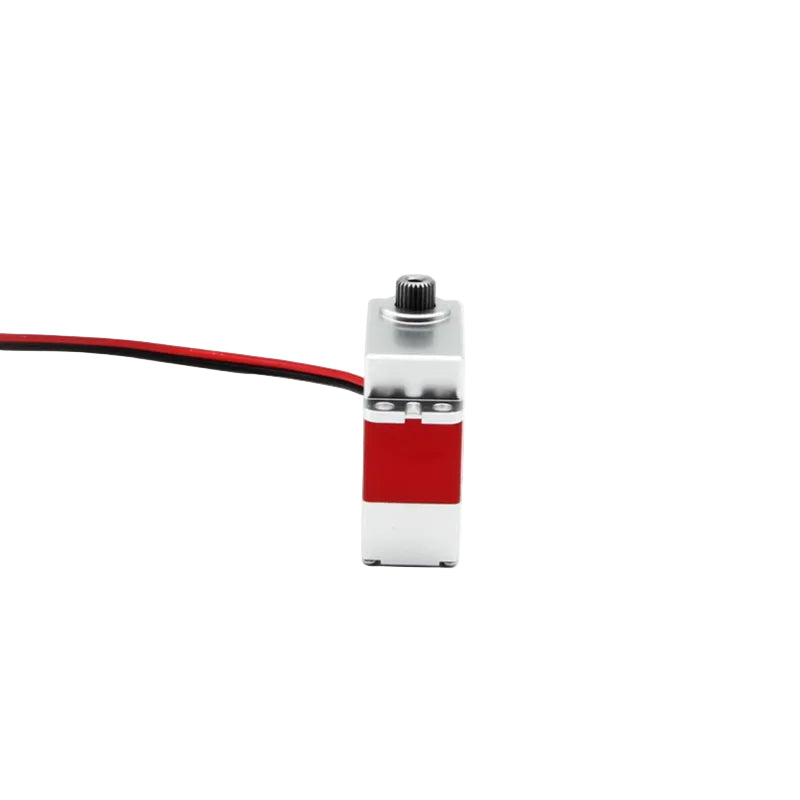

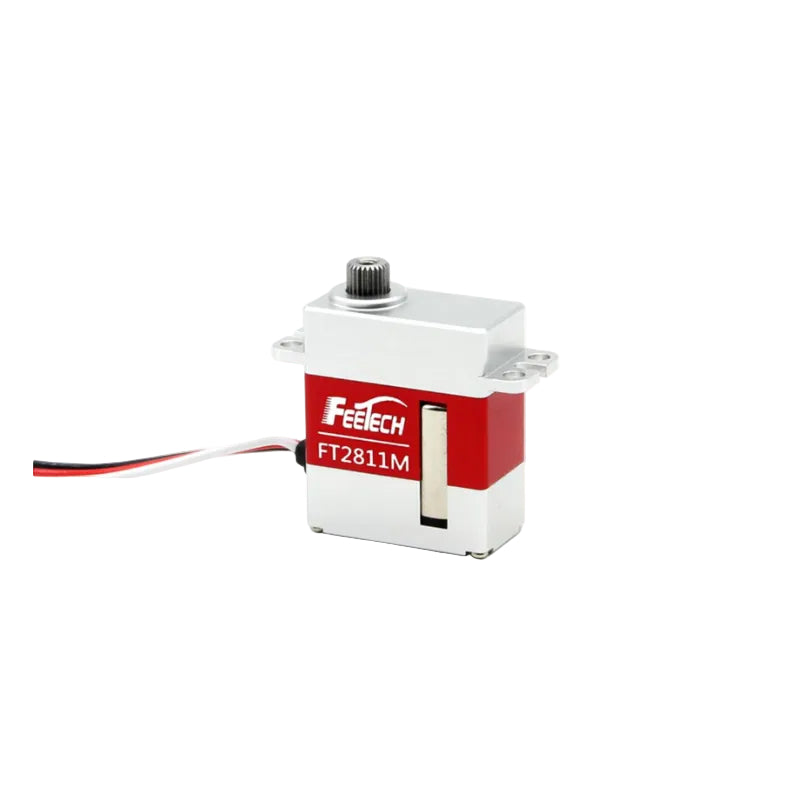

FEETECH FT2811M Servo Motor
FEETECH FT2811M Servo Motor
The FT-2811-C001 is a high-performance 6V 11kg- -cm Digital Servo built with an Aluminium case, Metal Gear, Plastic,POM horn type, and reliable Ball bearings. Powered by a Coreless Motor, this No limit servo features an Operating Voltage Range of 4.8-8.4V, delivering a Peak stall torque of 12.2kg.cm@8.4V, a Rated torque of 4.1kg.cm@8.4V, and a No load speed of 0. 054 sec/ 60°@8.4V. Its electrical management specifications include a Stall current of 2.8A@8.4V, a Runnig current(at no load) of 170mA@8.4V, and an Idle current (at stopped) . of 6mA@8.4V. Utilizing Pulse width modification via a Digital Controller Amplifier type, it accommodates a Pulse width range of 500→2500 μsec with a Neutral Position at 1500 μsec and a Dead band width of ≤8 μsec. The servo supports a 180°(at 500→2500μsec) Running degree and operates in a Counterclockwise Rotating direction (when 1500→2000 μsec). This compact servo measures A: 23mm B: 12mm C: 27.5mm . , weighs 21.5± 2g, and is equipped with a 25T/4.95mm Horn gear spline and a 25±0.5CM Connector wire.
| PRODUCT PARAMETERS | |
| Model | FT-2811-C001 |
| Product Name | 6V 11kg- -cm Digital Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -20℃~60℃ |
| Size | A：23mm B：12mm C：27.5mm . |
| Weight | 21.5± 2g |
| Gear type | Metal Gear |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/4.95mm |
| Horn type | Plastic,POM |
| Case | Aluminium |
| Connector wire | 25±0.5CM |
| Motor | Coreless Motor |
| Operating Voltage Range | 4.8-8.4V |
| Idle current (at stopped) . | 6mA@8.4V |
| No load speed | 0. 054 sec/ 60°@8.4V |
| Runnig current(at no load) : | 170mA@8.4V |
| Peak stall torque | 12.2kg.cm@8.4V |
| Rated torque | 4.1kg.cm@8.4V |
| Stall current | 2.8A@8.4V |
| Command signal | Pulse width modification |
| Amplifier type | Digital Controller |
| Pulse width range | 500→2500 μsec |
| Neutral Position | 1500 μsec |
| Running degree | 180°(at 500→2500μsec) |
| Dead band width | ≤8 μsec |
| Rotating direction | Counterclockwise(at 1500→2000 μsec) |
