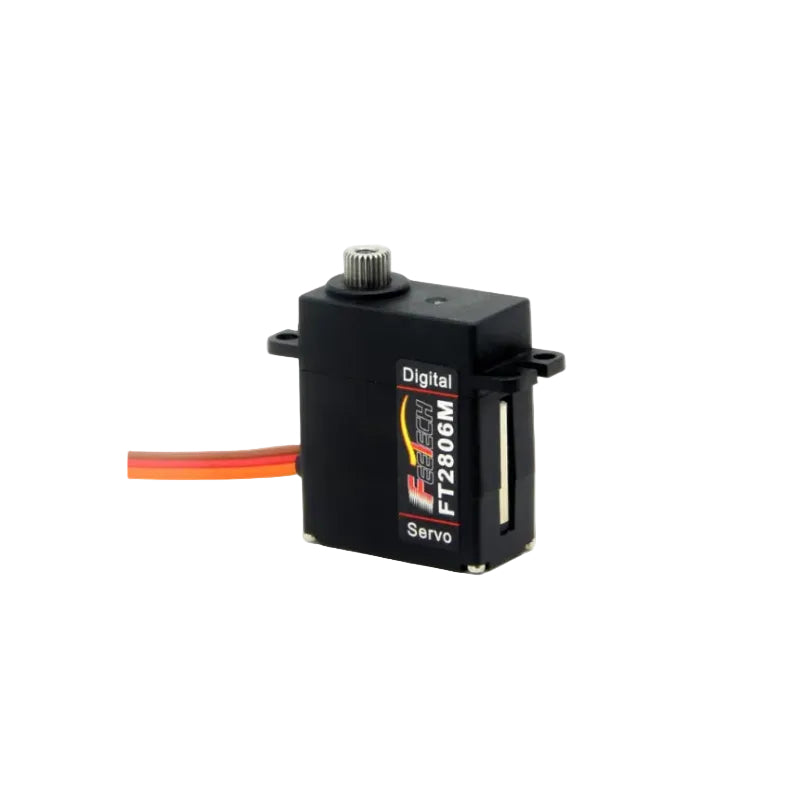

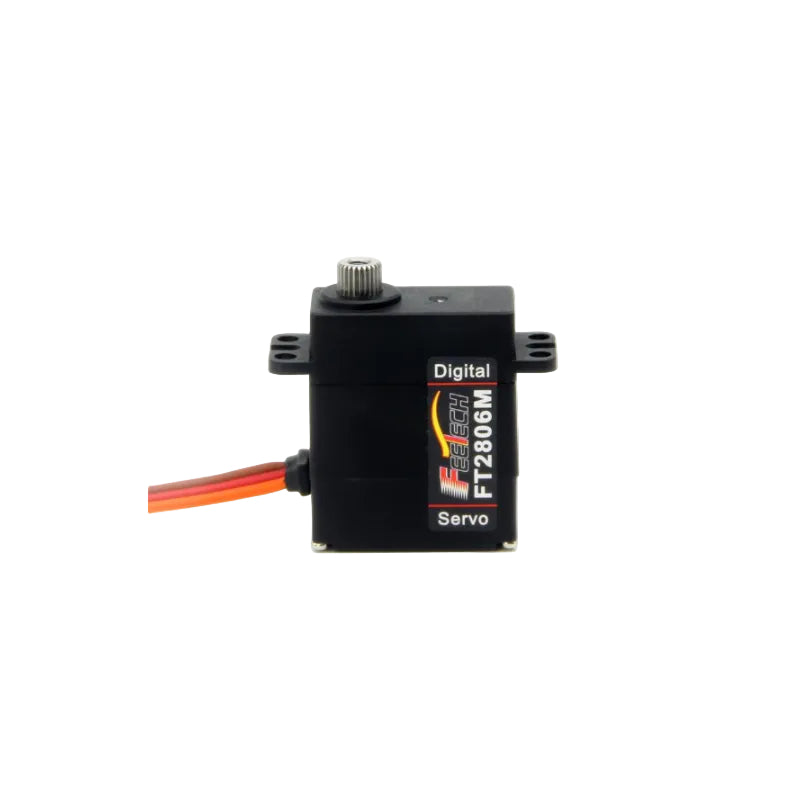

FEETECH FT2806 Servo Motor
Regular price
$19.00
Sale price
$19.00
Regular price
Unit price
FEETECH FT2806 Servo Motor
Product description

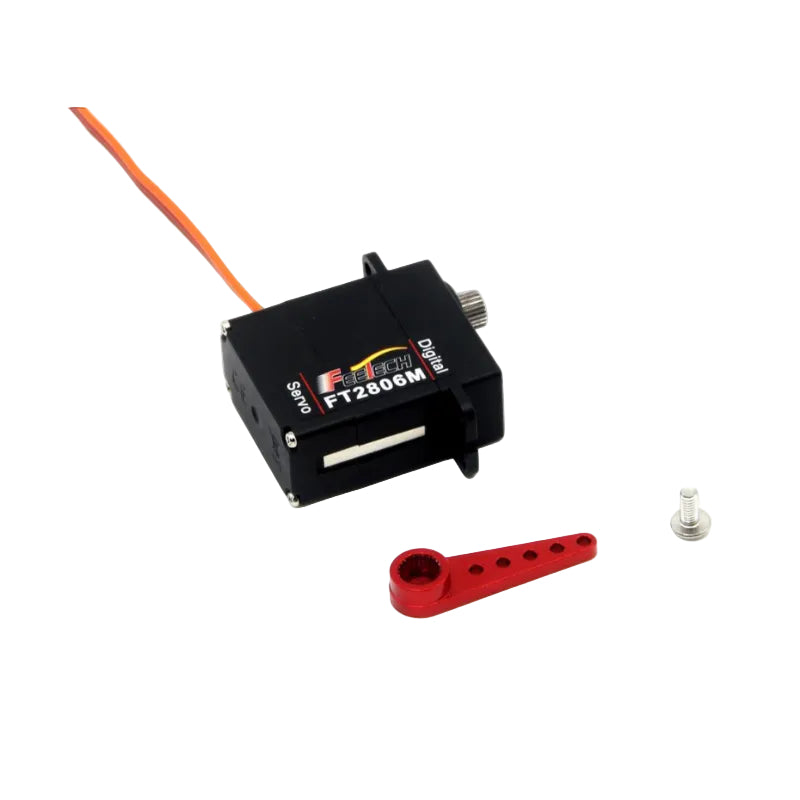

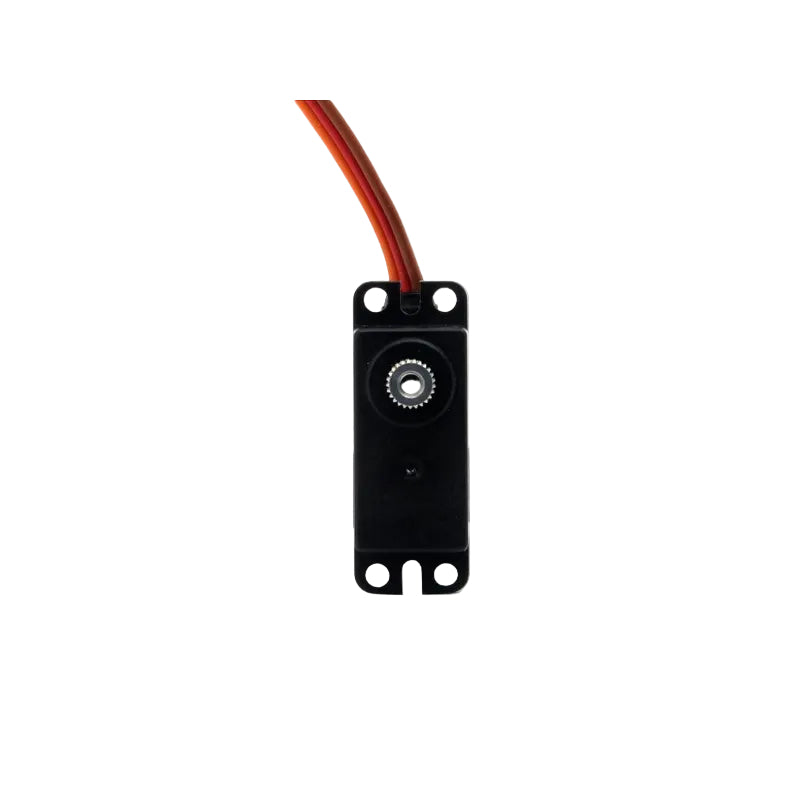

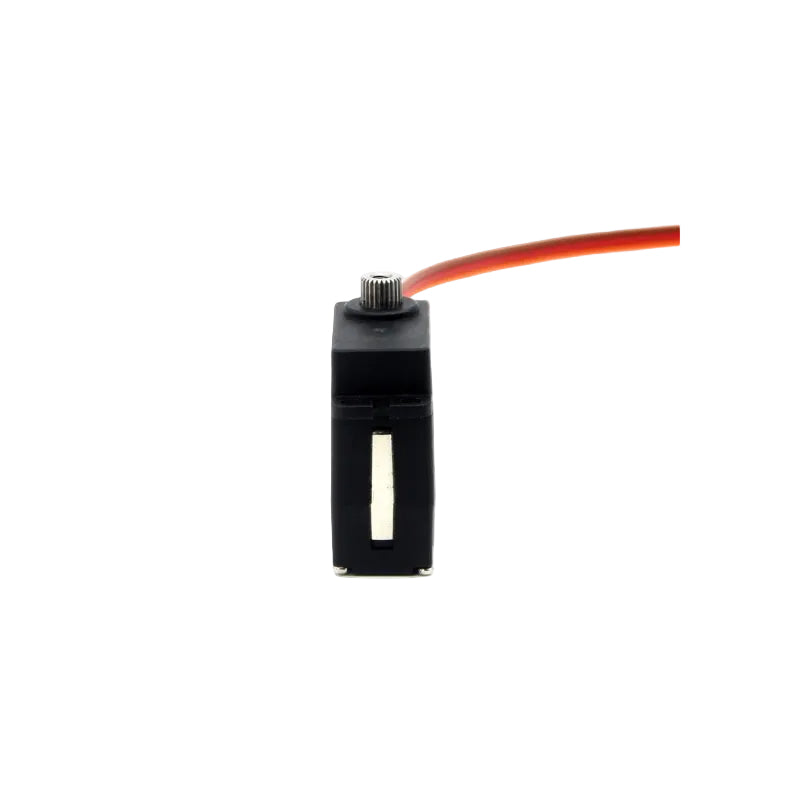

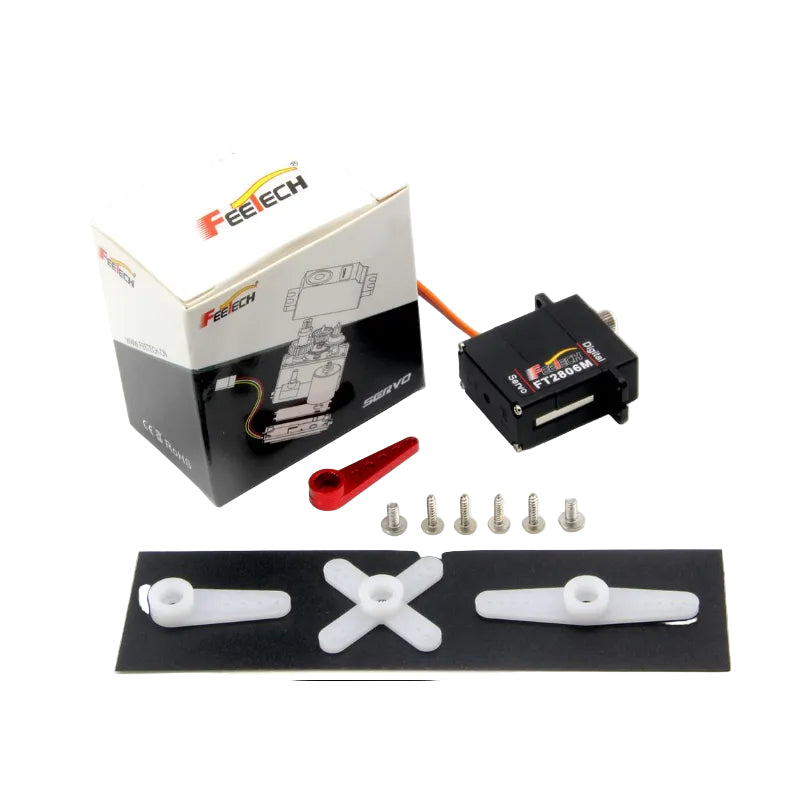

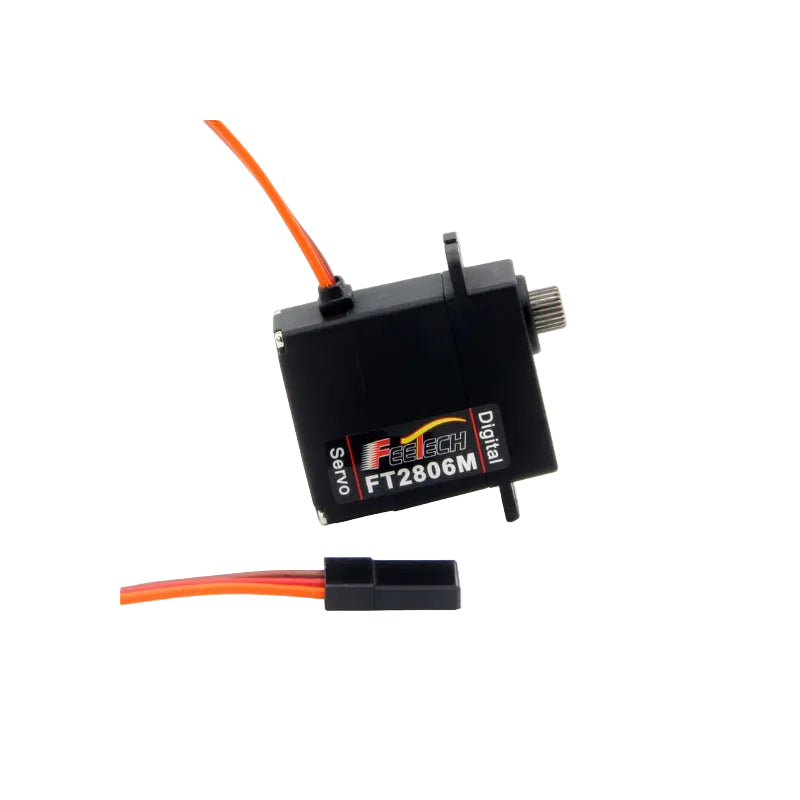

The FT-2806-C001 is a high-performance 6V 6kg-cm digital servo featuring a coreless motor, durable metal gears, and ball bearings for smooth, precise control. Operating within a 4.8-8.4V range, it delivers a peak stall torque of 7.2kg.cm and an ultra-fast no-load speed of 0.073 sec/60° at 7.4V. Built with a robust PA66+GF case and a 25T/4.95mm horn gear spline, this compact digital controller utilizes pulse width modification (500–2500 µsec) to achieve a 180±5° running degree with an ultra-narrow dead band width of ≤4 µsec. Designed with no mechanical limit angle, it weighs just 18.3±2g and reliably operates between -20°C and 60°C, making it an ideal choice for high-speed, precision-demanding applications.
FEETECH FT-2806-C001 Specifications
| PRODUCT PARAMETERS | |
| Model | FT-2806-C001 |
| Product Name | 6V 6kg- -cm Digital Servo |
| Storage Temperature Range | -30℃~70℃ |
| Operating Temperature Range | -20℃~60℃ |
| Size | A：23mm B：12mm C：27.5mm . |
| Weight | 18.3±2g |
| Gear type | Metal |
| Limit angle | No limit |
| Bearing | Ball bearings |
| Horn gear spline | 25T/4.95mm |
| Horn type | Plastic,POM |
| Case | PA66+GF |
| Connector wire | 25±1CM |
| Motor | Coreless Motor |
| Operating Voltage Range | 4.8-8.4V |
| Idle current (at stopped) . | 6mA@7.4V |
| No load speed | 0. 073 sec/ 60°@7.4V |
| Runnig current(at no load) : | 80mA@7.4V |
| Peak stall torque | 7.2kg.cm@7.4V |
| Rated torque | 2.4kg.cm@7.4V |
| Stall current | 2.0A@7.4V |
| Command si gnal | Pulse width modification |
| Amplifier type | Digital Controller |
| Pulse width range | 500→2500 μsec |
| Neutral Position | 1500 μsec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μsec |
| Rotating direction | Counterclockwise(at 500→2500 μsec) |
