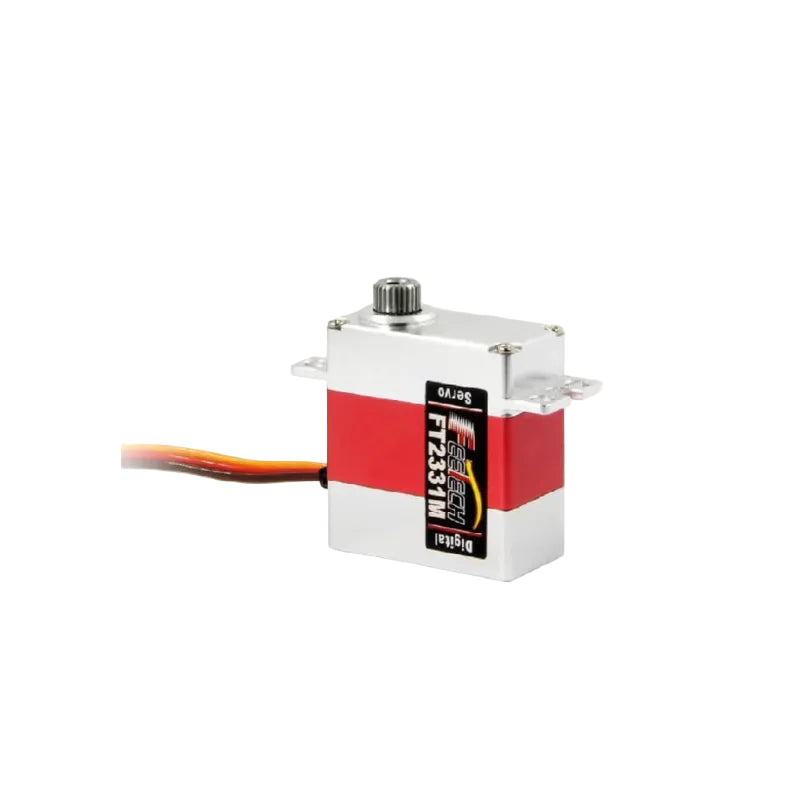

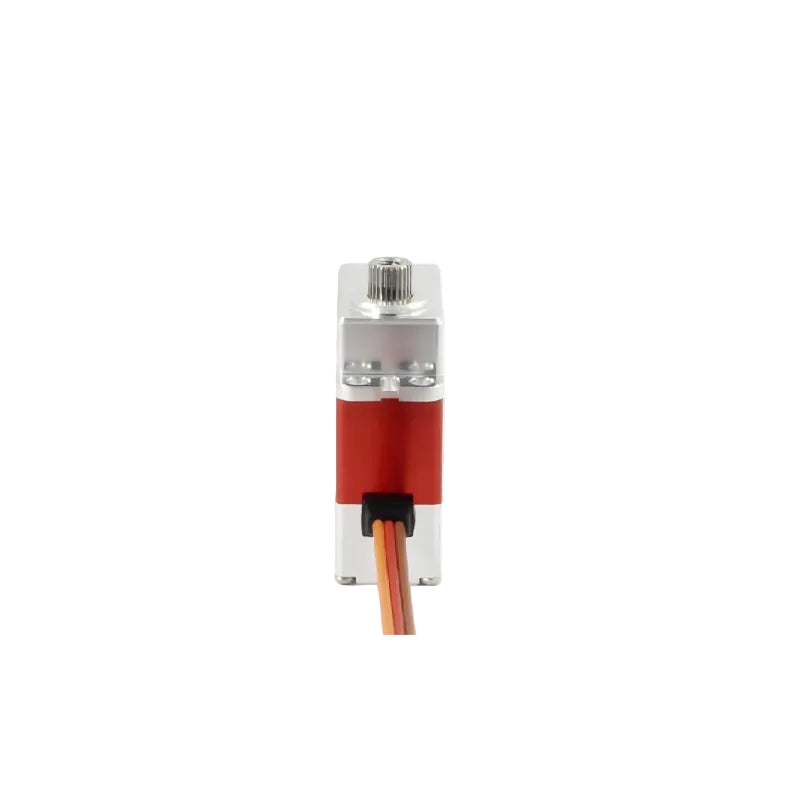

FEETECH FT2331M Servo Motor
FEETECH FT2331M Servo Motor

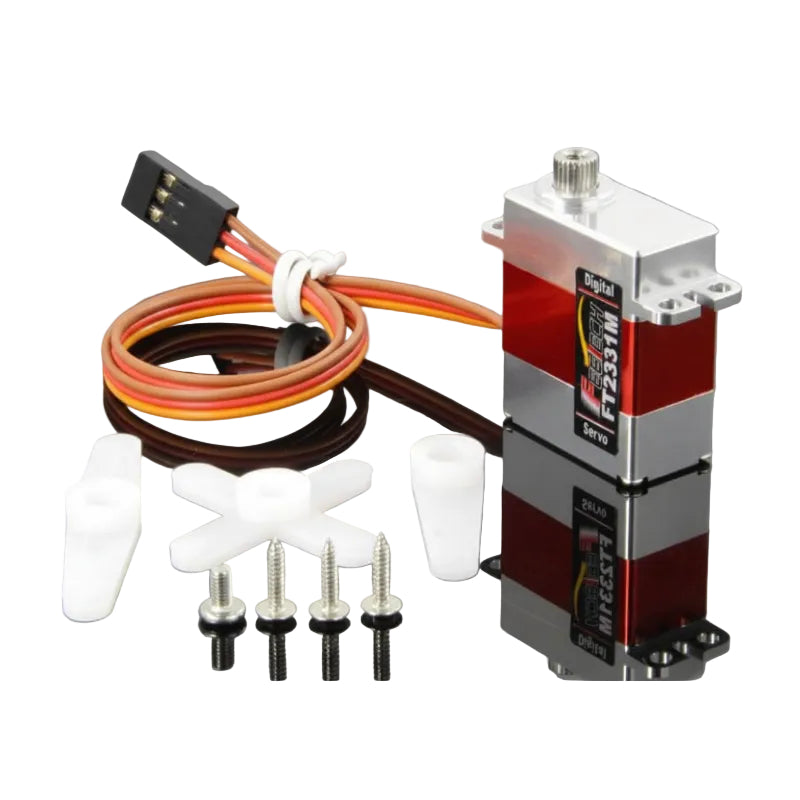

The FT2331M is a precision 6V 4.5kg--cm Digital Servo engineered with a durable Aluminium case, Metal Gear, Plastic,POM horn type, and 2 Ball bearings. Powered by a high-efficiency Coreless Motor, this NO limit servo features an Operating Voltage Range of 4.8-6V, delivering a Peak stall torque of 3.5kg.cm@6V, a Rated torque of 1.16kg.cm@6V, and a fast No load speed of 0.07 sec/ 60°@6V. Its electrical specifications include a Stall current of 1000mA@6V, a Runnig current(at no load) of 150 mA@6V, and an Idle current (at stopped) of 4.8mA-6.0mA. Utilizing Pulse width modification via a Digital Controller protocol type, the servo supports a Pulse width range of 900~2100usec with a Stop position at 1500 μsec and a tight Dead band width of 2 μsec. It offers a 240° Running degree (at 500→2500μsec) and operates in a Counterclockwise Rotating direction (when 1000~ 2000 μsec). This compact servo weighs 20g ±0.2 (O. 71oz), measures A: 23mm B: 12mm C: 27.5mm, and includes a 25T(od 4.92mm) Horn gear spline with a 150mm ±5 mm Connector wire.
| PRODUCT PARAMETERS | |
| Model | FT2331M |
| Product Name | 6V 4. 5kg- -cm Digital Servo |
| Storage Temperature Range | -30℃~80℃ |
| Operating Temperature Range | -15℃~70℃ |
| Dimensions | A：23mm B：12mm C：27.5mm |
| Weight | 20g ±0.2 (O. 71oz) |
| Gear type | Metal Gear |
| Limit angle | NO limit |
| Bearing | 2 Ball bearings |
| Horn gear spline | 25T(od 4.92mm) |
| Horn type | Plastic,POM |
| Case | Aluminium |
| Connector wire | 150mm ±5 mm |
| Motor | Coreless Motor |
| Operating Voltage Range | 4.8-6V |
| Idle current (at stopped) | 4.8mA-6.0mA |
| No load speed | 0. 07 sec/ 60°@6V |
| Runnig current(at no load) | 150 mA@6V |
| Peak stall torque | 3.5kg.cm@6V |
| Rated torque | 1.16kg.cm@6V |
| Stall current | 1000mA@6V |
| Command signal | Pulse width modification |
| Protocol Type | Digital Controller |
| Pulse width range | 900~2100usec |
| Stop position | 1500 μsec |
| Running degree | 240° (at 500→2500μsec) |
| Dead band width | 2 μsec |
| Rotating direction | Counterclockwise (when 1000~ 2000 μsec) |
