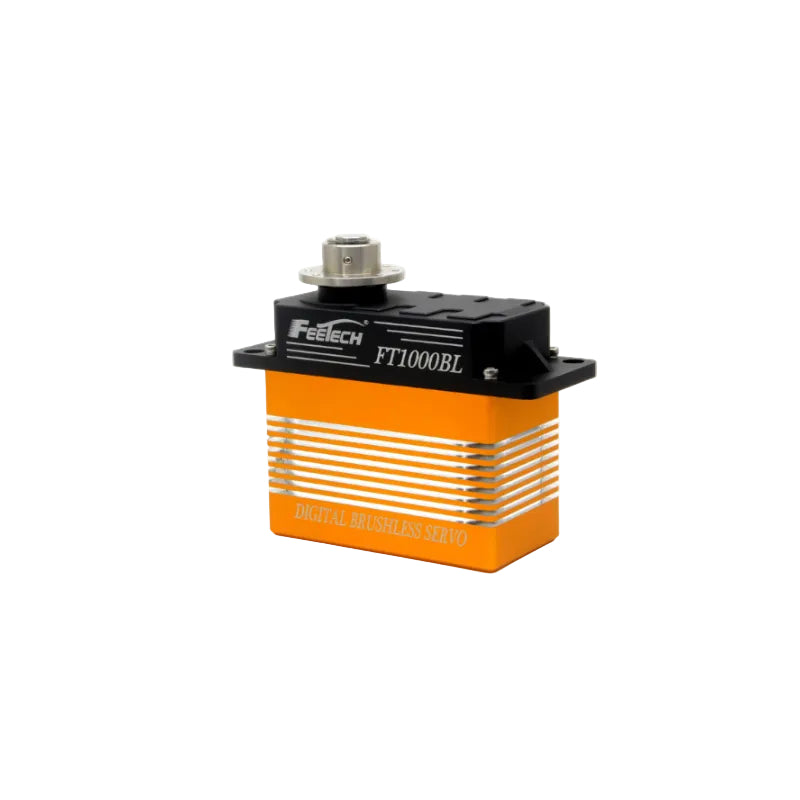

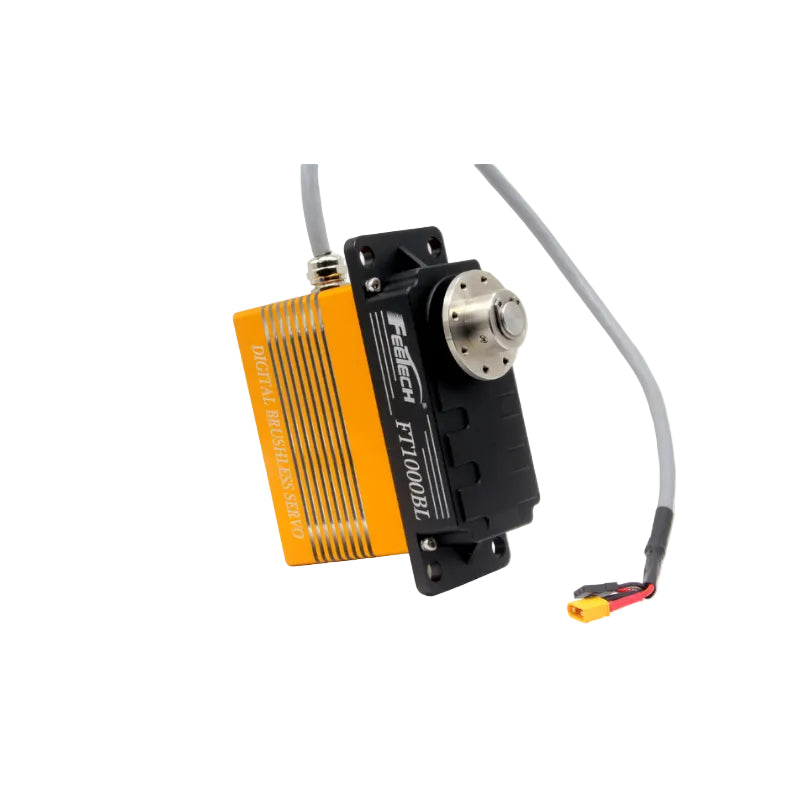

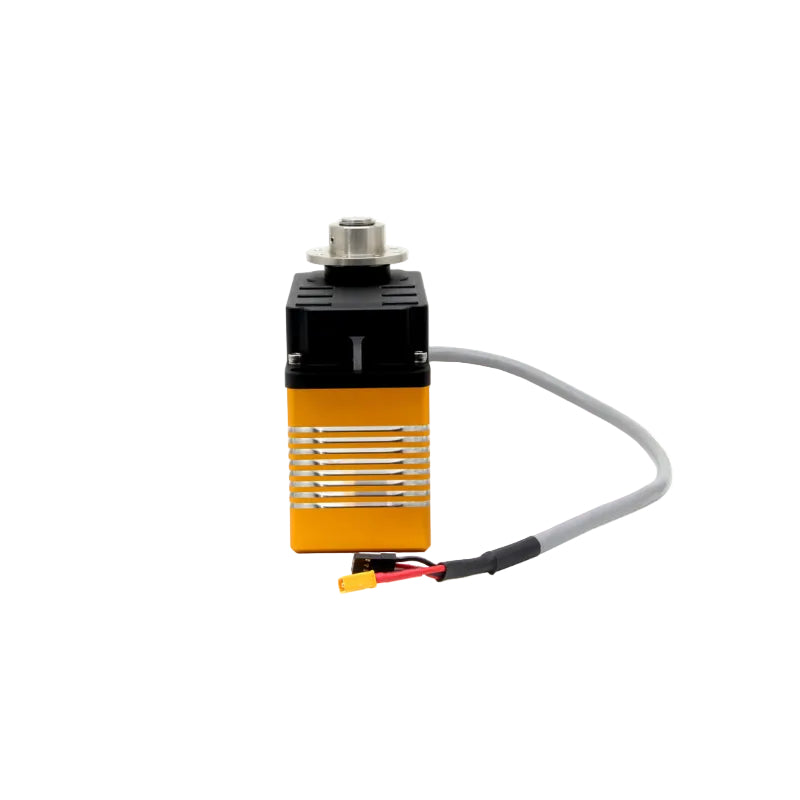

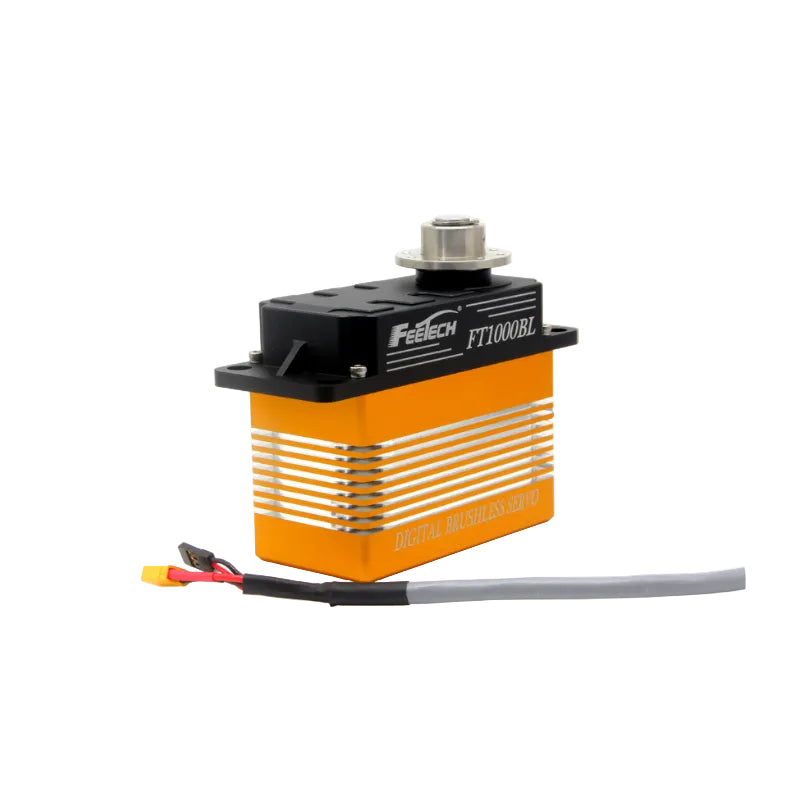

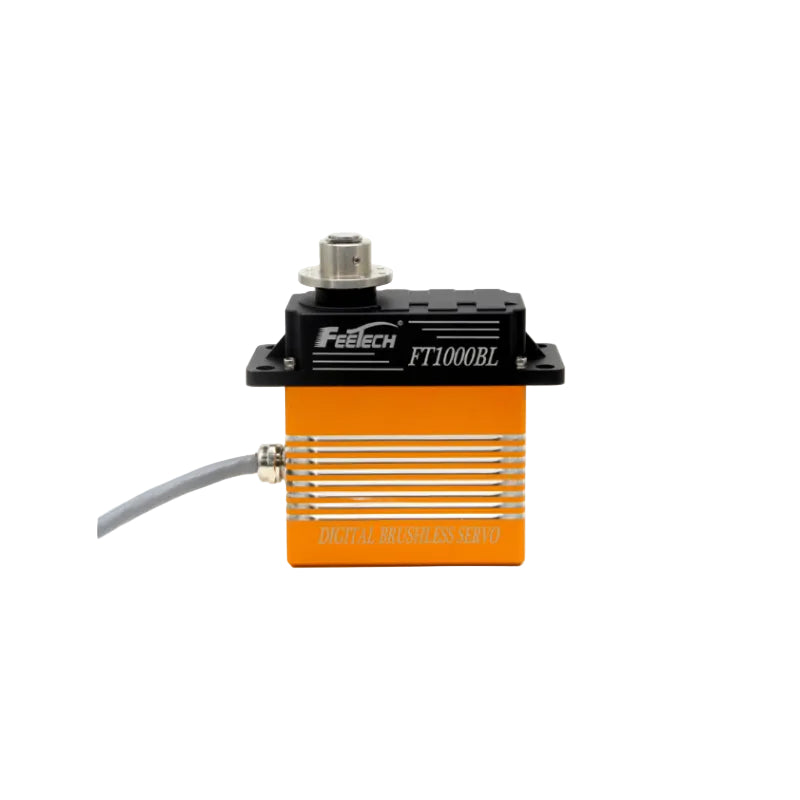

FEETECH FT1000 Servo Motor

The FT-1000-C001 is a mega-torque 24V 1000KG-class industrial digital servo engineered with a high-performance brushless motor and a heavy-duty aluminum case for exceptional thermal efficiency. Designed for extreme-load industrial automation, it features ultra-strong steel gears with a 1/390 gear ratio, smooth dual ball bearings, and a robust round 12mm horn gear spline. Operating over a wide 16–28V range, it delivers an astonishing peak stall torque of 1000kg.cm and a rated torque of 333kg.cm at 24V, with a no-load speed of 0.588sec/60° (17RPM). Controlled via a pulse width modulation system (500–2500 µsec) on a digital comparator, this servo provides a highly precise 180°±5° running degree with clockwise rotation, a dead band width of ≤4 µsec, and no mechanical limits. Weighing 1000±5g and equipped with a 43±1CM connector wire, it delivers the ultimate power and reliability required for large-scale robotics, heavy machinery, and smart manufacturing applications.

Common use cases: Full-body humanoid robot waist and hip drives, heavy industrial robotic arm base joints, large-scale exoskeleton actuators, smart manufacturing positioning systems, and any application demanding 1000kg.cm+ torque with brushless reliability at 24V.
