FEETECH FT-3325 Servo Motor
FEETECH FT-3325 Servo Motor

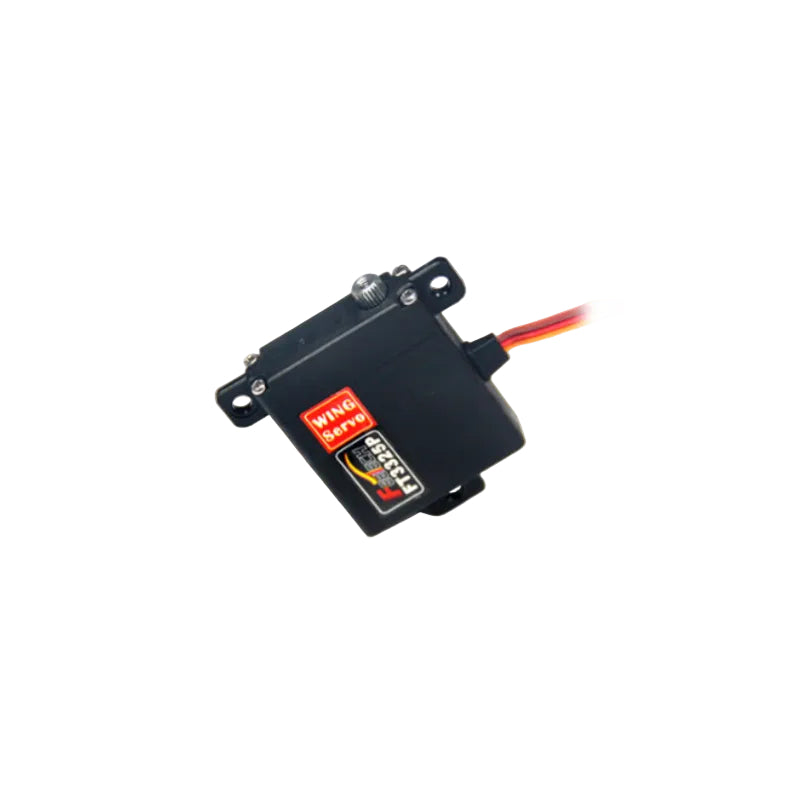

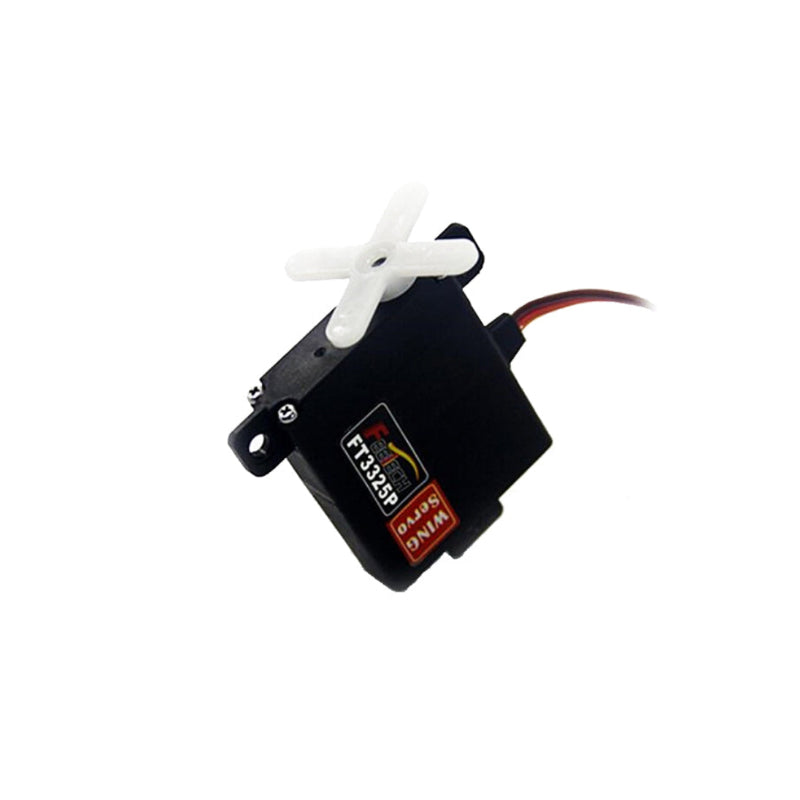

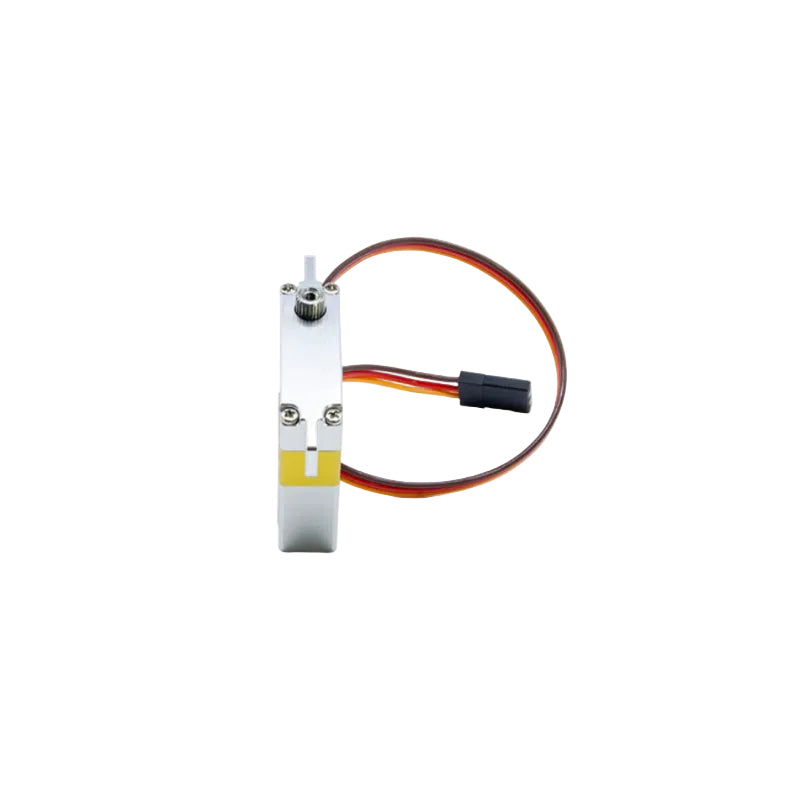

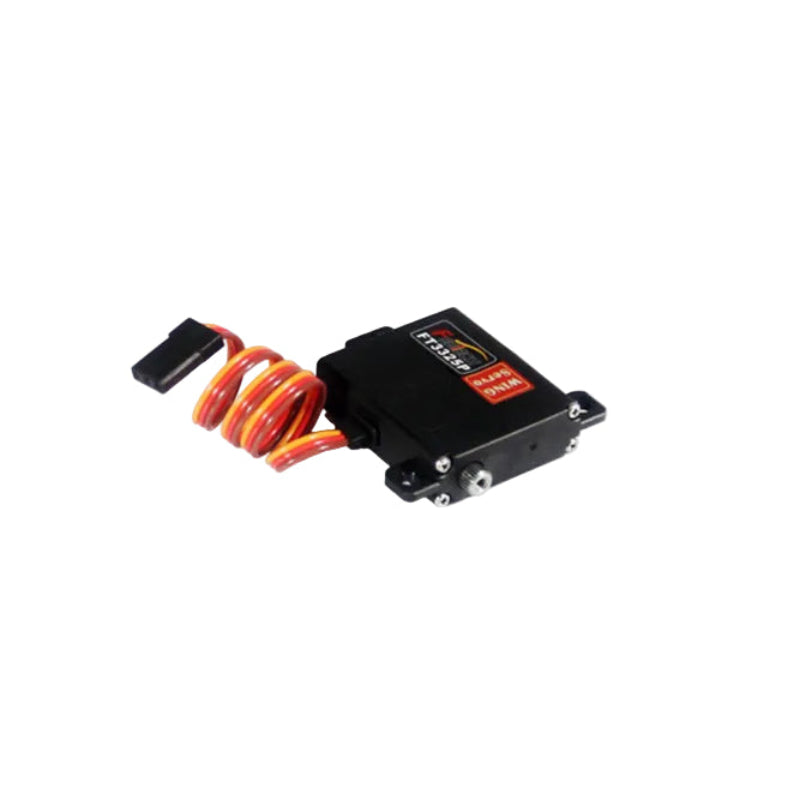

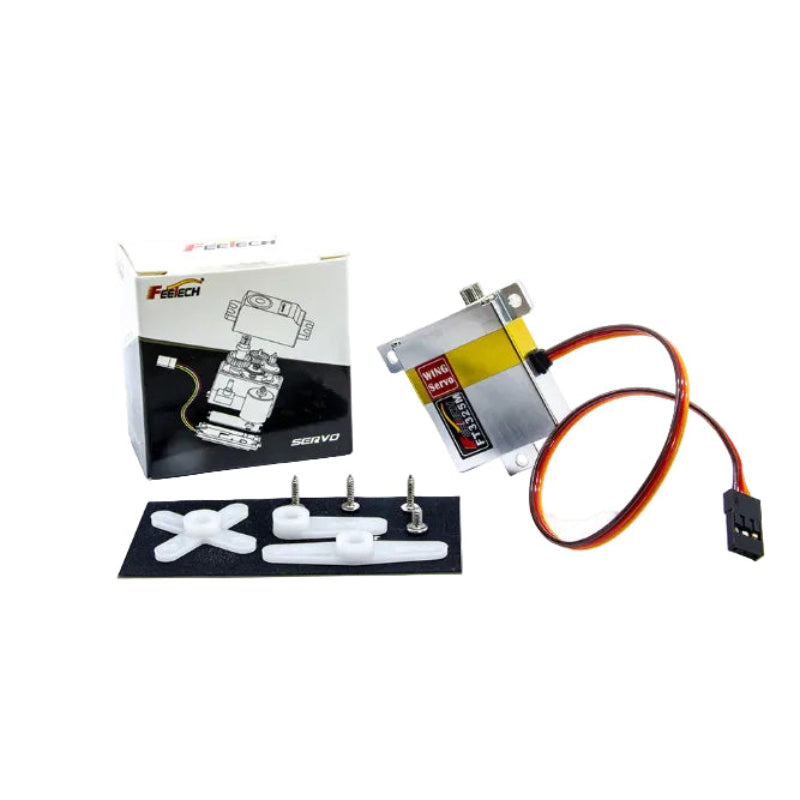

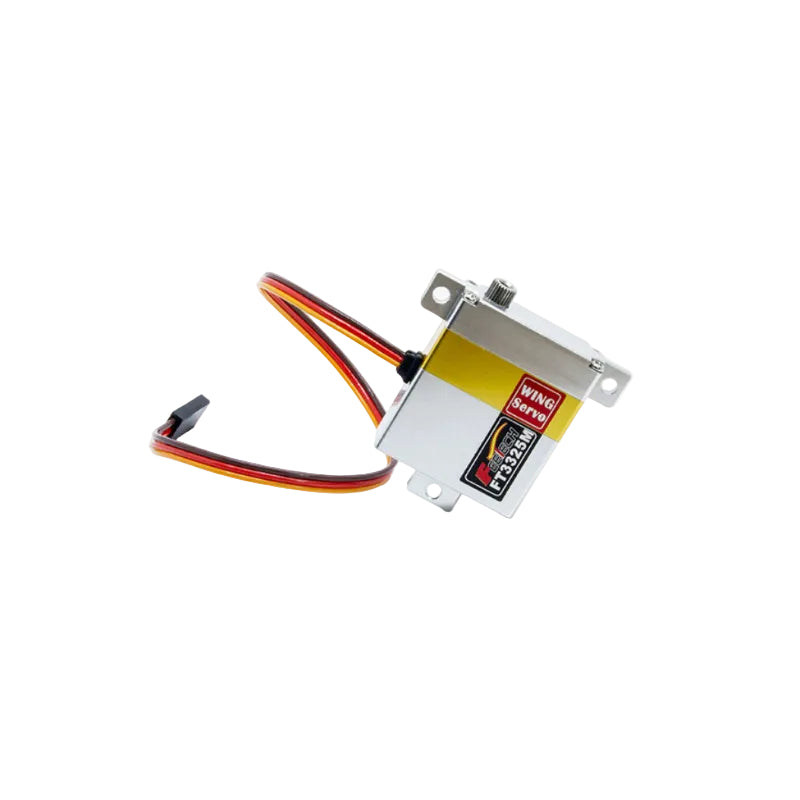

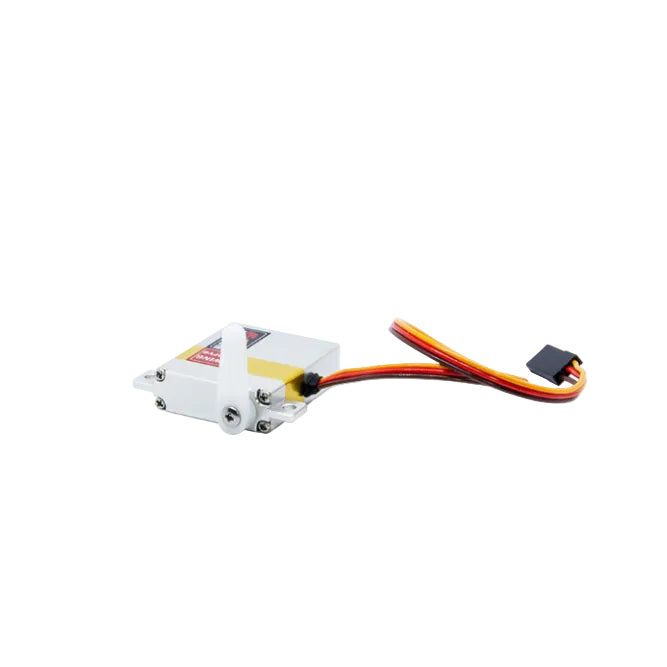

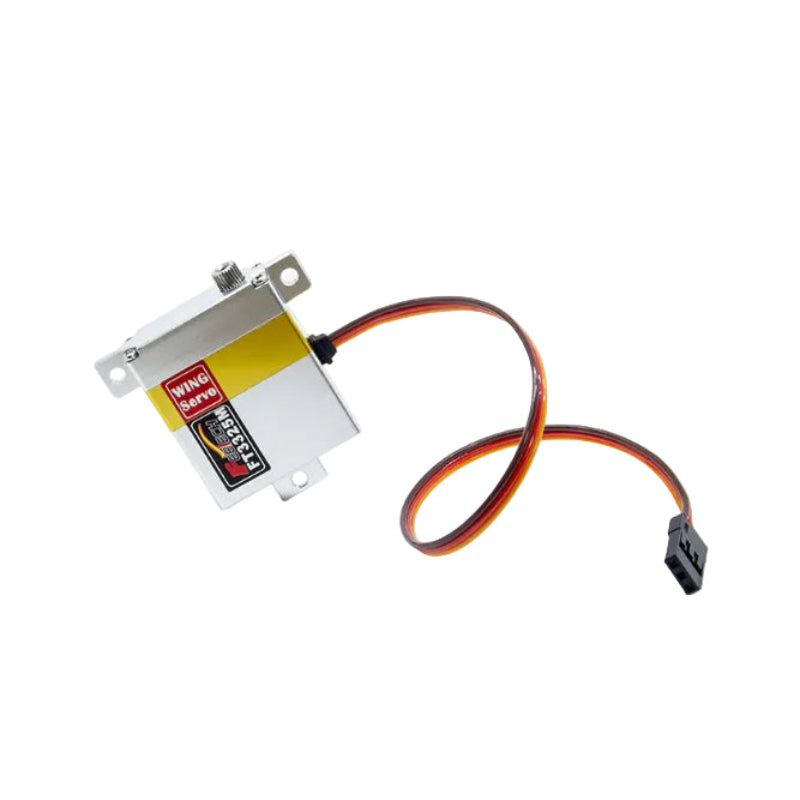

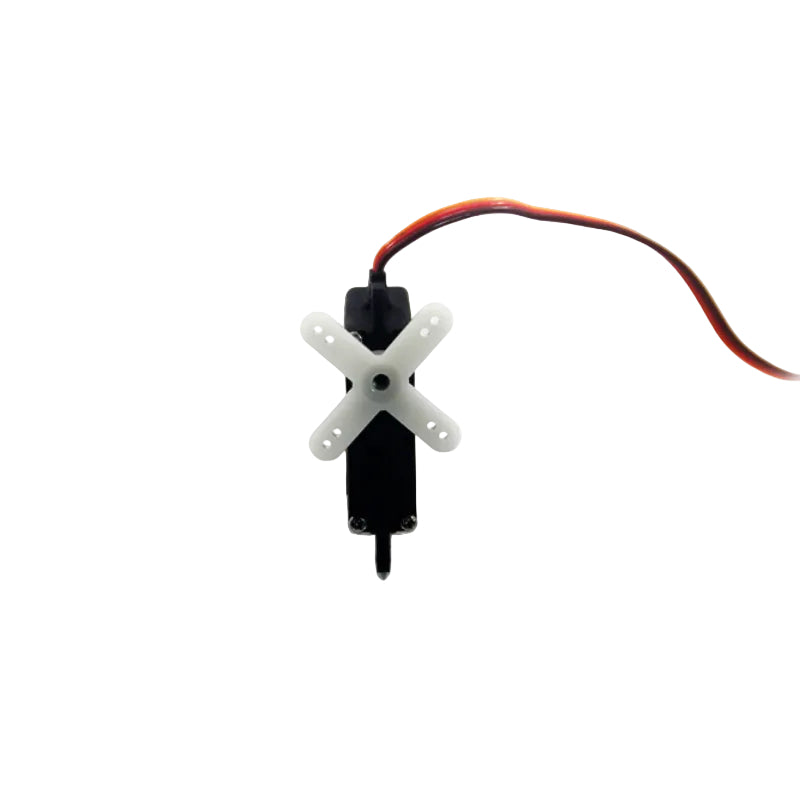

The Feetech FT3325 Series (FT3325M & FT3325P) consists of high-performance 6V–8.4V 7kg-cm class digital servos designed with core motors, durable metal gears, ball bearings, and 25T output shafts. While sharing a 6–8.4V operating voltage range and pulse width modification via a digital comparator, they feature distinct structural and performance configurations. The FT3325M is housed in a premium aluminium case (28.5±1g), delivering a 9.5kg.cm peak stall torque and 0.095sec/60° (105RPM) high speed at 8.4V, with a 250° running degree (500–2500 µsec). Conversely, the lightweight FT3325P features an ABS case (26.2±1g), offering a 5.8kg.cm peak torque and 0.133sec/60° speed at 6V, with a 120° running degree (900–2100 µsec) and an ultra-narrow 2 µsec dead band. Both digital servos operate without mechanical limit angles, providing versatile, precise control options for robotics and automation.
| PRODUCT PARAMETERS | ||
| Model | FT3325P | FT3325M |
| Product Name | 6V 7kg.cm 120 Degree Digital Servo | 6V 7kg.cm 250 Degree Digital Servo |
| Storage Temperature Range | -30℃~80℃ | -30℃~80℃ |
| Operating Temperature Range | -15℃~70℃ | -15℃~70℃ |
| Size | A：30mm B：10mm C：35.5mm . | A：30mm B：10mm C：35.7mm . |
| Weight | 26.2± 1g | 28.5± 1g |
| Gear type | Metal Gear | Metal Gear |
| Limit angle | No limit | No limit |
| Bearing | Ball bearings | Ball bearings |
| Horn gear spline | 25T | 25T/4.95mm |
| Case | ABS | Aluminium |
| Connector wire | 15CM | 25CM |
| Motor | Core Motor | Core Motor |
| Operating Voltage Range | 6-8.4V | 6-8.4V |
| Idle current (at stopped) . | 6mA@6V | 6mA |
| No load speed | 0.13sec/60degree(105RPM)@6V | 0.095sec/60degree(105RPM)@8.4V |
| Runnig current(at no load) : | 150mA@6V | 150mA@8.4V |
| Peak stall torque | 5.8kg.cm@6V | 9.5kg.cm@8.4V |
| Rated torque | 1.9kg.cm@6V | 3.1kg.cm@8.4V |
| Stall current | 1000mA@6V | 1200mA@8.4V |
| Command signal | Pulse width modification | Pulse width modification |
| Amplifier type | Digital Comparator | Digital Comparator |
| Pulse width range | 900→2100 μsec | 500→2500 μsec |
| Stop position | 1500 μsec | 1500 μsec |
| Running degree | 120°(at 900→2100μsec) | 250°(at 500→2500μsec) |
| Dead band width | 2 μsec | ≤8 μsec |
| Rotating direction | Counterclockwise(at 1000→2000 μsec) | Counterclockwise(at 1500→2000 μsec) |
