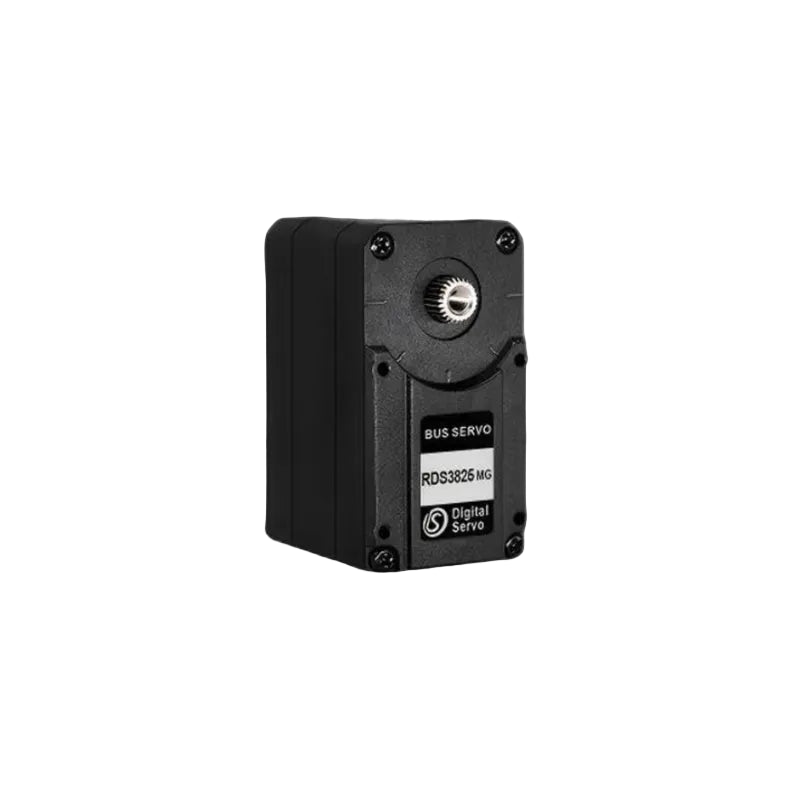

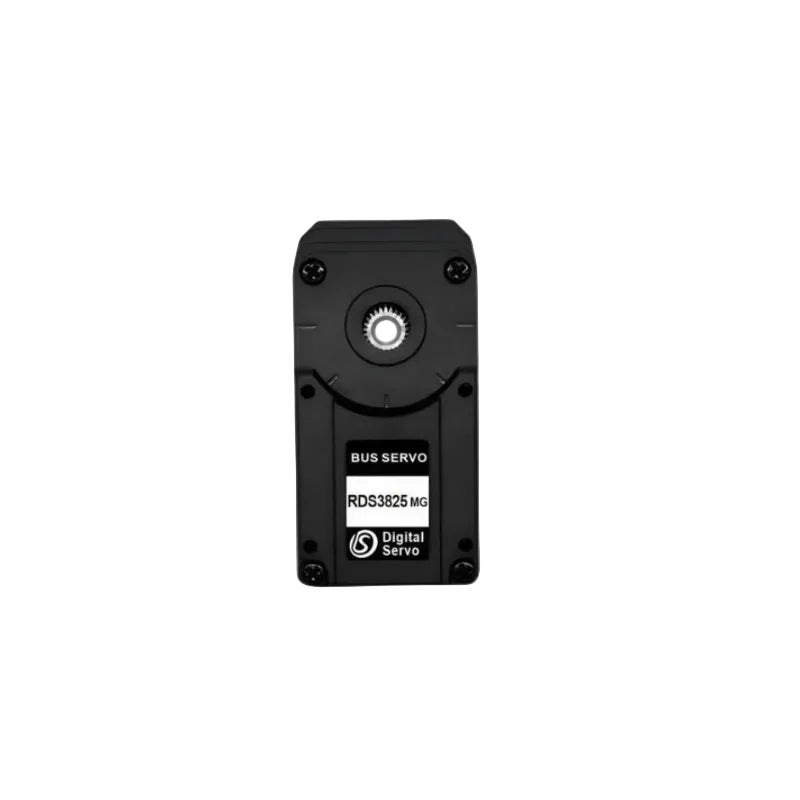

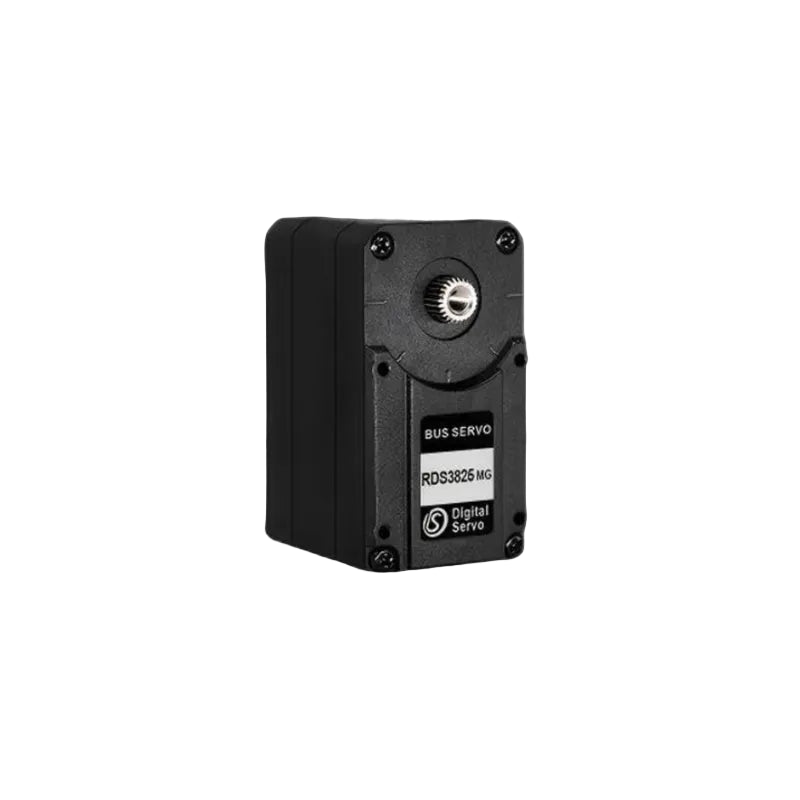

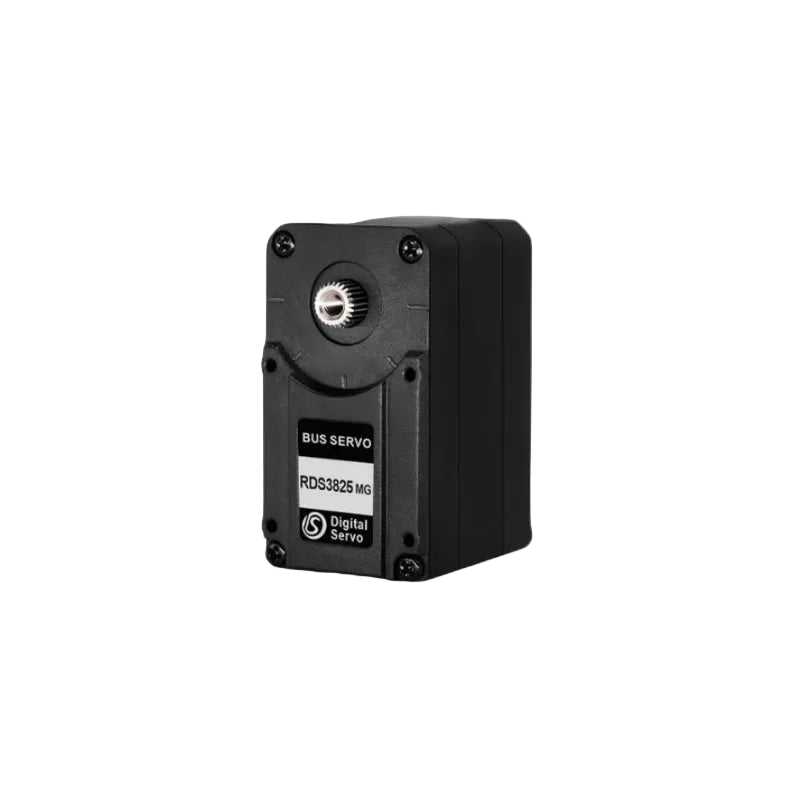

DSSERVO RDS3825 Servo Motor
Regular price
$29.00
Sale price
$29.00
Regular price
Unit price
DSSERVO RDS3825 Servo Motor
Product description
| DSSERVO RDS3825 Specifications | |
|---|---|
| PRODUCT PARAMETERS | |
| Parameter | Value |
| Storage Temperature Range | -30°C ~ +80°C |
| Operating Temperature Range | -20°C ~ +60°C |
| Size | A: 45.2 mm, B: 24.7 mm, C: 35 mm |
| Weight | 55 ± 1 g |
| Gear Type | Steel gear |
| Limit Angle | No limit |
| Bearing | Ball bearings |
| Output Shaft Spline | 25T / OD 5.9 mm |
| Horn Type | Plastic (POM) |
| Case Material | PA+GF |
| Connector Wire Length | 15 cm |
| Motor | Core motor |
| Operating Voltage Range | 4 ~ 14 V |
| No-load Speed (@12 V) | 0.222 sec/60° |
| No-load Current (@12 V) | 180 mA |
| Peak Stall Torque (@12 V) | 30 kg·cm |
| Rated Torque (@12 V) | 10 kg·cm |
| Stall Current (@12 V) | 2.7 A |
| Command Signal | Digital packet |
| Protocol Type | Half-duplex asynchronous serial communication |
| ID Range | 0 ~ 253 |
| Communication Speed | 38400 bps ~ 1 Mbps |
| Running Degree | 360° (0 ~ 4096) |
| Feedback | Load, Position, Speed, Input voltage, Current |
