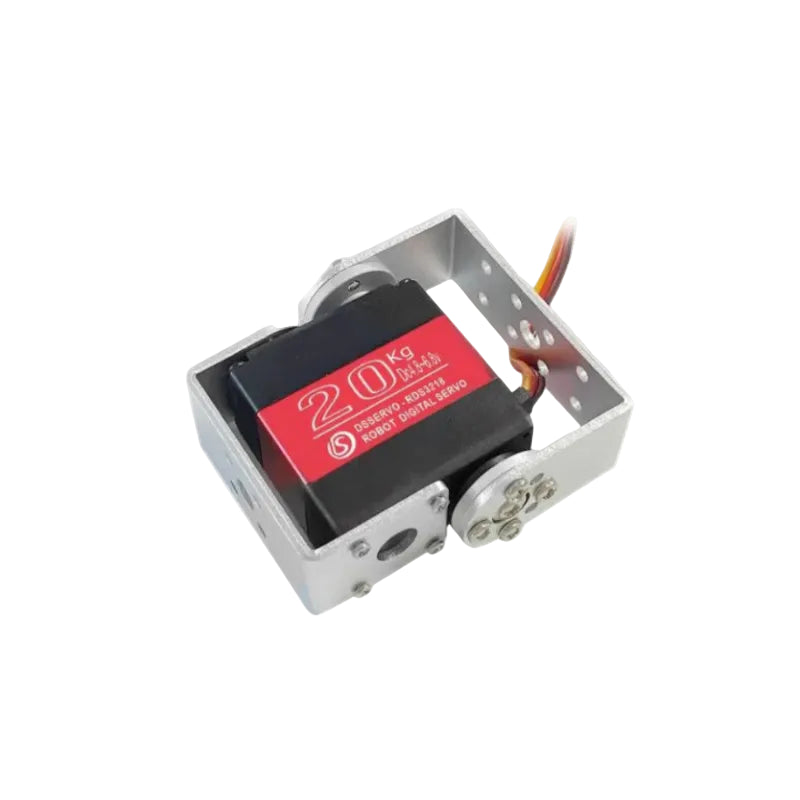

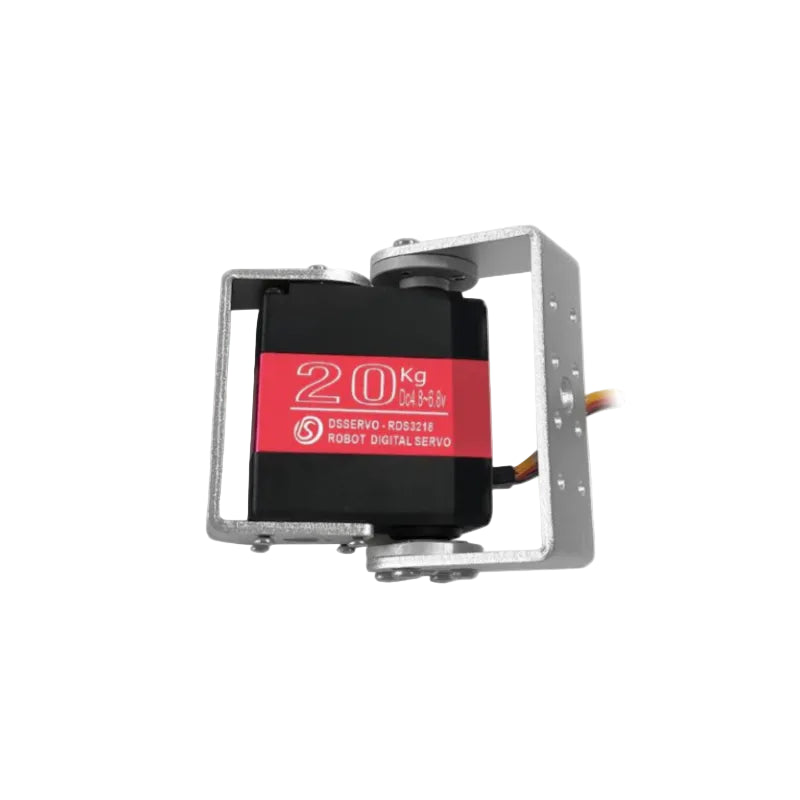

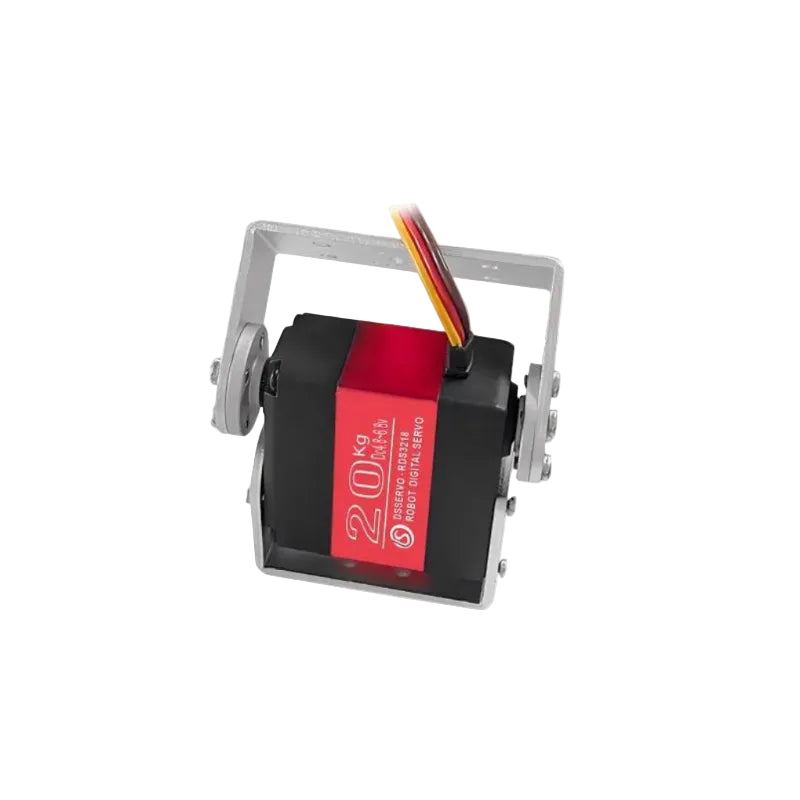

DSSERVO RDS3218 Servo Motor
Regular price
$17.00
Sale price
$17.00
Regular price
Unit price
DSSERVO RDS3218 Servo Motor
Product description
| DSSERVO RDS3218 Specifications | ||
|---|---|---|
| PRODUCT PARAMETERS | ||
| Operating Voltage | 5V | 6.8V |
| Idle current(at stopped) | 4mA | 5mA |
| Operating speed (at no load) | 0.2 sec/60° | 0.17 sec/60° |
| Stall torque (at locked) | 21.5 kg·cm | 25 kg·cm |
| Stall current (at locked) | 1.6A | 2.5A |
| Control System | PWM(Pulse width modification) | PWM(Pulse width modification) |
| Pulse width range | 500～2500μsec | 500～2500μsec |
| Neutral position | 1500μsec | 1500μsec |
| Running degree | 180° or 270° (when 500～2500 μ sec) | 180° or 270° (when 500～2500 μ sec) |
| Dead band width | 3 μsec | 3 μsec |
| Rotating direction | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) |
| Size | 40*20*40mm | 40*20*40mm |
| Weight | 60g | 60g |
| Gear ratio | 342 | 342 |
| Bearing | Double bearing | Double bearing |
| Connector wire | 300±5mm | 300±5mm |
| Motor | 3-pole | 3-pole |
| Waterproof performance | No | No |
| Storage Temperature Range | -30℃～80℃ | -30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ | -15℃～70℃ |
| Operating Voltage Range | 4.8-6.8V | 4.8-6.8V |
