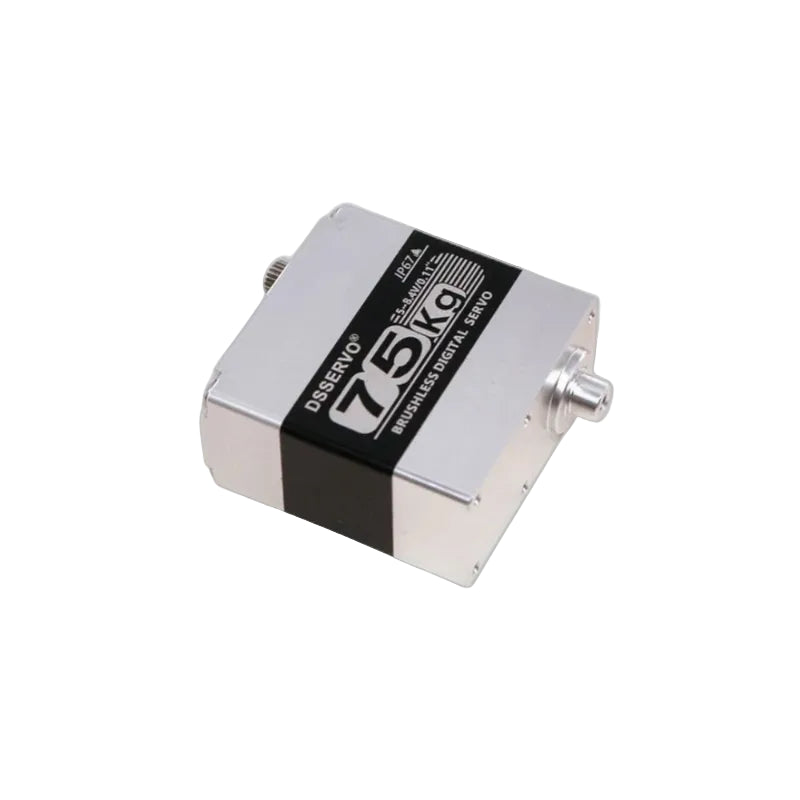

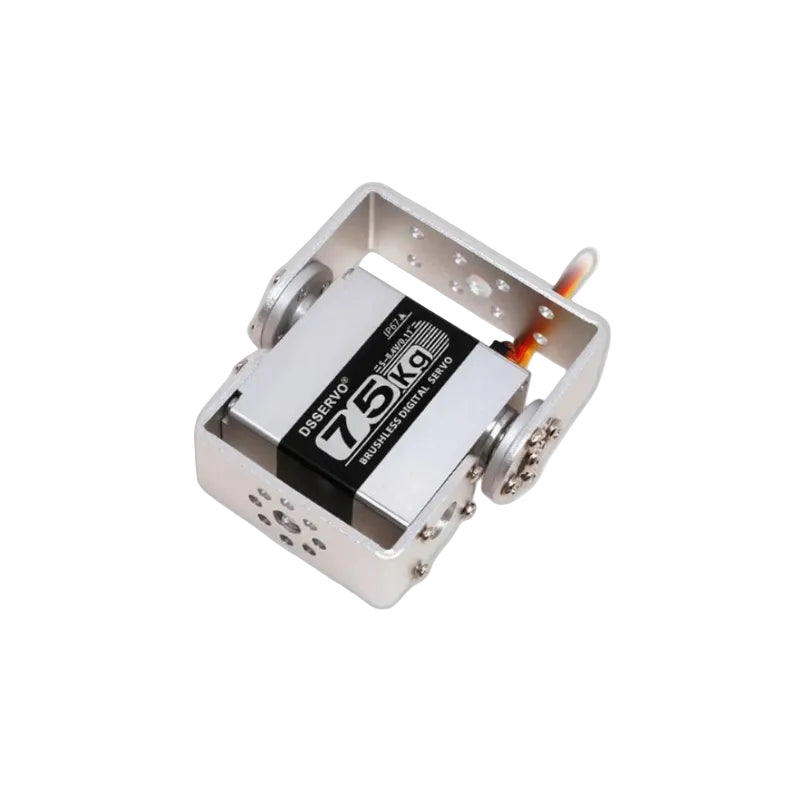

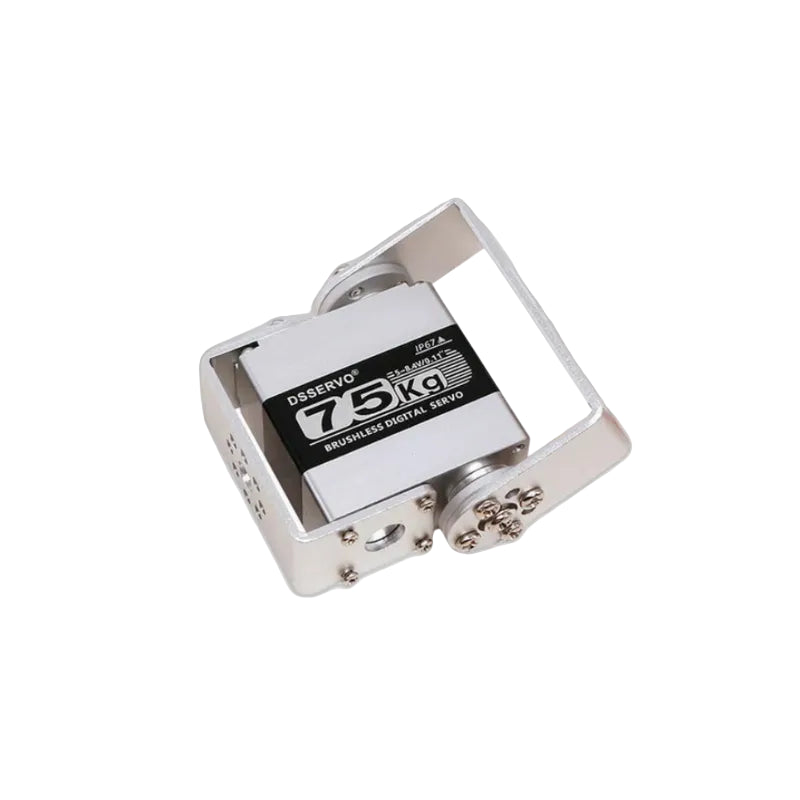

DSSERVO RBLS3375 Servo Motor
Regular price
$63.00
Sale price
$63.00
Regular price
Unit price
DSSERVO RBLS3375 Servo Motor
Product description
| DSSERVO RBLS3375 Specifications | |
|---|---|
| PRODUCT PARAMETERS | |
| Parameter | Value |
| Storage Temperature Range | -30°C ~ +80°C |
| Operating Temperature Range | -15°C ~ +70°C |
| Operating Voltage Range | 4.8 ~ 8.4V |
| Size | 40 × 20 × 40.5 mm |
| Weight | 85g |
| Gear Ratio | 366 |
| Bearing | Double bearing |
| Connector Wire Length | 350 ± 5 mm |
| Motor | Brushless motor |
| Waterproof Performance | IP67 |
| Idle Current (at stopped) | 5mA |
| Operating Speed (at no load) | 0.17 sec/60° (typical) / 0.14 sec/60° @ 6V / 0.12 sec/60° @ 7.4V |
| Stall Torque (at locked) | 53 kg·cm (typical) / 63 kg·cm @ 6V / 75 kg·cm @ 7.4V |
| Stall Current (at locked) | 4.2A (typical) / 6.8A @ 6V / 8A @ 7.4V |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 μsec |
| Neutral Position | 1500 μsec |
| Running Degree | 180° or 270° (500~2500 μsec) |
| Dead Band Width | 2 μsec |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 μsec) |
