DSSERVO MG90S Servo Motor
Product description
| DSSERVO MG90S Specifications | |
|---|---|
| PRODUCT PARAMETERS | |

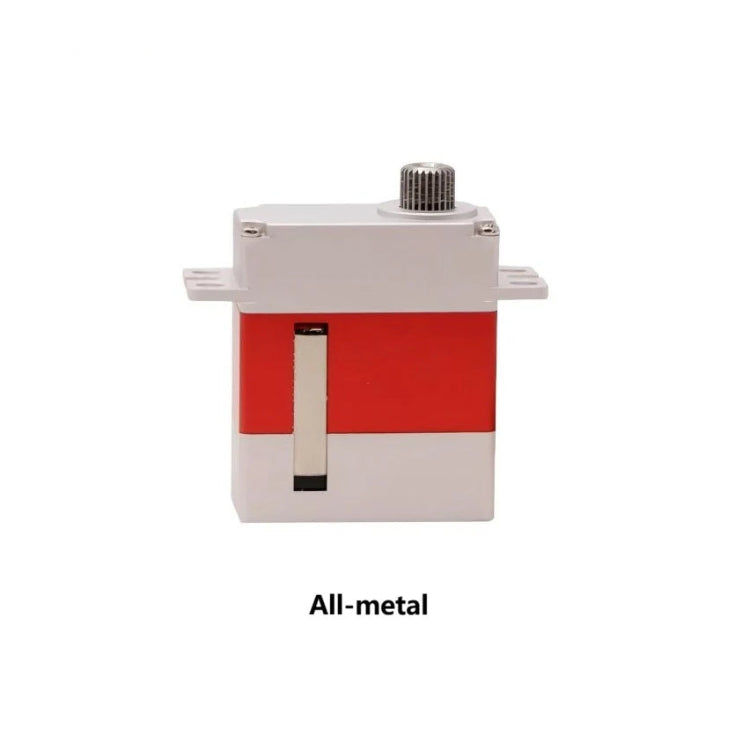

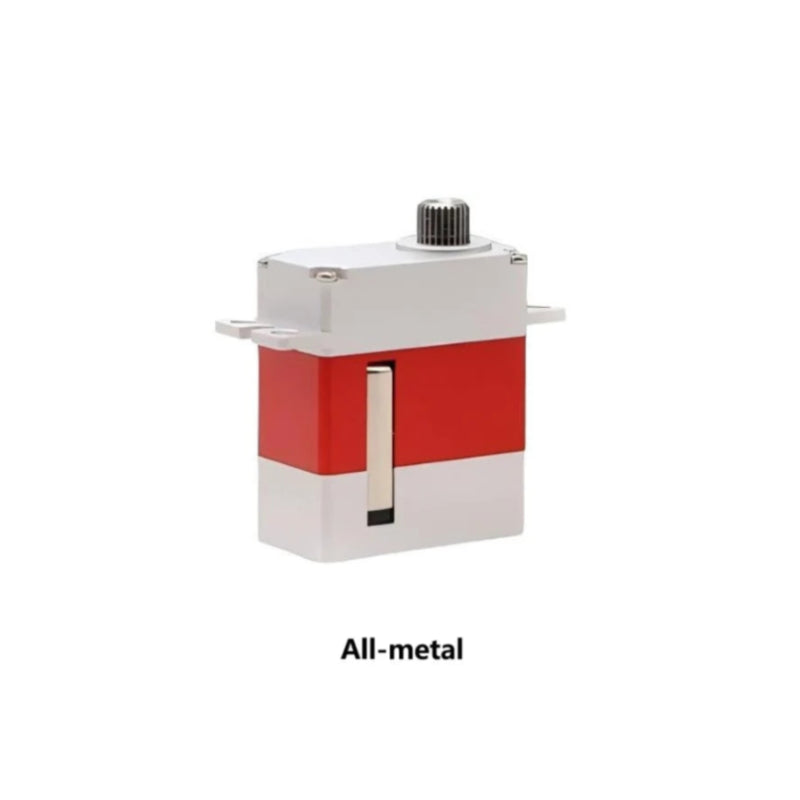

| Parameter | Value (All-metal) |
| Operating Voltage | 6.0-7.4V |
| Torque | 3.10kg.cm @6.0V 3.70kg.cm @7.4V |
| Speed | 0.06sec/60° @6.0V 0.05sec/60° @7.4V |
| Signal | 1520us / 333Hz, 800-2200us |
| Spline Teeth | 25T |
| Motor | 12mm Coreless Motor |
| Net Weight | 20g |
| Dimensions | 27.5*23*12mm |

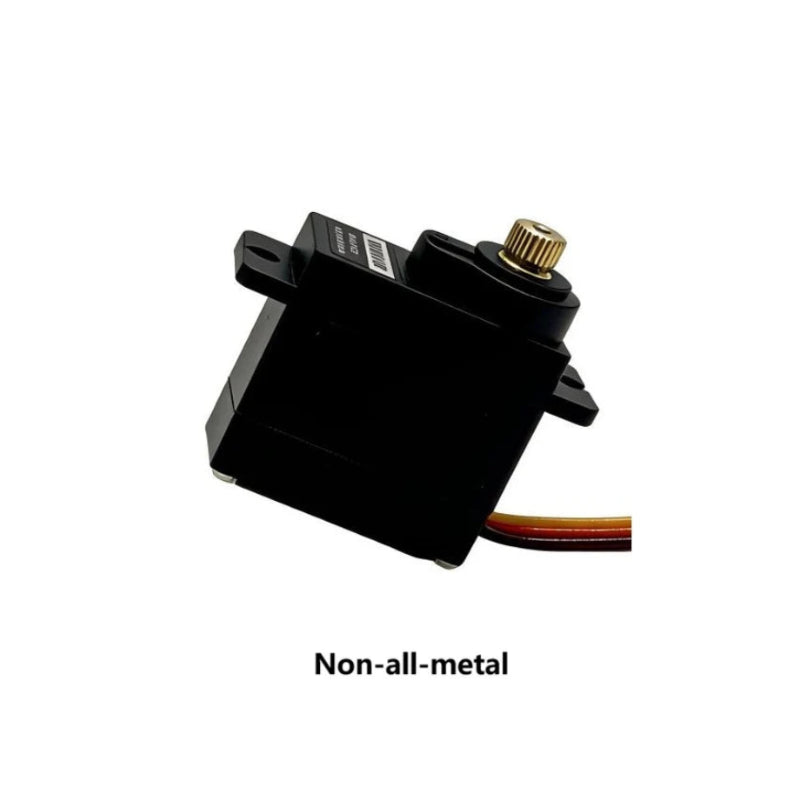

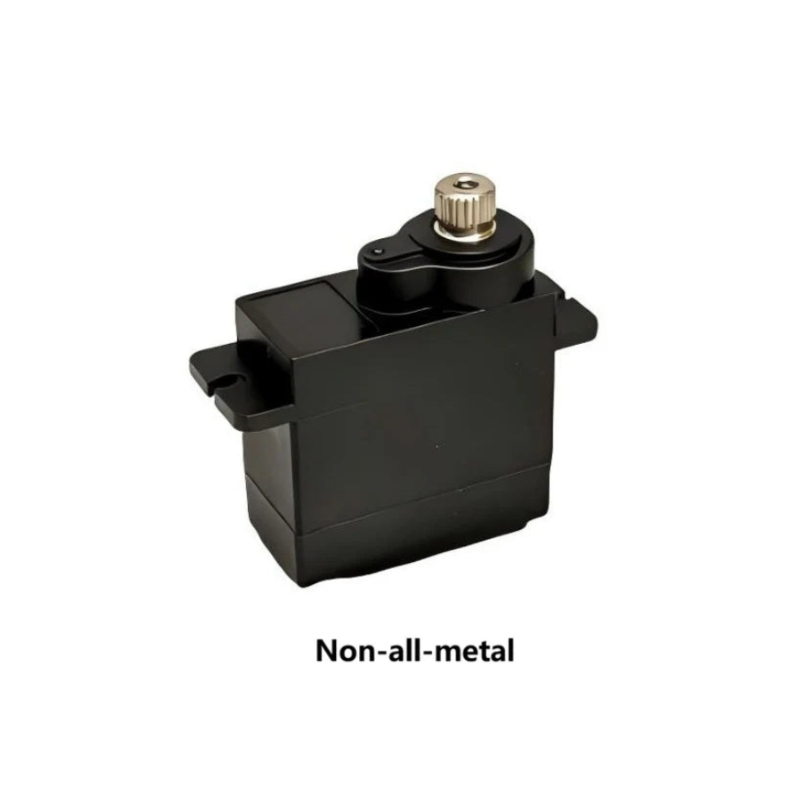

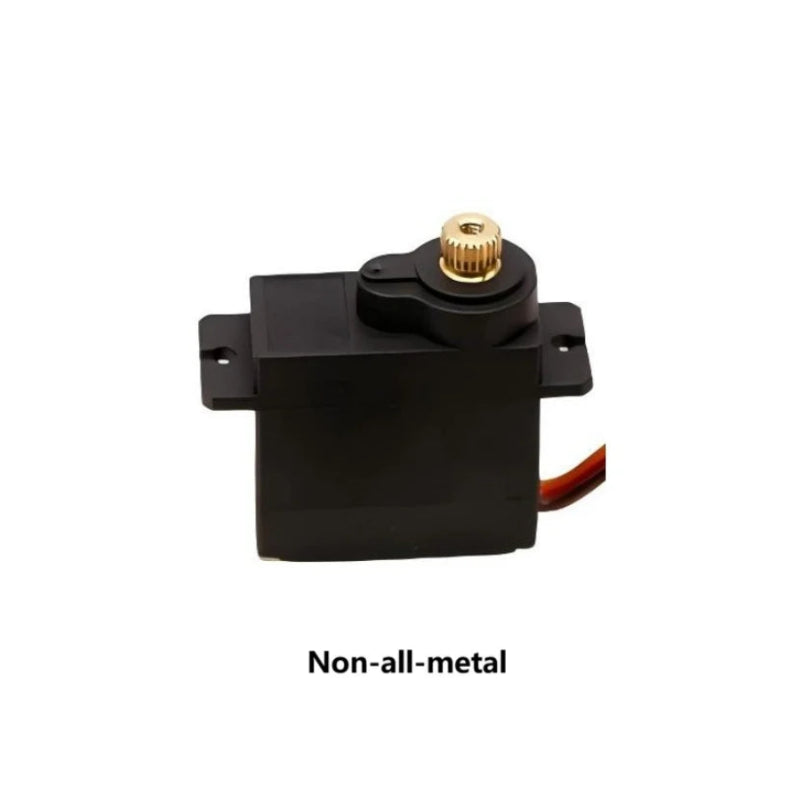

| Parameter | Value(Non-all-metal) |
| Storage Temperature Range | -30°C ~ 80°C |
| Operating Temperature Range | -15°C ~ 70°C |
| Operating Voltage Range | 4.8-8.4V |
| Size | 24*11.8*21.9mm |
| Weight | 13g |
| Gear ratio | 410 |
| Bearing | Double bearing |
| Connector wire | 170±5mm |
| Motor | 3-pole(k) |
| Waterproof performance | NO |
| Idle current (at stopped) | 6V: 4mA, 7.4V: 5mA, 8.4V: 6mA |
| Operating speed (at no load) | 6V: 0.14 sec/60°, 7.4V: 0.12 sec/60°, 8.4V: 0.10 sec/60° |
| Stall torque (at locked) | 6V: 3.5 kg·cm, 7.4V: 4 kg·cm, 8.4V: 5 kg·cm |
| Stall current (at locked) | 6V: 0.6A, 7.4V: 0.8A, 8.4V: 1.0A |
