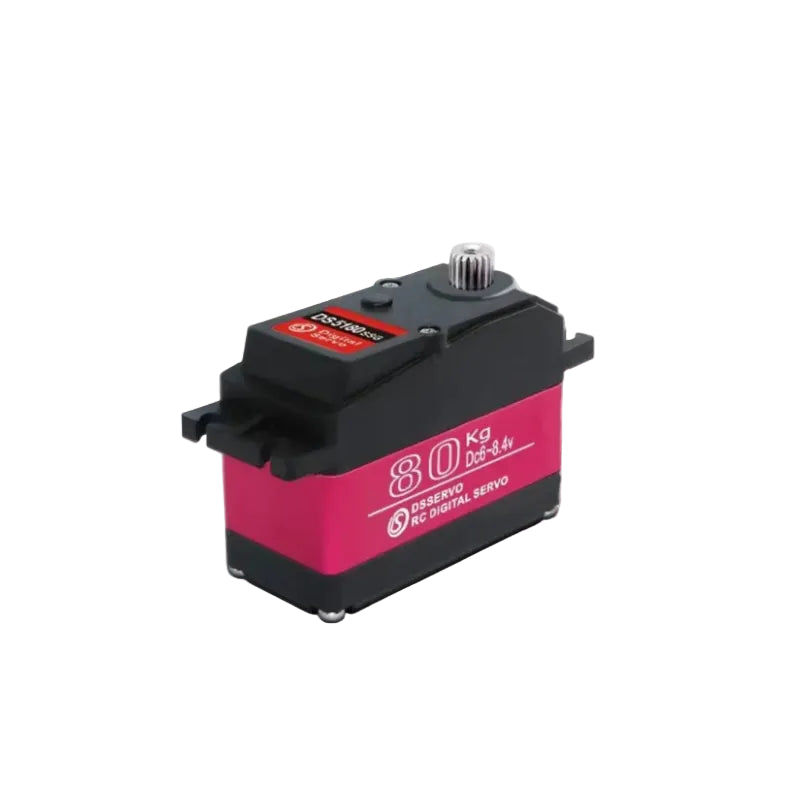

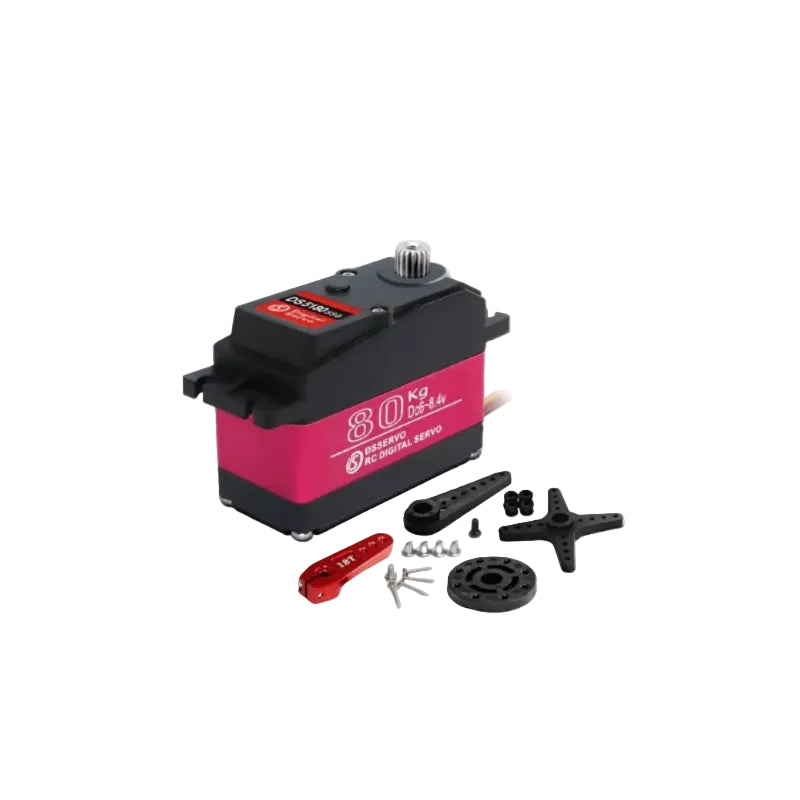

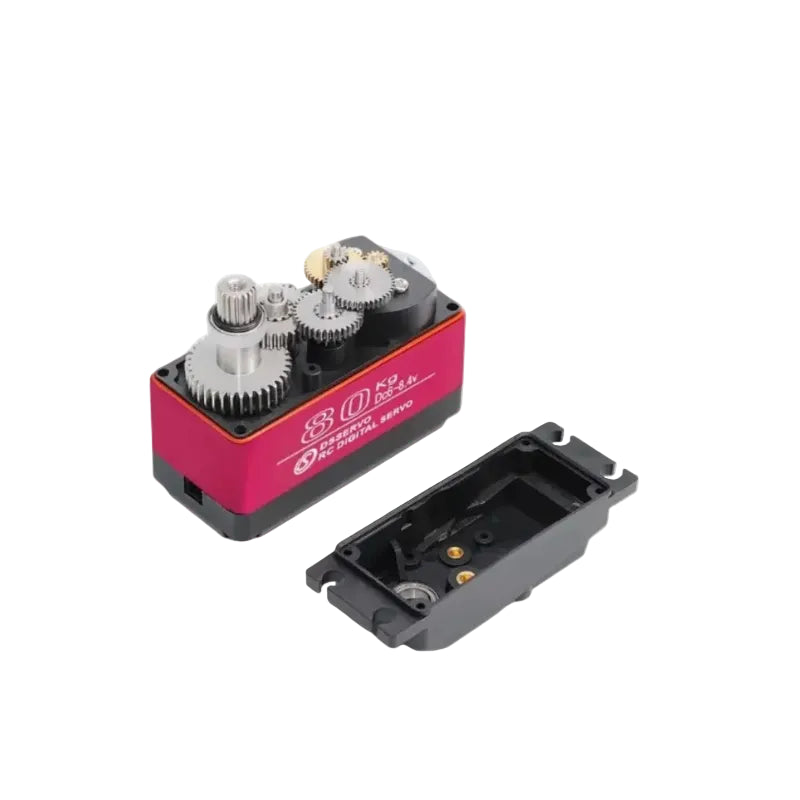

DSSERVO DS5180 SSG Servo Motor
Regular price
$39.00
Sale price
$39.00
Regular price
Unit price
DSSERVO DS5180 SSG Servo Motor
Product description
| DSSERVO DS5180 SSG Specifications |
|||
|---|---|---|---|
| PRODUCT PARAMETERS | |||
| Parameter | Value | Value | Value |
| Operating Voltage | 6V | 7.4V | 8.4V |
| Idle Current (stopped) | 4mA | 5mA | 6mA |
| No-Load Speed | 0.24 sec/60° | 0.21 sec/60° | 0.19 sec/60° |
| Stall Torque | 85 kg·cm | 98 kg·cm | 105 kg·cm |
| Stall Current | 4.1A | 5.4A | 6.5A |
| Control System | PWM (Pulse Width Modulation) | PWM (Pulse Width Modulation) | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500–2500 μsec | 500–2500 μsec | 500–2500 μsec |
| Neutral Position | 1500 μsec | 1500 μsec | 1500 μsec |
| Angle Range | 180° or 270° (500–2500 μsec) | 180° or 270° (500–2500 μsec) | 180° or 270° (500–2500 μsec) |
| Dead Band Width | 3 μsec | 3 μsec | 3 μsec |
| Operating Frequency | 50–330 Hz | 50–330 Hz | 50–330 Hz |
| Rotating Direction | Counterclockwise (500–2500 μsec) | Counterclockwise (500–2500 μsec) | Counterclockwise (500–2500 μsec) |
| Dimensions | 65 × 30 × 48 mm | 65 × 30 × 48 mm | 65 × 30 × 48 mm |
| Weight | 158 g | 158 g | 158 g |
| Gear Ratio | 357 | 357 | 357 |
| Bearing | Double Bearing | Double Bearing | Double Bearing |
| Connector Wire Length | 300 ± 5 mm | 300 ± 5 mm | 300 ± 5 mm |
| Motor | 3-Pole(s) | 3-Pole(s) | 3-Pole(s) |
| Waterproof Rating | IP67 | IP67 | IP67 |
| Storage Temperature | -30°C to 80°C | -30°C to 80°C | -30°C to 80°C |
| Operating Temperature | -15°C to 70°C | -15°C to 70°C | -15°C to 70°C |
| Operating Voltage Range | 6–8.4V | 6–8.4V | 6–8.4V |
