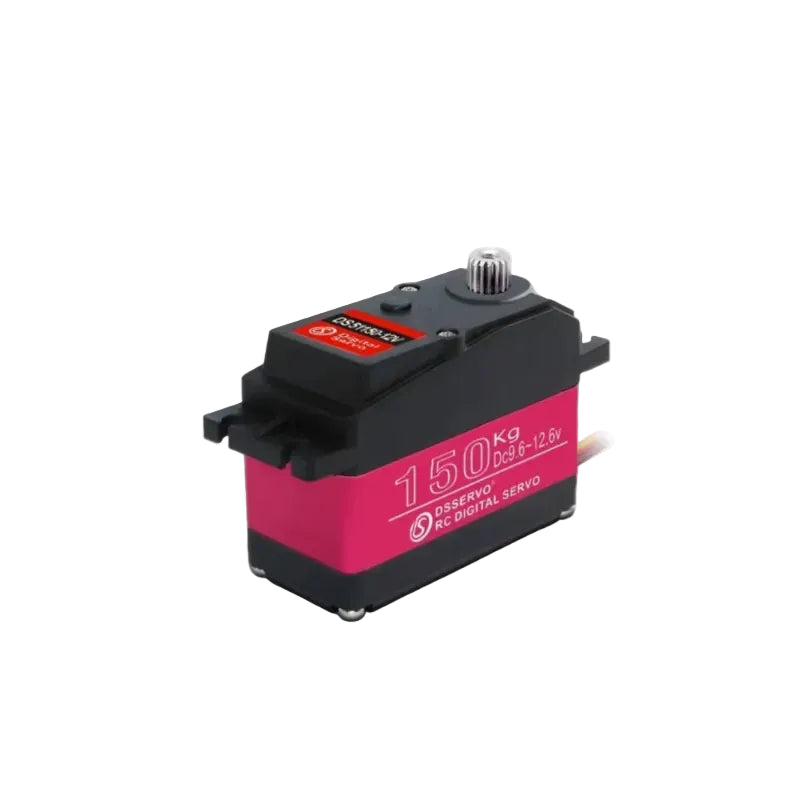

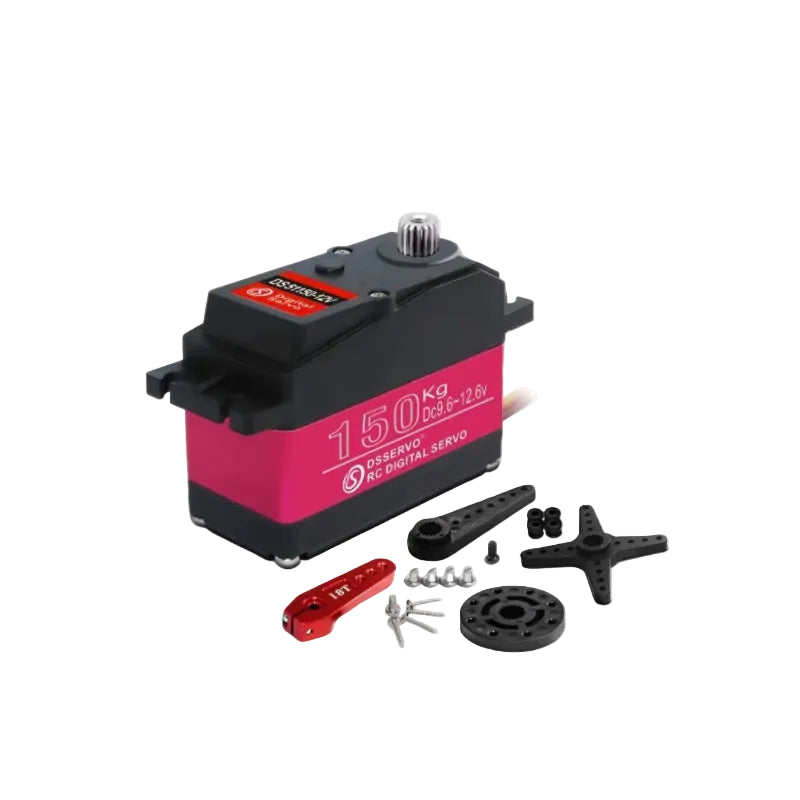

DSSERVO DS51150 Servo Motor
Regular price
$40.00
Sale price
$40.00
Regular price
Unit price
DSSERVO DS51150 Servo Motor
Product description
| DSSERVO DS51150 Specifications | |||
|---|---|---|---|
| PRODUCT PARAMETERS | |||
| Parameter | Value | Value | Value |
| Operating Voltage | 10V | 12V | 12.6V |
| Idle current(at stopped) | 4mA | 5mA | 6mA |
| Operating speed (at no load) | 0.24 sec/60° | 0.21 sec/60° | 0.19 sec/60° |
| Stall torque (at locked) | 125 kg·cm | 142 kg·cm | 150 kg·cm |
| Stall current (at locked) | 7.4A | 8.0A | 8.3A |
| Control System | PWM(Pulse width modification) | PWM(Pulse width modification) | PWM(Pulse width modification) |
| Pulse width range | 500～2500μsec | 500～2500μsec | 500～2500μsec |
| Neutral position | 1500μsec | 1500μsec | 1500μsec |
| Running degree | 180° or 270° (when 500～2500 μ sec) | 180° or 270° (when 500～2500 μ sec) | 180° or 270° (when 500～2500 μ sec) |
| Dead band width | 3 μsec | 3 μsec | 3 μsec |
| Operating frequency | 50-330Hz | 50-330Hz | 50-330Hz |
| Rotating direction | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) |
| Size | 65*30*48mm | 65*30*48mm | 65*30*48mm |
| Weight | 175g | 175g | 175g |
| Gear ratio | 357 | 357 | 357 |
| Bearing | Double bearing | Double bearing | Double bearing |
| Connector wire | 300±5mm | 300±5mm | 300±5mm |
| Motor | 3-pole(s) | 3-pole(s) | 3-pole(s) |
| Waterproof performance | IP67 | IP67 | IP67 |
| Storage Temperature Range | -30℃～80℃ | -30℃～80℃ | -30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ | -15℃～70℃ | -15℃～70℃ |
| Operating Voltage Range | 9-12.6V | 9-12.6V | 9-12.6V |
