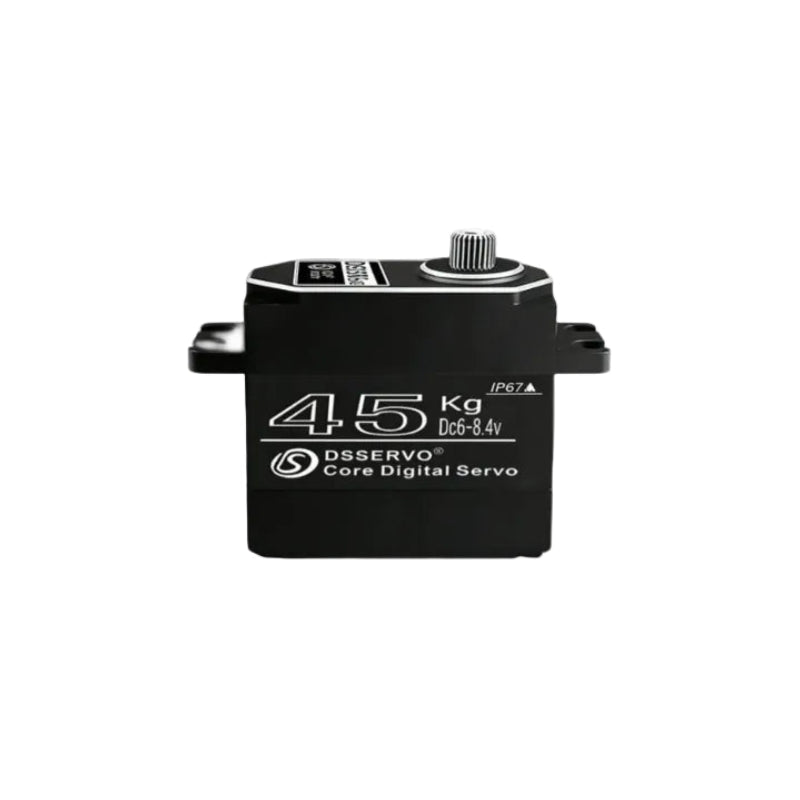

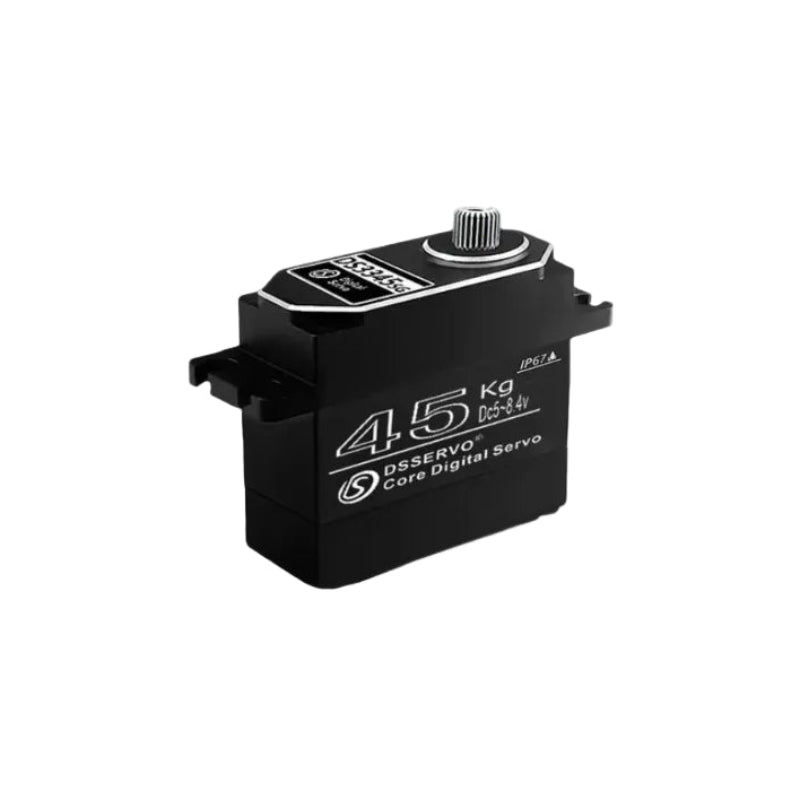

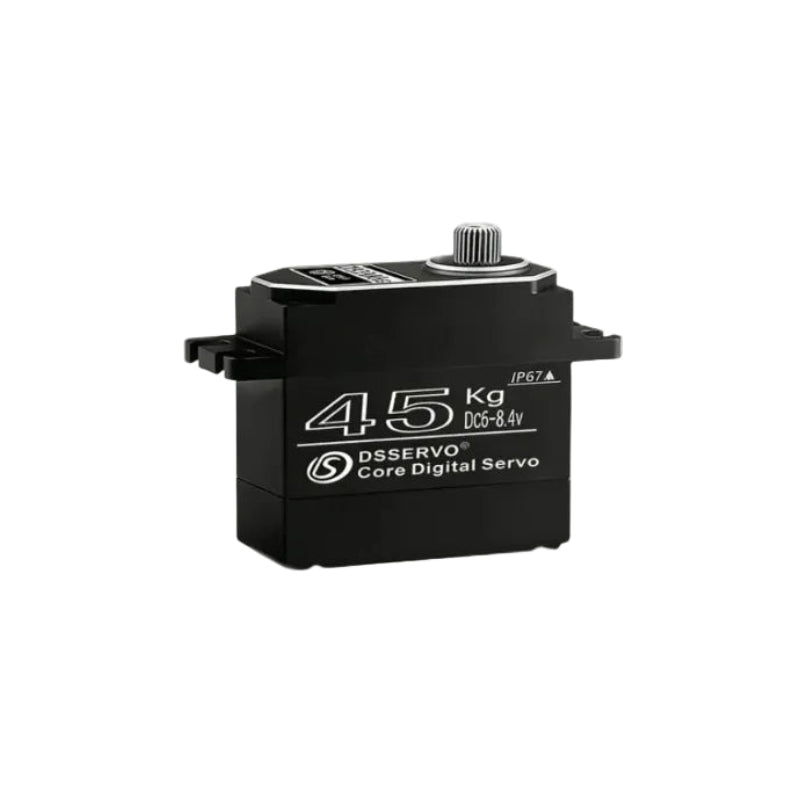

DSSERVO DS3345 Servo Motor
Regular price
$39.00
Sale price
$39.00
Regular price
Unit price
DSSERVO DS3345 Servo Motor
Product description
| DSSERVO DS3345 Specifications | |
|---|---|
| PRODUCT PARAMETERS | |
| Parameter | Value |
| Storage Temperature Range | -30°C ~ +80°C |
| Operating Temperature Range | -25°C ~ +70°C |
| Operating Voltage Range | 4.8 ~ 6.8V |
| Size | 40 × 20 × 40.5 mm |
| Weight | 60g |
| Gear Ratio | 397 |
| Bearing | Double bearing |
| Connector Wire Length | 300 ± 5 mm |
| Motor | 3-pole(s) |
| Waterproof Performance | IP67 |
| Idle Current (at stopped) | 4mA @ 5V / 5mA @ 6.8V |
| Operating Speed (at no load) | 0.2 sec/60° @ 5V / 0.17 sec/60° @ 6.8V |
| Stall Torque (at locked) | 29.5 kg·cm @ 5V / 34.5 kg·cm @ 6.8V |
| Stall Current (at locked) | 2.1A @ 5V / 2.9A @ 6.8V |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 μsec |
| Neutral Position | 1500 μsec |
| Running Degree | 180° or 270° (500~2500 μsec) |
| Dead Band Width | 3 μsec |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 μsec) |
