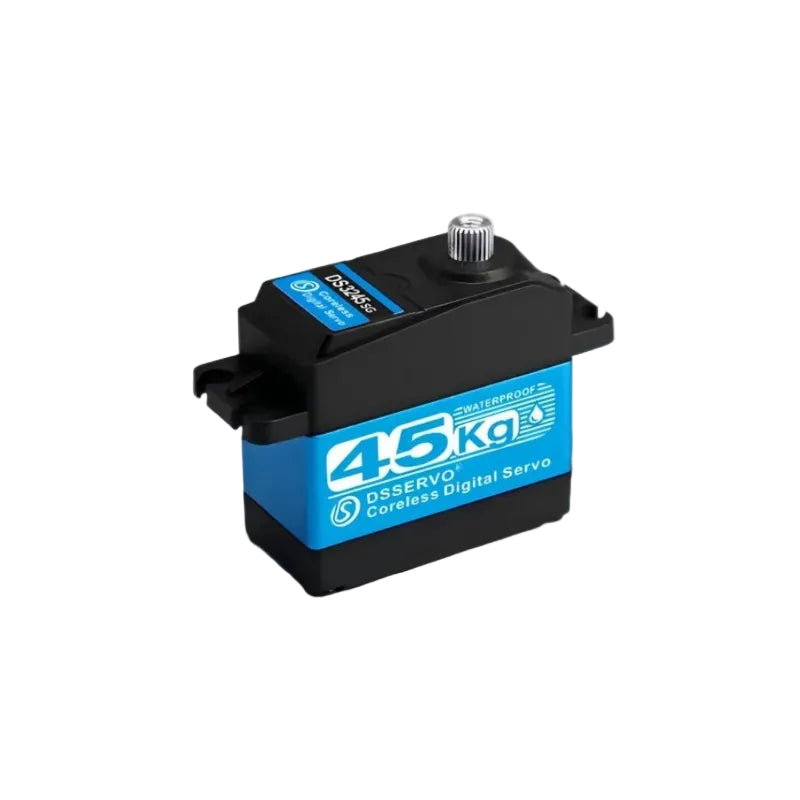

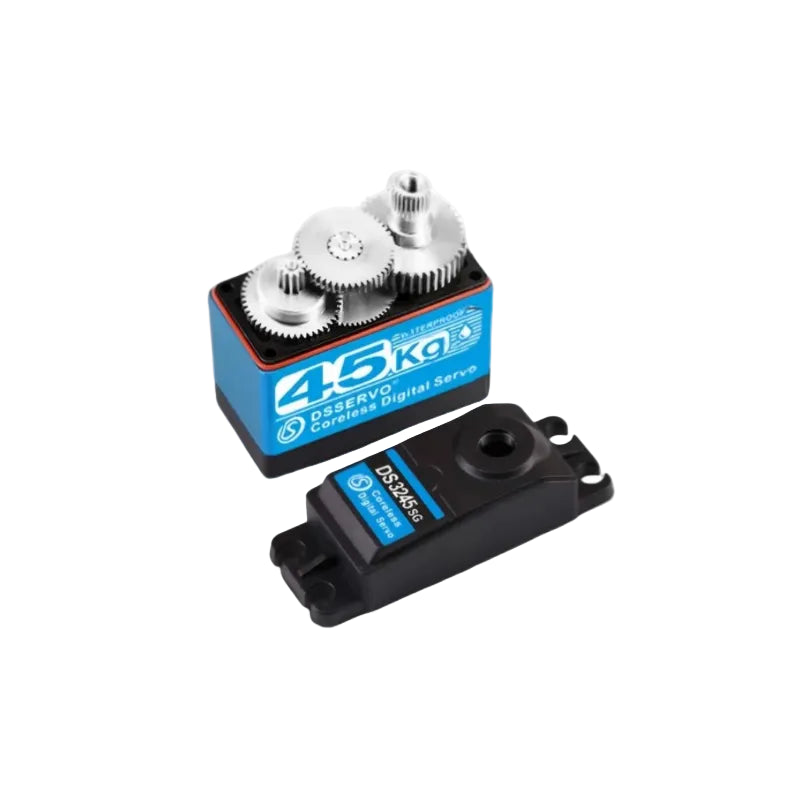

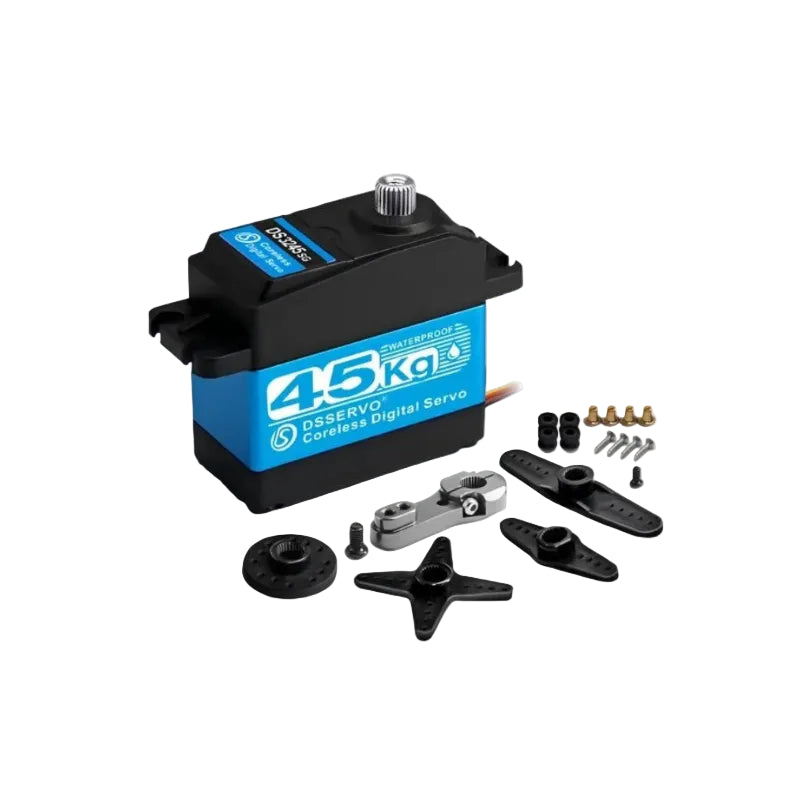

DSSERVO DS3245 SG Servo Motor
Regular price
$29.00
Sale price
$29.00
Regular price
Unit price
DSSERVO DS3245 SG Servo Motor
Product description
| DSSERVO DS3245 SG Specifications | ||||
|---|---|---|---|---|
| PRODUCT PARAMETERS | ||||
| Operating Voltage | 5V | 6V | 7.4V | 8.4V |
| Idle current(at stopped) | 5mA | 5mA | 5mA | 5mA |
| Operating speed (at no load) | 0.18 sec/60° | 0.15 sec/60° | 0.13 sec/60° | 0.11 sec/60° |
| Stall torque (at locked) | 35 kg·cm | 40 kg·cm | 46 kg·cm | 51 kg·cm |
| Stall current (at locked) | 3.5A | 4.2A | 5.2A | 5.8A |
| Control System | PWM(Pulse width modification) | PWM(Pulse width modification) | PWM(Pulse width modification) | PWM(Pulse width modification) |
| Pulse width range | 500～2500μsec | 500～2500μsec | 500～2500μsec | 500～2500μsec |
| Neutral position | 1500μsec | 1500μsec | 1500μsec | 1500μsec |
| Running degree | 180° or 270° (when 500 ～2500 μ sec) | 180° or 270° (when 500 ～2500 μ sec) | 180° or 270° (when 500 ～2500 μ sec) | 180° or 270° (when 500～2500 μ sec) |
| Dead band width | 2 μsec | 2 μsec | 2 μsec | 2 μsec |
| Operating frequency | 50~330Hz | 50~330Hz | 50~330Hz | 50~330Hz |
| Rotating direction | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) | Counterclockwise (when 500～2500 μ sec) |
| Size | 40*20*38.5mm | 40*20*38.5mm | 40*20*38.5mm | 40*20*38.5mm |
| Weight | 60g | 60g | 60g | 60g |
| Gear ratio | 342 | 342 | 342 | 342 |
| Bearing | Double bearing | Double bearing | Double bearing | Double bearing |
| Connector wire | 300±5mm | 300±5mm | 300±5mm | 300±5mm |
| Motor | Coreless motor | Coreless motor | Coreless motor | Coreless motor |
| Waterproof performance | IP66 | IP66 | IP66 | IP66 |
| Storage Temperature Range | -30℃～80℃ | -30℃～80℃ | -30℃～80℃ | -30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ | -15℃～70℃ | -15℃～70℃ | -15℃～70℃ |
| Operating Voltage Range | 5-8.4V | 5-8.4V | 5-8.4V | 5-8.4V |
