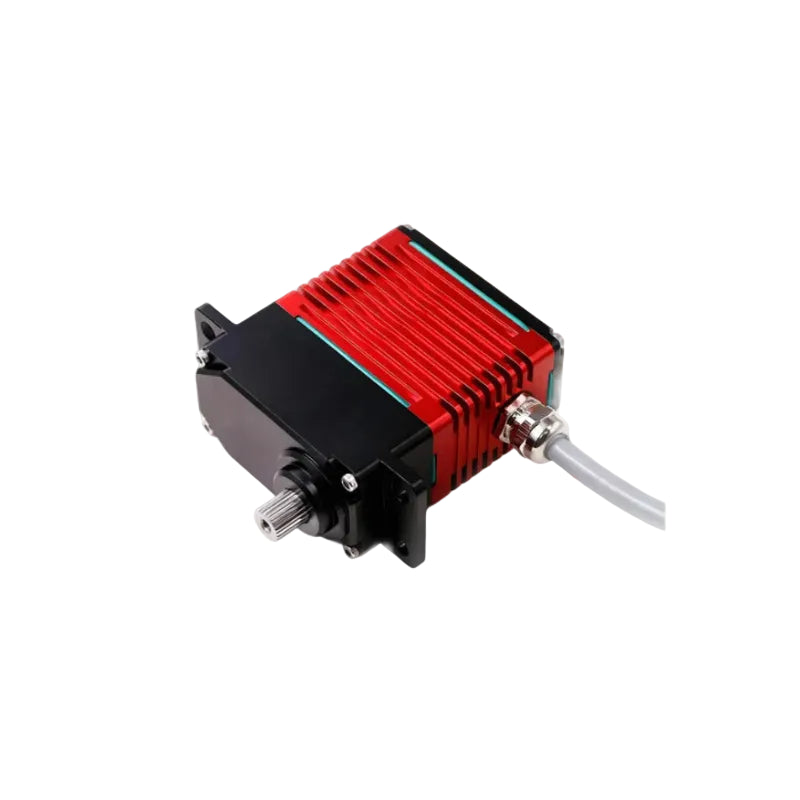

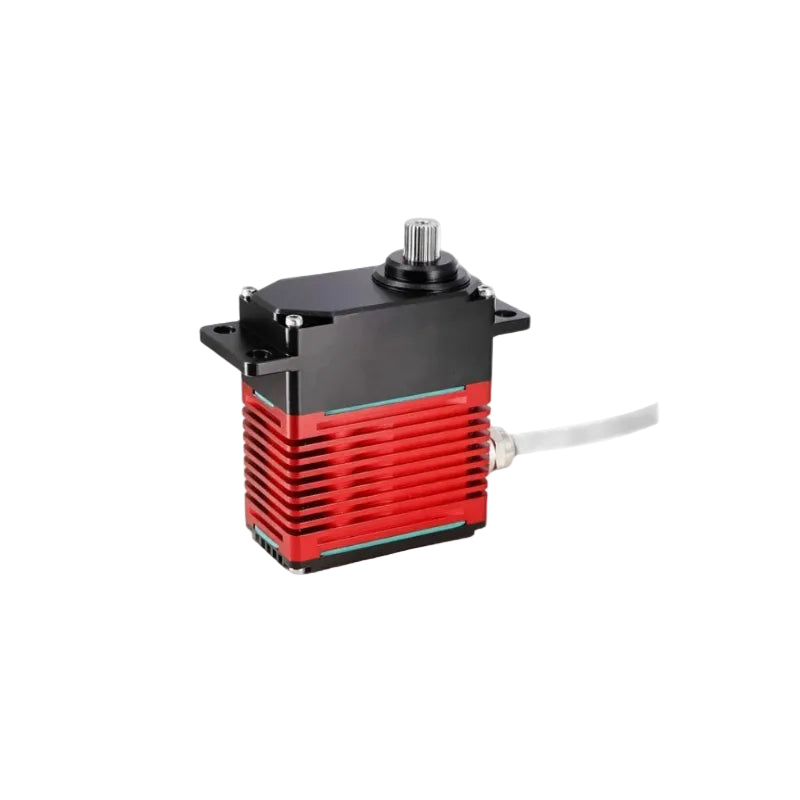

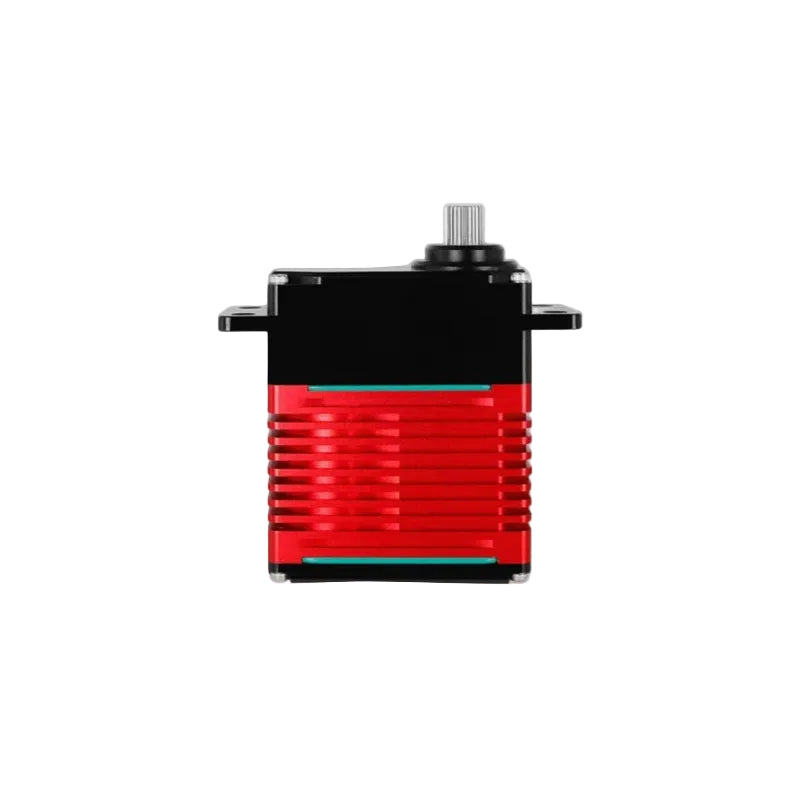

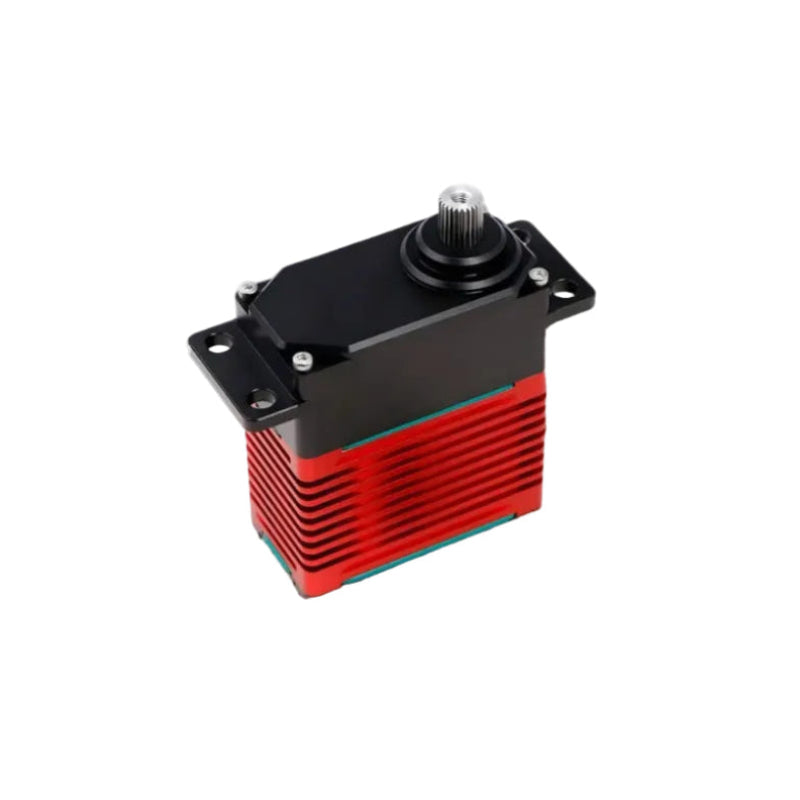

DSSERVO DES150 Servo Motor
Product description
| DSSERVO DES150 Specifications | |
|---|---|
| PRODUCT PARAMETERS | |
| Parameter | Value |
| Storage Temperature Range | -50°C ~ +80°C |
| Operating Temperature Range | -40°C ~ +75°C |
| Operating Voltage Range | 12V： 8.4~16.8V 24V：16.8~33.6V |
| Size | 64 × 32.8 × 76.5 mm |
| Weight | 450g |
| Gear Ratio | 223 |
| Bearing | Double bearing |
| Connector Wire Length | 500 ± 5 mm |
| Idle Current (at stopped) | 50mA |
| Operating Speed (at no load) | 0.22 sec/60° @ 16.8V / 0.19 sec/60° @ 24V / 0.16 sec/60° @ 33.6V |
| Stall Torque (at locked) | 135 kg·cm @ 16.8V / 150 kg·cm @ 24V / 185 kg·cm @ 33.6V |
| Rated Torque | 45 kg·cm @ 16.8V / 65 kg·cm @ 24V / 80 kg·cm @ 33.6V |
| Stall Current (at locked) | 3A @ 16.8V / 4A @ 24V / 5.5A @ 33.6V |
| Running Current (at no load) | 300mA @ 16.8V / 350mA @ 24V / 400mA @ 33.6V |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 μsec |
| Neutral Position | 1500 μsec |
| Running Degree | 200° (500~2500 μsec) |
| Motor Type | Brushless Motor |
| Encoder Type | Magnetic Encoder |
| Dead Band Width | 2 μsec |
| Angle Accuracy | ±0.25° |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 μsec) |
