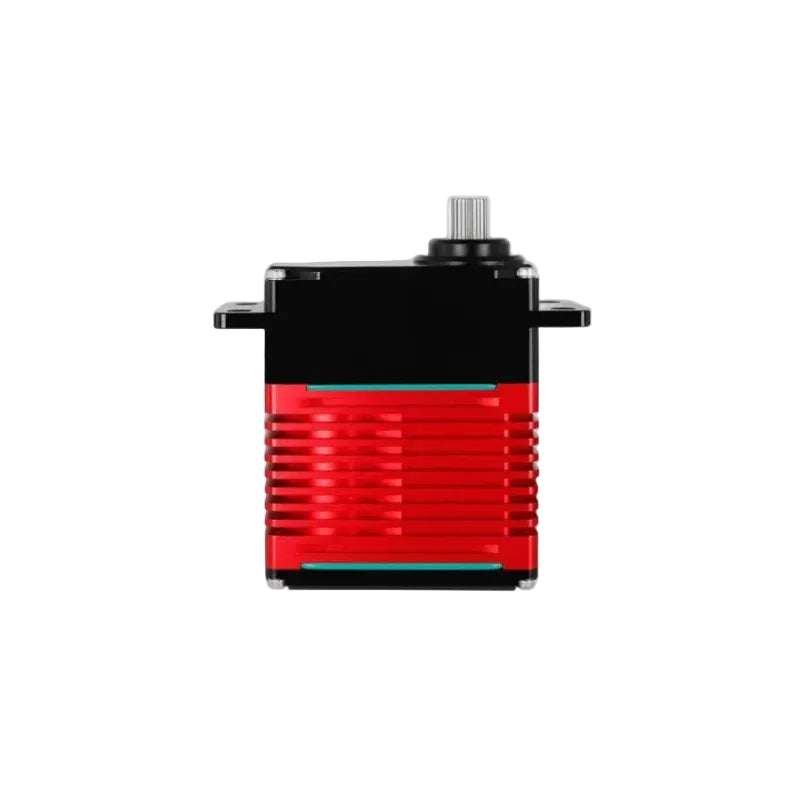

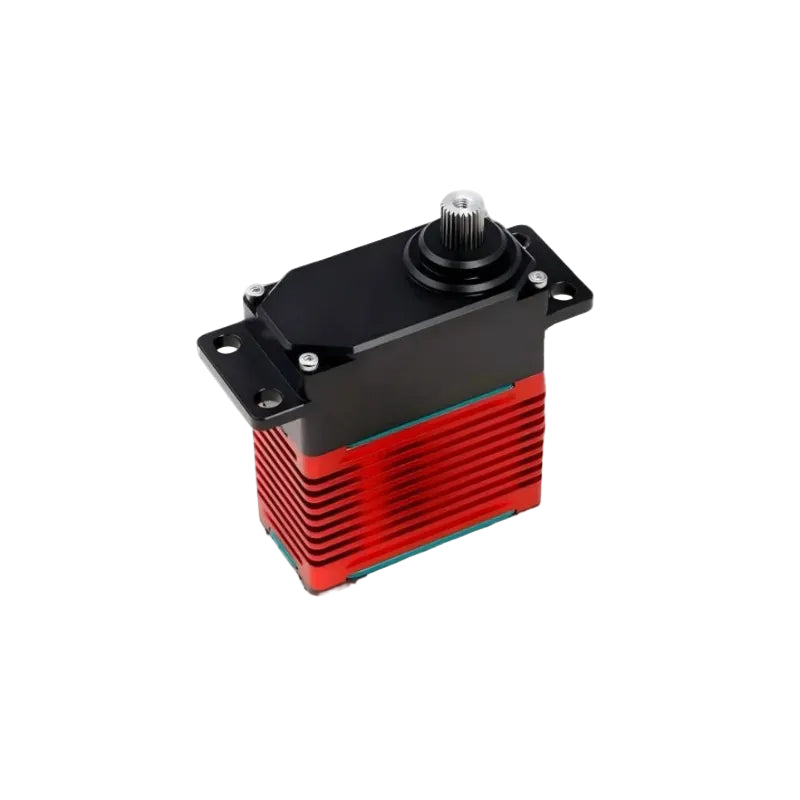

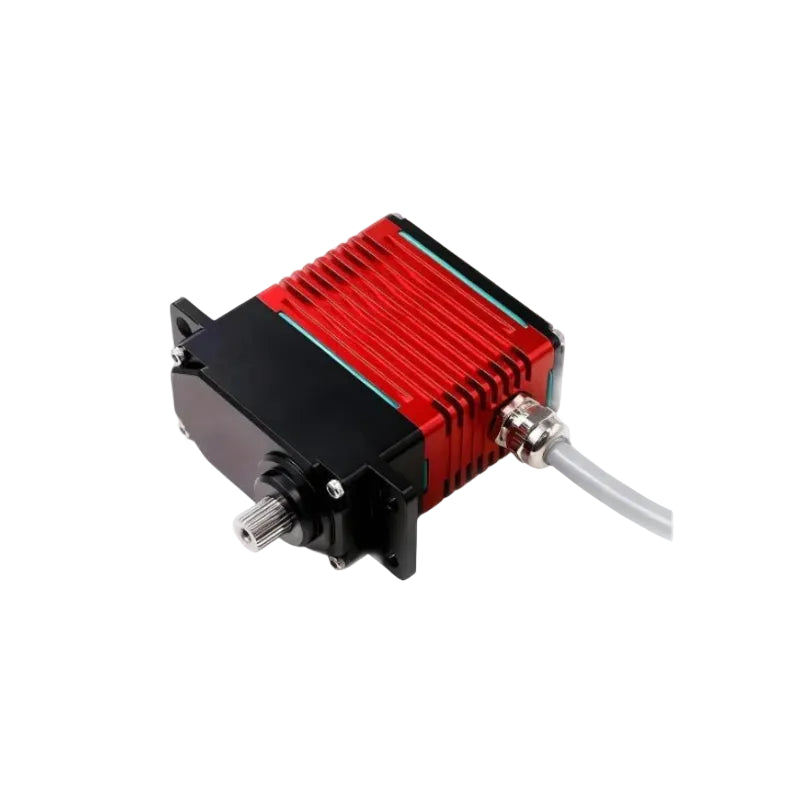

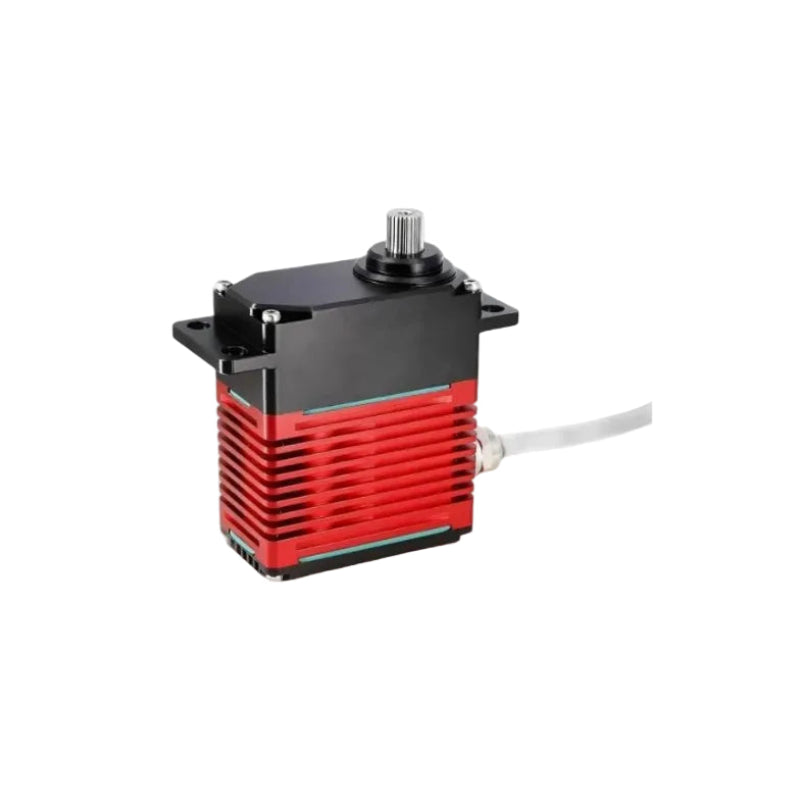

DSSERVO DES-Series Servo Motor
Regular price
$369.00
Sale price
$369.00
Regular price
Unit price
DSSERVO DES-Series Servo Motor
Product description
| DSSERVO DES-Series Specifications | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT PARAMETERS |
Value (DES150-12V) |
Value (DES150-24V) |
Value (DES220-12V) |
Value (DES220-24V) |
Value (DES350-12V) |
Value (DES350-24V) |
Value (DES450-24V) |
| Storage Temperature Range | -50℃~80℃ | -50℃~80℃ | -50℃~80℃ | -50℃~80℃ | -50℃ ~ 80℃ | -50℃ ~ 80℃ | -50℃ ~ 80℃ |
| Operating Temperature Range | -40℃~75℃ | -40℃~75℃ | -40℃~75℃ | -40℃~75℃ | -40℃ ~ 75℃ | -40℃ ~ 75℃ | -40℃ ~ 75℃ |
| Operating Voltage Range | 8.4-16.8V | 16.8-33.6V | 8.4-16.8V | 16.8-33.6V | 8.4-16.8V | 16.8-33.6V | 8.4-16.8V |
| Size | 64*32.8*76.5mm | 64*32.8*76.5mm | 64*32.8*76.5mm | 64*32.8*76.5mm | 64*32.8*76.5mm | 64*32.8*76.5mm | 64*32.8*76.5mm |
| Weight | 450g | 450g | 450g | 450g | 450g | 450g | 450g |
| Gear ratio | 223 | 223 | 223 | 223 | 223 | 223 | 223 |
| Bearing | Double bearing | Double bearing | Double bearing | Double bearing | Double bearing | Double bearing | Double bearing |
| Connector wire | 500±5mm | 500±5mm | 500±5mm | 500±5mm | 500±5mm | 500±5mm | 500±5mm |
| Waterproof performance | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Operating speed (at no load) | 8.4V: 0.22 sec/60°, 12V: 0.19 sec/60°, 16.8V: 0.16 sec/60° | 16.8V: 0.22 sec/60°, 24V: 0.19 sec/60°, 33.6V: 0.16 sec/60° | 8.4V: 0.22 sec/60°, 12V: 0.19 sec/60°, 16.8V: 0.16 sec/60° | 16.8V: 0.22 sec/60°, 24V: 0.19 sec/60°, 33.6V: 0.16 sec/60° | 8.4V: 0.22 sec/60°, 12V: 0.19 sec/60°, 16.8V: 0.16 sec/60° | 16.8V: 0.22 sec/60°, 24V: 0.19 sec/60°, 33.6V: 0.16 sec/60° | 16.8V: 0.22 sec/60°, 24V: 0.19 sec/60°, 33.6V: 0.16 sec/60° |
| Stall Torque (at locked) | 8.4V: 135 kg·cm, 12V: 150 kg·cm, 16.8V: 185 kg·cm | 16.8V: 135 kg·cm, 24V: 150 kg·cm, 33.6V: 185 kg·cm | 8.4V: 155 kg·cm, 12V: 220 kg·cm, 16.8V: 265 kg·cm | 16.8V: 155 kg·cm, 24V: 220 kg·cm, 33.6V: 265 kg·cm | 8.4V: 250 kg·cm, 12V: 350 kg·cm, 16.8V: 420 kg·cm | 16.8V: 250 kg·cm, 24V: 350 kg·cm, 33.6V: 420 kg·cm | 16.8V: 350 kg·cm, 24V: 450 kg·cm, 33.6V: 550 kg·cm |
| Rate Torque | 8.4V: 45 kg·cm, 12V: 65 kg·cm, 16.8V: 80 kg·cm | 16.8V: 45 kg·cm, 24V: 65 kg·cm, 33.6V: 80 kg·cm | 8.4V: 55 kg·cm, 12V: 75 kg·cm, 16.8V: 90 kg·cm | 16.8V: 55 kg·cm, 24V: 75 kg·cm, 33.6V: 90 kg·cm | 8.4V: 95 kg·cm, 12V: 115 kg·cm, 16.8V: 125 kg·cm | 16.8V: 95 kg·cm, 24V: 115 kg·cm, 33.6V: 125 kg·cm | 16.8V: 160 kg·cm, 24V: 200 kg·cm, 33.6V: 230 kg·cm |
| Stall current (at locked) | 8.4V: 5A, 12V: 7A, 16.8V: 9.5A | 16.8V: 3A, 24V: 4A, 33.6V: 5.5A | 8.4V: 5.6A, 12V: 8A, 16.8V: 11.2A | 16.8V: 3A, 24V: 4.5A, 33.6V: 5.6A | 8.4V: 7.5A, 12V: 10.5A, 16.8V: 14.5A | 16.8V: 4.5A, 24V: 6A, 33.6V: 8.5A | 16.8V: 7A, 24V: 9.5A, 33.6V: 12.5A |
| Running current (at no load) | 8.4V: 300mA, 12V: 350mA, 16.8V: 400mA | 16.8V: 300mA, 24V: 350mA, 33.6V: 400mA | 8.4V: 300mA, 12V: 350mA, 16.8V: 400mA | 16.8V: 200mA, 24V: 250mA, 33.6V: 300mA | 8.4V: 400mA, 12V: 500mA, 16.8V: 550mA | 16.8V: 300mA, 24V: 350mA, 33.6V: 400mA | 16.8V: 200mA, 24V: 250mA, 33.6V: 300mA |
| Idle current (at stopped) | 8.4V: 50mA, 12V: 50mA, 16.8V: 50mA | 16.8V: 50mA, 24V: 50mA, 33.6V: 50mA | 8.4V: 50mA, 12V: 50mA, 16.8V: 50mA | 16.8V: 50mA, 24V: 50mA, 33.6V: 50mA | 8.4V: 50mA, 12V: 50mA, 16.8V: 50mA | 16.8V: 50mA, 24V: 50mA, 33.6V: 50mA | 16.8V: 50mA, 24V: 50mA, 33.6V: 50mA |
