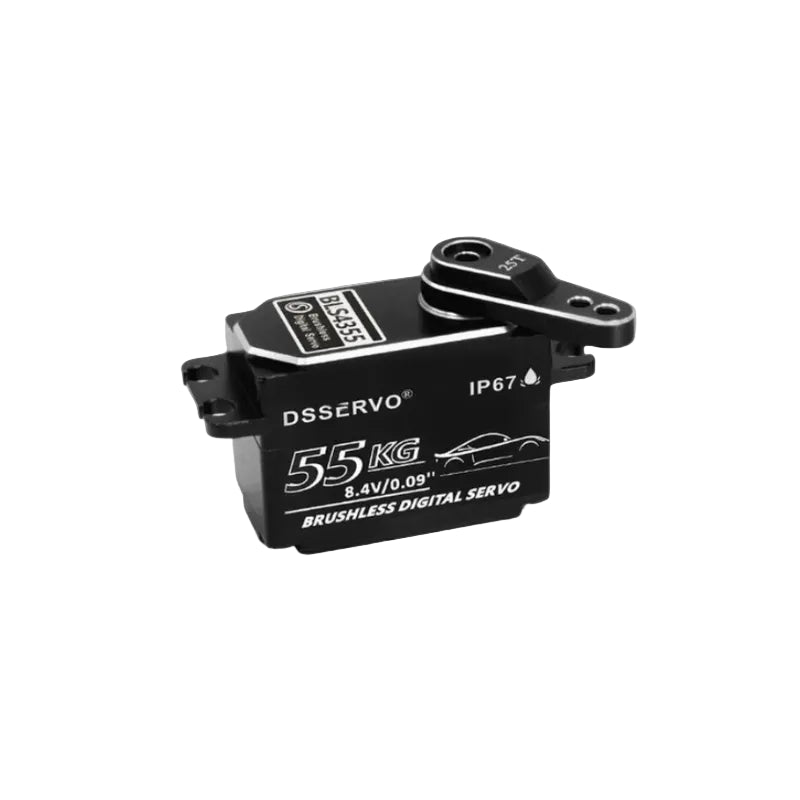

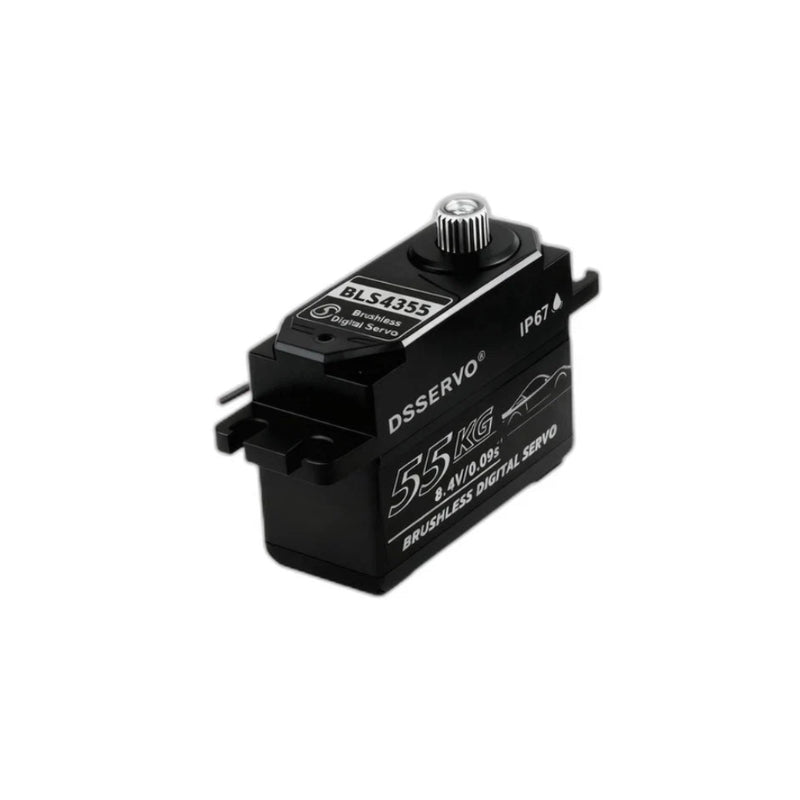

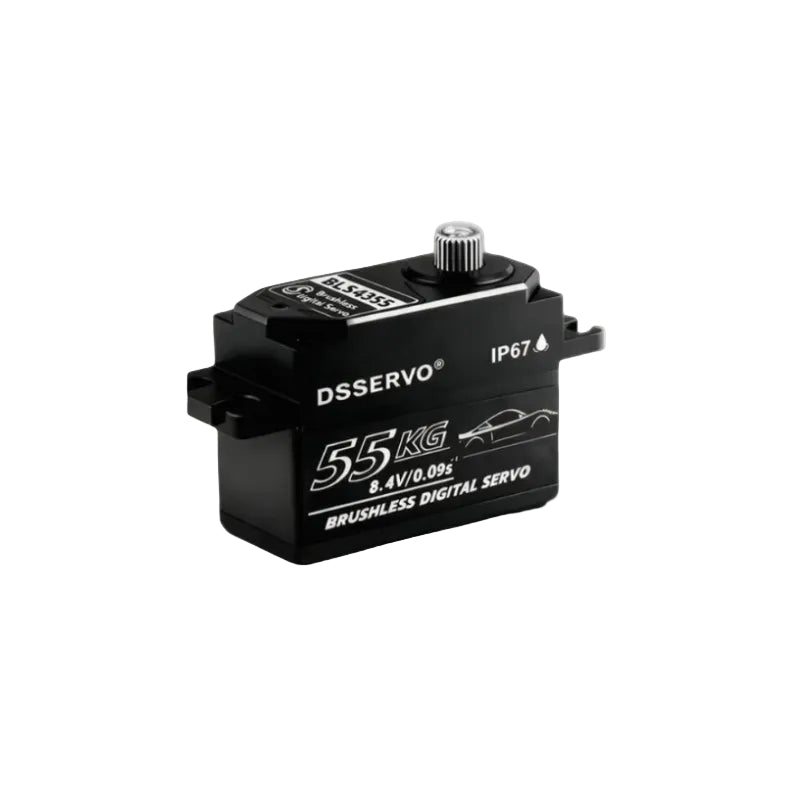

DSSERVO BLS4355 Servo Motor
Regular price
$59.00
Sale price
$59.00
Regular price
Unit price
DSSERVO BLS4355 Servo Motor
Product description
| DSSERVO BLS4355 Specifications | |
|---|---|
| PRODUCT PARAMETERS | |
| Parameter | Value |
| Storage Temperature Range | -30°C ~ +80°C |
| Operating Temperature Range | -15°C ~ +70°C |
| Operating Voltage Range | 5 ~ 8.4V |
| Size | 40 × 20 × 38 mm |
| Weight | 75g |
| Gear Ratio | 365 |
| Bearing | Double bearing |
| Connector Wire Length | 300 ± 5 mm |
| Motor | Brushless motor |
| Waterproof Performance | IP67 |
| Idle Current (at stopped) | 5mA (typical, 6V, 7.4V) |
| Operating Speed (at no load) | 0.14 sec/60° (typical) / 0.1 sec/60° @ 6V / 0.1 sec/60° @ 7.4V |
| Stall Torque (at locked) | 39 kg·cm (typical) / 55 kg·cm @ 6V / 61 kg·cm @ 7.4V |
| Stall Current (at locked) | 3.2A (typical) / 4A @ 6V / 5.2A @ 7.4V |
| Control System | PWM (Pulse Width Modulation) |
| Pulse Width Range | 500 ~ 2500 μsec |
| Neutral Position | 1500 μsec |
| Running Degree | 180° or 270° (500~2500 μsec) |
| Dead Band Width | 2 μsec |
| Operating Frequency | 50 ~ 330Hz |
| Rotating Direction | Counterclockwise (500~2500 μsec) |
