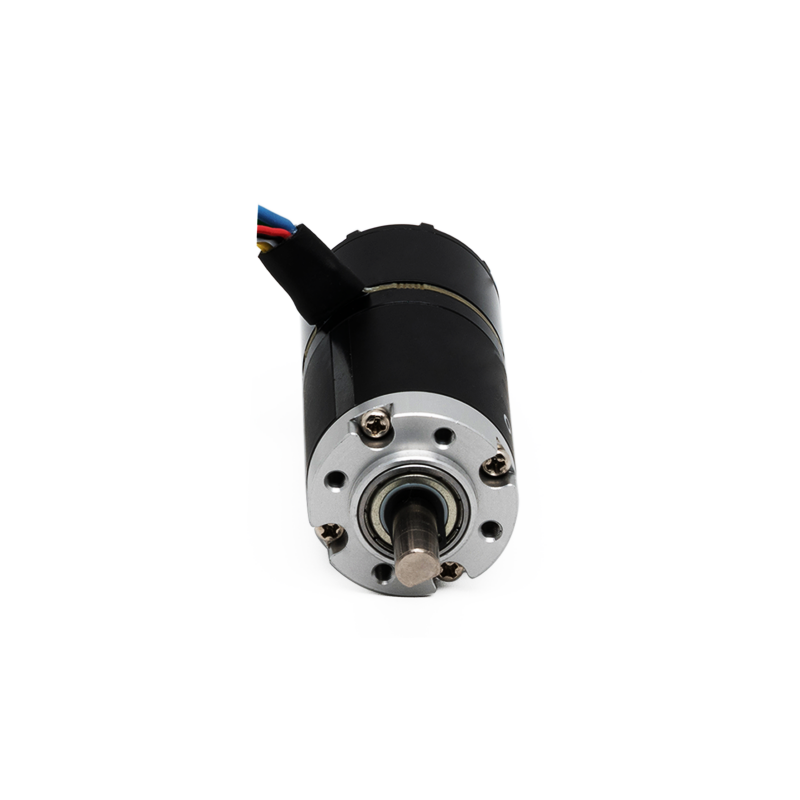

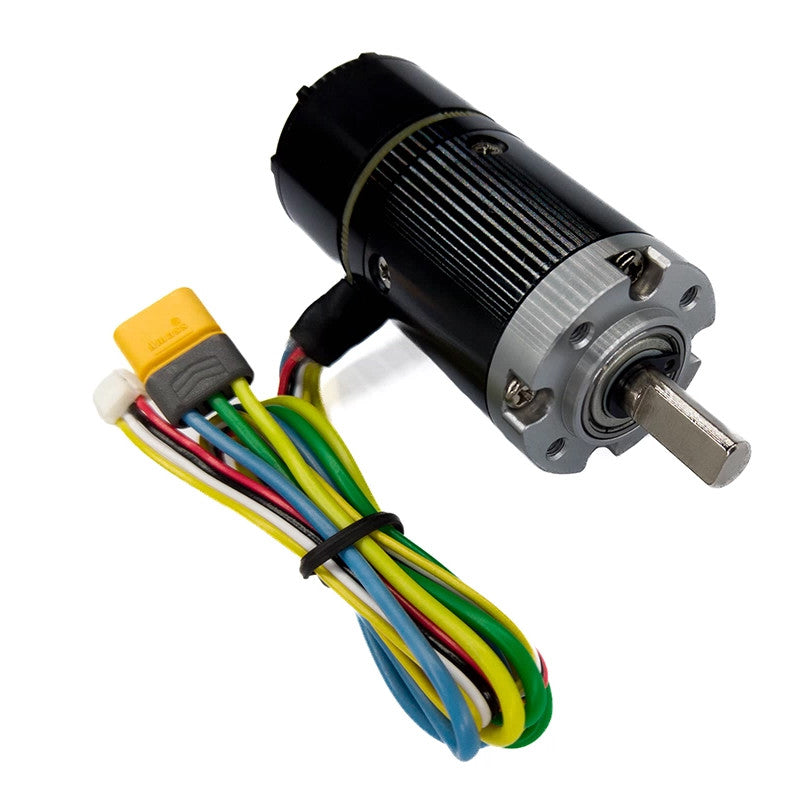

DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor
DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor
DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor
DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor
DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor
DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor

DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor

Regular price $95.00
Sale price $95.00 Regular price
Unit price
DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor

DAMIAO S2325-1EC Integrated Planetary Brushless Servo Motor

Product description

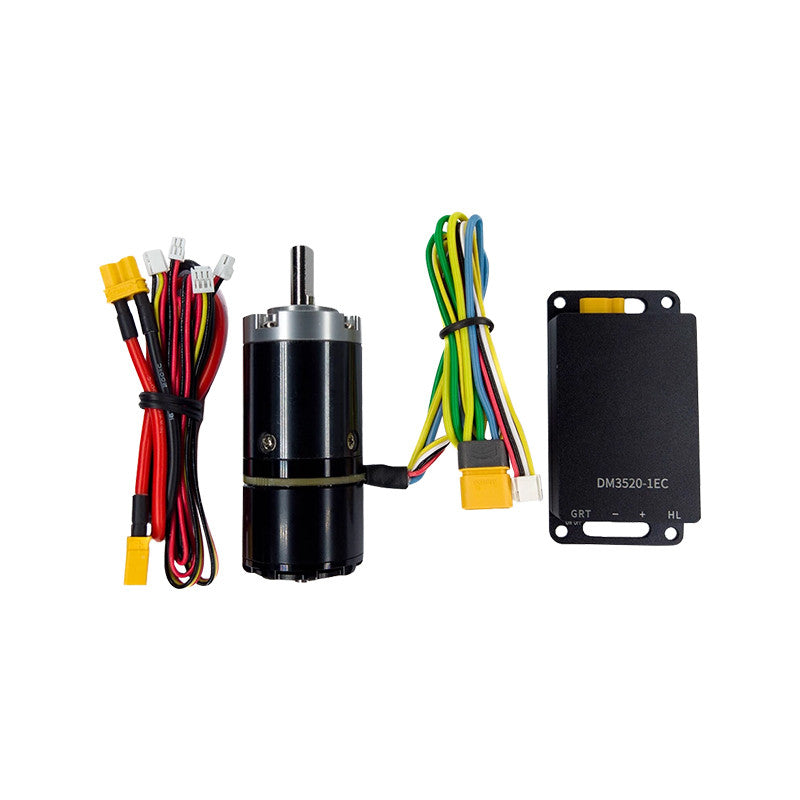

The DAMIAO-S2325-1EC-BLDC Planetary Gear Motor with Driver combines precision engineering with integrated control for demanding applications. This brushless DC motor features a compact planetary gearbox design, delivering high torque output in a minimal footprint. The included driver module simplifies integration, reducing setup complexity and development time. Ideal for robotics, automation, and industrial equipment requiring reliable, efficient power transmission. Built for consistent performance across extended operating cycles with low maintenance requirements.

KEY FEATURES:
Integrated motor + driver for a compact setup
Three operation modes for flexible control
Planetary reduction for high torque at low speed
Great value / cost-effective choice

S2325-1EC-BLDC-USER-MANUAL.pdf

S2325-1EC-BLDC-3D-MODEL.stp

USB-TO-CANFD-ADAPTER-USER-MANUAL.pdf

Parameter Value / Description
Rated Voltage 24V (Driver supports 24-48V supply)
Rated Phase / Supply Current 5A / 3.2A
Peak Phase / Supply Current 13A / 7.5A
Rated Torque 1.35 Nm
Peak Torque 5 Nm
Rated Speed 380 rpm
Maximum No-Load Speed 560 rpm
Reduction Ratio 1 : 25
Pole Pairs 7
Phase Inductance 75 µH
Phase Resistance 0.2915 Ω
Maximum Radial Load (Static) 395 N
Outer Diameter Motor 28 mm
Height Motor 77.6 mm
Motor Weight Approx. 172.2 g
Encoder Type Incremental Encoder
Control Interface CAN @ 1 Mbps (Max), FD CAN @ 5 Mbps (Max)
Parameter Tuning Interface UART @ 921600 bps
Control Modes MIT Mode
Velocity Mode
Position Mode
Protection Features
  • Driver Over-Temperature Protection: Protective temperature 120°C, motor exits "Enabled Mode"
  • Motor Over-Temperature Protection: Recommended not exceeding 100°C, motor exits "Enabled Mode"
  • Motor Over-Voltage Protection: Recommended not exceeding 60V, motor exits "Enabled Mode"
  • Communication Loss Protection: No CAN commands received within set period, automatically exits "Enabled Mode"
  • Motor Over-Current Protection: Recommended not exceeding 13A (phase current), motor exits "Enabled Mode"
  • Motor Insufficient Voltage Protection: Power supply not lower than 15V
