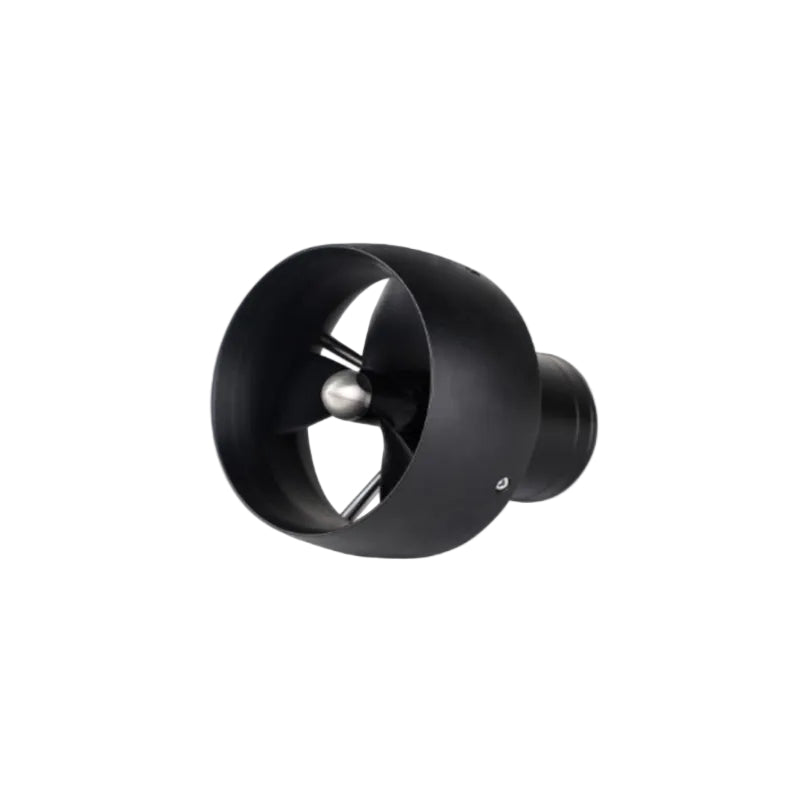

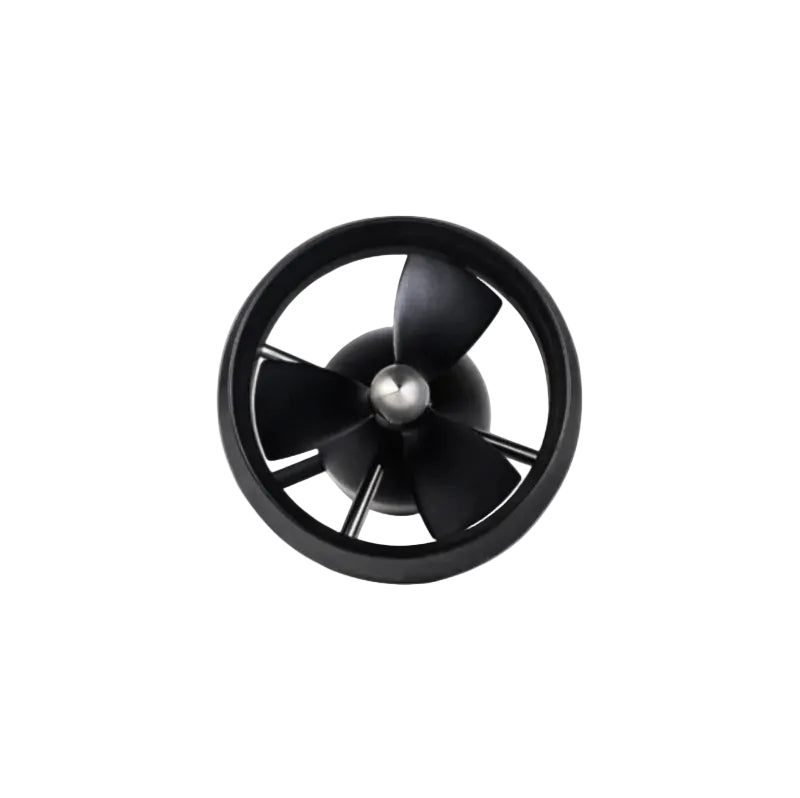

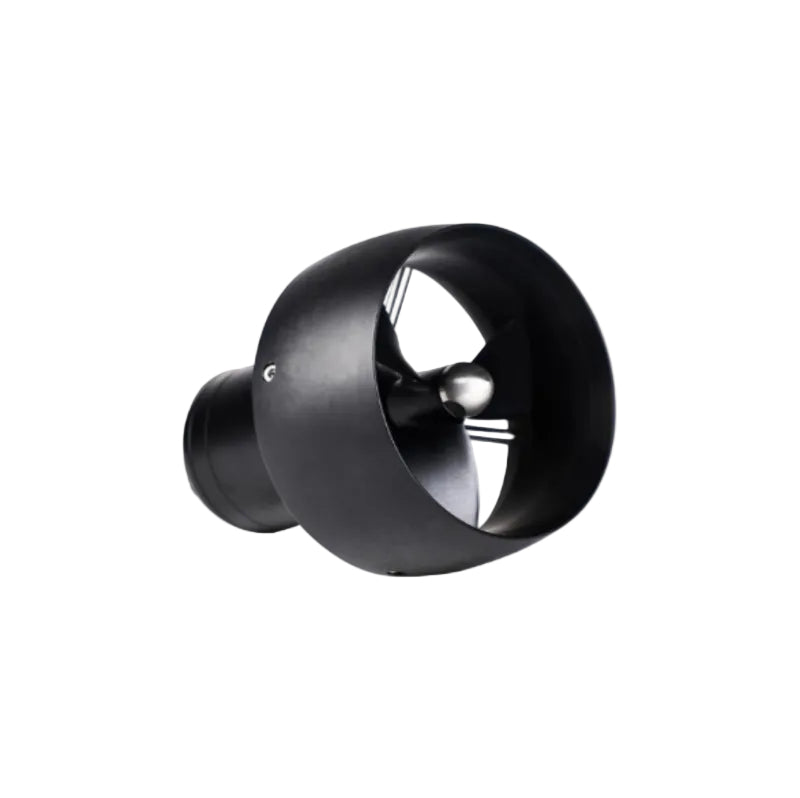

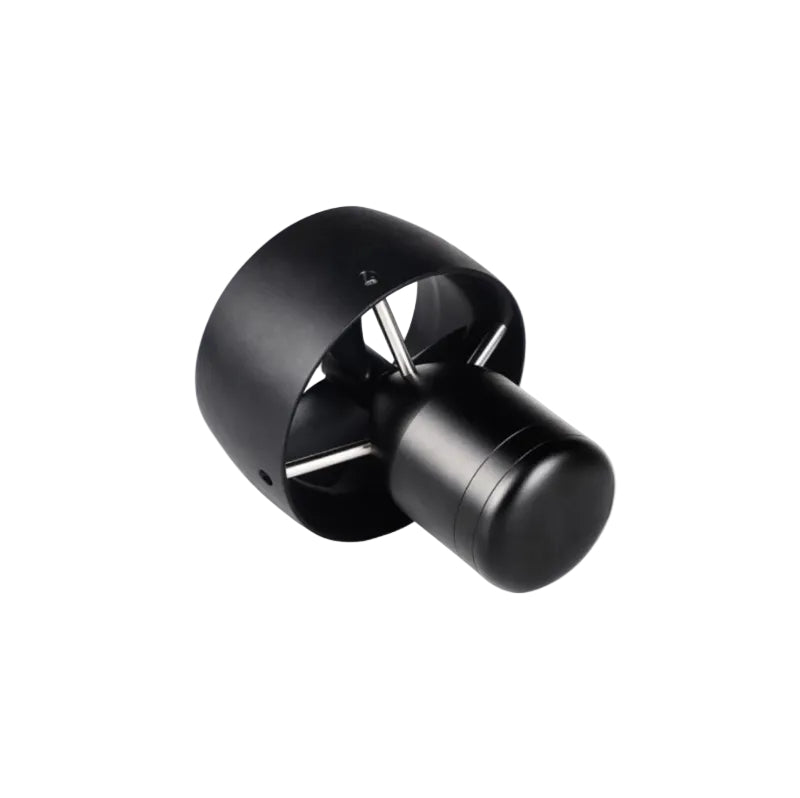

CubeMars SW7 Underwater Thruster

Product Description

The SW7 underwater thruster is a high-efficiency propulsion unit from CubeMars’ SW series, specifically designed for shallow-water applications such as unmanned surface vessels (USVs) and handheld underwater propulsion systems.

Rated at 36 V with a continuous power output of approximately 360 W, it delivers a maximum thrust of ≥ 7 kgf and is suitable for operation in depths from 0 to 30 meters.

The thruster features a precision-cast aluminum alloy housing, a dual-chamber independent sealing structure, and a low-friction dynamic shaft seal. High-thermal-conductivity potting material is used internally to enhance heat dissipation. Robust, sand-resistant, and virtually maintenance-free, the SW7 is built for reliable underwater performance.

Core Specifications

• Dimensions: Φ100 × 125.5 mm

• Weight: 700 g

• Maximum Static Thrust: 7 kgf

• Maximum Continuous Power: 360 W

• Operating Depth: 0–30 m

• Cable Specification: TPU φ8mm, 3×16 AWG, 1.5M

Product Highlights

• Strong Propulsion Performance: Maximum thrust ≥ 7 kgf, ideal for lightweight USVs, paddle boards, and handheld thrusters

• Robust & Durable Construction: Aluminum alloy housing with precision casting ensures resilience in underwater environments

• Dual-Chamber Sealing: Effectively blocks sand and water ingress while maintaining stable operation through optimized thermal management

• Lightweight & Portable: Compact size makes it easy to mount on handheld units or small vessel structures for convenient use

• Optimized for Shallow Water: Designed for diving depths up to ~30 meters, perfect for nearshore operations

Packaging Contents

• SW7 Underwater Thruster ×1

• Certificate of Conformance ×1
