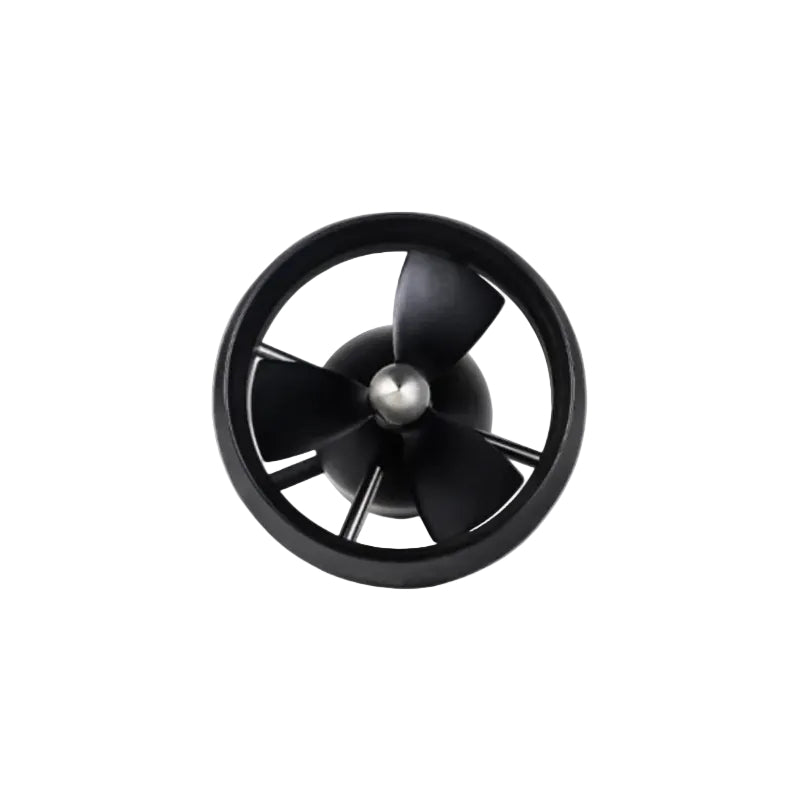

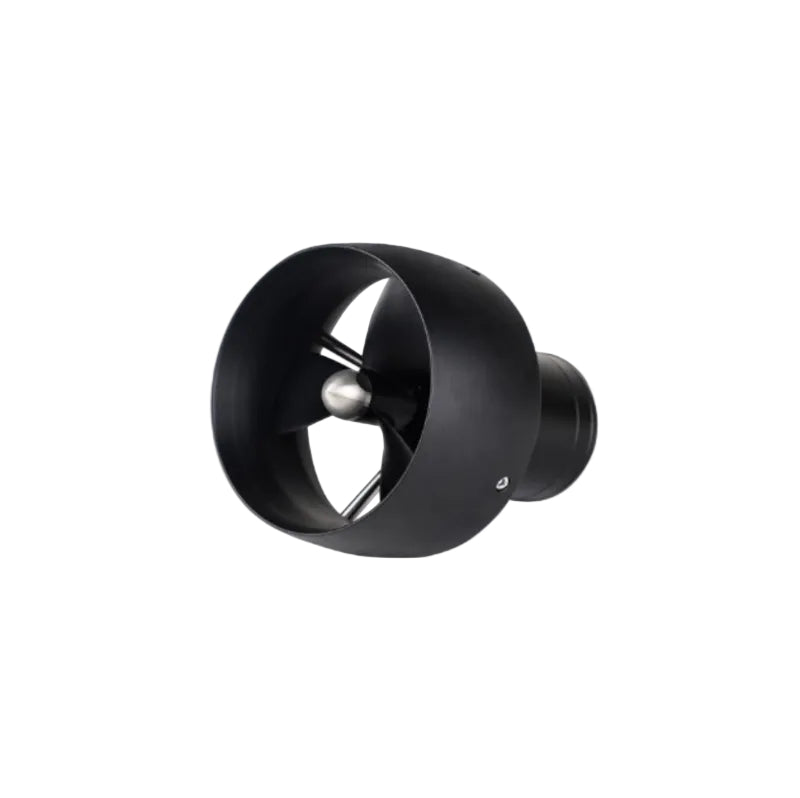

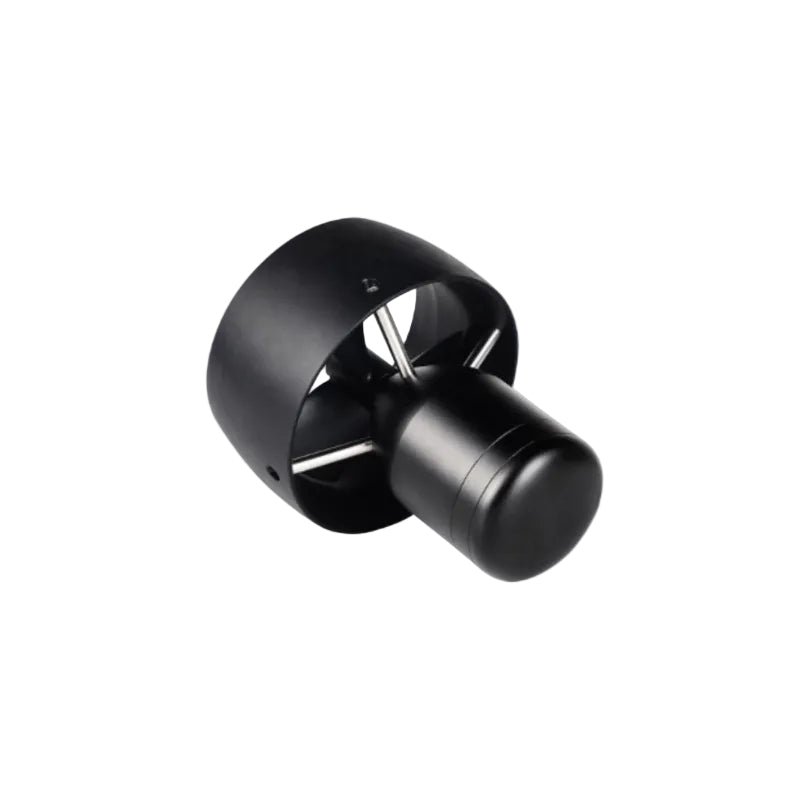

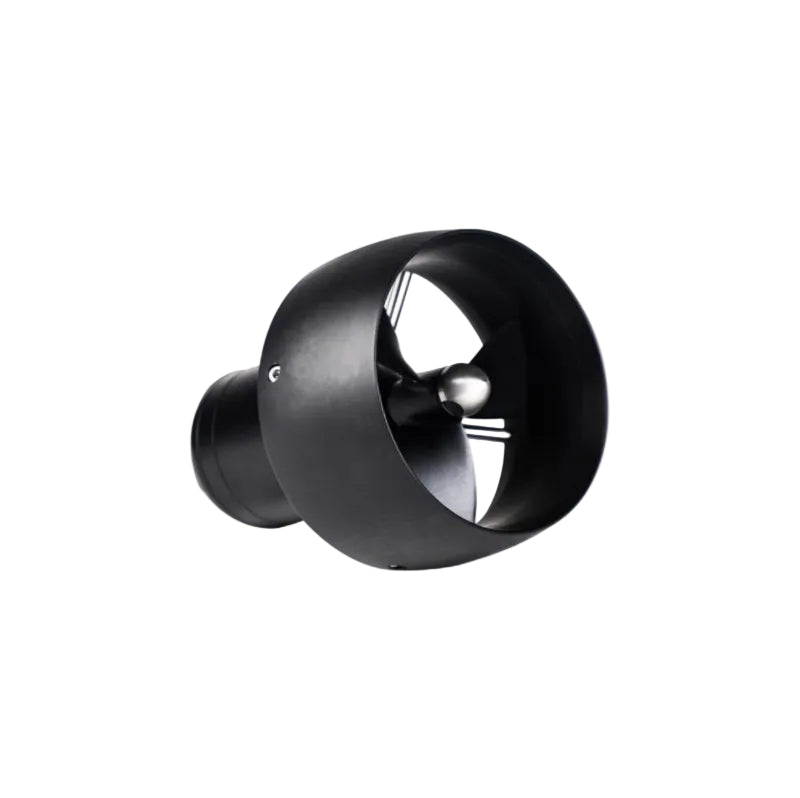

CubeMars SW17 Underwater Thruster

Product Description

The CubeMars SW17 underwater thruster is a high-thrust propulsion system engineered specifically for shallow-diving unmanned surface vessels (USVs) and handheld diver propulsion vehicles (DPVs).

Constructed with precision-cast aluminum alloy, it features a dual-chamber independent sealing structure and a low-friction dynamic shaft seal. Internally filled with high-thermal-conductivity potting material, the thruster achieves enhanced heat dissipation—enabling reliable operation in water depths from 0 to 30 meters. With a rated voltage of 48 V, it delivers a maximum static thrust of ≥17 kgf, making it ideal for USVs, electric surfboards, handheld propulsion units, and other applications demanding high power in compact form.

Core Specifications

• Dimensions: Φ130.6 × 163.5 mm

• Weight: 1350 g

• Maximum Static Thrust: 17 kgf

• Continuous Rated Power: 870 W

• Operating Depth: 0–30 m

• Cable specification: TPU φ8mm, 3×16 AWG, 1.5M


Product Highlights

• High-Thrust Output: Delivers ≥17 kgf static thrust—providing ample power for medium-sized USVs or handheld devices with demanding propulsion needs

• Precision Aluminum Alloy Housing: Lightweight yet robust cast aluminum body offers excellent resistance to corrosion and mechanical impact

• Dual-Chamber Sealing & Low-Drag Shaft Seal: Two-stage independent sealed chambers combined with a low-friction dynamic shaft seal effectively block sand and debris ingress, significantly enhancing reliability and service life

• Compact Design for Easy Integration: Optimized footprint allows installation in space-constrained propulsion systems or onboard platforms while supporting overall lightweight architecture

• Optimized for Shallow-Water Use: Designed specifically for operations within 0–30 m depth, meeting the requirements of USVs, handheld thrusters, and similar marine applications

Packaging Contents

• SW17 Underwater Thruster ×1

• Certificate of Conformance ×1
