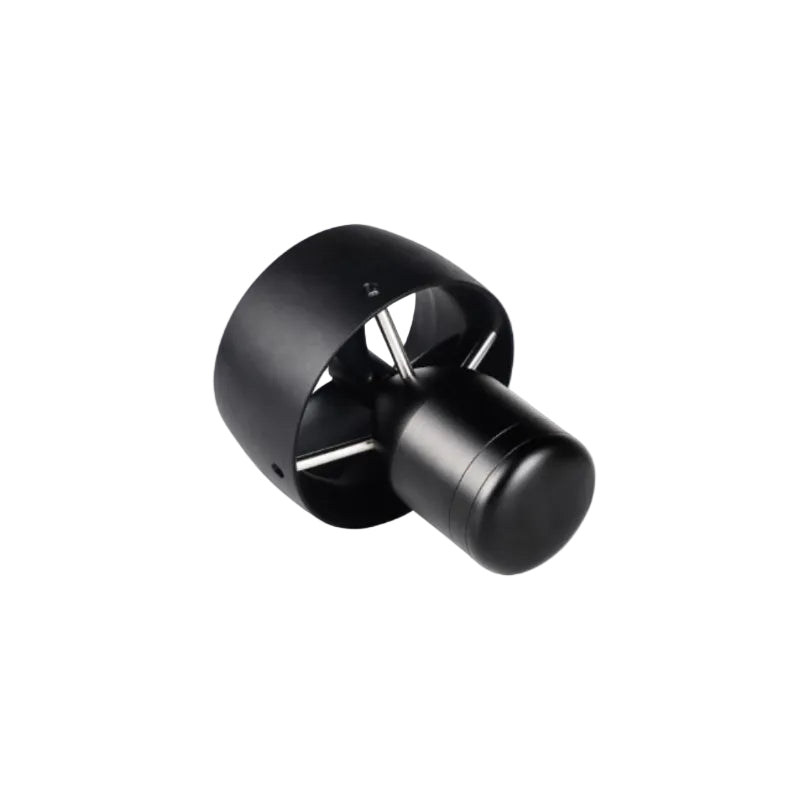

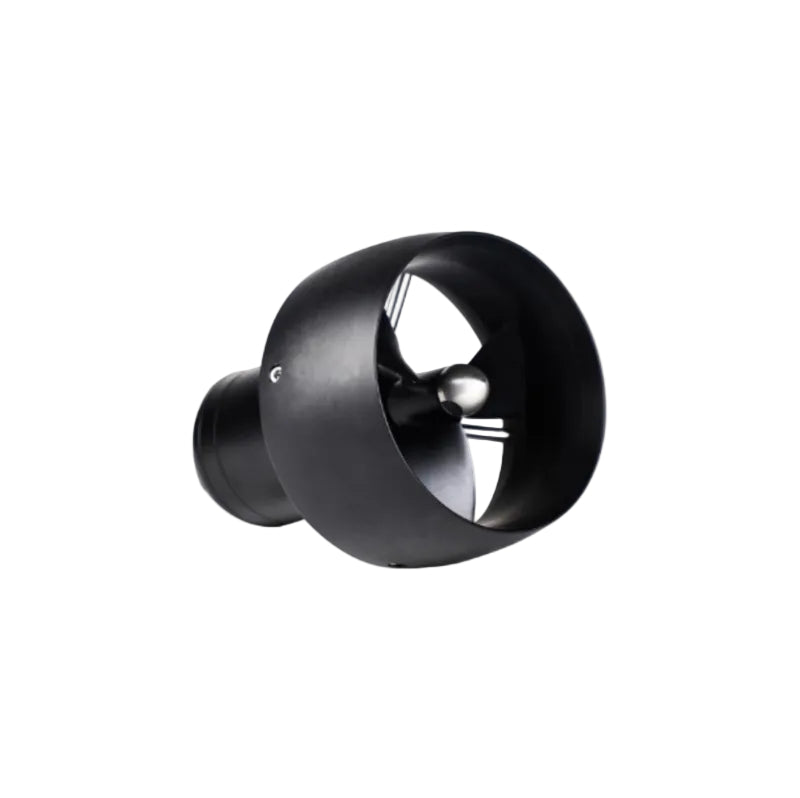

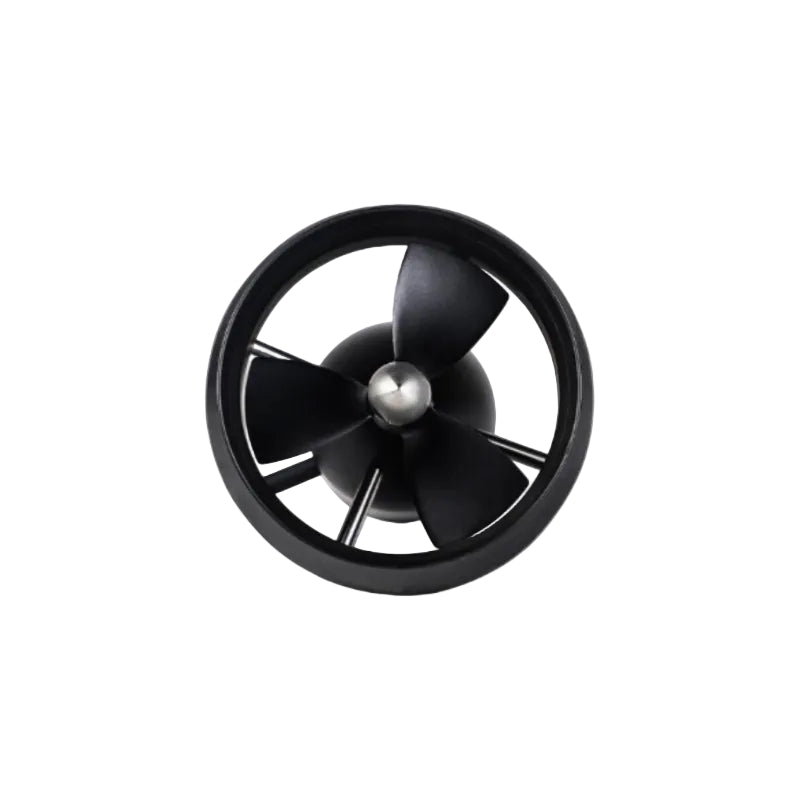

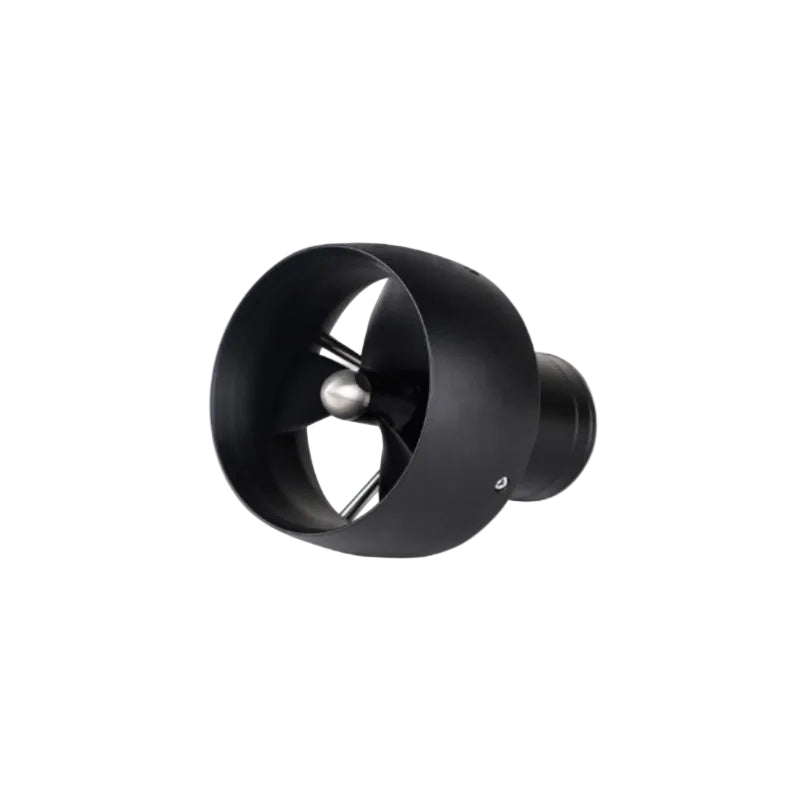

CubeMars SW12 Underwater Thruster

Product Description

The CubeMars SW12 underwater thruster is a high-efficiency propulsion unit designed specifically for light-duty underwater platforms such as surface/semi-submersible unmanned surface vessels (USVs), handheld diver propulsion vehicles (DPVs), and electric surfboards.

Featuring a high-strength aluminum alloy housing, a dual-chamber independent sealing structure, and a low-friction dynamic shaft seal system, the SW12 is filled internally with high-thermal-conductivity material and leverages direct water cooling for efficient thermal management. It operates reliably at depths up to approximately 30 meters and delivers a static thrust of ≥12 kgf.

This thruster is ideal for applications demanding an optimal balance of compact size, lightweight design, and high thrust—such as USVs, handheld propulsion devices, and electric hydrofoil boards.

Core Specifications

• Dimensions: Φ130.6 × 151.5 mm

• Weight: 1180 g

• Maximum Static Thrust: 12 kgf

• Continuous Rated Power: 520 W

• Operating Depth: 0–30 m

• Cable specification: TPU φ8mm, 3×16 AWG, 1.5M


Product Highlights

• High Thrust Output: Delivers ≥12 kgf static thrust—suitable for medium-sized USVs or handheld propulsion systems requiring strong thrust

• Precision Aluminum Alloy Housing: Lightweight yet robust cast aluminum body offers excellent corrosion and impact resistance

• Dual-Chamber Sealing & Low-Drag Shaft Seal: Effectively blocks sand and debris ingress, enhancing reliability and service life

• Advanced Thermal Management: Internal high-conductivity potting compound enables rapid heat dissipation via ambient water cooling, supporting sustained operation

• Easy Integration & Customization: Supports both clockwise and counter-clockwise propeller configurations to meet diverse underwater maneuvering requirements

Packaging Contents

• SW12 Underwater Thruster ×1

• Certificate of Conformance ×1
