CubeMars S-LINK V1.0
Regular price
$39.90
Sale price
$39.90
Regular price
Unit price
CubeMars S-LINK V1.0
Product description
Product Description

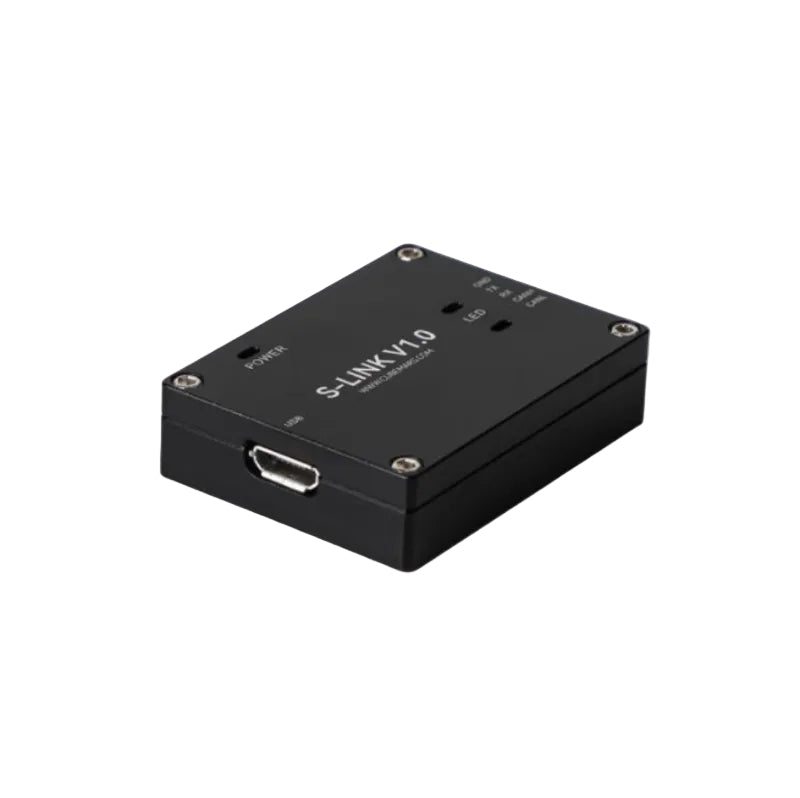

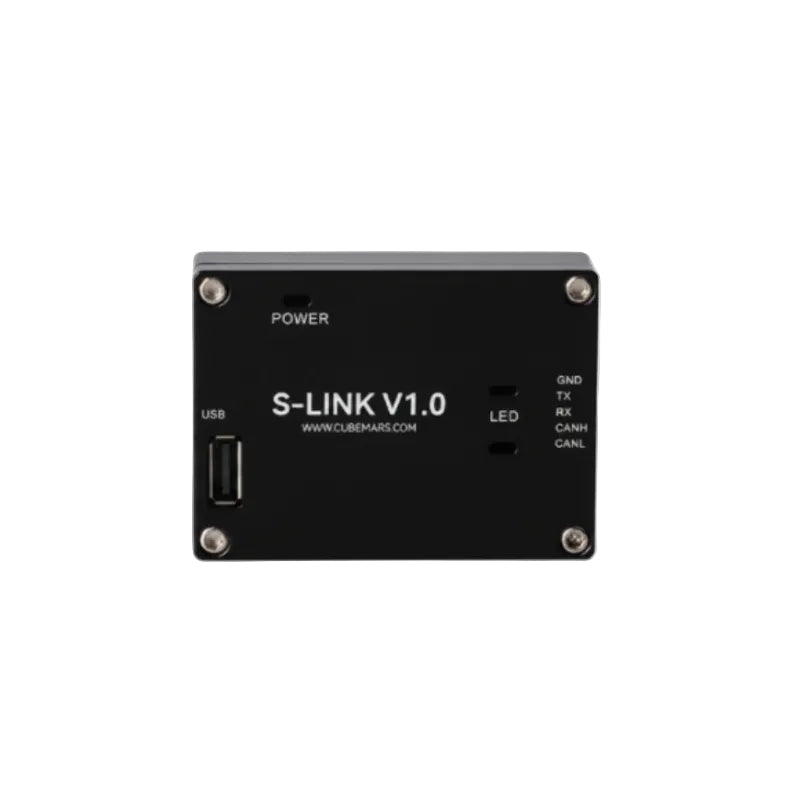

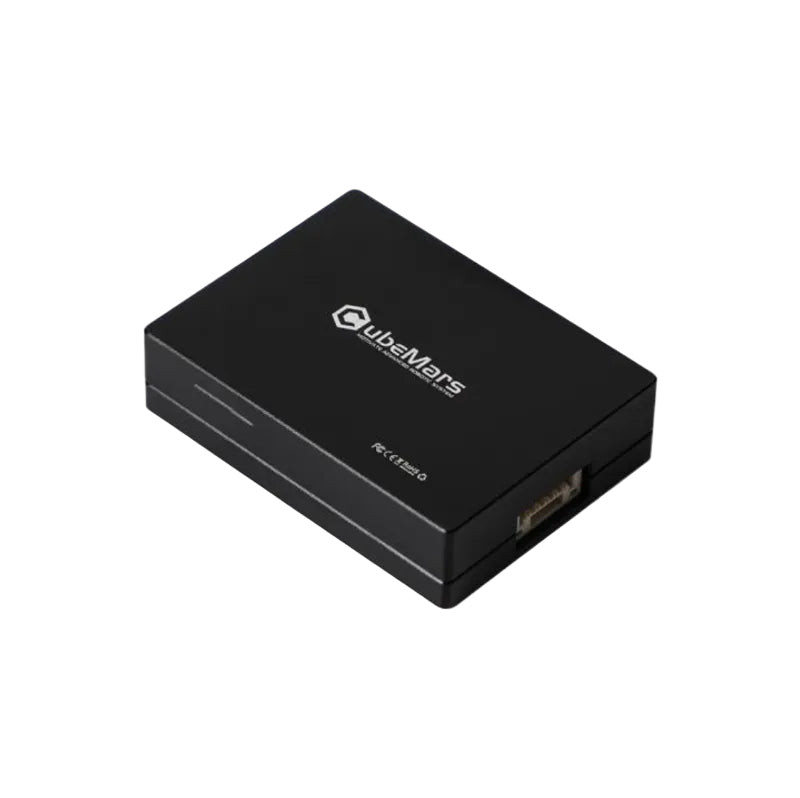

The CubeMars S-Link V1.0 is a communication interface device designed to work with the GL II series gimbal motors, enabling data exchange and real-time monitoring of the motor system's operational status. It supports user requirements such as parameter tuning and system debugging.
Users can connect the S-Link V1.0 to PC-based upper computer to perform various operations, including real-time data monitoring, encoder calibration, and other parameter adjustment functions.
Core Specifications
-
Communication Interfaces: UART, CAN, USB
-
Operating Voltage: 5V
-
Dimensions: 39.2 × 29.2 × 10 mm
-
Weight: 16g

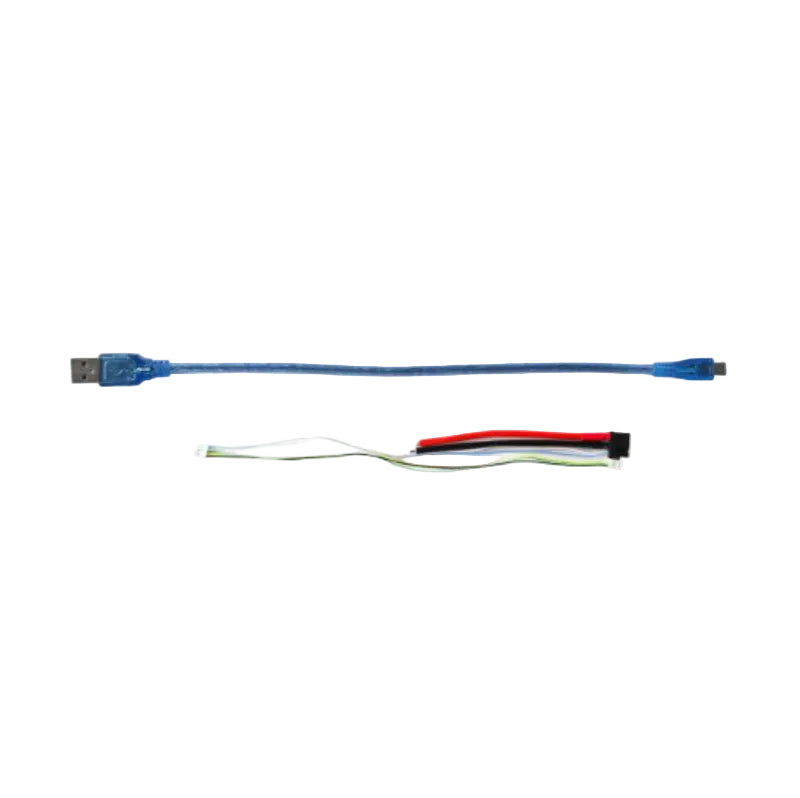

Packaging Contents
-
5-pin Connection Cable x1
-
USB to Micro-USB Cable x1
Related Accessories
-
S-Link Wiring Kit
CubeMars S-LINK V1.0 Specifications
| PRODUCT PARAMETERS | |
| Communication Method | Serial, CAN, USB |
| Voltage | 5V |
| Dimension | 39.2 x 29.2 x 10 mm |
| Weight | 16g |
| Wiring harness description | The package contains 1 5-pin connection cable and 1 USB-to-MicrousB connection cable |
