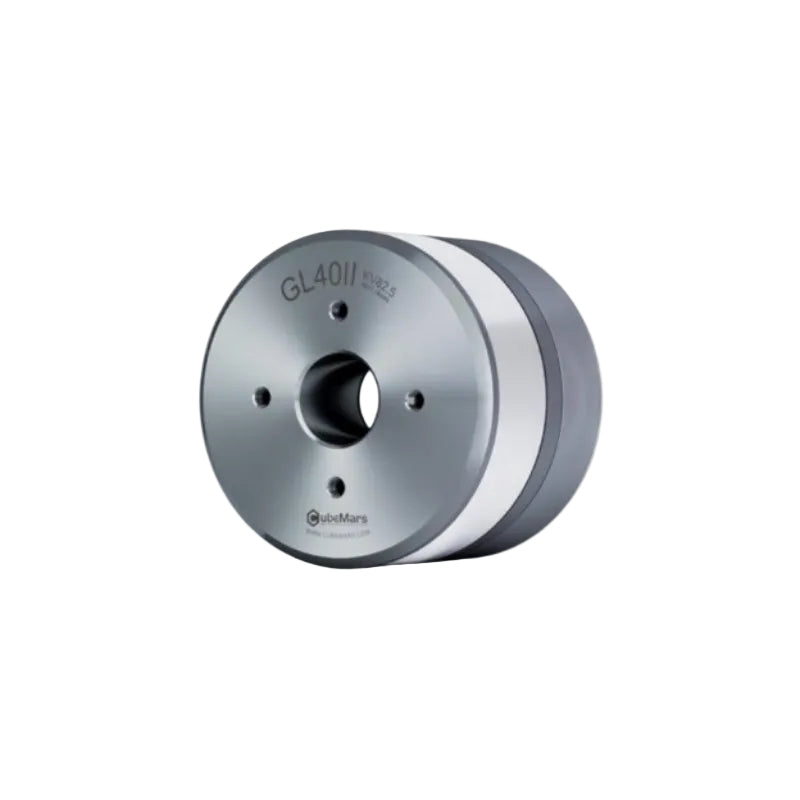

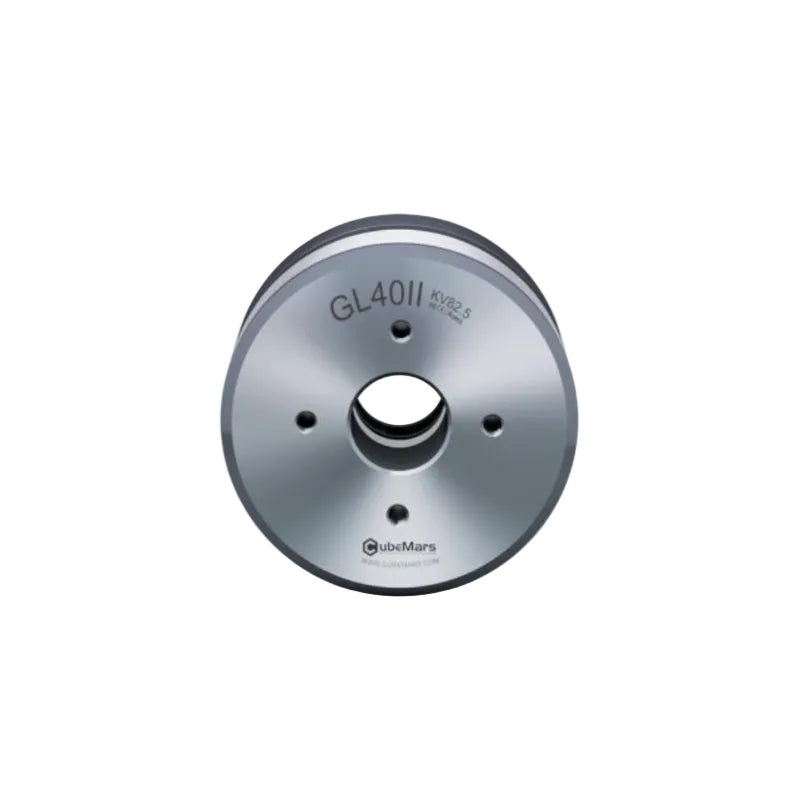

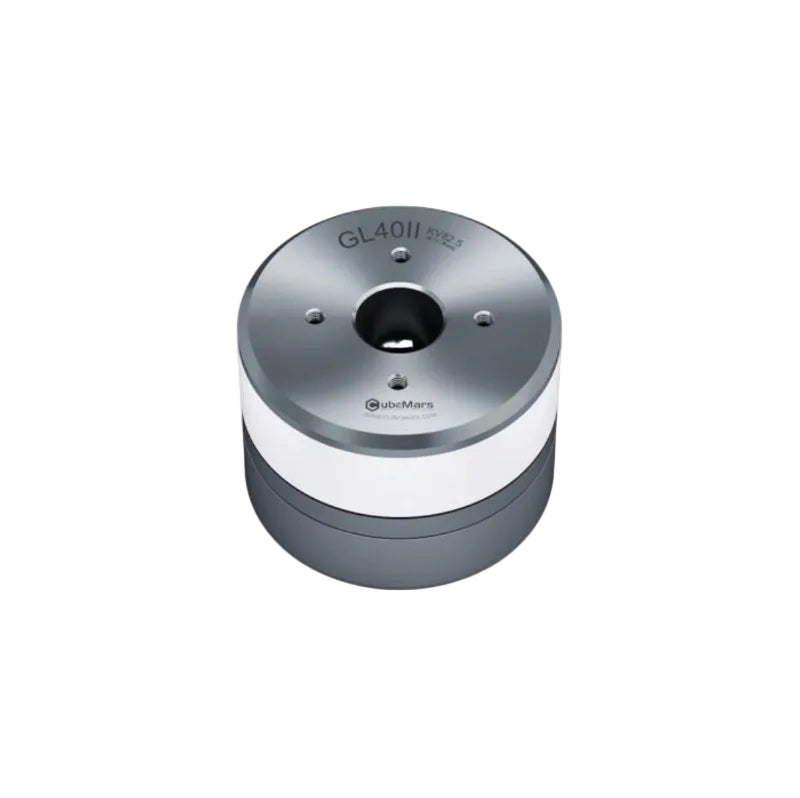

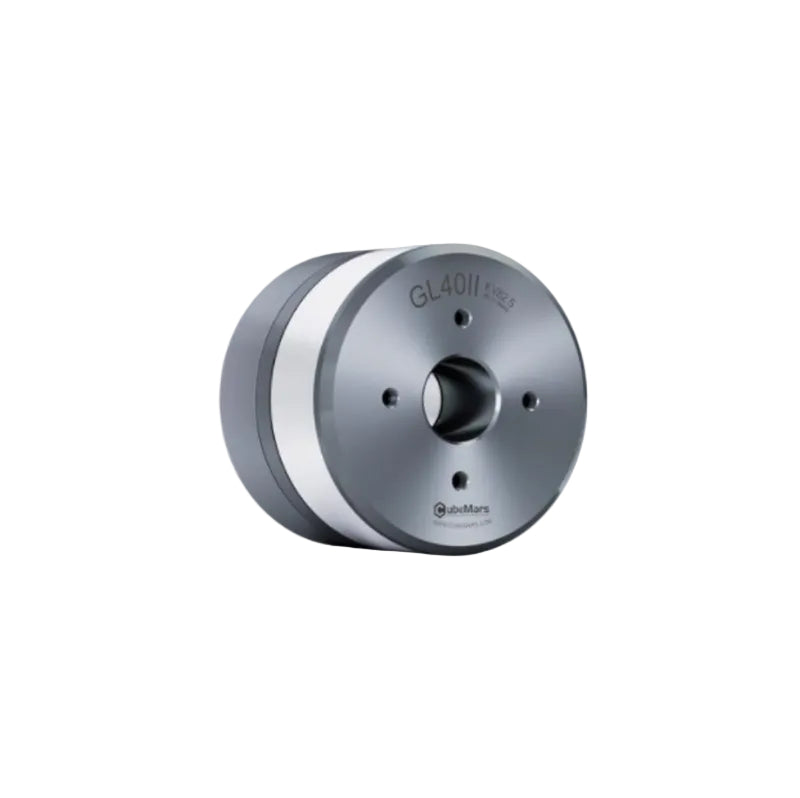

CubeMars GL40 II KV82.5 Motor
Product description
Product Description
The CubeMars GL40 II KV82.5 is a highly integrated gimbal motor specifically engineered for premium gimbal systems and autonomous driving applications. Advancing from the GL series, the GL II series incorporates a cutting-edge electromagnetic and structural design with a larger hollow shaft diameter, optimized slot torque for improved low-speed servo performance, and a new hollow drive board for precise motor control. The two-in-one structure compactly integrates the gimbal frameless motor with the drive control board, eliminating the need for external standalone drivers and complex wiring.
Core Specifications
- Motor Weight: 125 g
- Peak Torque: 0.68 Nm
- No-load Speed: 1388 rpm
- Rated Voltage: 16 V
Product Highlights

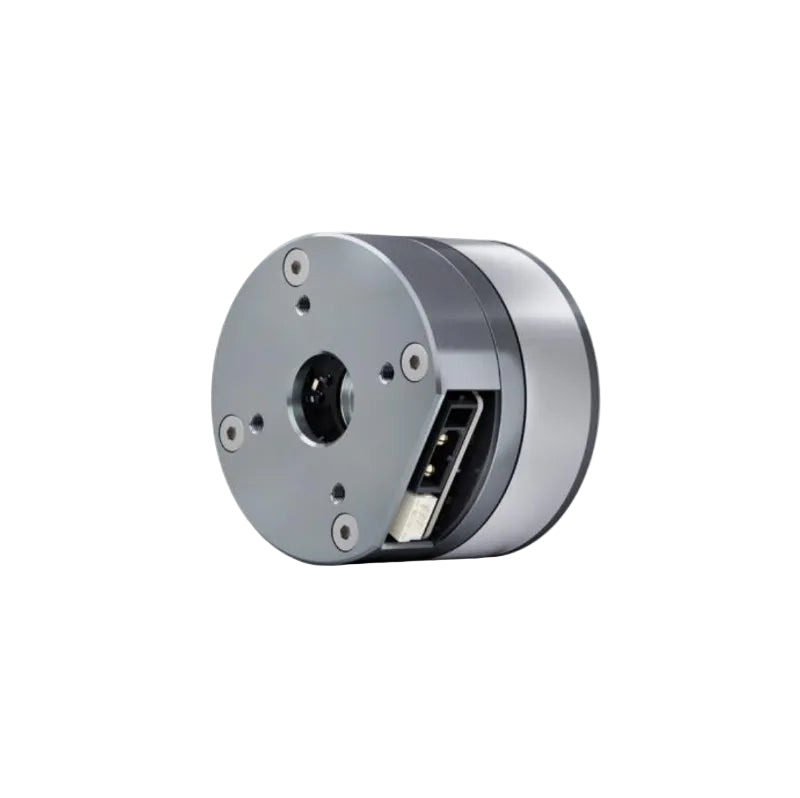

- Highly Integrated (All-in-One Design): Compactly integrates the gimbal frameless motor with the drive control board, eliminating external drivers and complex wiring
- High Torque Density Motor: Premium neodymium iron boron magnets and optimized electromagnetic design deliver exceptional torque output in a compact footprint
- Low Cogging Torque: Magnetic circuit and structural optimization ensures smooth, jitter-free operation at low speeds
- Multiple Control Modes: Supports torque control, speed control, and position control modes
- Advanced Communication: Supports CAN and PWM interfaces; plug-and-play with standardized electrical and mechanical interfaces
Packaging Contents
- GL40 II KV82.5 Integrated Gimbal Motor × 1
- Certificate of Conformance × 1
CubeMars GL40 II KV82.5 Specifications
| PRODUCT PARAMETERS | |||
| Application | Gimbal, Radar | Insulation Level | H |
| Driving Way | FOC | Insulation High-voltage | 500V 5mA/2s |
| Operation Ambient Temperature | -20°C~50°C | Insulation Resistance | 500V 10MΩ |
| Winding Type | Star | Phase | Three Phase |
| Pole Pairs | 14 | ||
| Electric Parameters | |||
| Rated Voltage (V) | 16 | KE (V/krpm) | 0.0115 |
| No-load Speed (rpm) | 1388 | Phase to Phase Resistance (mΩ) | 3000 |
| Rated Torque (Nm) | 0.25 | Phase to Phase Inductance (μH) | 1320 |
| Rated Speed (rpm) | 697 | Inertia (gcm²) | 79.45 |
| Rated Current (ADC) | 1.88 | Km (Nm/√W) | 0.064 |
| Peak Torque (Nm) | 0.68 | Mechanical Time Constant (ms) | 2.045 |
| Peak Current (ADC) | 5.22 | Electrical Time Constant (ms) | 0.44 |
| KV (rpm/V) | 82.5 | Weight (g) | 125 |
| KT (Nm/A) | 0.11 | Maximum Torque Density (Nm/kg) | 60.71 |
