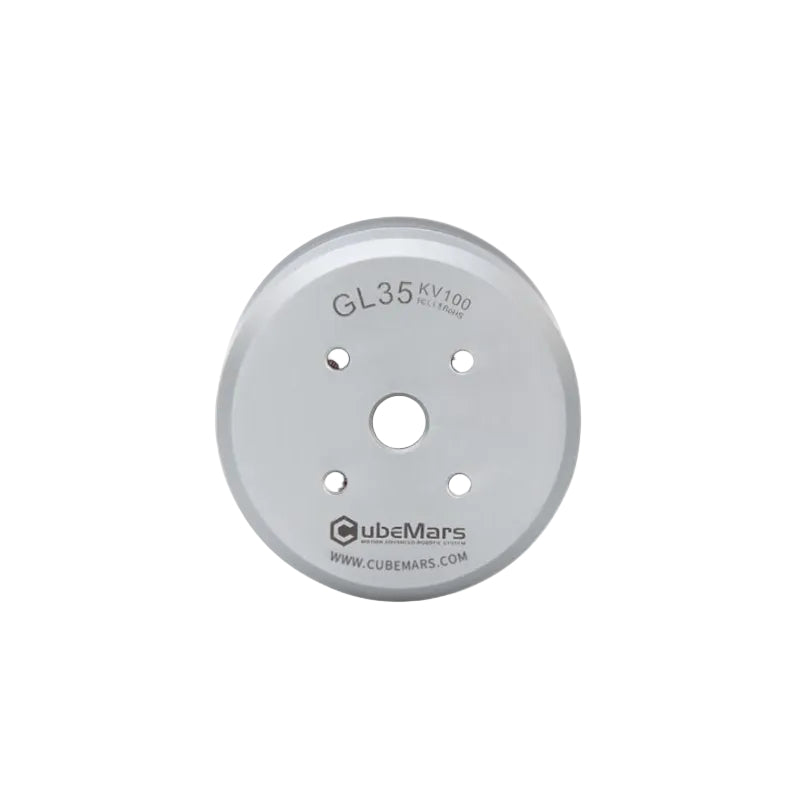

The GL35 KV100 gimbal motor is a brushless DC motor designed by CubeMars specifically for gimbals and high-precision rotating platforms. Featuring a compact form factor, lightweight construction, hollow shaft design, low torque cogging, and compatibility with AlexMos gimbal controllers, this motor delivers smooth control and reduced power consumption. Its large center through-hole facilitates cable routing or integration with slip rings, making it ideal for applications requiring continuous rotation and signal transmission, such as camera gimbals, radar scanning heads, and rotary modules where high responsiveness and precision are critical.
Core Specifications
Motor Dimensions: Ф41.8*21mm
Through-hole Diameter: 6mm
Motor Weight: 90g
Peak Torque: 0.46Nm
No-load Speed: 1320rpm

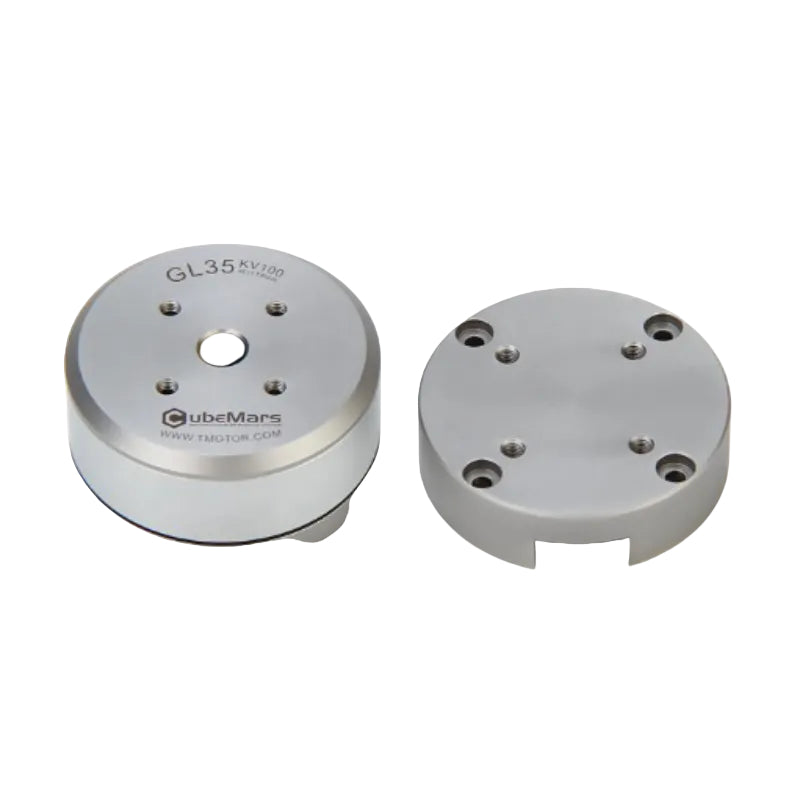

Product Highlights
-
Lightweight: Approximately 90g, suitable for space- and weight-constrained gimbal or pod systems
-
Low Cogging Design: Ensures smooth torque output, meeting the demands of high-precision tracking and stabilization
-
Large Center Through-hole: Enables easy passage of signal and power cables, ideal for slip ring setups or rotating mechanisms
-
High Compatibility: Works seamlessly with AlexMos gimbal controllers and various gimbal drive solutions
-
IP45 Dust and Water Resistance: Suitable for outdoor and challenging environments
Packaging Contents
-

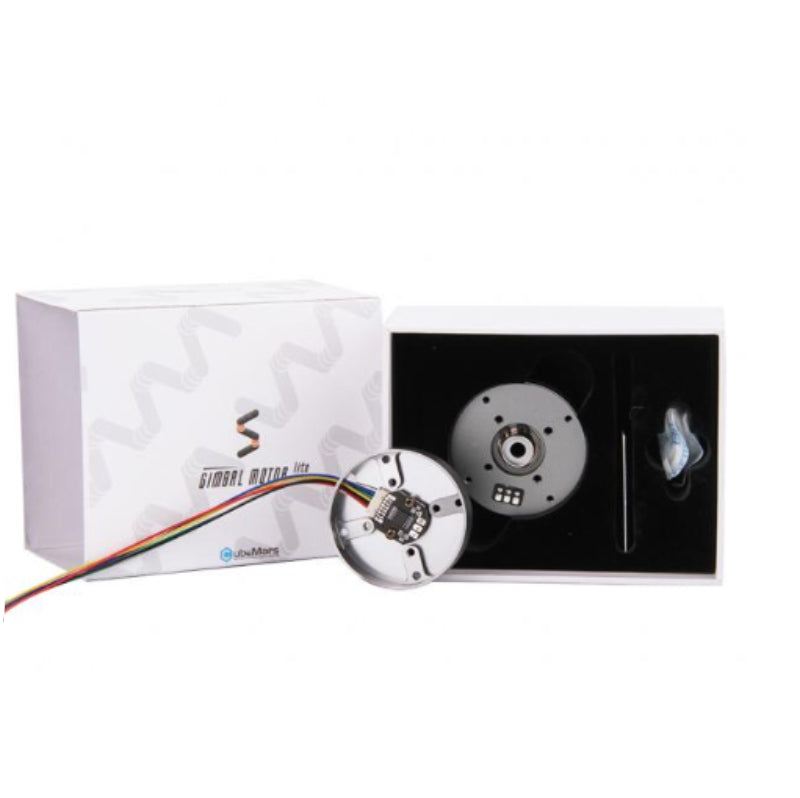

GL35 KV100 Gimbal Motor x1
-
Certificate of Conformance x1
| PRODUCT PARAMETERS | |||
| Application | Gimbal, Radar | Insulation High-Voltage | 500V 5mA/2s |
| Driving Way | FOC | Insulation Resistance | 500V10MΩ |
| Operation Ambient Temperature | -20℃~50℃ | Phase | 3 |
| Winding Type | star | Pole Pairs | 7 |
| Insulation Class | H | ||
| Electric Parameters | |||
| Rated Voltage (V) | 16 | Ke (V/krpm) | 11.54 |
| No-Load Speed (rpm) | 1320 | Phase To Phase Resistance (mΩ) |
3600 |
| Rated Torque (Nm) | 0.15 | Phase To Phase Inductance (μH) |
2100 |
| Rated Speed (rpm) | 815 | Inertia (g·cm²) | 61 |
| Rated Current (ADC) | 1.3 | Km (Nm/√W) | 0.060610322 |
| Peak Torque (Nm) | 0.46 | Mechanical Time Constant (ms) |
1.66 |
| Peak Current (ADC) | 4 | Electrical Time Constant (ms) |
0.58 |
| Kv (rpm/V) | 82.5 | Weight (g) | 90 |
| Kt (Nm/A) | 0.115 | Maximum Torque Weight Ratio (Nm/kg) |
5.11 |
