CubeMars GL100 KV10 Motor
CubeMars GL100 KV10 Motor
Product Description

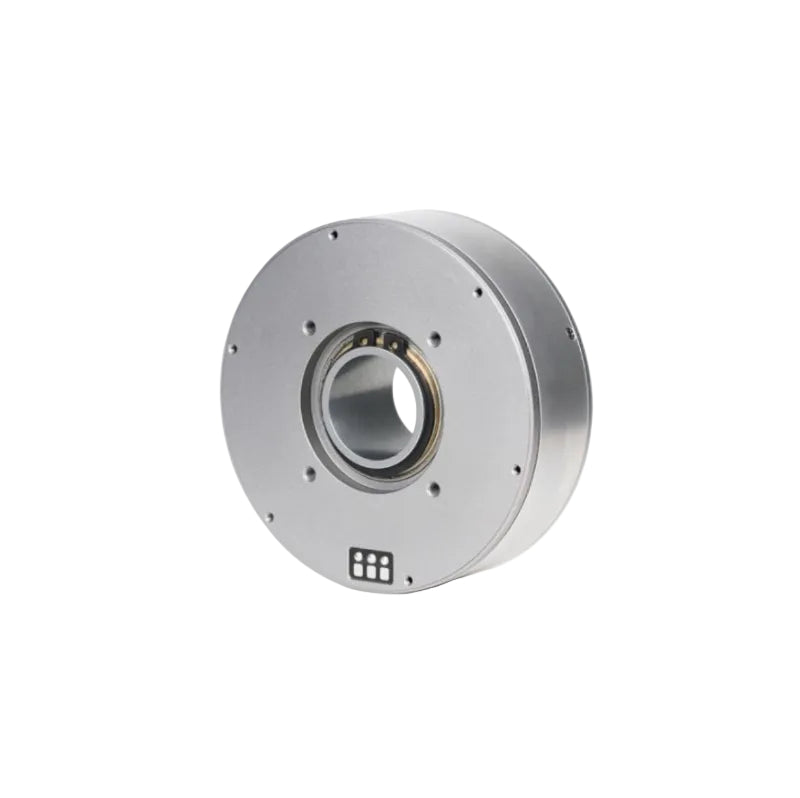

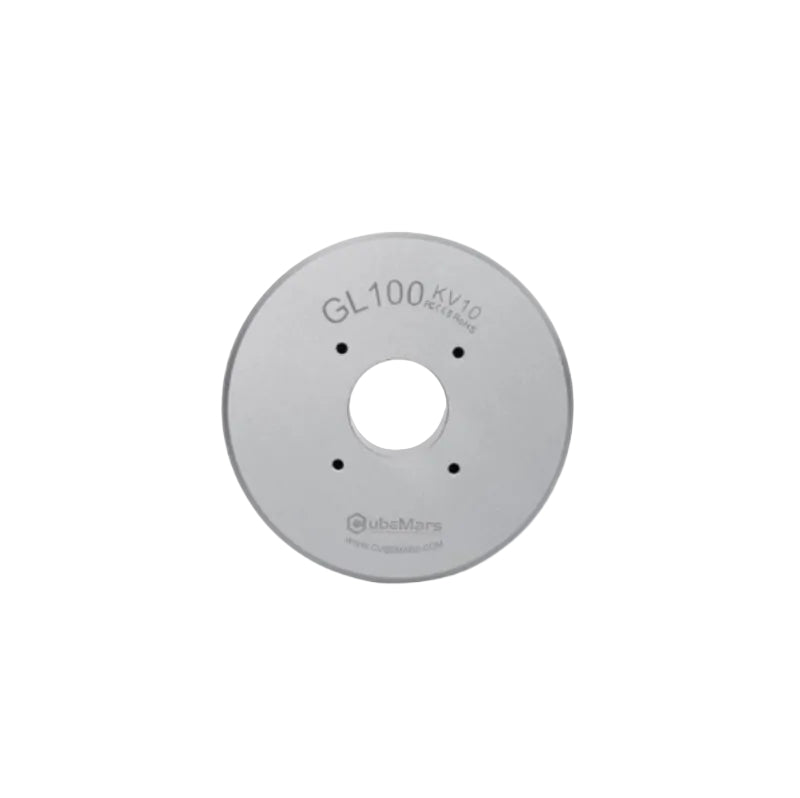

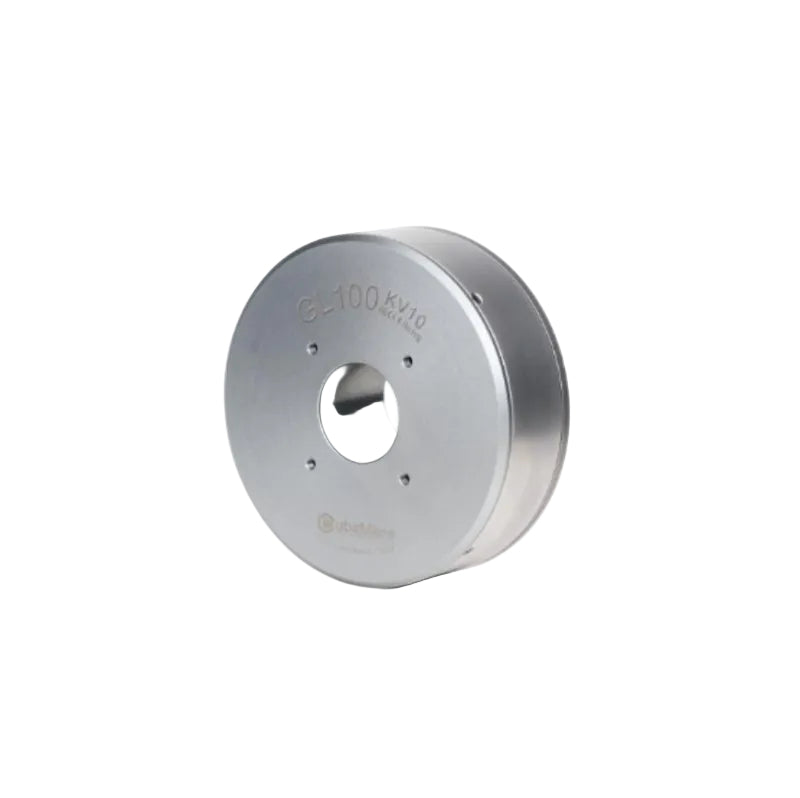

The CubeMars GL100 KV10 gimbal motor is a high-precision brushless motor from the CubeMars GL series, specifically designed for high-end gimbal systems, autonomous driving perception rotating modules, and radar scanning heads. Featuring a large hollow shaft structure, low cogging torque design, and a compact form factor, it delivers reliable performance with a weight of approximately 698 g. With an IP45 rating for dust and water resistance, this motor is ideal for applications requiring long-term, stable operation.
Core Specifications
-
Motor Dimensions: Ф106.8*34.2mm
-
Through-hole Diameter: 30mm
-
Motor Weight: 698g
-
Peak Torque: 7.7Nm
-
No-load Speed: 223rpm
Product Highlights
-
Large Hollow Shaft Design: Facilitates routing of signal and power cables or integration with slip rings, making it ideal for complex rotating systems
-
Low Cogging / Smooth Output: Specifically optimized for gimbal applications, delivering finer control and faster response
-
High Torque Output: Rated torque of approximately 3 Nm and peak torque of 7.7 Nm, capable of driving heavy loads with precision
-
Compact Yet Powerful: Weighs only ~698 g and measures Ø106.8 mm × 34.2 mm in size, offering high performance in space-constrained installations
-
Reliable Operation: IP45-rated protection ensures durability in dusty environments and complex rotational setups
Packaging Contents
-
GL100 KV10 Gimbal Motor x1
-
Certificate of Conformance x1
| PRODUCT PARAMETERS | |||
| Application | Gimbal, Radar | Insulation High-Voltage | 1000V 5mA/2s |
| Driving Way | FOC | Insulation Resistance | 1000V10MΩ |
| Operation Ambient Temperature | -20℃~50℃ | Phase | 3 |
| Winding Type | star | Pole Pairs | 20 |
| Insulation Class | H | ||
| Electric Parameters | |||
| Rated Voltage (V) | 24 | Ke (V/krpm) | 102.4 |
| No-Load Speed (rpm) | 223 | Phase To Phase Resistance (mΩ) |
2650 |
| Rated Torque (Nm) | 3 | Phase To Phase Inductance (μH) |
2350 |
| Rated Speed (rpm) | 130 | Inertia (g·cm²) | 2310 |
| Rated Current (ADC) | 2.9 | Km (Nm/√W) | 0.63272397 |
| Peak Torque (Nm) | 7.7 | Mechanical Time Constant (ms) |
0.58 |
| Peak Current (ADC) | 7.8 | Electrical Time Constant (ms) |
0.89 |
| Kv (rpm/V) | 9.3 | Weight (g) | 698 |
| Kt (Nm/A) | 1.030 | Maximum Torque Weight Ratio (Nm/kg) |
11.03 |
